Product details

Introducing the BELEKS 3-pole P04 series compact splicing connector with lever-nuts, a versatile and efficient solution for your electrical connection needs. This compact connector boasts a sleek design and is equipped with lever-nuts for easy and secure wire splicing. Suitable for a wide range of applications, it offers a reliable and durable connection that saves time and effort during installation. With its high-quality construction, the BELEKS 3-pole P04 series compact splicing quick connector with lever-nuts is the perfect choice for electrical professionals seeking a compact and efficient solution.

Item No.		P04-3P
Electrical Data
		IEC/EN	UL
Rated Voltage (V)		450	600
Rated Current (A)		32
Ambient Temperature	Polycarbonate	T85	90℃

Connection Data
		IEC/EN	UL
Cross Section	Solid conductor	0.2-4.0mm²	AWG 12-24
	Stranded conductor	0.2-4.0mm²	AWG 12-24
	Flexible conductor	0.2-4.0mm²	AWG 12-24
Strip length (mm)		13
Means of connection		push in
Rewirable		√
Number of terminals		single
Number of connection points		3
Materials
Insulation Materials	Designation	Polycarbonate
	Flammability class	UL 94V-2
Packing Quantity (pcs/carton)
3000

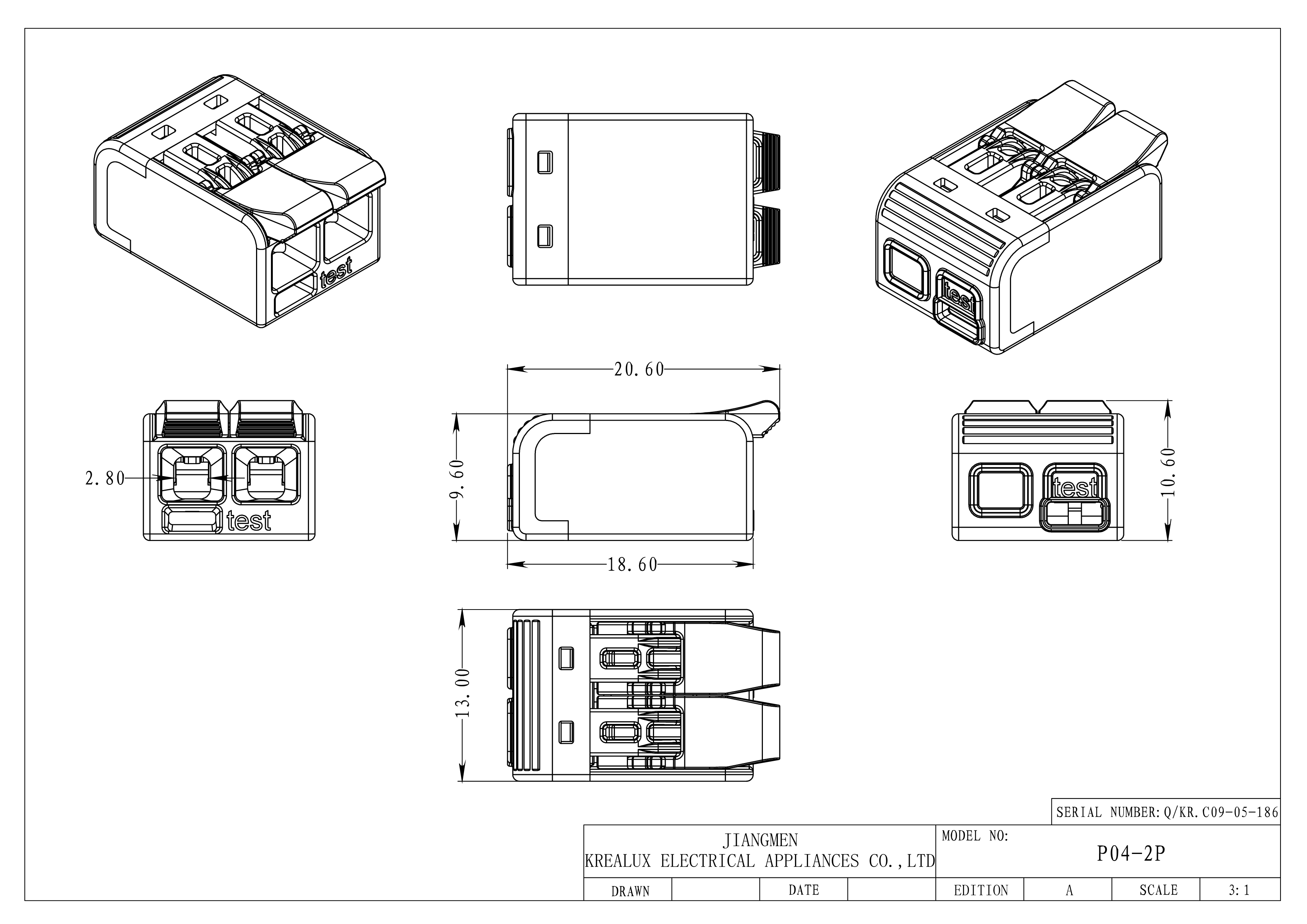

Dimensions
