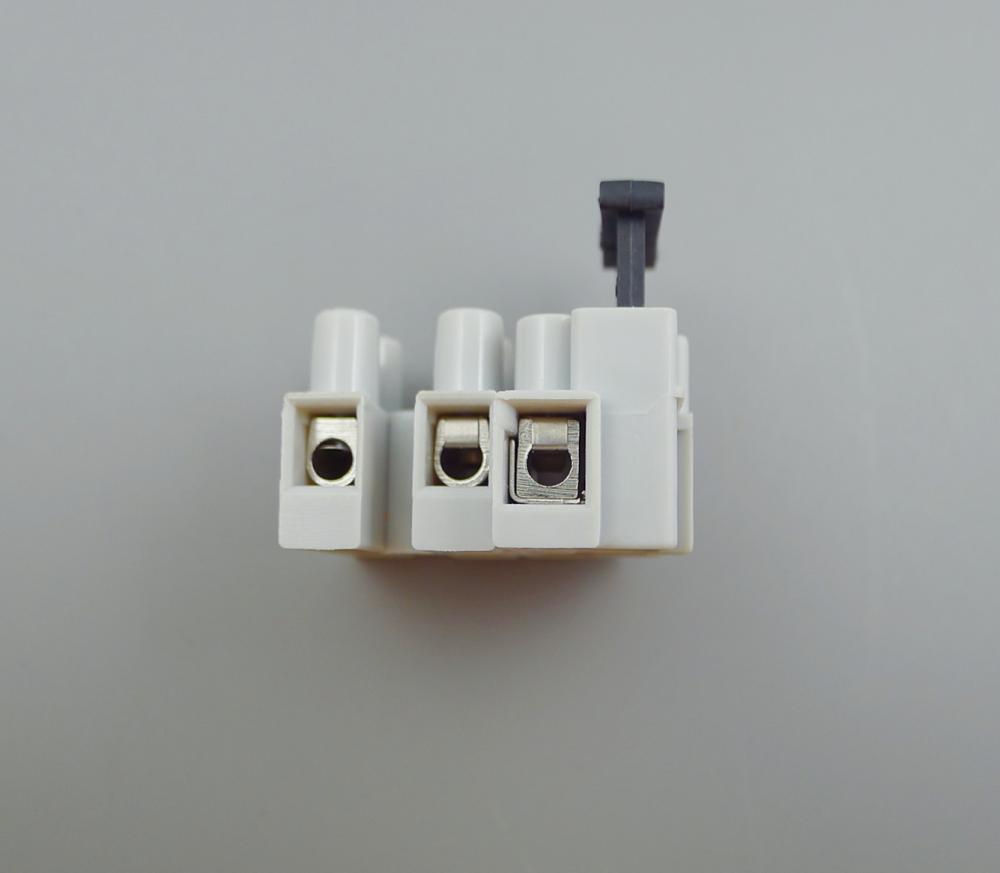

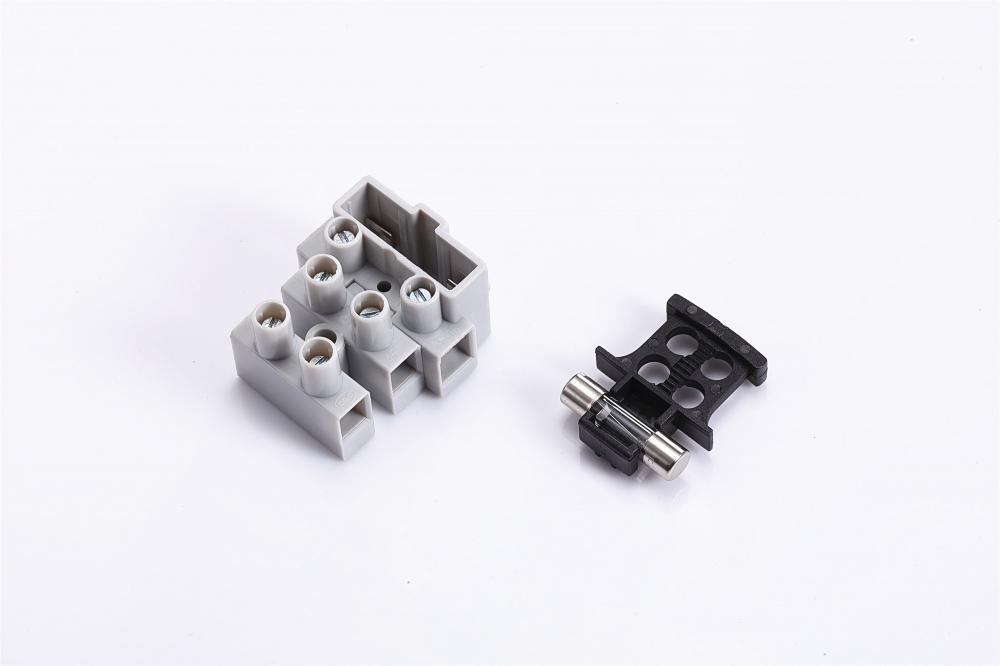

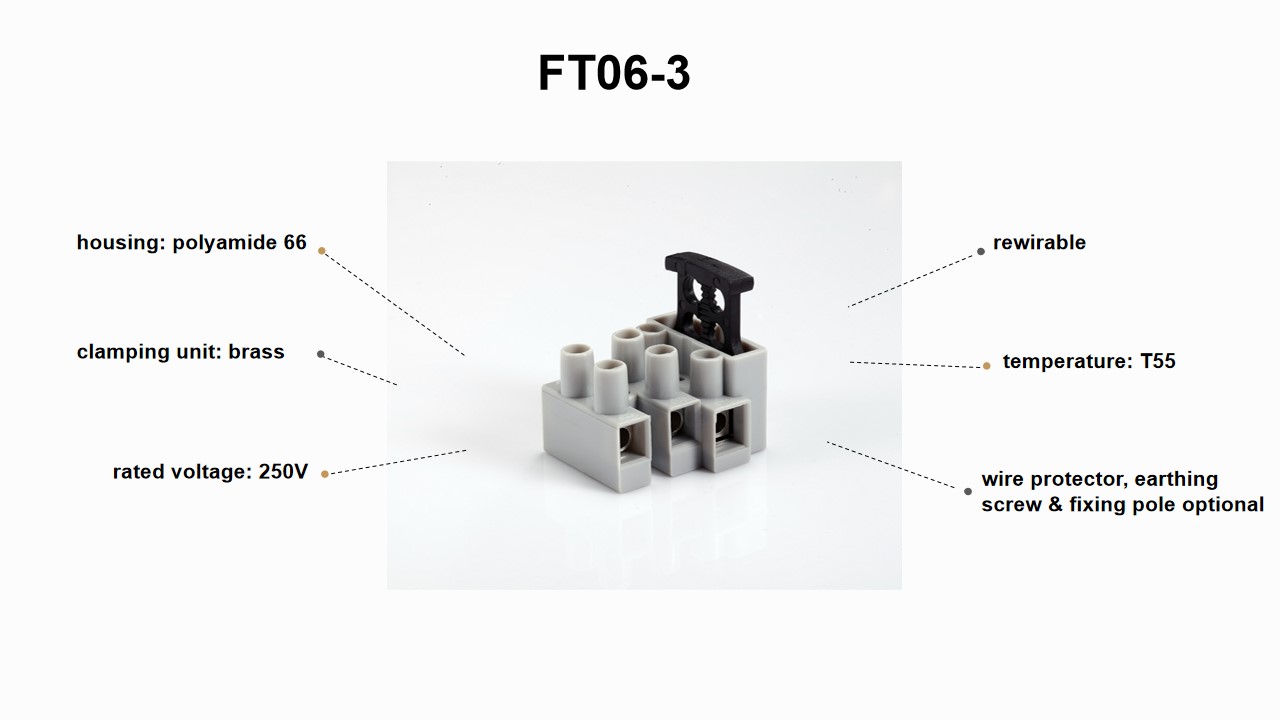

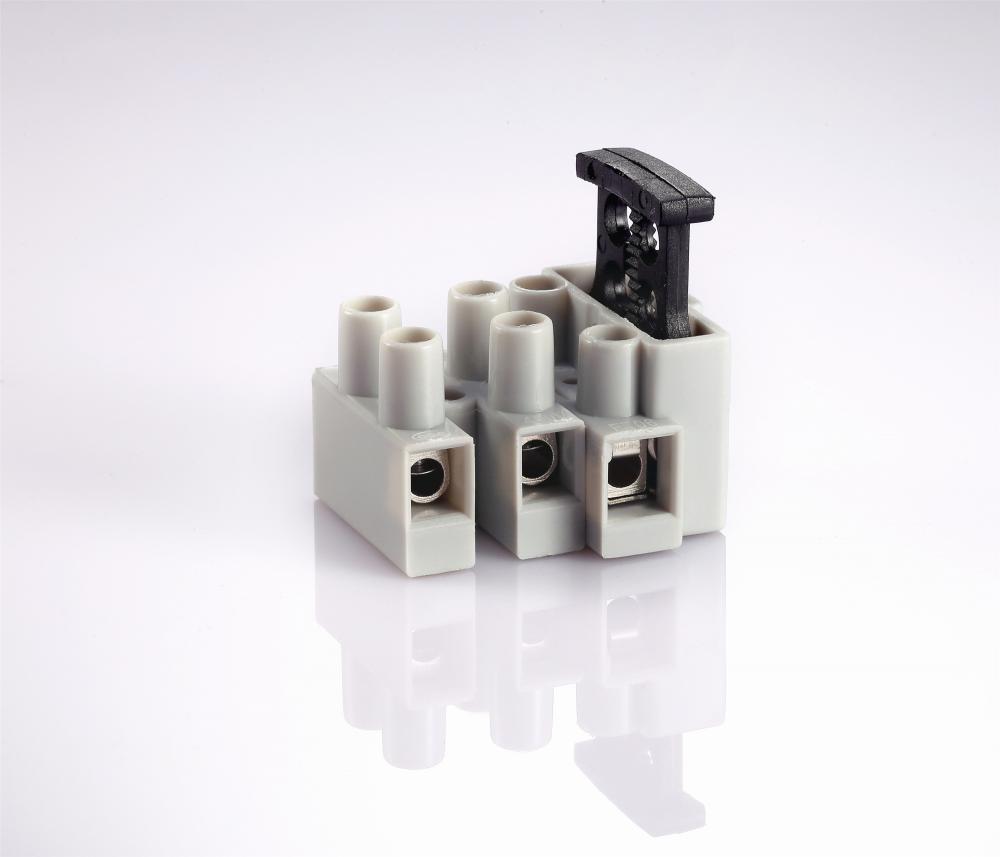

The BELEKS FT06 Series 3-Pole Fused Lighting Connector, also known as a fused terminal block, is a crucial component in electrical systems that require protection from overcurrents. This high-quality barrier terminal connector combines the functionality of a fuse and a terminal block, providing a safe and efficient way to distribute power to lighting fixtures and other electrical devices. With its 3-pole design, it offers multiple connection points, making it versatile and suitable for a wide range of applications. The BELEKS FT06 Series fuse connector is made from high-quality materials and features a compact, space-saving design. Its reliable performance and ease of installation make it a popular choice among electricians and DIY enthusiasts alike.
Specifications
| Item No. | FT06-3/83(A) FT06-3G/83(A) | ||
| Electrical Data | |||
| IEC/EN | |||
| Fuse Holder | Terminal | ||
| Rated Voltage (V) | 250 | 450 | |
| Rated Current (A) | 6.3 | 15 | |
| Ambient Temperature | Polyamide 66 | 105℃ | |
| Connection Data | |||
| IEC/EN | |||
| Cross Section | Solid conductor | 2.5-4.0mm² | |
| Stranded conductor | 2.5-4.0mm² | ||
| Flexible conductor | 2.5-4.0mm² | ||
| Strip length (mm) | 7 | ||
| Means of connection | screw fixed | ||
| Screw | M3 | ||
| Rewirable | √ | ||
| Number of terminals | multiway | ||
| Number of connection points | 3 | ||
| Means of Fixing | |||
| screw fixed | |||
| Materials | |||
| Insulation Materials | Designation | Polyamide 66 | |
| Flammability class | UL 94V-2 | ||
| Clamping Unit | brass | ||
| Compatible Products | |||
| Fuse | 5*20mm fuse | ||
| Packing Quantity (pcs/carton) | |||
| 500 | |||
