55-inch conference all-in-one machine

2 year ago

39 0 

Jiangsu Qilong Electronic Technology Co., Ltd.

2 year

Product details

55-inch touch screen interactive smart whiteboard

Efficient interactive tool for education and business scenarios

Core features: minimal operation × all-round function

High-definition visual experience

Full HD screen, delicate presentation of images/videos/formulas, clear text edges without jagged edges

Anti-glare coating, keep content visible in strong light environment

Natural interactive design

10-point touch technology, support multiple people writing at the same time, gesture zooming (two fingers), drag and drop, operation is as intuitive as a mobile phone

Precise pressure-sensitive pen support, real-time digitization of handwritten formulas/hand-drawn graphics, support erasing/modifying/saving

Built-in scenario tools

Integrated electronic whiteboard, document editing, multimedia player, web browser and other 10+ practical functions

Preset education templates (timetable/coordinate system), business templates (flow chart/data chart), ready to use

Wireless collaboration hub

Wi-Fi/Bluetooth dual-mode connection to mobile phone/tablet/ Computer, supports mirror projection, reverse control (device control whiteboard)

Real-time sharing in the cloud, remote teams can synchronize annotations and key points, and meeting records are automatically saved locally

Durable and easy to maintain

Slim wall-mounted design, suitable for classroom walls/conference room brackets, quick installation in 30 minutes

Low-power LED backlight, daily average energy consumption <1.2 degrees, fanless silent operation, annual average failure rate <0.5%

Multi-scenario adaptation

Education and teaching

Classroom interaction: touch writing replaces chalk blackboard, supports multi-disciplinary teaching aids (geometric figures/chemical equation library)

Group collaboration: students' tablets can be used to project whiteboards in real time, and teachers can annotate and comment on them with one click to improve classroom participation

Business scenarios

Conference presentation: PPT dynamic annotations, real-time web browsing, support for dual-window split-screen comparison (solution VS data)

Remote collaboration: share whiteboard images in video conferences, remote teams can edit flowcharts synchronously, and decision-making efficiency can be improved by 30%

Exhibition display

Interactive experience: touch to query product 3D Model, gesture switching display perspective, support QR code scanning to download materials

Brand communication: custom LOGO animation at startup, loop playback of corporate promotional videos, 4K picture quality to enhance visual impact

Safety and compatibility

Safety certification

Passed CE, FCC, CCC international safety certification, anti-leakage/anti-radiation design, suitable for education/commercial dual scenes

Child lock function (optional) to prevent accidental touch operation

Full platform adaptation

Compatible with Windows/macOS/Android/iOS, support Type-C/HDMI dual interface plug and play

Cross-system file interoperability: support PPT/Excel/Keynote/PDF and other 20+ formats to open and edit directly

Reasons for selection

Minimally simple interaction reduces the threshold for use, all-round functions cover all scene needs, green energy saving is in line with sustainable development - not only a hardware device, but also a digital bridge connecting educational innovation and business efficiency.

Jiangsu Qilong Electronic Technology Co.,LTD.is a factory located in China. Specialized in producing Education Interactive Board, such as Interactive conference board, Memory blackboard, Smart blackboard,Training Interactive Board，etc.

Main specification parameters

1. Overview of specifications

Faceplate	Screen size	55"
	Backlit type	D-LED
	Resolution ratio	3840*2160
	Luminance	≥350cd/m²
	Screen contrast	5500:1
	Response time	6ms
	Pixel point distance	0.315×0.315 mm (H×V)
	Frame frequency	60 Hz
	Angle of view	178°(H) / 178°(V)
	Color saturation (x% NTSC)	72 %
	Visual area	1209.6×680.4 mm (H×V)
	Color degree	1.07B(8bit)
	Life span	30,000 hrs
Project	Slug	GK6760V100
System Properties	System version	Android 12.0
	CPU	8*A55
	GPU	Mali-G52 MP2(2EE)
	Internal cache capacity (RAM)	4 GB DDR4
	Internal Storage Capacity (ROM)	32 GB Standard
Power parameters	Voltage	100 V ~ 240 V/AC, 50/60 Hz
	Maximum power (without OPS)	≦96W
	OPS source	19V(DC)/5A
Power parameters	Standby power consumption	<0.5W
Power parameters	Power supply (AC) input	*1
Structure	Net weight	33Kg±1.5Kg
	Rough weight	40Kg±1.5Kg (Heavy-duty carton)
	Bare machine size (length * width * thick)	1273.4mm773mm92.4mm
	Packaging size (length * width * height)	1395mm * 901mm * 190mm (heavy duty carton)

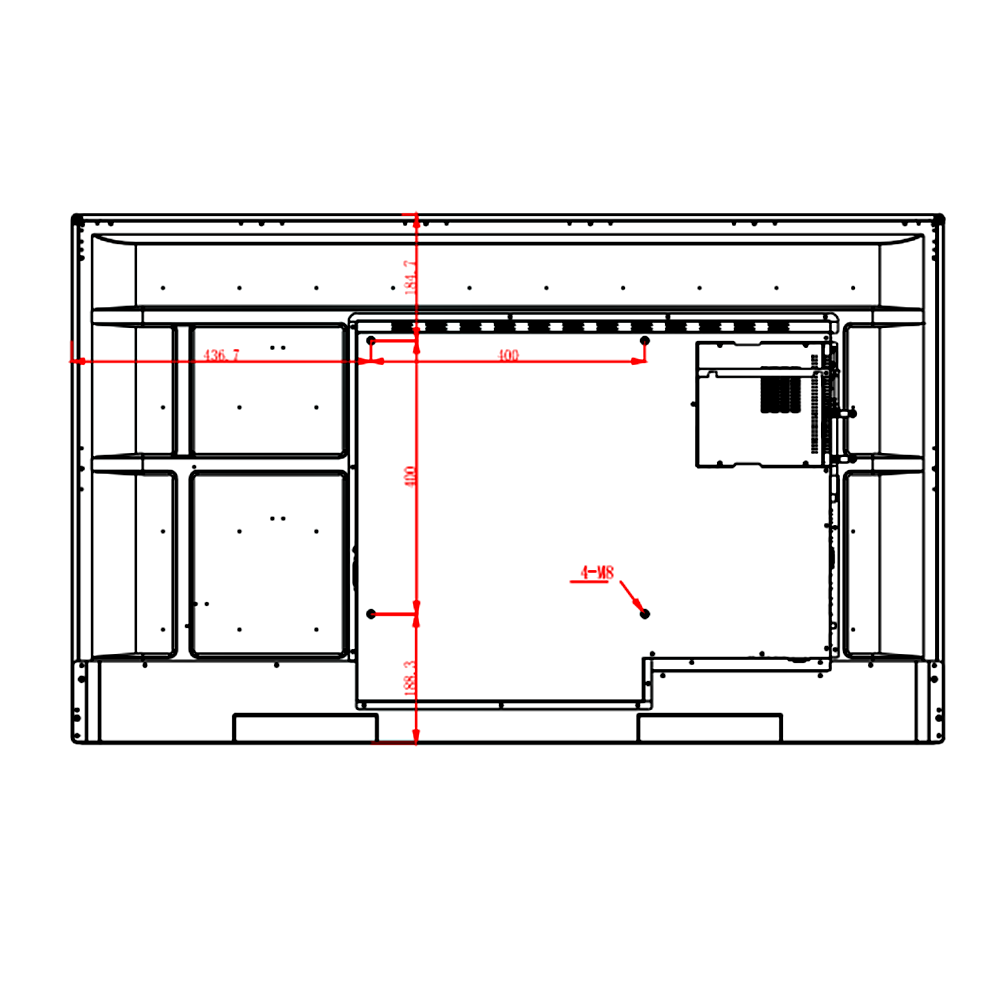

	VESA hole site	4-M8 screw hole 400mmx400mm
	Housing Material (face frame / rear housing)	Aluminum profile / sheet metal
	Shell color (face frame / rear shell)	Black (upper / lower silver / all silver optional)
Front interface	Switch button * 1	(Light sense optional)
	USB(Shared) * 3	Standard USB Type-A interface
	Type-c USB*1	Standard USB3.0 Type-C interface
	HDMI IN*1	Standard HDMI Type-A interface, and the HDMI input is displayed
	TOUCH_OUT*1	Standard USB2.0 Type-B interface
Touch parameters	Touch specifications	Infrared touch box
	Glass specifications	General Glass / anti-glare toughened glass is available
	Response speed	≤6ms
	Touch accuracy	The accuracy of 90% center area is ± 1mm, and 10% edge area is ± 3mm
Touch parameters	Touch diameter	≥3mm
	Input mode	Finger or special pen
	Number of theoretical clicks	Infinite times
Interface type	The USB 2.0 is at full speed
Operating voltage	4.75～5.25V
Power wastage	≤2 W

Display:

55-inch Z8 conference all-in-one machine
