55-inch conference all-in-one machine with camera
2 year ago
Product details
Core functions
55-inch 4K touch screen: 3840×2160 ultra-high-definition resolution, supports 10-point synchronous touch, smooth and natural handwriting/annotation, and no delay for multiple people to operate on the same screen
HD camera configuration: built-in 1080P wide-angle camera, supports video conferencing, remote teaching, auto focus framing, and immersive remote interaction
Multi-mode input compatibility: supports finger touch, electronic pen writing, voice commands and image recognition, adapted to different usage habits
Performance advantages
Powerful hardware configuration: equipped with a high-performance processor, fast running of complex tasks such as PPT presentations and video playback, and supports multi-application split-screen collaboration
Full-device wireless interconnection: Wi-Fi/Bluetooth connects to mobile phones/computers, one-click screen projection to share content; supports reverse control, direct operation of external device interfaces
Massive resource access: built-in browser to access educational videos/courseware, compatible with 20+ PPT/PDF/Word, etc. File format can be opened and edited directly
Scene adaptation
Education and teaching
Classroom interaction: multiple people can annotate courseware at the same time, screen projection of student homework in real time, and improve teaching efficiency with subject tool library (formula/geometric figures)
Remote teaching: The camera can capture the teacher's blackboard writing in real time, and students in different places can view the annotations synchronously, and support the playback and review of recorded course videos
Business meeting
Video conference: The camera automatically frames the participants, the noise reduction microphone can clearly pick up the sound, and it is compatible with Zoom/Teams and other platforms for immediate use
Collaborative demonstration: pinch to zoom and focus on data charts, split screen to compare solutions and data, and the annotated content is automatically saved to the cloud for easy traceability
Easy to use and durable
Minimal operation: ready to use after power on, graphical guidance interface, wall mounting/bracket installation completed in 30 minutes
Energy-saving design: intelligent sleep mode reduces power consumption, daily average energy consumption <1.5 degrees, 7H hardness scratch-resistant glass supports high-frequency use

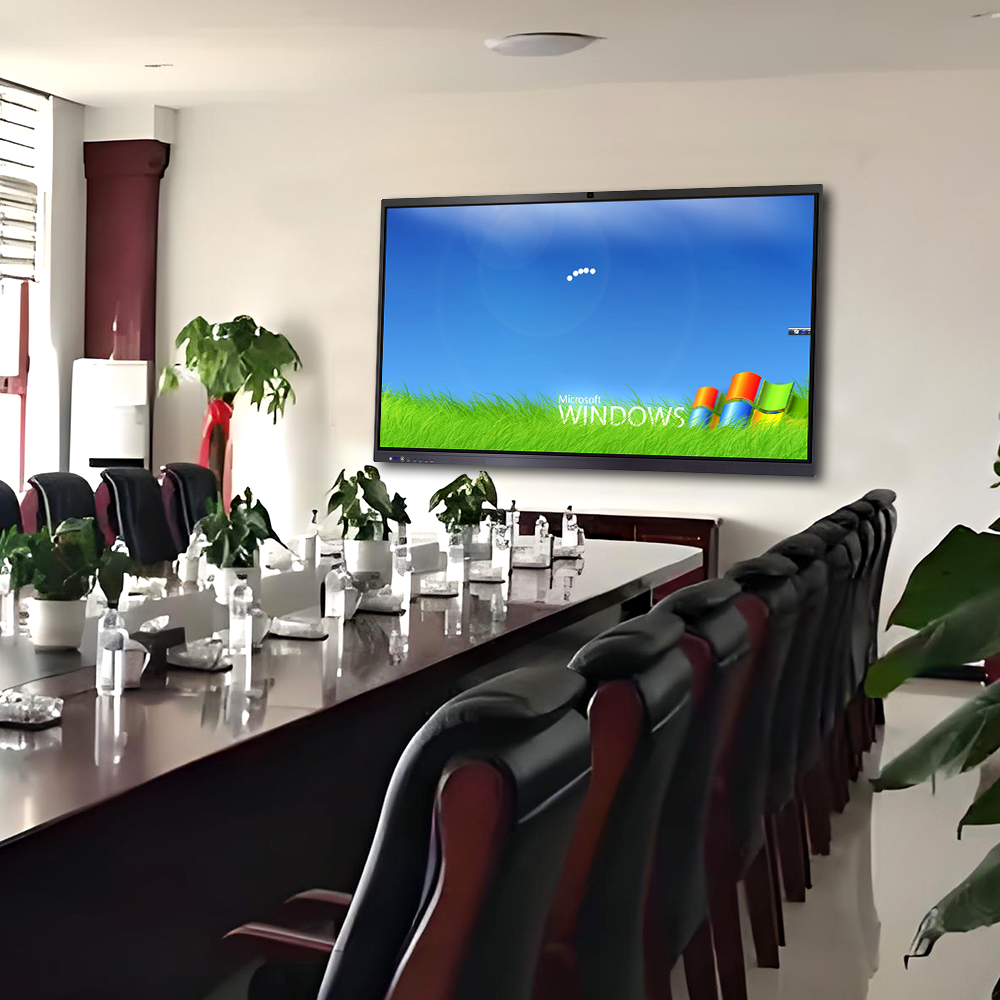

Applicable scenarios: corporate conference rooms, school classrooms, training centers, etc., to help efficient communication and interactive collaboration, and build new digital interaction scenarios.
Jiangsu Qilong Electronic Technology Co.,LTD.is a factory located in China. Specialized in producing Education Interactive Board, such as Interactive conference board, Memory blackboard, Smart blackboard,Training Interactive Board，etc.
Main specification parameters
1. Overview of specifications
| Faceplate | Screen size | 55" |
| Backlit type | D-LED | |
| Resolution ratio | 3840*2160 | |
| Luminance | ≥350cd/m² | |
| Screen contrast | 5500:1 | |
| Response time | 6ms | |
| Pixel point distance | 0.315×0.315 mm (H×V) | |
| Frame frequency | 60 Hz | |
| Angle of view | 178°(H) / 178°(V) | |
| Color saturation (x% NTSC) | 72 % | |
| Visual area | 1209.6×680.4 mm (H×V) | |
| Color degree | 1.07B(8bit) | |
| Life span | 30,000 hrs | |
| Project | Slug | MSD6190 |
| Power parameters | Voltage | 100 V ~ 240 V/AC, 50/60 Hz |
| Maximum power (without OPS) | ≦96W | |
| OPS source | 19V(DC)/5A | |
| Power parameters | Standby power consumption | <0.5W |
| Power supply (AC) input | *1 | |
| Built-in camera / pickup mic | Maximum effective pixel | 3840 * 3380 (13 megapixels, downward compatible |
| Camera dual system follow recognition | Including 8 built-in array sound pickup mic, support the camera module | |
| Pickup valid receiving distance | 10 m (high sensitivity [-38 dB of 94 dB SPL @ 1 KHz] | |
| Signal-to-noise ratio of the pick up | 61dB of（94 dB SPL@1KHz,A-weighted） | |
| Support function | Echo cancellation / beamforming / removal conference room mixing to maintain voice reduction and voice recognition / automatic gain-AGC gentle high voice enhanced bass provides a consistent near and far call experience | |
| Front interface | Switch button * 1 | (Light sense optional) |
| USB(Shared) * 3 | Standard USB Type-A interface | |
| Type-c USB*1 | Standard USB3.0 Type-C interface | |
| HDMI IN*1 | Standard HDMI Type-A interface, and the HDMI input is displayed | |
| TOUCH_OUT*1 | Standard USB2.0 Type-B interface | |
| Structure | Net weight | 33Kg±1.5Kg |
| Rough weight | 40Kg±1.5Kg(Heavy Carton) | |
| Bare machine size (length * width * thick) | 1273.4mm*788mm*92.4mm | |
| Packaging size (length * width * height) | 1395mm*901mm*190mm(Heavy Carton) | |
| VESA hole site | 4-M8 screw hole 400mmx400mm | |
| Housing Material (face frame / rear housing) | Aluminum profile / sheet metal | |
| Shell color (face frame / rear shell) | Black (upper / lower silver / all silver optional) | |
| Touch parameters | Touch specifications | Infrared touch box |
| Glass specifications | General Glass / anti-glare toughened glass is available | |
| Response speed | ≤6ms | |
| Touch accuracy | The accuracy of 90% center area is ± 1mm, and 10% edge area is ± 3mm | |
| Touch parameters | Touch diameter | ≥3mm |
| Input mode | Finger or special pen | |
| Number of theoretical clicks | Infinite times | |
| Interface type | The USB 2.0 is at full speed | |
| Operating voltage | 4.75～5.25V | |
| Power wastage | ≤2 W | |
