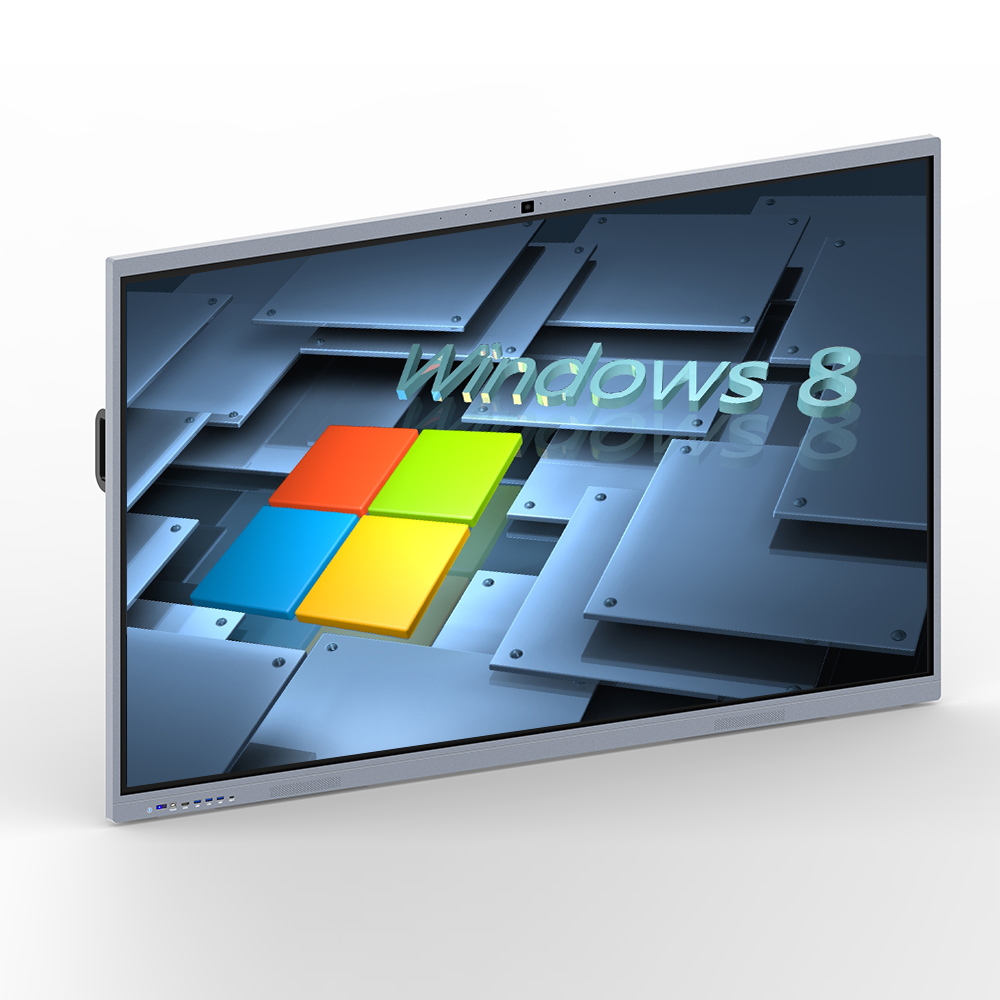

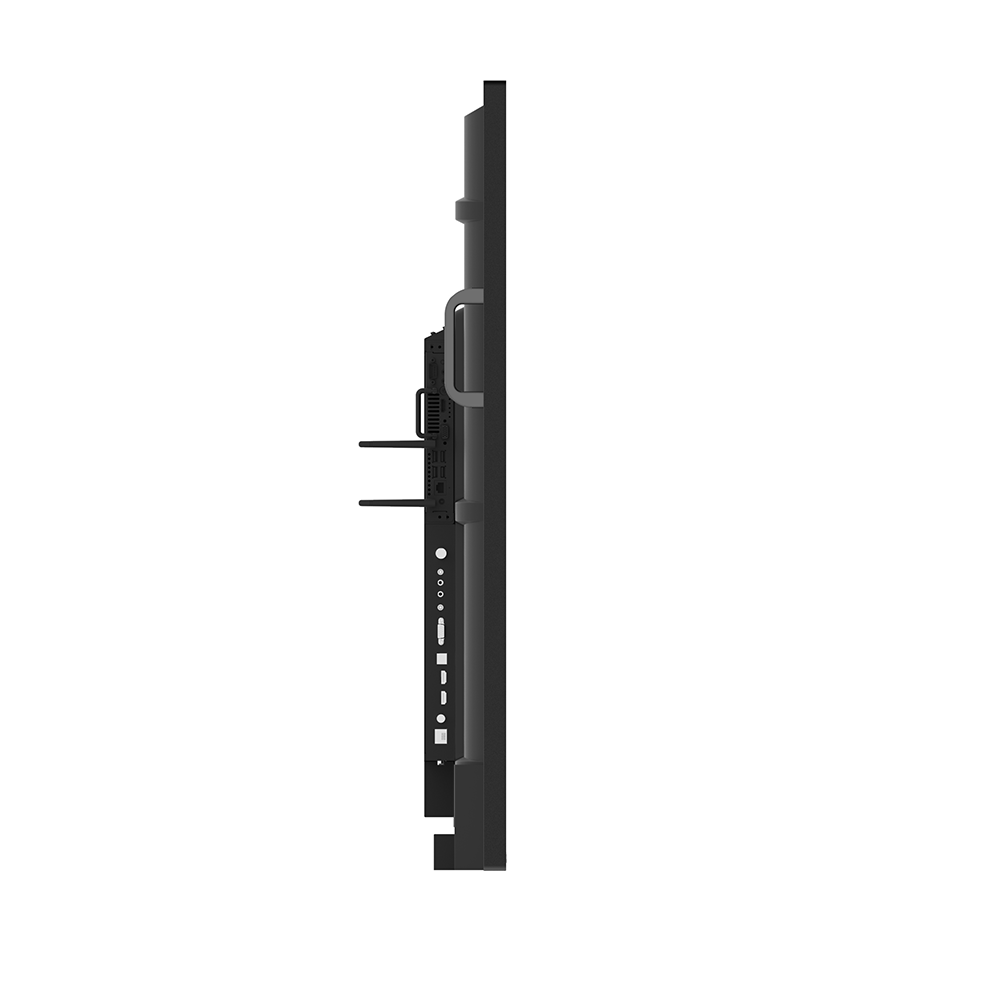

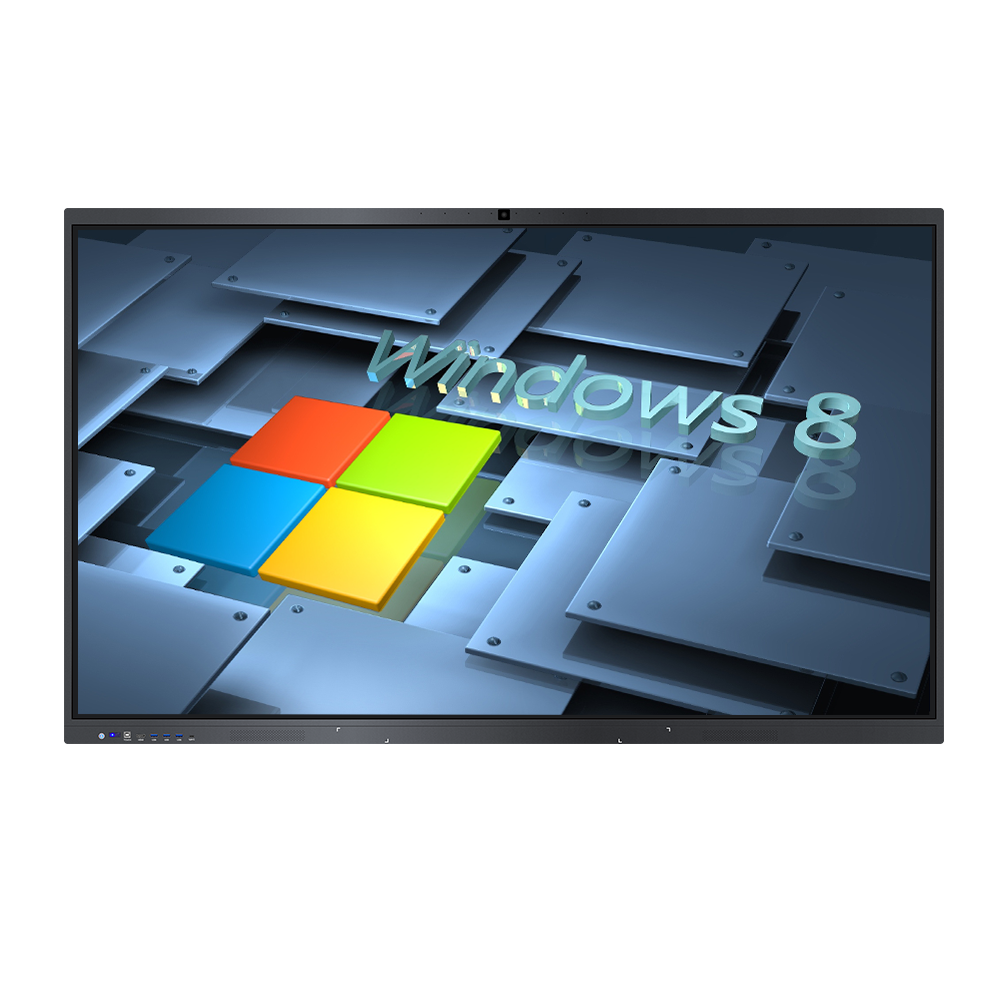

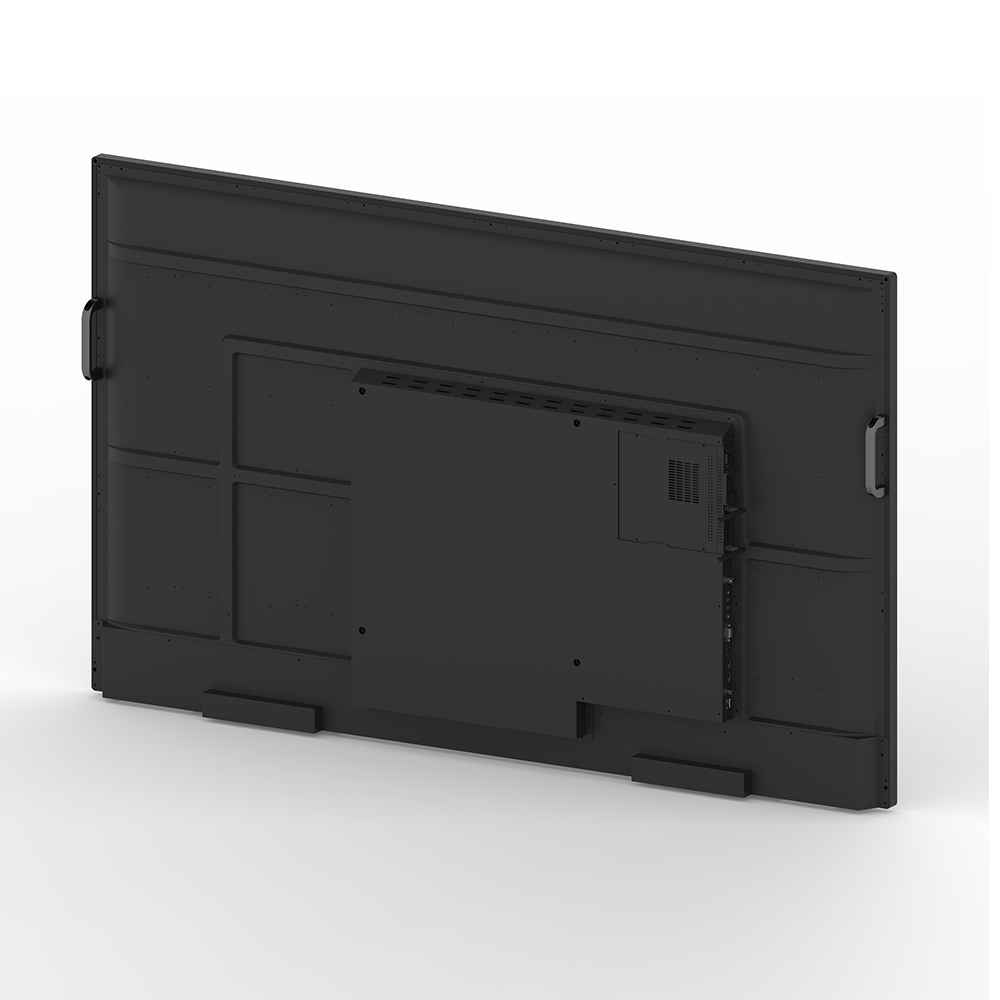

65-inch Z8 built-in camera conference machine spec
2 year ago
In addition to Interactive Whiteboard, our company produces various electronic products, such as: Interactive tablet, Conference interactive tablet, Multimedia All-in-One PC, etc. If you need it, please contact us
| Faceplate | Screen size | 98" |
| Backlit type | D-LED | |
| Resolution ratio | 3840*2160 | |
| Luminance | ≥350cd/m² | |
| Screen contrast | 1200:1 | |
| Response time | 6ms | |
| Pixel point distance | 0.5622×0.5622 mm (W×H) | |
| Frame frequency | 60 Hz | |
| Angle of view | 178°(H) / 178°(V) | |
| Color saturation (x% NTSC) | 72 % | |
| Visual area | 2158.85(W)×1214.35(H) mm | |
| Color degree | 1.07B(8bit) | |
| Life span | 30,000 hrs | |
| Programmatic | Slug | T982 |
| System Properties | System version | Android 11.0 |
| CPU | Quad-core ARM Cortex-A55 | |
| GPU | Mali-G52 MP2(2EE) | |
| Internal cache capacity (RAM) | 4 GB DDR4 | |
| Internal Storage Capacity (ROM) | 32 GB Standard | |
| Power parameters | Voltage | 100 V ~ 240 V/AC, 50/60 Hz |
| Maximum power (without OPS) | ≦449W | |
| OPS source | 19V(DC)/5A | |
| Power parameters | Standby power consumption | <0.5W |
| Power supply (AC) input | *1 | |
| Structure | Net weight | 110Kg±1.5Kg |
| Rough weight | 120Kg±1.5Kg(Heavy Carton) | |
| Bare machine size (length * width * thick) | 2218.4mm*1321.7mm*93.2mm | |
| Packaging size (length * width * height) | 2325mm*1445mm*220mm(Heavy Carton) | |
| VESA hole site | 4-M8 screw hole 800mmx500mm | |
| Housing Material (face frame / rear housing) | Aluminum profile / sheet metal | |
| Shell color (face frame / rear shell) | Black (upper / lower silver / all silver optional) | |
| Touch parameters | Touch specifications | Infrared touch box |
| Glass specifications | General Glass / anti-glare toughened glass is available | |
| Response speed | ≤6ms | |
| Touch accuracy | The accuracy of 90% center area is ± 1mm, and 10% edge area is ± 3mm | |
| Touch parameters | Touch diameter | ≥3mm |
| Input mode | Finger or special pen | |
| Number of theoretical clicks | Infinite times | |
| Interface type | The USB 2.0 is at full speed | |
| Operating voltage | 4.75～5.25V | |
| Power wastage | ≤2 W | |
