How to use the BELEKS P02 push-wire connectors

8 month ago

2 0 

Jiangmen Krealux Electrical Appliances Co.,Ltd.

5 year

Product details

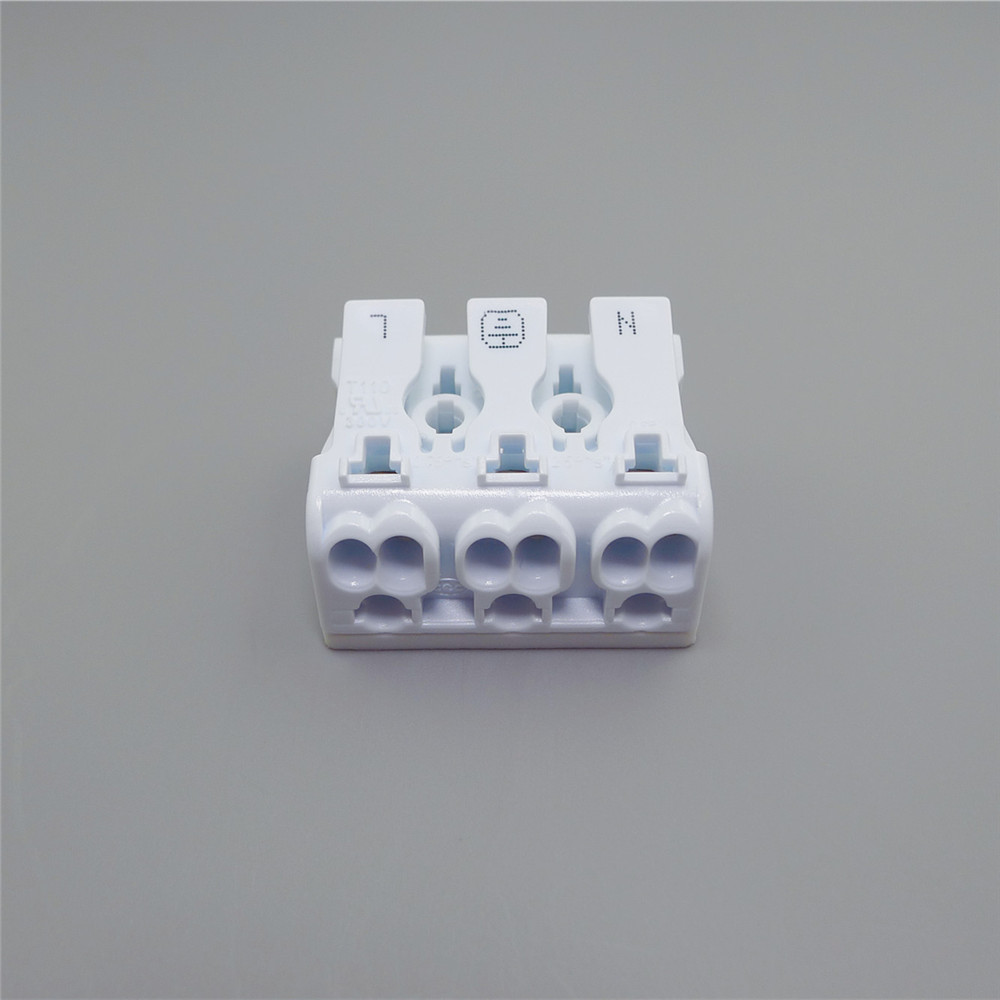

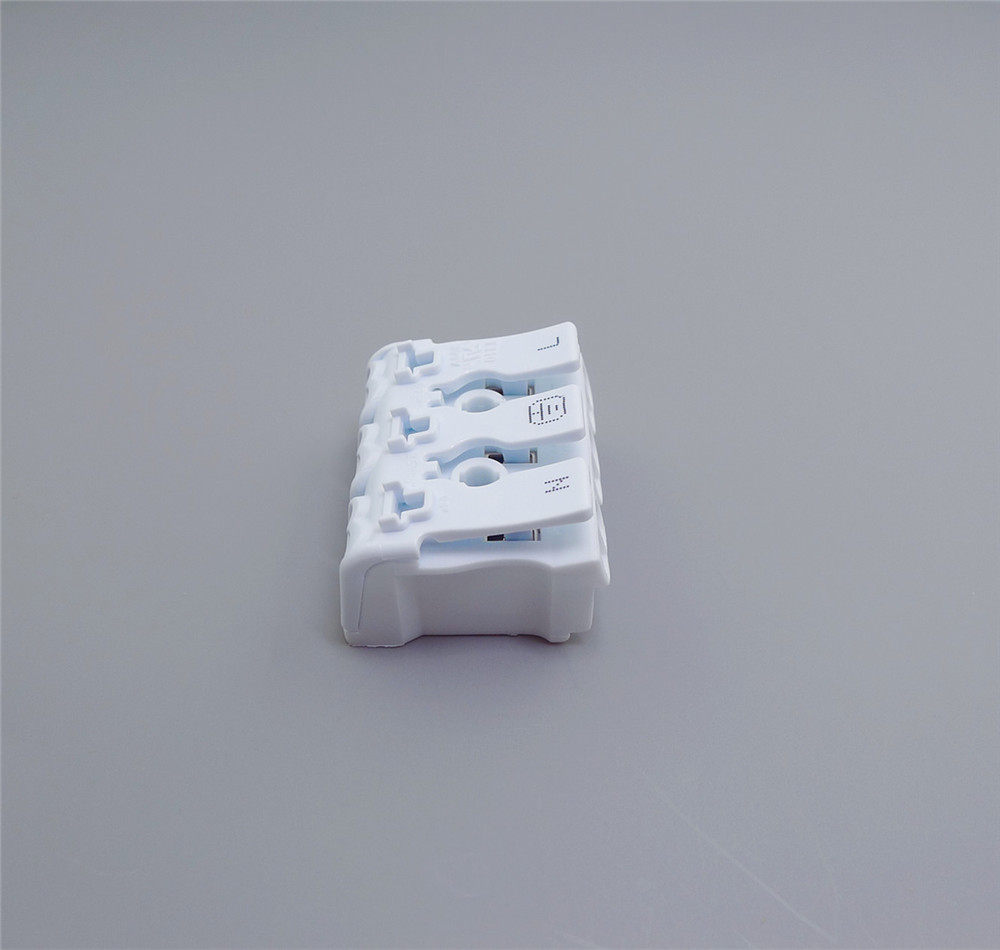

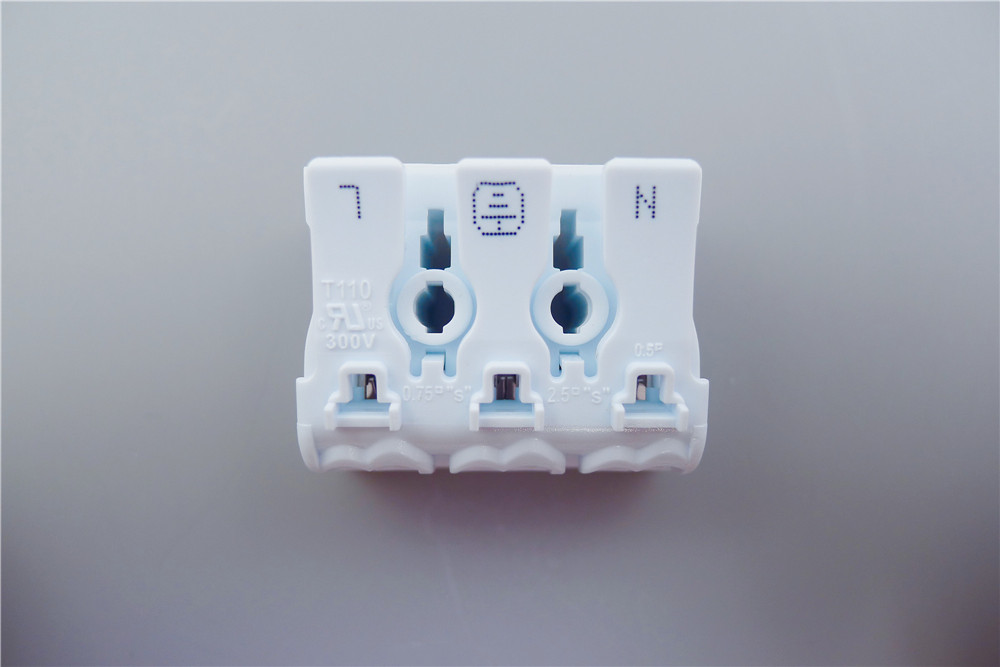

Introducing the Beleks 3-pin rectangular quick connect push-in cable connector, a versatile and efficient solution for electrical wiring installations. This push in connector features a compact rectangular design with three pins, allowing for quick and easy connections of wires and cables. Its push-in mechanism simplifies the wiring process, saving time and effort. Suitable for a wide range of applications in the lighting and electrical industries, the Beleks 3-pin quick connector ensures a secure and reliable connection, meeting industry standards for safety and compliance. Whether you're working on a commercial or residential project, this connector is an essential tool for any electrician or DIY enthusiast.

Materials:

Housing: polyamide66(v2)

cover: polycarbonate(v2)

clamping unit: copper & stainless steel

Packing info: 50 pcs per bag, 10 bags per carton

carton size: 57×28.1×12.5 cm

net weight: 4kg

gross weight: 4.5kg

Dimensions

Specifications

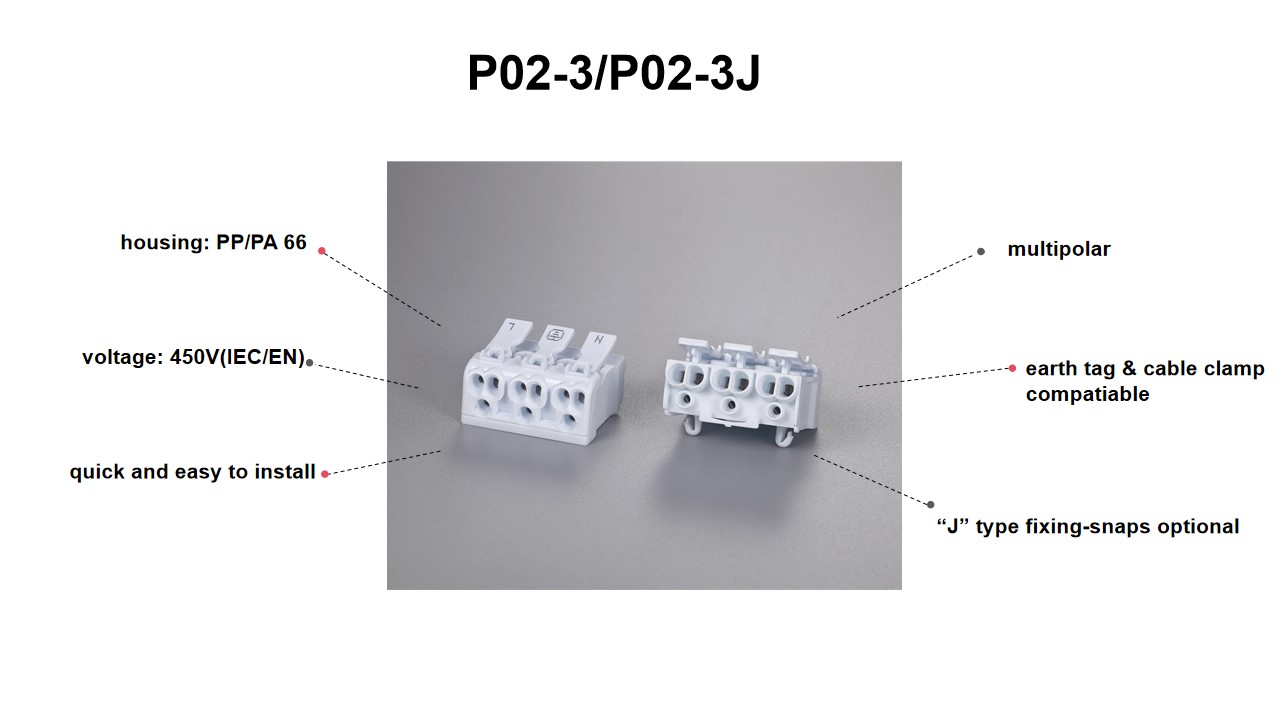

Item No.			P02-3/9
Electrical Data
			IEC/EN	UL
Rated Voltage (V)			450	300
Rated Current (A)			24	16
Ambient Temperature			T110	105℃

Connection Data
			IEC/EN	UL
Installation side	A holes	Solid conductor	0.5-2.5mm²	AWG 14-20
		Stranded conductor
	B holes	Solid conductor	0.5-1.5mm²	AWG 16-20
		Stranded conductor
Lighting side	a/b holes	Solid conductor	0.5-2.5mm²	AWG 14-20
		Stranded conductor
		Flexible conductor		-
Strip length (mm)			8-10
Means of connection			push in
Rewirable			√
Number of terminals			multiway
Number of connection points			3*2
Means of Fixing			screw fixed / fixing snap
Flammability class			UL 94V-2
Compatible Products
Cable clamp			P02-SR2
Junction boxes			TB-02, 410, 415
Packing Quantity (pcs/carton)
500
