Semi-Fluidized CN layer rhombic rubber sheet

10 month ago

14 0 

10 month

Product details

Product introduction

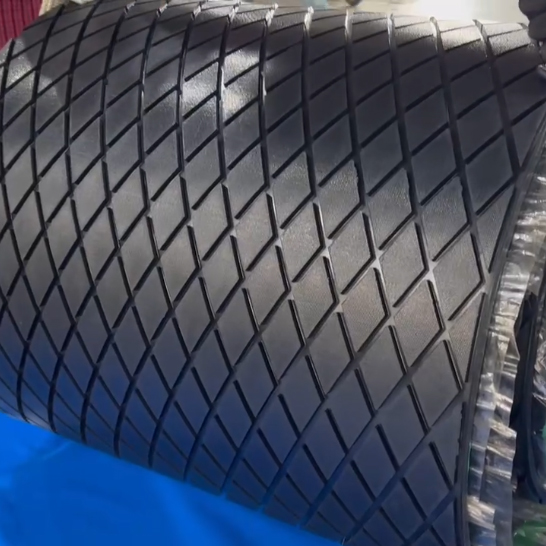

Wrapped rhombic roller can efficiently assist the material running after wrapped with rubber, rhombic rubber sheet bonding surface with half vulcanized CN layer, the working surface has rhombic pattern, which can be applied to the roller that needs strong gripping force and high abrasion resistance, and it can increase the friction between the roller and the conveyor belt.

Scope of Application

Power plants, coal mines, cement plants, steel, metallurgy, coal, fertilizers, grain depots, ports and other industries, suitable for a variety of industrial and mining environments.

Product Advantage

High abrasion resistance

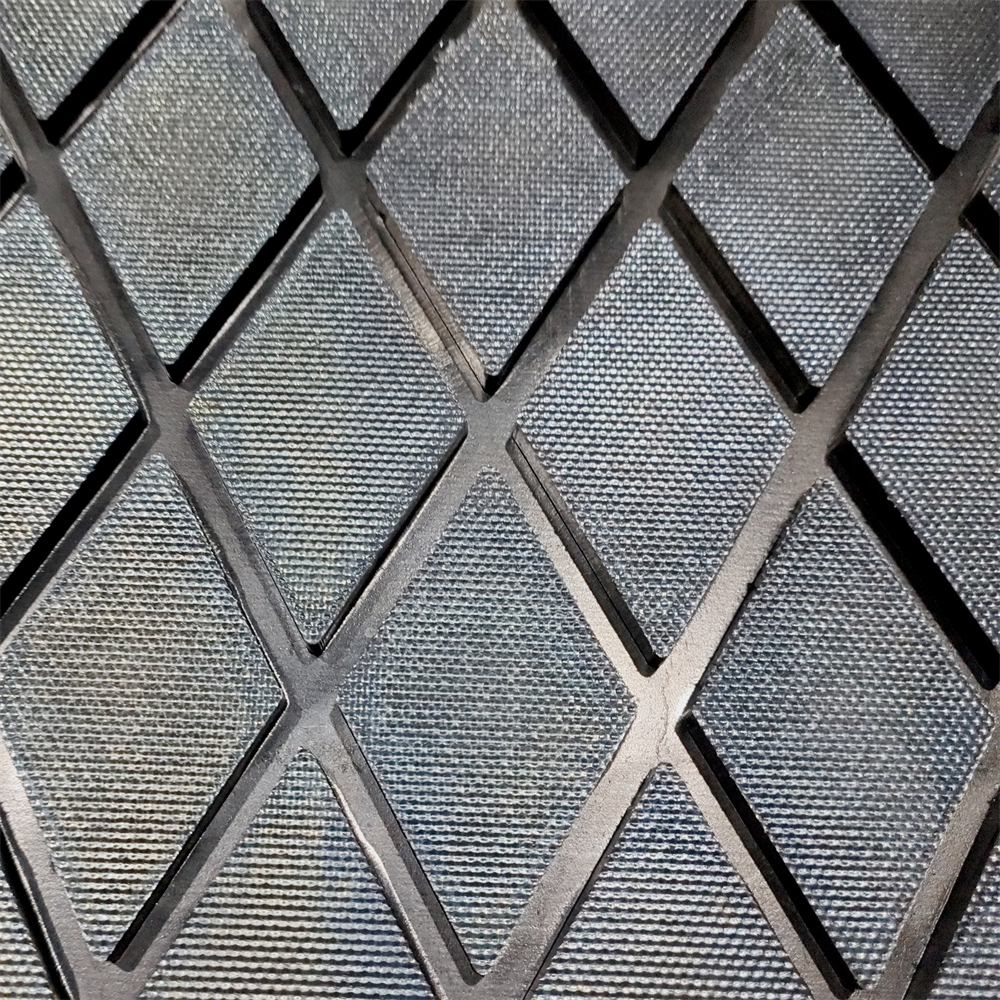

The rhombic rubber sheet is made of high quality wear-resistant rubber material, and the diamond pattern design on the surface effectively disperses the pressure, reduces single-point wear and prolongs the service life of the drum.

Strong tear resistance

The back half vulcanized layer reacts with cold vulcanized adhesive to produce vulcanization, which provides good anti-tearing ability and high adhesion between the drum and rubber plate, preventing from opening and debonding.

High friction

The rhombic pattern increases the friction between the drum and the conveyor belt, effectively prevents the belt from slipping, reduces the bonding of materials on the surface of the drum, and improves the operation efficiency.

Strong drainage and mud removal ability

The groove design between the rhombic helps drain mud, and the elastic deformation of the rubber can further squeeze out debris and protect the drum.

Excellent environmental resistance

Can be used in a variety of ambient temperatures, can better adapt to a variety of working environments.

Easy maintenance and replacement

The structure of rhombic roller covering rubber is reasonably designed, and the replacement process is relatively simple and quick, which reduces the maintenance cost and time cost.

Improve the overall operating efficiency

Improve the running condition of the conveyor belt conveying system, synchronize the roller with the belt, and improve the running capacity of the belt.

Product specification

Thickness of rhombic rubber sheet: 10mm, 12mm, 15mm, 20mm.

Length per roll: 12500mm, 10000mm

Various specifications can meet different needs and application environments.

This product is a customizable product, the price is not the final price, before ordering, please communicate with customer service specific specifications, parameters, prices and other details.

The main products we produce are:Wear-resistant Ceramics（Roller Covered Ceramic Adhesive Sheet,Roller Covered Rhombic Rubber Sheet,Three-in-one Ceramic Composite Liner）,Engineering Plastic,Adhesive.

Rhombic rubber sheet high wear-resistant
