p02 series push wire connectors
2 year ago

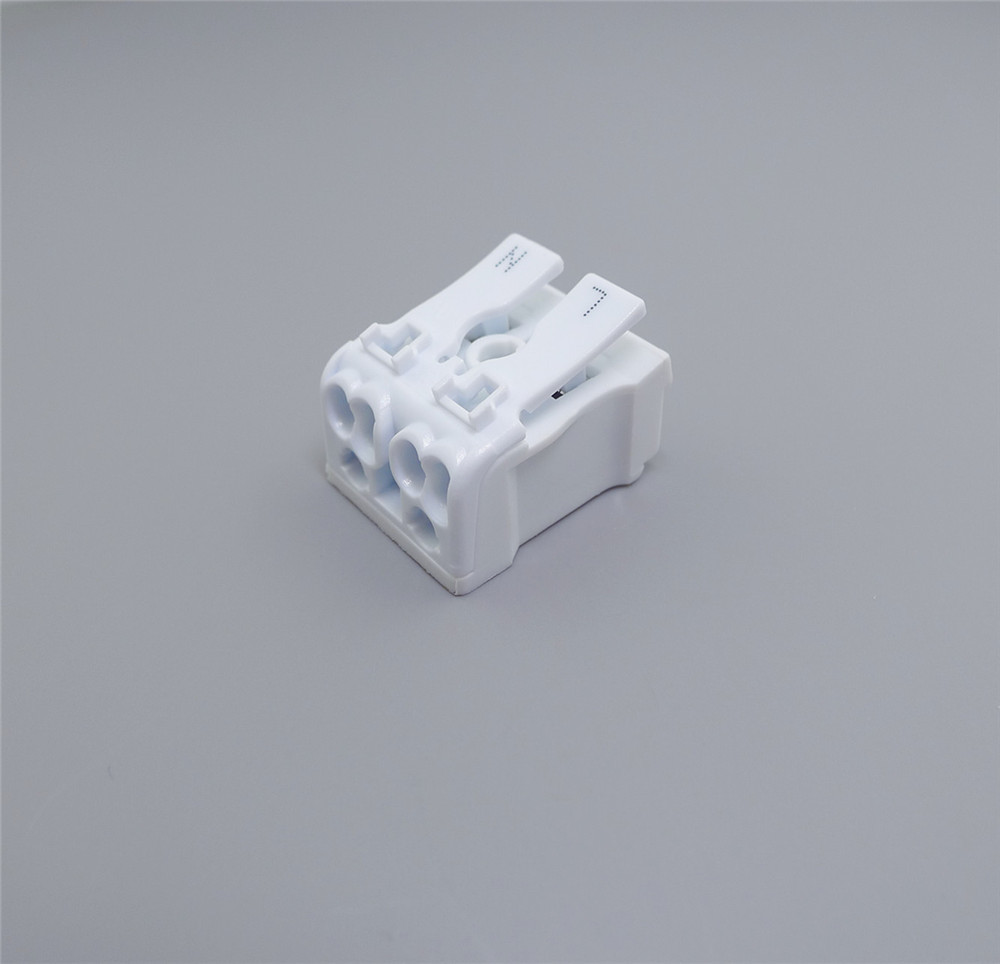

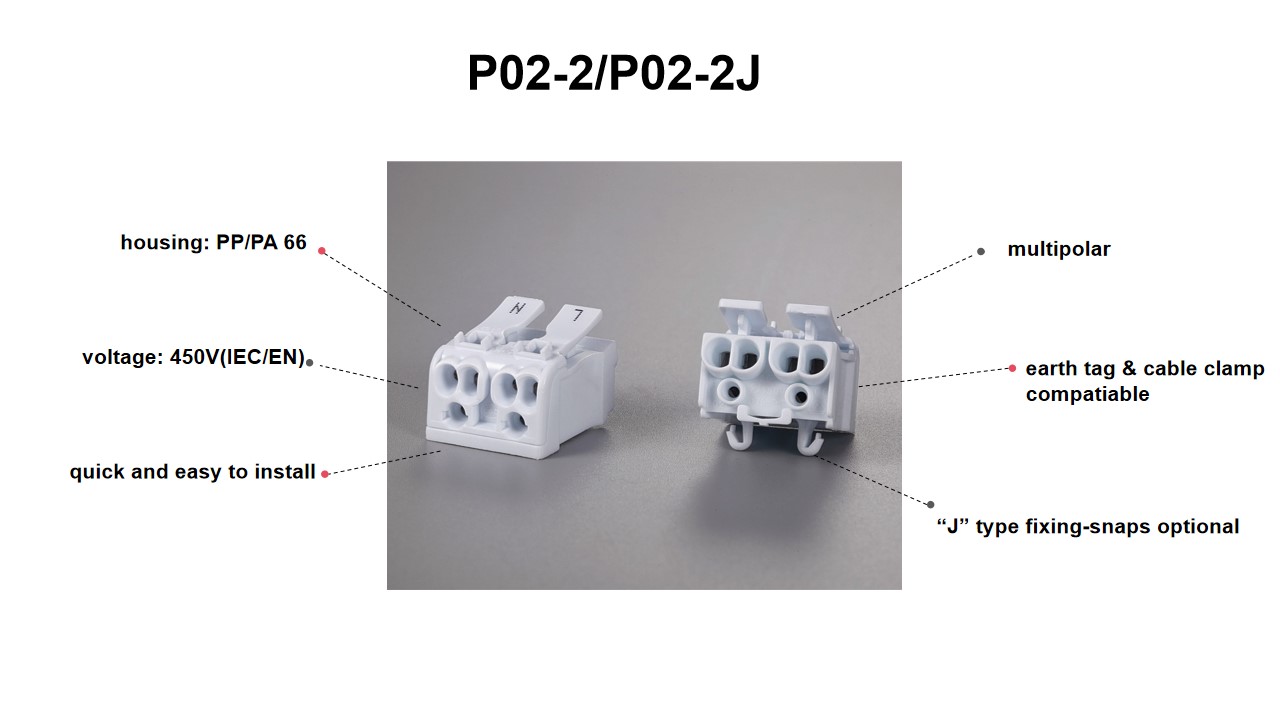

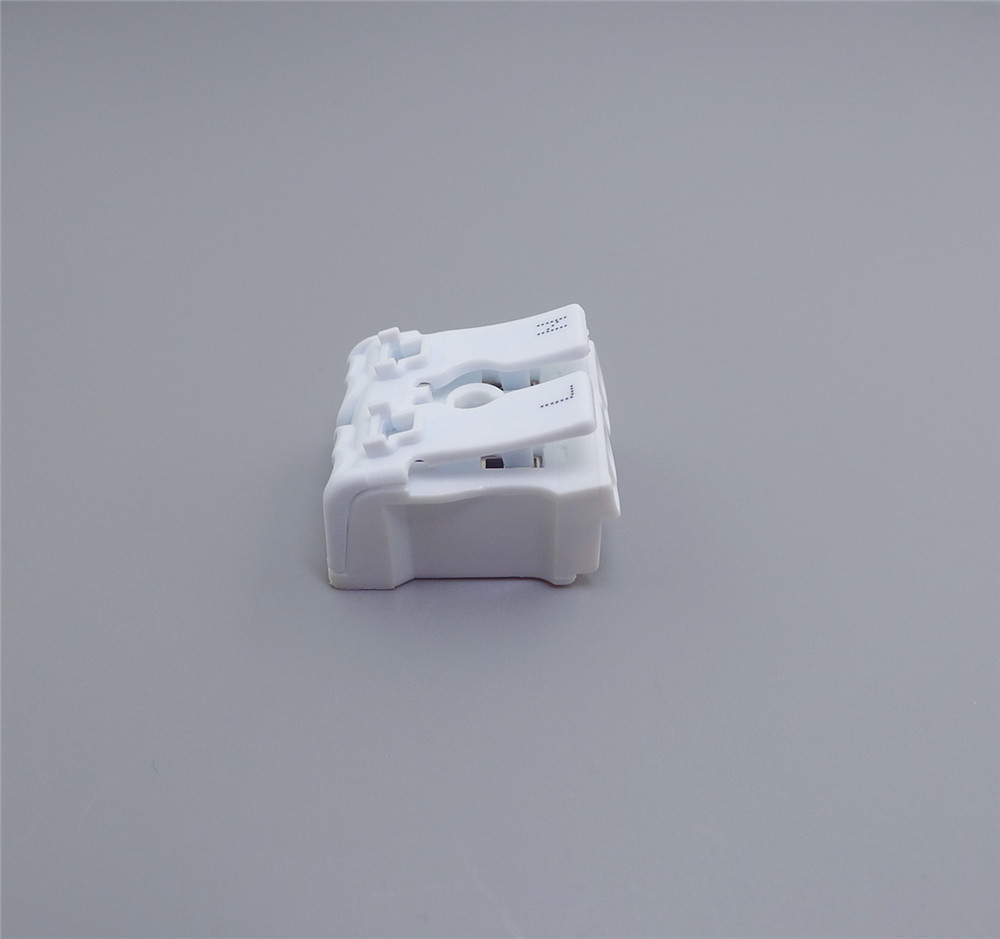

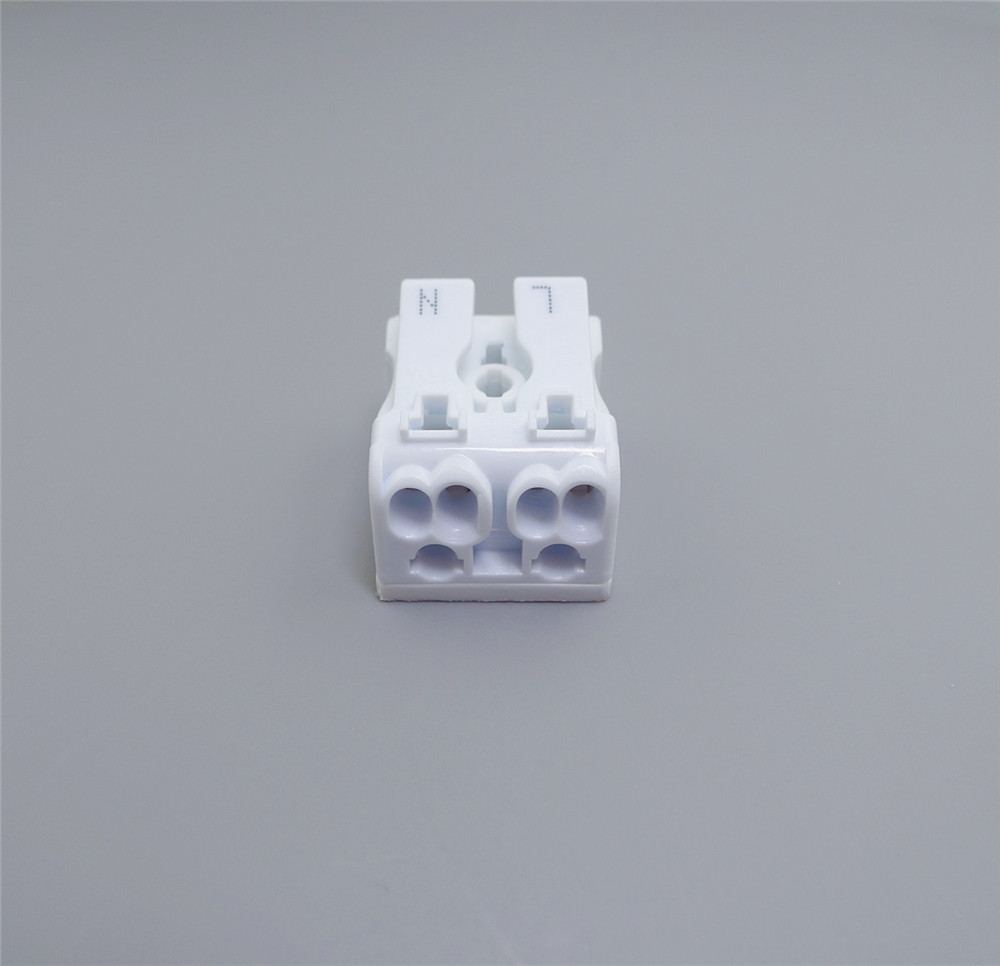

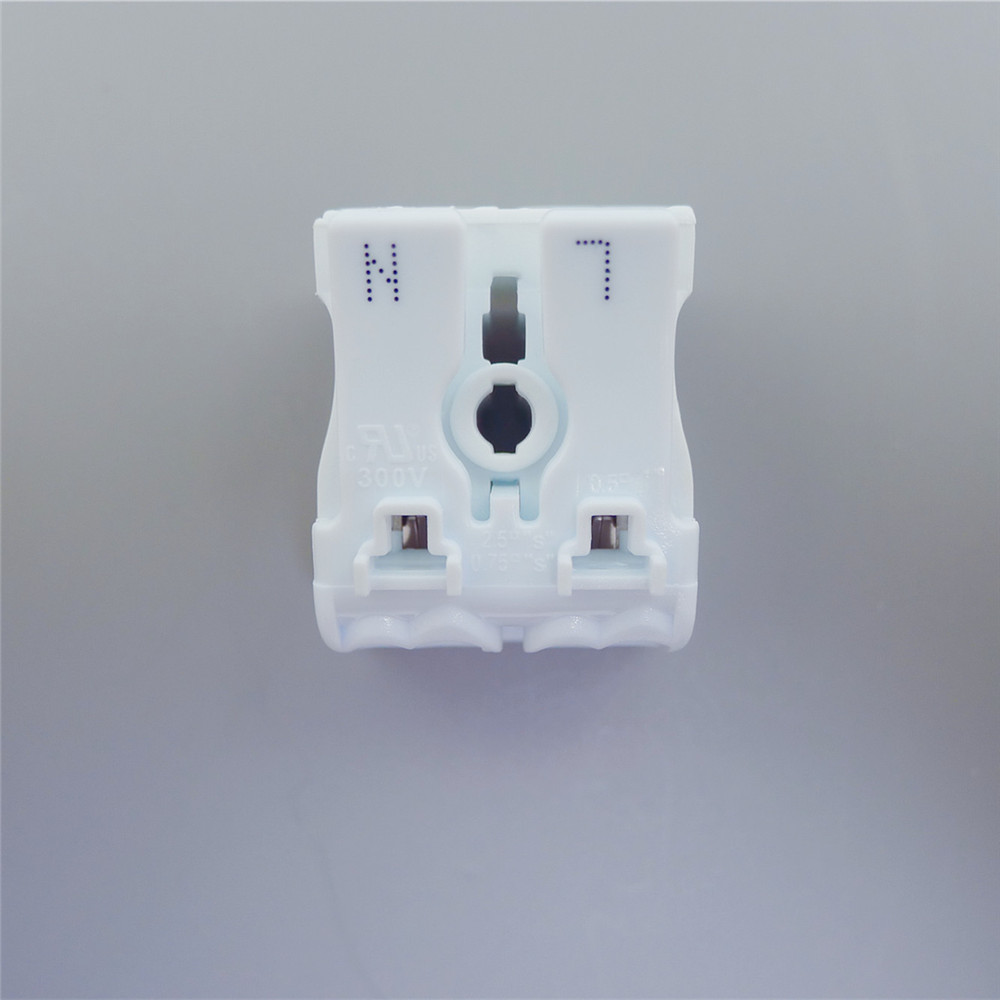

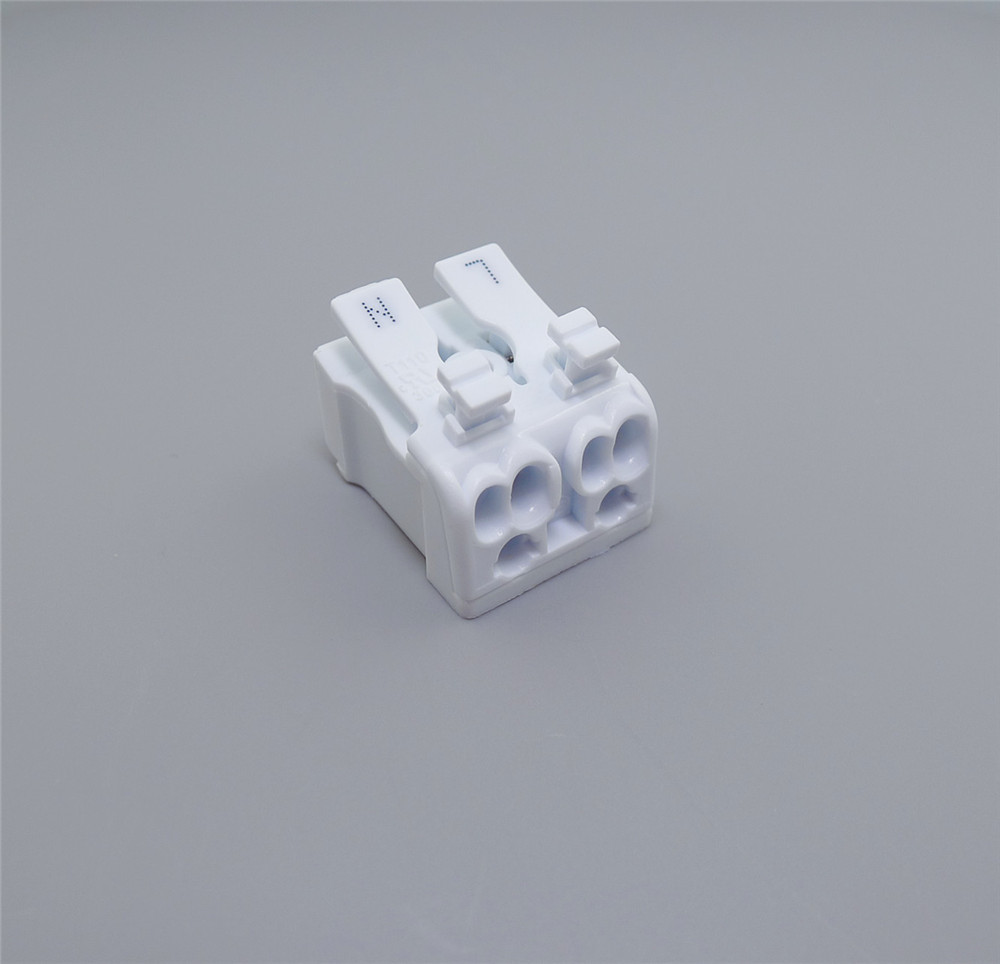

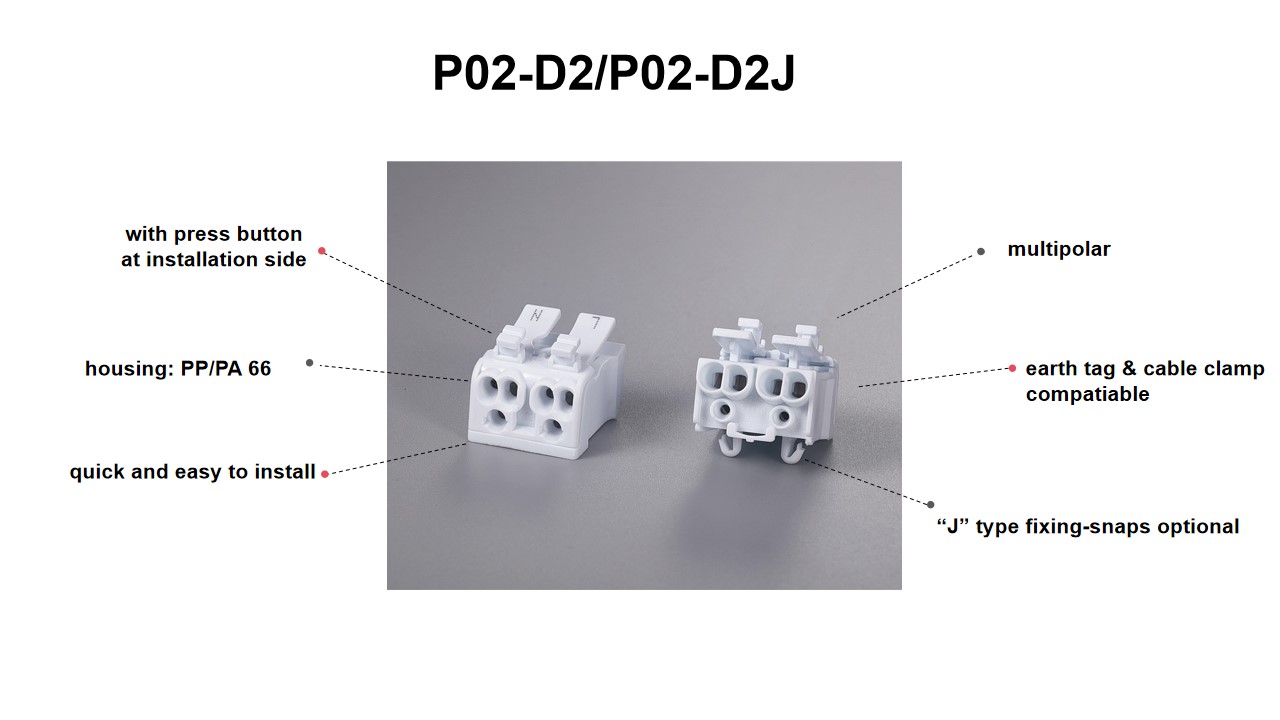

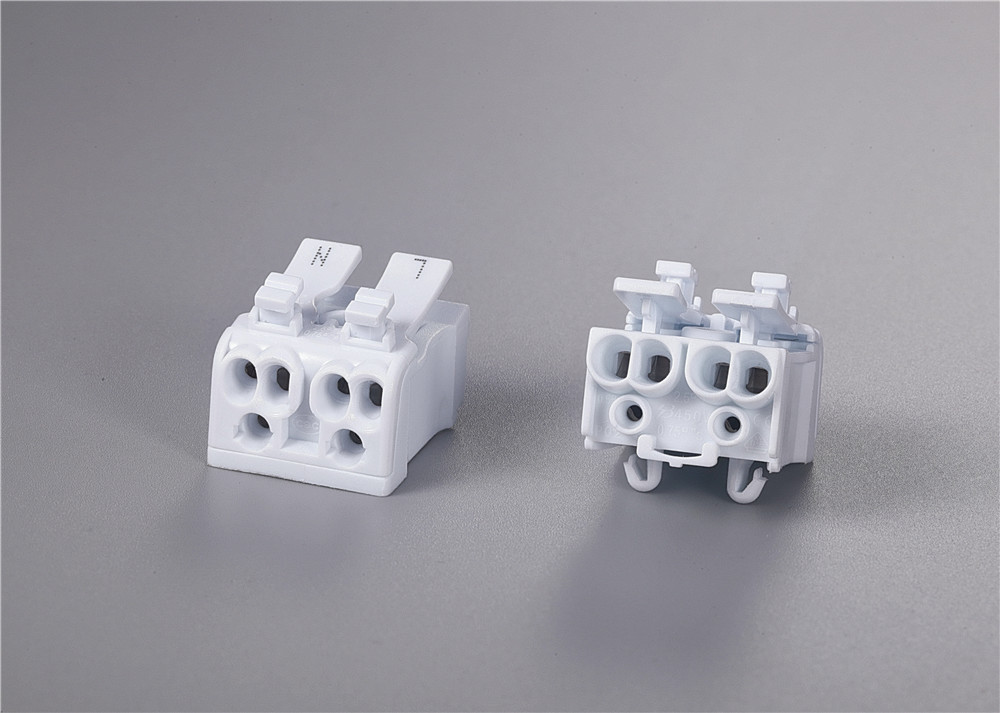

Introducing the BELEKS 2-pole multi-pin push in connector with a convenient release button. This high-quality push wire connector 2 ways is designed for easy and reliable connections in a variety of electrical applications. The 2-pole design allows for the secure transmission of power or signals between two wires, while the multi-pin configuration ensures a stable and secure connection. The built-in release button simplifies the process of disconnecting wires, making maintenance and repairs quick and hassle-free. Suitable for use in automotive, industrial, and consumer electronics, the BELEKS 2-pole multi-pin quick connector is a must-have for any electrician or DIY enthusiast.
Materials:
housing: polyamide66(v2)
cover & button:polycarbonate(v2)
clamping unit: copper & stainless steel
Packing info:
100 pcs per bag, 10 bags per carton
carton size: 57×28.1×12.5 cm
net weight: 5.5kg
gross weight: 6kg

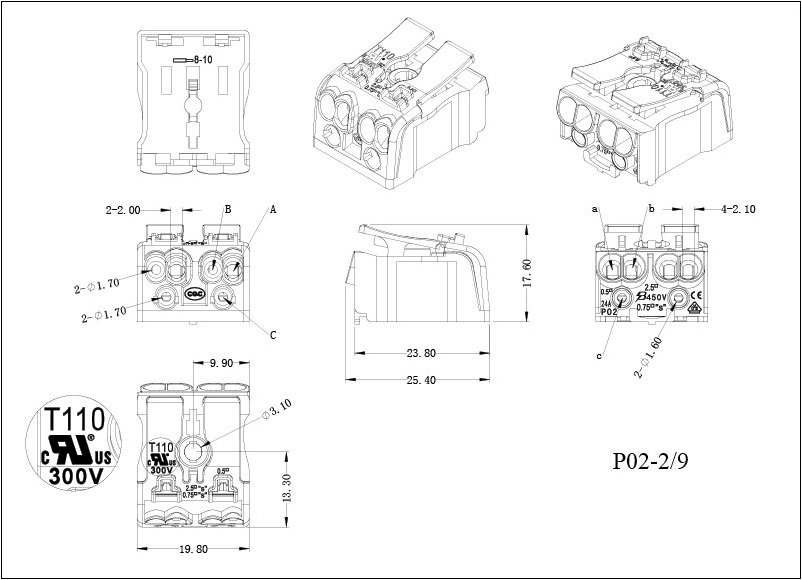

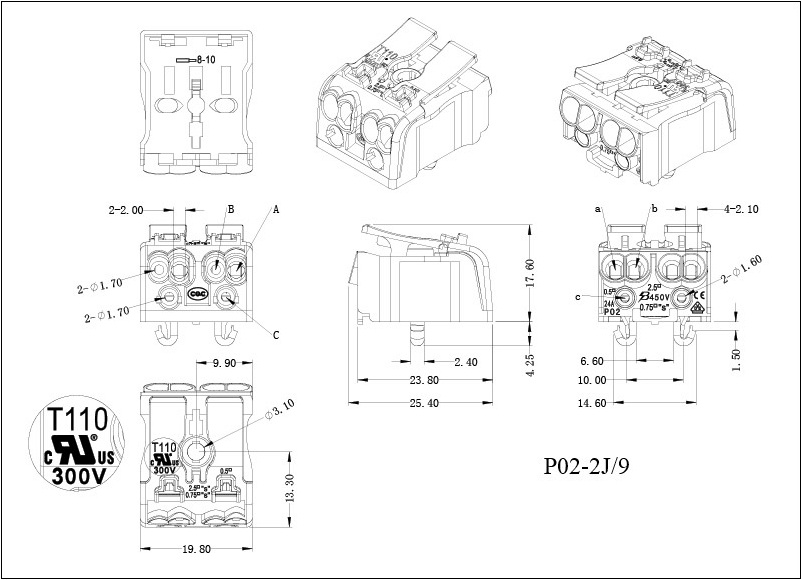

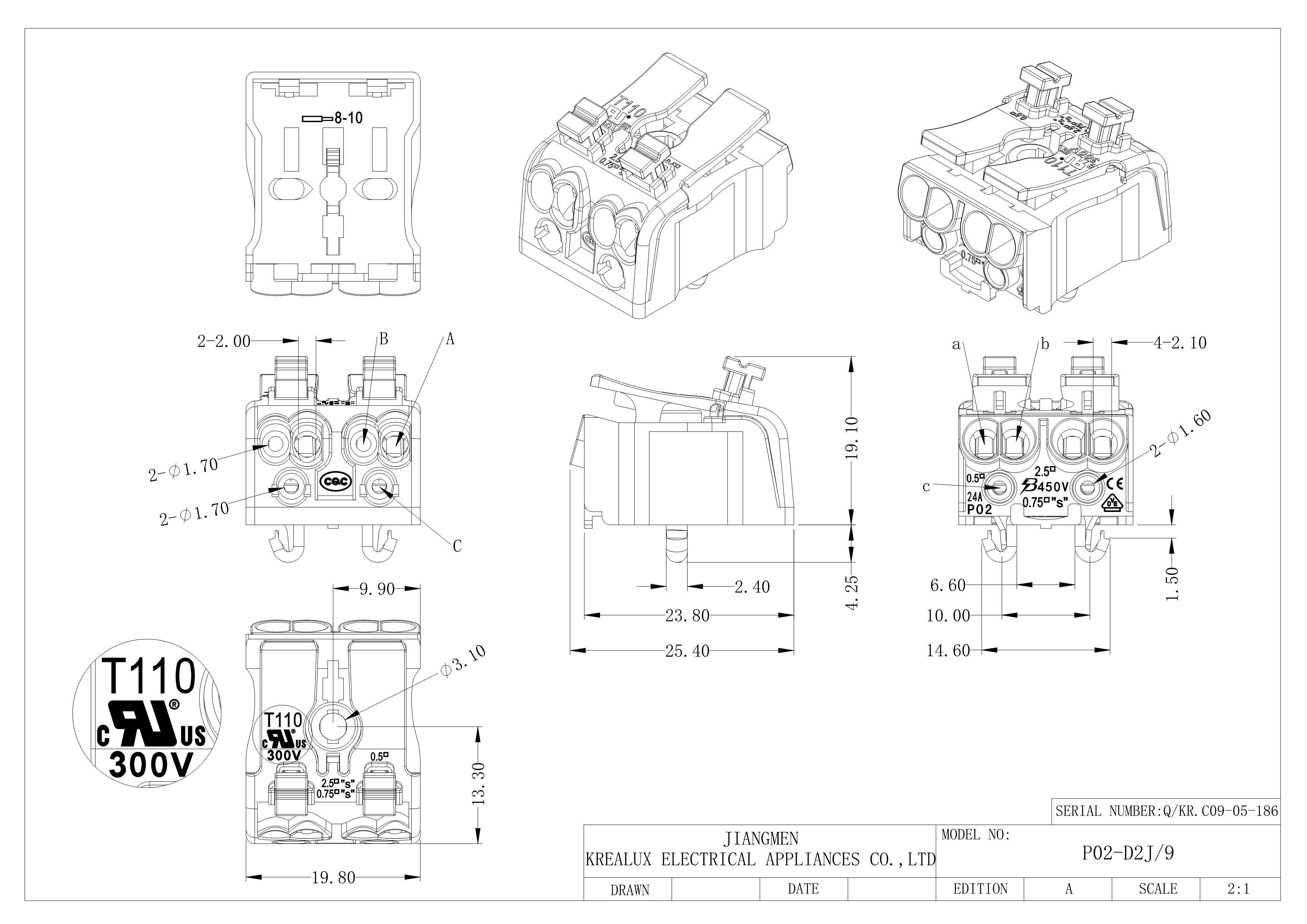

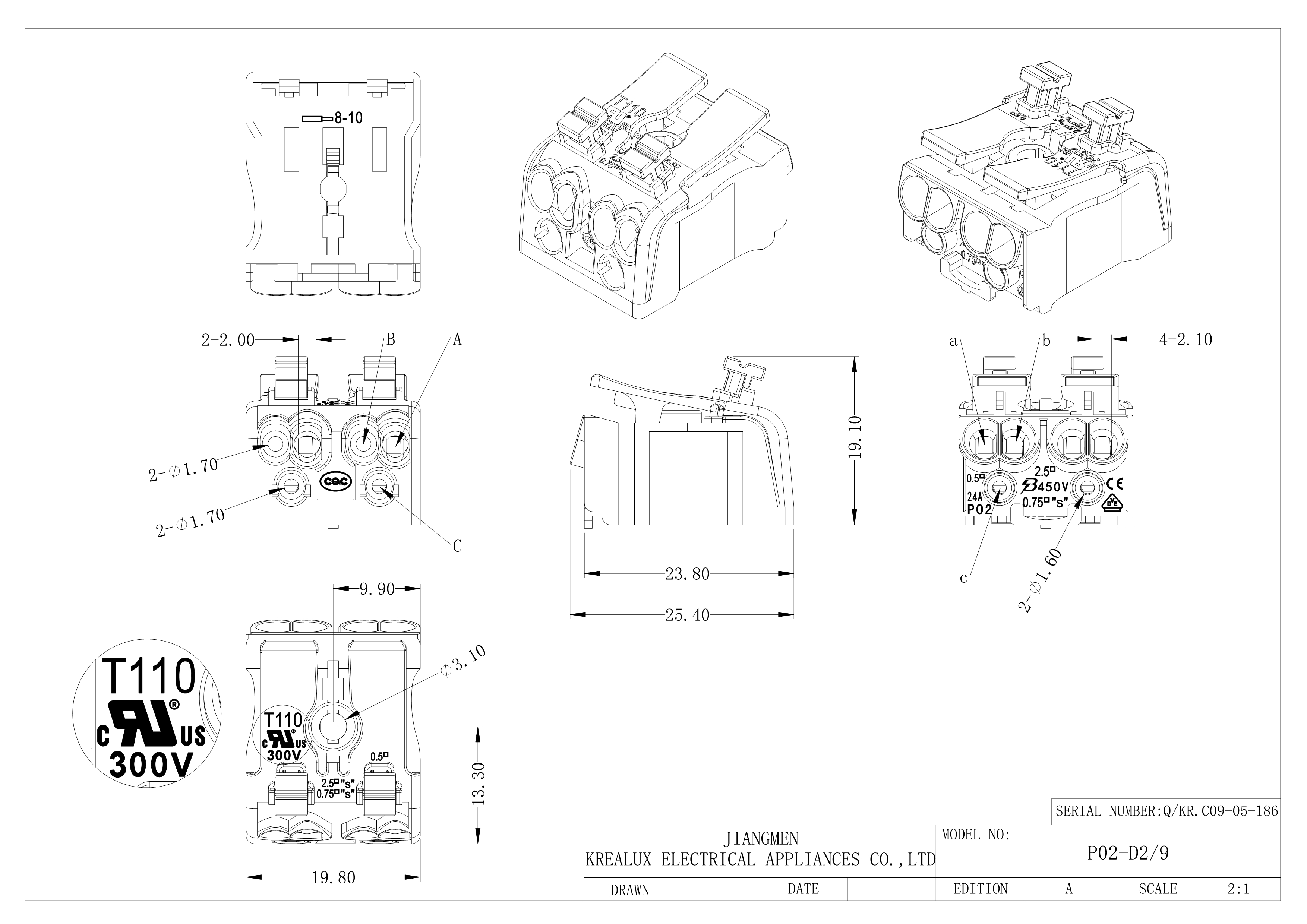

Dimensions
Specifications
| Item No. | P02-D2/9 P02-D2J/9 | |||
| Electrical Data | ||||
| IEC/EN | UL | |||
| Rated Voltage (V) | 450 | 300 | ||
| Rated Current (A) | 24 | 16 | ||
| Ambient Temperature | T110 | 105℃ | ||
| Connection Data | ||||
| IEC/EN | UL | |||
| Installation side | A holes | Solid conductor | 0.5-2.5mm² | AWG 14-20 |
| Stranded conductor | ||||
| Flexible conductor | 0.5-1.5mm² | - | ||
| B holes | Solid conductor | 0.5-1.5mm² | AWG 16-20 | |
| Stranded conductor | ||||
| Flexible conductor | - | |||
| Lighting side | a/b holes | Solid conductor | 0.5-2.5mm² | AWG 14-20 |
| Stranded conductor | ||||
| Flexible conductor | - | |||
| Strip length (mm) | 8-10 | |||
| Means of connection | push in | |||
| Rewirable | √ | |||
| Number of terminals | multiway | |||
| Number of connection points | 2*2 | |||
| Means of Fixing | screw fixed / fixing snap | |||
| Flammability class | UL 94V-2 | |||
| Compatible Products | ||||
| Cable clamp | P02-SR1 | |||
| Junction boxes | TB-01, 410 | |||
| Packing Quantity (pcs/carton) | ||||
| 1000 | ||||
