Hot sale three-in-one ceramic liner

10 month ago

13 0 

10 month

Product details

Product Characteristics

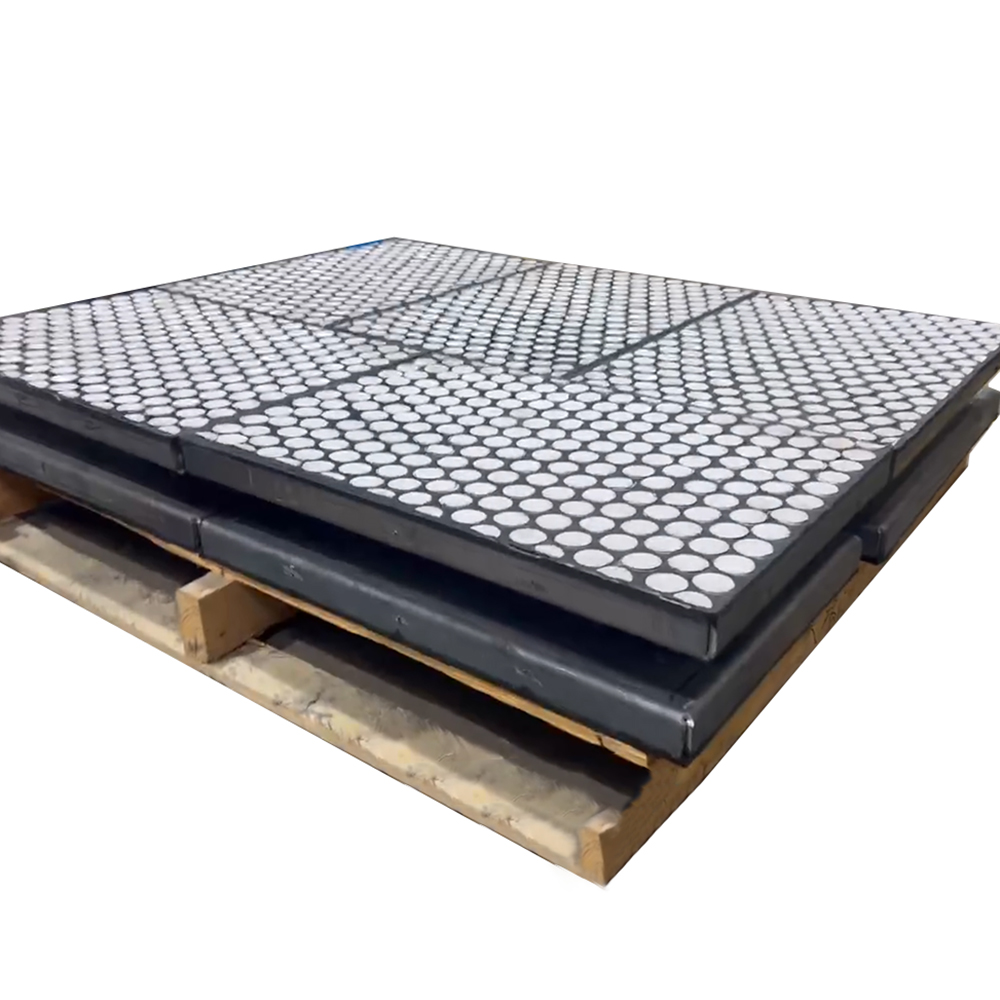

The 3-in-1 impact resistant ceramic liner is a high performance wear resistant liner for hopper and silo applications. This liner significantly improves the service life and operational efficiency of hoppers and silos due to its excellent wear resistance and high impact resistance.

The 3-in-1 ceramic liner consists of three parts: wear-resistant ceramic, rubber and a steel substrate. The wear-resistant ceramic forms the wear layer of the liner, which has excellent wear and corrosion resistance, the rubber layer enhances the impact resistance of the liner due to the toughness of the rubber, and the steel substrate serves as the support and protection layer, ensuring the stability and easy installation of the liner as a whole.

Application areas of liner

Three-in-one wear-resistant ceramic liner is widely used in metallurgy, mining, electric power, cement, chemical industry and other industries in a variety of equipment.

For example:

1.Harbor industry

Mainly used in berth fixed funnel, bucket wheel machine fixed funnel, ship unloader hopper and other equipment.

2.Smelting industry

Used in the material transfer system for silo, vibrating screen chute, coke hopper, measuring hopper and other equipment.

In the batching system, it is used in batching hopper, mixer and other equipments.

It is mainly used in the baking system on the equipment with high wear and tear such as batching hopper, ash hopper, intermediate bin hopper, etc.

3. Chemical industry

Mainly used in hopper and silo of material conveying system, dust pipe and elbow of dust removal system, fan casing and impeller, cyclone and other equipments.

Advantages of choosing us

Years of experience in the production of wear-resistant materials
Sufficient supply of goods, a complete range
Products can be customized
Good reputation of the company

Product Specification

Overall size of liner: 500mm*500mm, 250mm*250mm

Thickness of liner plate: 10mm, 20mm, 25mm, 30mm, 35mm.

This product is a customizable product, the price is not the final price, please contact customer service before placing an order, to communicate the specific parameters of the product and other content.

The main products we produce are:Wear-resistant Ceramics（Roller Covered Ceramic Adhesive Sheet,Roller Covered Rhombic Rubber Sheet,Three-in-one Ceramic Composite Liner）,Engineering Plastic,Adhesive.
