Product details

Touch the system:
1, using infrared touch technology, touch mode: support HID drive-free technology, without installation drive can realize multiple writing and operation at the same time, fingers, touch pen or other 2mm non-transparent objects (support double fine pen full screen writing).
2, the maximum can support Android 20 touch, computer 40 touch.
3, touch precision ± 1mm, single finger response speed <8ms.
4. Touch resolution: 32767 * 32767.

Built-in plug-in computer (optional):
1. Adopt modular computer scheme, standard 80-pin OPS-C computer interface, and no external connection, which is convenient for teachers to use and maintain.
2. Chipset: Intel ® H110 or above; processor: Inter CoreI5 or above CPU, basic frequency 2.50GHz or above, memory size 8G DDR; hard disk: 256 GSSD SSD.
3, computer module CPU four-core and four-thread processor, support three-level cache 6MB.
4, support support WIFI / 5G and limited network Gigabit Ethernet card.
5. Support 2 USB3.0 ports, 4 USB2.0 ports, support 1 HDMI port and 1 VGA port.
6. Support regular boot, quickly restore and backup, and support network wake-up / PXE function.
7. Support Msata system disk, quick start, one-key restore, and enhance user experience.
8, support Windows 11 / Windows10 / Windows 7 / Linux and other professional version of the legitimate operating system.

Technical Parameter:

Name	Size	65"	75"	85"	86"	98"
Show	Display Area HV (mm)	1425mm ×803mm	1654mm ×931mm	1874mm ×1057mm	1895mm ×1066mm	2160mm ×1215mm
	optimum resolution	3840×2160 pixels
	Refresh the frequency	60Hz
	luminance	300-350cd/m2
	contrast ratio	1200:1 / 5000:1 (OC)
	Visual Angle	1780(H/V)
	Show color	8bit 16.7M/1.07B (10bit)
	backlight	DLED
	colour gamut ntsc	72%
Surface	Body material	Aluminum alloy face frame, oxidation sandblasting process
	Front frame color	Black [standard], can be customized silver black or other colors
	Front frame glass	Physical tempered grade 7 explosion-proof glass / anti-glare explosion-proof grade 7 tempered glass
	Front box pen slot	The two magnetic grooves on the front
Touch parameters	Identification principle	Infrared recognition
	Touch embedding mode	Built-in integrated type
	The way of writing	Finger, touch pen or other 2mm non-transparent object (full screen writing)
	Number of touch points	At 20 o'clock
	Touch resolution	32767*32767
	Touch precision	±1mm
	Single refers to the response speed	＜8ms
	Touch number	The theoretical number is infinite
	drivers	System automatic identification, no drive
	support system	windowsXP /7/8/10/11，Android，MacOS，Linux
	working temperature	-10~+50 ℃
	communication mode	USB 2.0/USB 3.0
Complete machine power consumption	The power of the machine	≤260W	≤340W	≤400W	≤400W	≤530W
	OPS power	≤110W	≤110W	≤110W	≤110W	≤110W
	working voltage	100~240V AC, 50/60Hz
	Standby power consumption	≤0.5W
	Sound channel stereo	2.0
	Dual-channel power	20W / 8 Euro 2 speakers
Size weight	Standard bare machine size length * width * height (mm)	1485×108×887	1707×108×1013	1953×108×1151	1953×108×1151	2220×98×1307
	Camera bare machine size: length * width * height (mm)	1485×108×900	1707×108×1026	1953×108×1164	1953×108×1164	2220×98×1320
	Overall machine package dimensions length * width * height (mm)	1600×200×1000	1880×210×1150	2100×215×130	2100×215×1300	2370×255×1520
	VESA stent hole position (mm)	400(V)×500(H)	400(V)×600(H)	400(V)×800(H)	400(V)×800(H)	400(V)×900(H)
	Wall hanging thickness (mm)	23mm	30mm	36mm	36mm	36mm
	net weight	33KG	47KG	59KG	60KG	87KG
	rough weight	41KG	60KG	75KG	76KG	108KG
	Single outlet wooden box size: length * width * height (mm)	1670×265×1160 (with base support)	1950×265×1310 (with base support）	2270×275×1460 (With bottom support)	2270×275×1460 (With bottom support)	2450×310×1650 (With bottom support)
	Weight (including wooden box)	70KG	90KG	110KG	110KG	160KG

Jiangsu Qilong Electronic Technology Co.,LTD.is a factory located in China. Specialized in producing Education Interactive Board, such as Interactive conference board, Memory blackboard, Smart blackboard,Training Interactive Board，etc.

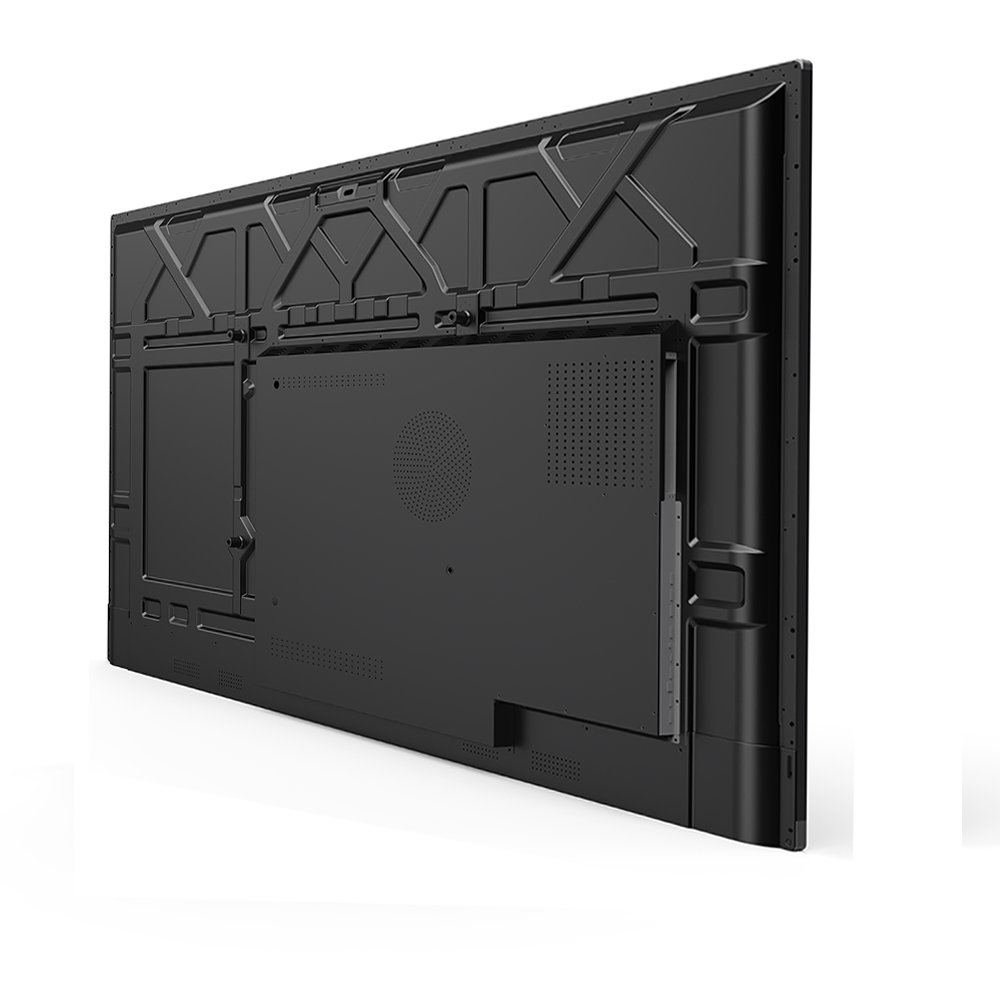

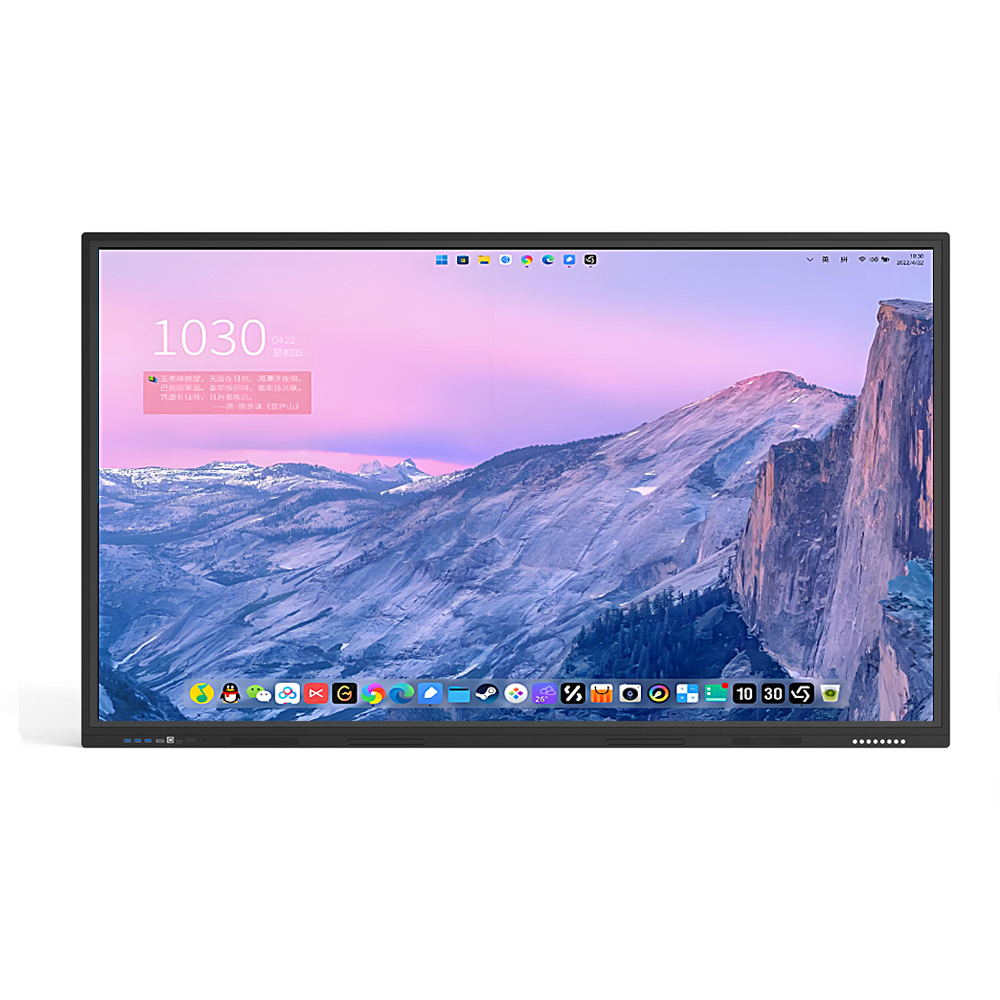

Detail Pictures:
