Copper Cable Granulator
7 month ago
Product details
Electrostatic Separation Copper Wire Stripping Machine
Copper Wire Granulator is a mechanical equipment used to pulverize the waste cable wires and separate the copper and plastic and other insulating materials, which belongs to the category of environmental protection machinery.
It effectively solves the problem of recycling copper resources in waste cable wires, avoids the pollution of the environment caused by traditional treatment methods such as incineration, and at the same time realizes the recycling and reuse of copper and plastics, which has high economic and environmental benefits.

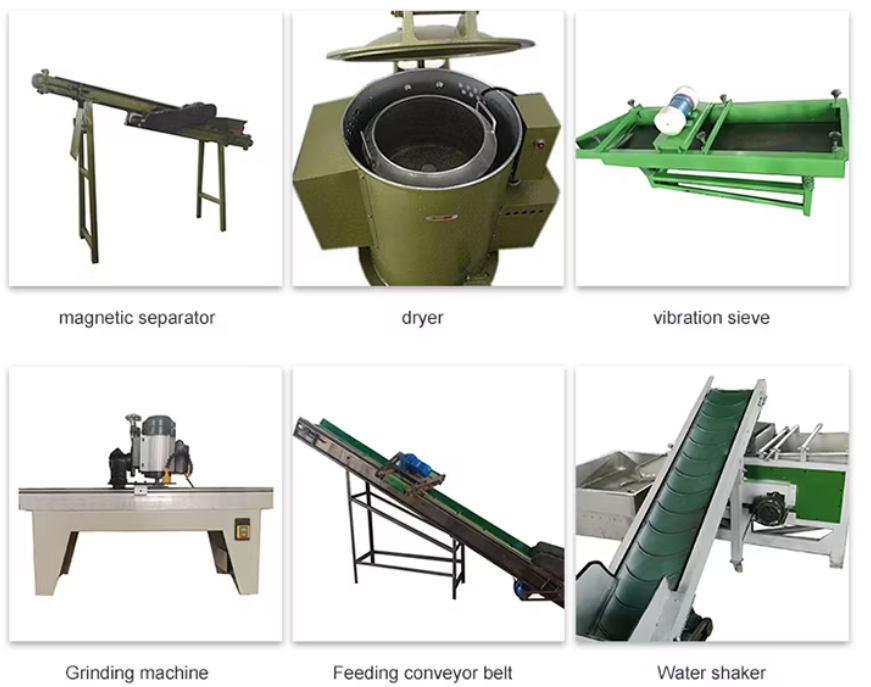

Structure Composition：
1. Feeding system: usually consists of conveyor belt or feeding hopper, etc., which is responsible for feeding the waste cable wires into the crusher evenly.
2. Crushing system: usually adopts roller crusher, hammer crusher or blade pulverizer, etc. to crush the cable wires into smaller particles for the subsequent separation process. For example, roller crusher, through two relatively rotating rollers, exerts squeezing and shearing force on the cable wire to make it crushed.
3. Sorting system: the sorting system of dry copper rice machine includes airflow sorting device, electrostatic sorting device, etc.; wet copper rice machine is mainly gravity shaker sorting device. Airflow sorting device through the fan to generate airflow, so that the light plastic particles and heavy copper particles in the airflow separation.
4. Dust collection system: generally adopts bag duster, cyclone duster, etc., which is used to collect the dust generated in the process of crushing and sorting to prevent the dust from polluting the environment.
5. Control system: PLC control system is mostly adopted to realize the automatic operation of the equipment and precisely control the feeding speed, crushing strength and sorting parameters to ensure the stable operation and efficient production of the equipment.
Performance Characteristics：
1. Environmental protection and energy saving: dry copper rice machine does not need to add water in the sorting process, and is equipped with efficient dust collection equipment, no dust spillage, no secondary pollution; wet copper rice machine, although water is used in the production process, but compared with some other traditional treatment methods, the pollution is also smaller. At the same time, the energy consumption of the equipment is lower, which reduces the production cost.
2. High separation efficiency: advanced copper rice machine using a variety of advanced technologies, can be efficient separation of copper and plastic and other materials, the purity of copper rice can reach more than 99%, the amount of copper residue in the plastic skin is lower, improving the recovery rate of copper and waste plastic utilization grade.
3. High degree of automation: the use of PLC control, can achieve uniform feeding, intelligent operation, reducing manual intervention, reducing labor intensity, improve production efficiency, and easy to operate, save time and effort.
4. Strong applicability: it can deal with various specifications and materials of waste cable, including automobile cable, communication cable, miscellaneous cable, etc., and the size of the line can be crushed and separated at the same time without classification.
With the continuous development of science and technology, the technology of Copper Cable Granulator Machine is also constantly innovating and improving. Nowadays, the degree of automation of copper rice machine is higher and higher, which can reduce the labor cost and improve the production efficiency; at the same time, the separation efficiency is also improving, the purity of copper rice can reach more than 99%, and the amount of copper residue in the plastics is lower, which improves the recovery rate of copper and the utilization grade of waste plastics.
From the market demand, environmental policy, technological progress and economic benefits and other aspects, the future development prospects of Cable Peeling Machine is very optimistic, in the field of waste cable recycling will play an increasingly important role.
