Alumina Ceramic Substrates For Circuit Boards

Product Overview

Puwei's Alumina Ceramic Substrates represent the gold standard in thin film integrated circuit foundations, offering exceptional electrical performance, thermal management, and mechanical stability. Manufactured from high-purity aluminum oxide (Al₂O₃), these substrates are specifically engineered to meet the demanding requirements of advanced electronic packaging and microelectronics packaging applications.

Our alumina ceramic substrates serve as ideal platforms for sophisticated thin film circuits, providing the perfect balance of electrical insulation, thermal conductivity, and dimensional stability required for high-frequency and high-reliability applications. With dielectric properties optimized for RF and microwave frequencies, they form the backbone of modern high-frequency modules and precision electronic systems.

Technical Specifications

Our alumina ceramic substrates are available in two primary grades: High-Purity Alumina (99.9% Al₂O₃) and Standard Alumina (95-99% Al₂O₃). Key electrical properties include dielectric constant of 9.9 at 1 MHz with low loss tangent for superior high-frequency performance. Thermal characteristics feature excellent thermal conductivity and stability up to 1650-1990°C sintering temperatures. Mechanical properties demonstrate exceptional hardness, wear resistance, and flexural strength. Surface quality includes ultra-smooth finishes with Ra values optimized for thin film deposition processes, making them ideal for microwave components and precision integrated circuits.

Product Images

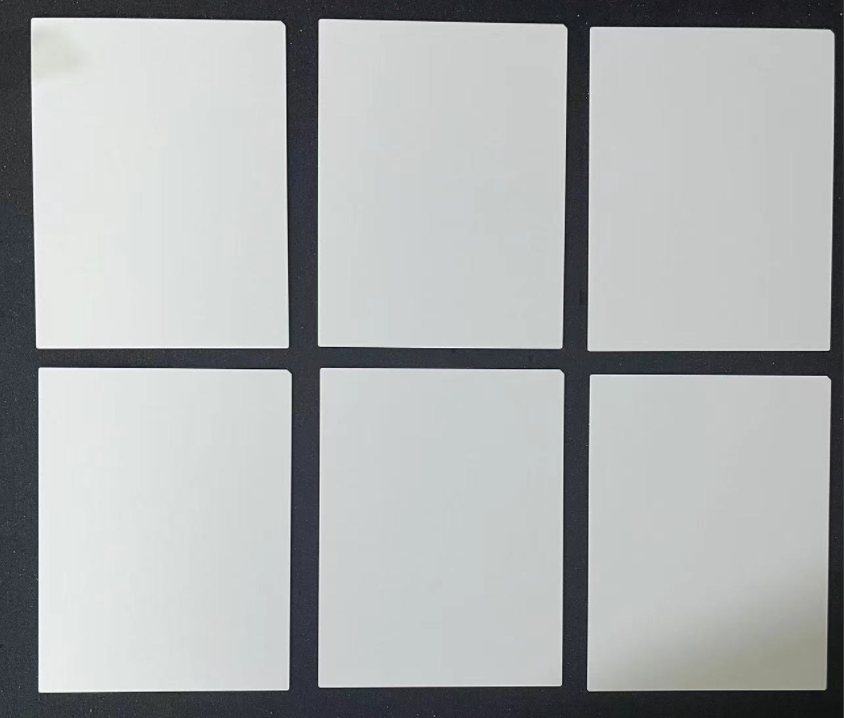

High-Purity Alumina Ceramic Substrate for Thin Film Circuit Applications

Product Features & Advantages

Exceptional Electrical Performance

With a dielectric constant of 9.9 at 1 MHz and minimal dielectric loss, our substrates provide stable electrical characteristics across wide frequency ranges. This makes them particularly suitable for RF circuits and high-frequency applications where signal integrity is critical.

Superior Thermal Management

The excellent thermal conductivity enables efficient heat dissipation from active components, maintaining temperature stability and preventing performance degradation in high-power applications. This thermal performance is essential for power devices and high-density electronic assemblies.

Precision Surface Quality

Ultra-smooth surface finishes with controlled roughness ensure optimal conditions for thin film deposition processes. This precision surface quality supports the creation of fine-line circuits and reliable interconnections in advanced thick film hybrid microcircuits.

Mechanical Robustness

High flexural strength and exceptional hardness provide dimensional stability and protection for delicate thin film circuits. The mechanical durability ensures reliable performance under thermal cycling, vibration, and mechanical stress conditions.

Chemical Inertness

Resistance to chemical attack and corrosion makes our substrates suitable for harsh environments and aggressive processing conditions. This chemical stability ensures long-term reliability in demanding applications including sensor packaging and industrial electronics.

Implementation Guidelines

1. Substrate Preparation: Clean and prepare the alumina surface using recommended procedures to ensure optimal thin film adhesion
2. Circuit Design Transfer: Apply photolithographic or other patterning techniques to define circuit geometries on the substrate surface
3. Thin Film Deposition: Utilize sputtering, evaporation, or other deposition methods to apply conductive and resistive layers
4. Pattern Definition: Employ etching or lift-off processes to create precise circuit patterns and features
5. Component Integration: Mount and interconnect semiconductor devices and passive components using appropriate bonding techniques
6. Testing & Validation: Perform electrical, thermal, and reliability testing to verify performance meets design specifications

Application Scenarios

High-Frequency Communication Systems

Our alumina substrates serve as ideal foundations for RF and microwave circuits in 5G infrastructure, satellite communication systems, and radar equipment. The stable dielectric properties ensure consistent performance in microwave applications and high-frequency signal processing.

Power Electronics and Conversion

In power semiconductor modules and conversion systems, our substrates provide reliable electrical isolation and efficient thermal management for high-power microelectronic components. The combination of electrical insulation and thermal performance supports applications in electric vehicles, renewable energy systems, and industrial power controls.

Advanced Sensor Systems

For precision sensor arrays and MEMS devices, our substrates offer the dimensional stability and surface quality required for accurate signal acquisition and processing. This makes them suitable for optoelectronics applications and high-precision measurement systems.

Aerospace and Defense Electronics

The reliability and performance consistency under extreme conditions make our substrates ideal for avionics, military communication systems, and defense electronics where failure is not an option.

Medical Electronic Devices

In diagnostic equipment, imaging systems, and medical implants, our substrates provide the precision and reliability required for critical healthcare applications where performance and safety are paramount.

Customer Value Proposition

• Enhanced Circuit Performance: Superior dielectric properties and surface quality enable higher frequency operation and improved signal integrity
• Improved Thermal Management: Efficient heat dissipation extends component lifespan and enhances system reliability
• Design Flexibility: Support for complex circuit patterns and multi-layer configurations enables innovative product designs
• Manufacturing Efficiency: Consistent material properties and dimensional accuracy improve production yield and reduce manufacturing costs
• Long-Term Reliability: Excellent mechanical and chemical properties ensure stable performance throughout product lifecycle
• Cost-Effective Solutions: Optimal balance of performance and cost provides excellent value for demanding applications

Certifications and Compliance

Our manufacturing facilities operate under stringent quality management systems, ensuring consistent product quality and performance reliability. We maintain compliance with international standards for electronic ceramics and substrate manufacturing. All materials comply with RoHS and REACH environmental regulations, supporting global market acceptance and integration into international supply chains for applications ranging from consumer electronics to aerospace systems.

Customization Capabilities

We offer comprehensive customization services to meet specific application requirements, including tailored substrate dimensions, specialized surface finishes, and custom material formulations. Our engineering team collaborates with customers to develop optimized solutions for unique design challenges, supporting applications from prototype development through volume production. Customization options include specialized alumina purity levels (95%, 99%, 99.9%), unique dimensional requirements, and application-specific surface treatments for enhanced thin film adhesion and performance.

Manufacturing Excellence

Our production process begins with high-purity alumina powder selection and advanced material formulation. Using tape casting and warm pressing techniques, we achieve optimal green tape density and microstructure. Chemical surface modification prevents powder agglomeration, ensuring uniform ceramic properties. Precision sintering at temperatures ranging from 1550°C to 1990°C, depending on alumina purity, delivers substrates with exceptional density and thermal performance. Each production batch undergoes rigorous quality control including dimensional verification, surface quality inspection, and electrical performance testing to ensure compliance with specified requirements for bare ceramic plates used in electronic integrated circuit manufacturing.
