99.6% Alumina Ceramic Substrate For High-power Laser Diodes
2 year ago

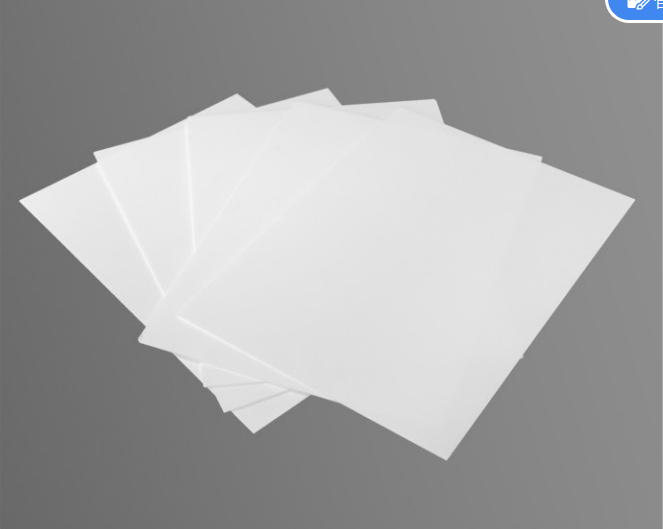

99.6% Alumina Ceramic Substrate: The Ultimate Thermal Foundation for High-Power Laser Diodes
Puwei's 99.6% Alumina Ceramic Substrate is engineered specifically to meet the extreme thermal, mechanical, and electrical demands of high-power optoelectronic and microelectronics packaging. Manufactured from ultra-high purity (>99.6%) Aluminum Oxide (Al₂O₃), this substrate delivers exceptional heat dissipation, outstanding electrical insulation, and robust mechanical stability. It serves as a critical, high-performance foundation for mounting high-power microelectronic components such as laser diodes, ensuring reliable operation, extended lifespan, and maximum efficiency in demanding systems like high-frequency modules and power devices.
Core Product Advantages & Features
- Optimal Thermal Management: High thermal conductivity (25-30 W/(m·K)) efficiently draws heat away from critical junctions, preventing thermal runaway and maximizing device longevity in power devices and laser systems.
- Superior Electrical Insulation: Excellent dielectric properties (volume resistivity >10¹⁴ Ω·cm) provide reliable isolation for RF circuits and microwave applications, ensuring signal integrity.
- Exceptional Mechanical & Dimensional Stability: High flexural strength (350-450 MPa) prevents warping under thermal stress, crucial for precise sensor packaging and electronic packaging.
- Excellent Chemical & Plasma Resistance: Inert to most chemicals, suitable for harsh semiconductor processing environments.
- Superior Surface Quality: Can be polished to ultra-smooth finishes (Ra <0.05μm) for high-quality die attach, essential for advanced hybrid micro circuits.
- Proven Cost-Effectiveness: Offers the optimal performance-to-cost ratio for high-volume production compared to exotic ceramics.
Technical Specifications & Material Properties
Our 99.6% Alumina substrates are characterized by precise, consistent properties crucial for reliable system design in optoelectronics applications and integrated circuit manufacturing.
Primary Material & Physical Properties
Material Composition: > 99.6% Aluminum Oxide (Al₂O₃). Density: 3.90 - 3.98 g/cm³. Color: White / Ivory. Water Absorption: 0% (Fully Dense). Flexural Strength: 350 - 450 MPa. Compressive Strength: > 2500 MPa. Hardness (Vickers): > 1500 HV.
Thermal Properties
Thermal Conductivity: 25 - 30 W/(m·K) @ 25°C. Coefficient of Thermal Expansion (CTE): 7.0 - 7.5 x 10⁻⁶/°C. Max Continuous Use Temperature: 1600°C. Thermal Shock Resistance: Excellent.
Electrical Properties
Volume Resistivity: > 10¹⁴ Ω·cm @ 25°C. Dielectric Constant (εr): 9.5 - 9.8 @ 1 MHz. Dielectric Loss Tangent (tan δ): < 0.0002 @ 1 MHz. Dielectric Strength: > 15 kV/mm.
Primary Application Scenarios
This substrate is a versatile solution for demanding microelectronics and thermal management challenges.
High-Power Laser Diodes & DPSSL
The core application for mounting laser diode bars and stacks in industrial cutting, medical aesthetics, and LiDAR systems. Critical for thermal management to maintain beam quality.
RF & Microwave Power Electronics
Used as an insulating substrate for microwave components like RF power transistors and amplifiers in telecommunications and radar systems.
Advanced Hybrid Microelectronics & Power Modules
Acts as a robust baseplate for thick film hybrid microcircuits, providing electrical isolation and a stable platform for screen-printed components in aerospace and industrial controls.
High-Brightness LED & Solid-State Lighting
Serves as a high-thermal-conductivity submount for high-power LED chips in automotive headlights and projectors.
Sensor Packaging & High-Temperature Electronics
Provides a stable, insulating platform for sensor packaging, particularly for high-temperature pressure and gas sensors.
Integration & Mounting Guidelines for Laser Diodes
Proper integration is key to unlocking full performance. Follow these general steps for reliable assembly of your high-power microelectronic components.
- Substrate Preparation & Cleaning: Clean thoroughly using acetone, IPA, and DI water in an ultrasonic cleaner. For highest reliability, use oxygen plasma cleaning.
- Metallization (If Required): Puwei can provide substrates with pre-applied thin-film or thick-film metal layers (e.g., Ti/Pt/Au) for direct soldering or brazing.
- Die Attach Method Selection: Choose between high-thermal-conductivity epoxy, soft solder (SnAgCu), or hard solder (AuSn) for eutectic bonding based on power requirements.
- Bonding Process: Use a precision die bonder for accurate alignment and controlled bonding/curing.
- Wire Bonding & Final Assembly: Attach electrical connections using gold or aluminum wire bonding.
- Thermal Interface to Heatsink: Attach the assembled substrate to the system heatsink using thermal interface materials for lowest thermal resistance.
The 99.6% Alumina Advantage: Performance vs. Purity
99.6% purity represents a significant performance jump over standard 96% alumina, offering distinct benefits for critical electronic packaging:
- Higher Thermal Conductivity: More efficient phonon transport for better heat dissipation.
- Improved Mechanical Strength: Fewer grain boundary defects result in higher flexural and compressive strength.
- Superior Electrical Properties: Lower dielectric loss and higher volume resistivity, especially at elevated temperatures.
- Better Surface Finish: Achieves smoother, more defect-free surfaces after polishing.
- Enhanced Chemical Purity: Reduced risk of contamination in sensitive microelectronics packaging processes.
Customization & OEM/ODM Services
Puwei specializes in tailoring 99.6% alumina substrates to your exact requirements for insulation elements and advanced circuits.
- Dimensions & Geometry: Any size and custom shapes (holes, slots) machined to tight tolerances (±0.01mm).
- Thickness: From 0.1mm thin wafers up to several millimeters.
- Surface Finish: As-fired, ground, lapped, or polished to specific Ra (down to < 0.05 μm).
- Metallization: Full custom patterning using thick-film or thin-film processes with various metals (Au, Ag, Pt, Ni, Cu).
- Co-firing & Multilayer Structures: Capability to produce complex multilayer Al₂O₃ substrates with buried conductors.
Manufacturing Process & Quality Assurance
- Raw Material Selection & Milling: Ultra-fine, high-purity (>99.6%) Al₂O₃ powder with uniform sub-micron particle distribution.
- Forming: Advanced techniques like tape casting, dry pressing, or isostatic pressing.
- Debinding & Sintering: Controlled thermal cycles followed by high-temperature sintering (>1600°C) to achieve >99% density.
- Precision Machining: Diamond tool CNC grinding, dicing, and drilling to final dimensions.
- Metallization (If Specified): Application of metal layers via screen printing or vacuum deposition with patterning.
- Final Inspection & Testing: 100% visual inspection, dimensional verification, and sample property testing.
Certifications, Compliance & Reliability
Puwei is committed to delivering products that meet the highest standards for global markets.
- Quality Management System: ISO 9001:2015 Certified.
- Material Compliance: RoHS and REACH compliant.
- Process Control: Statistical Process Control (SPC) for batch-to-batch consistency.
- Traceability: Full material and process traceability for every production lot.
