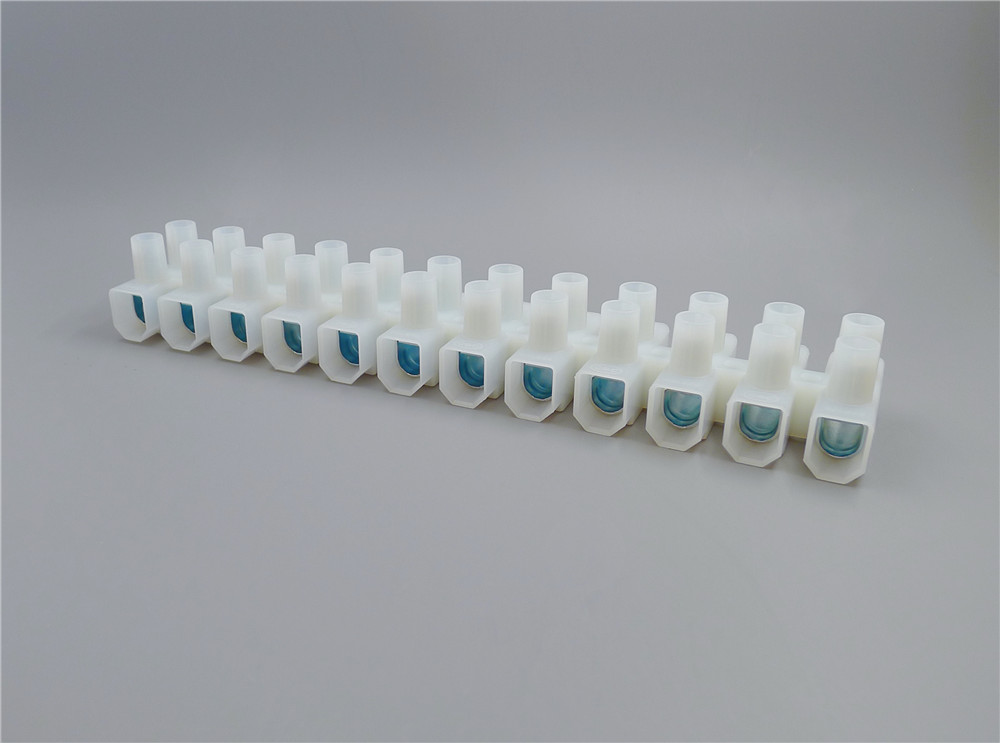

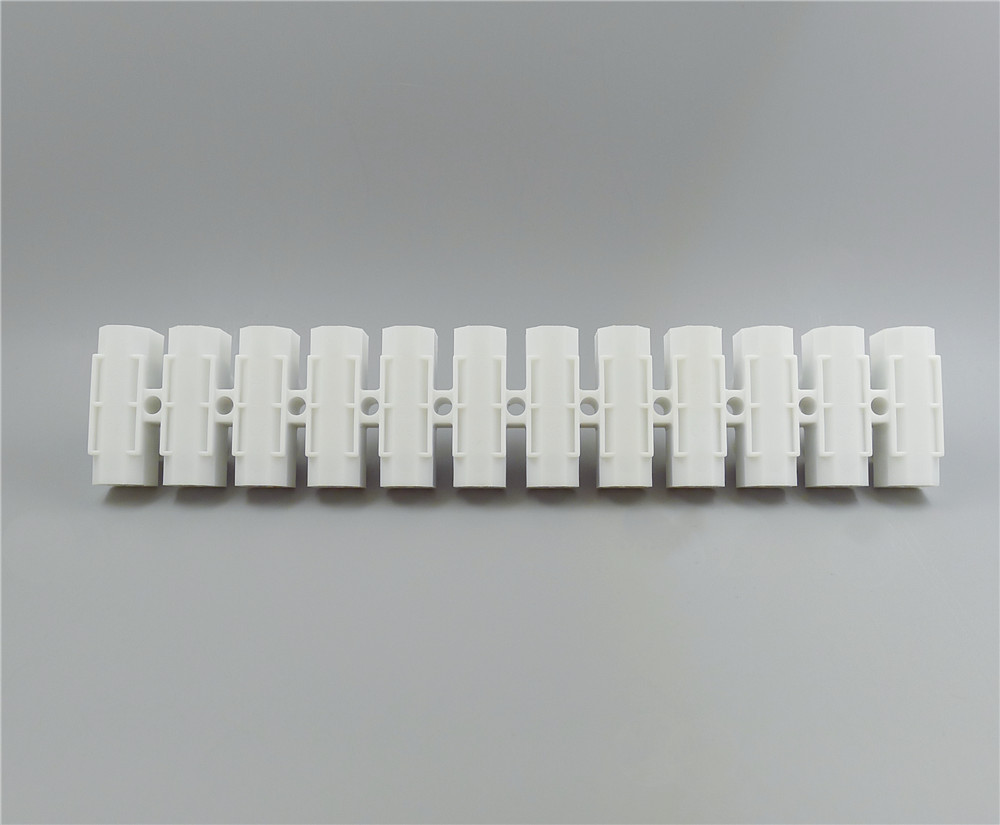

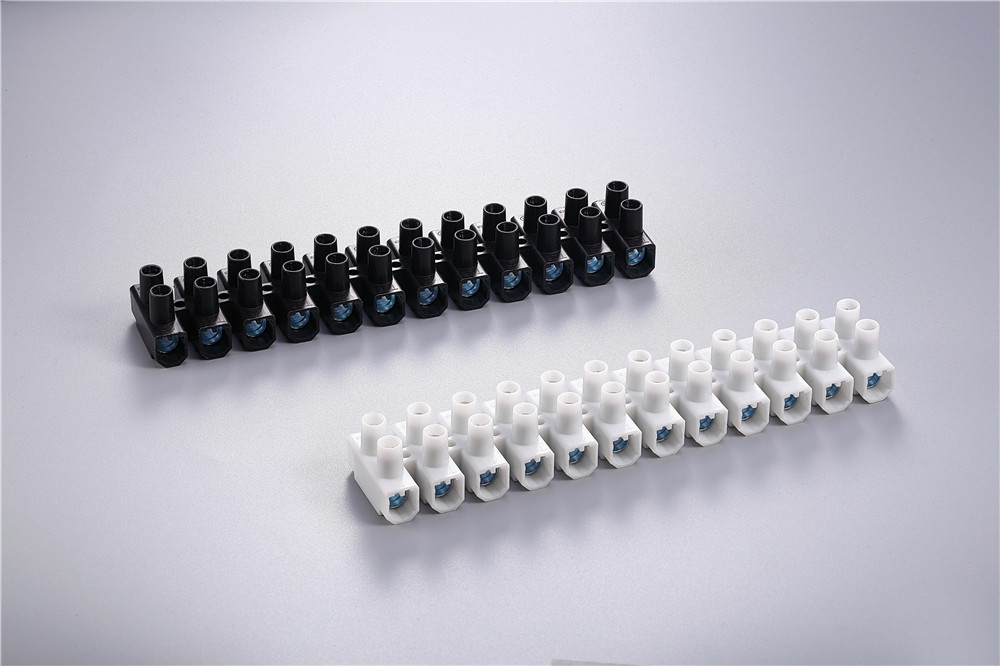

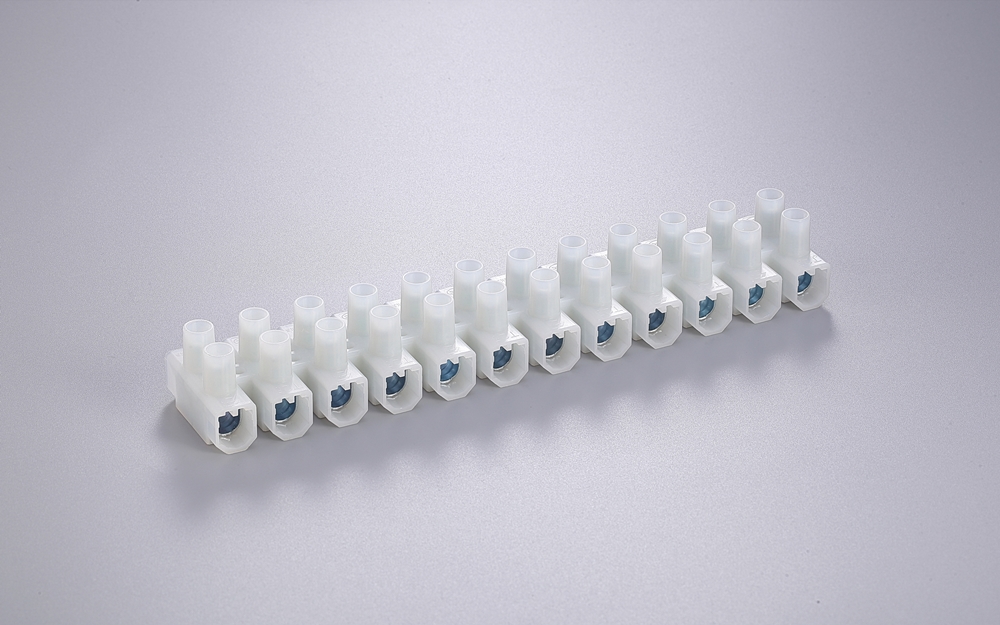

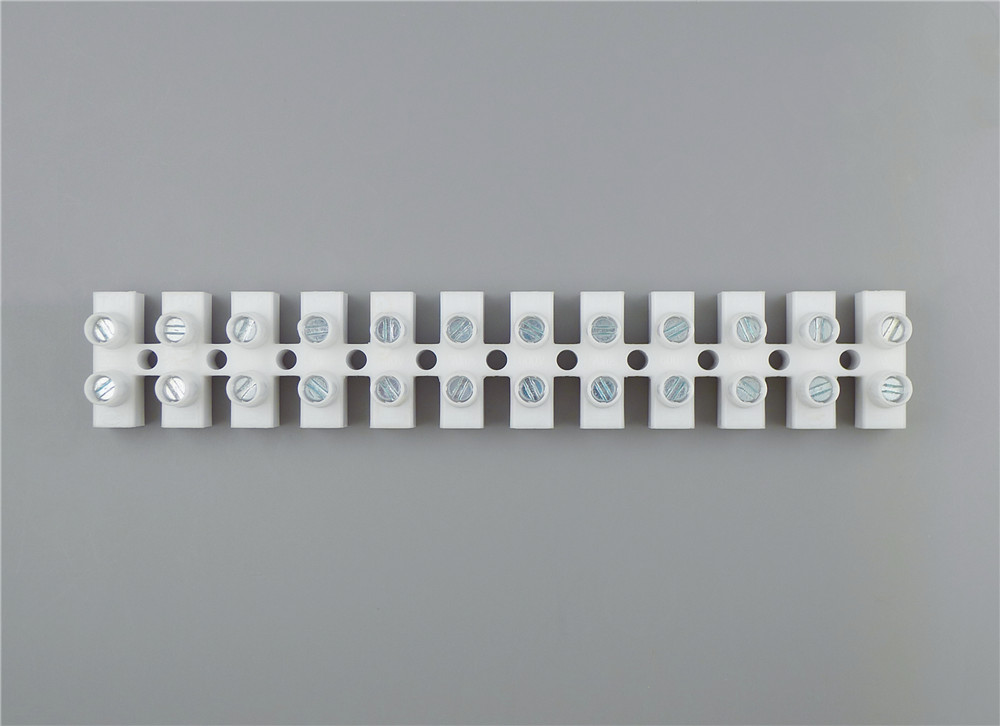

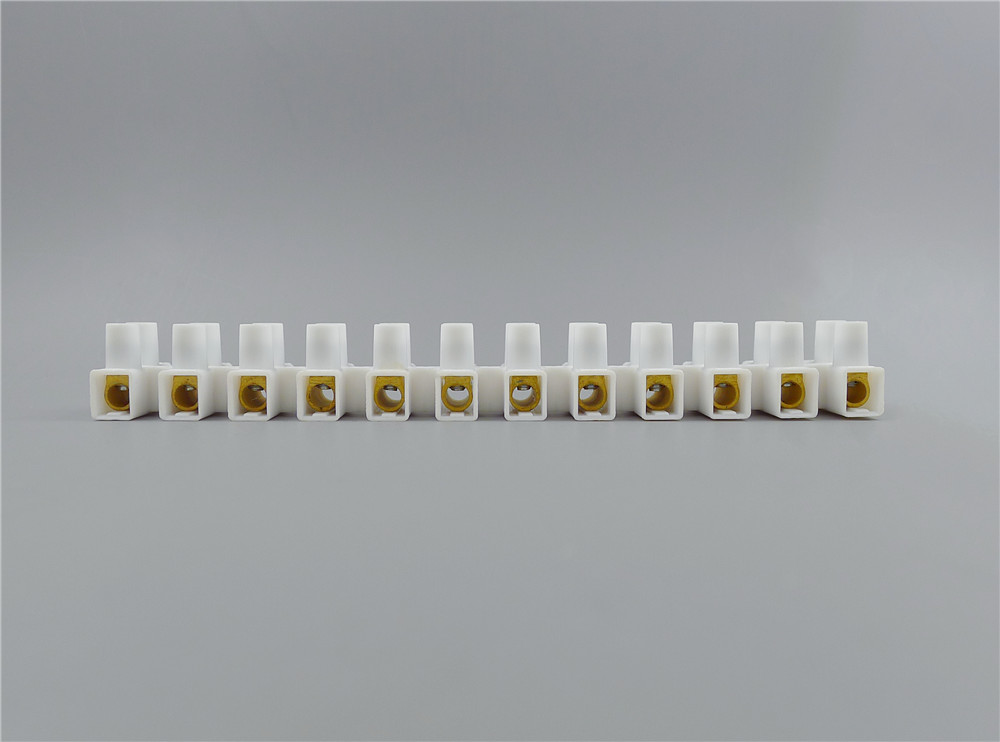

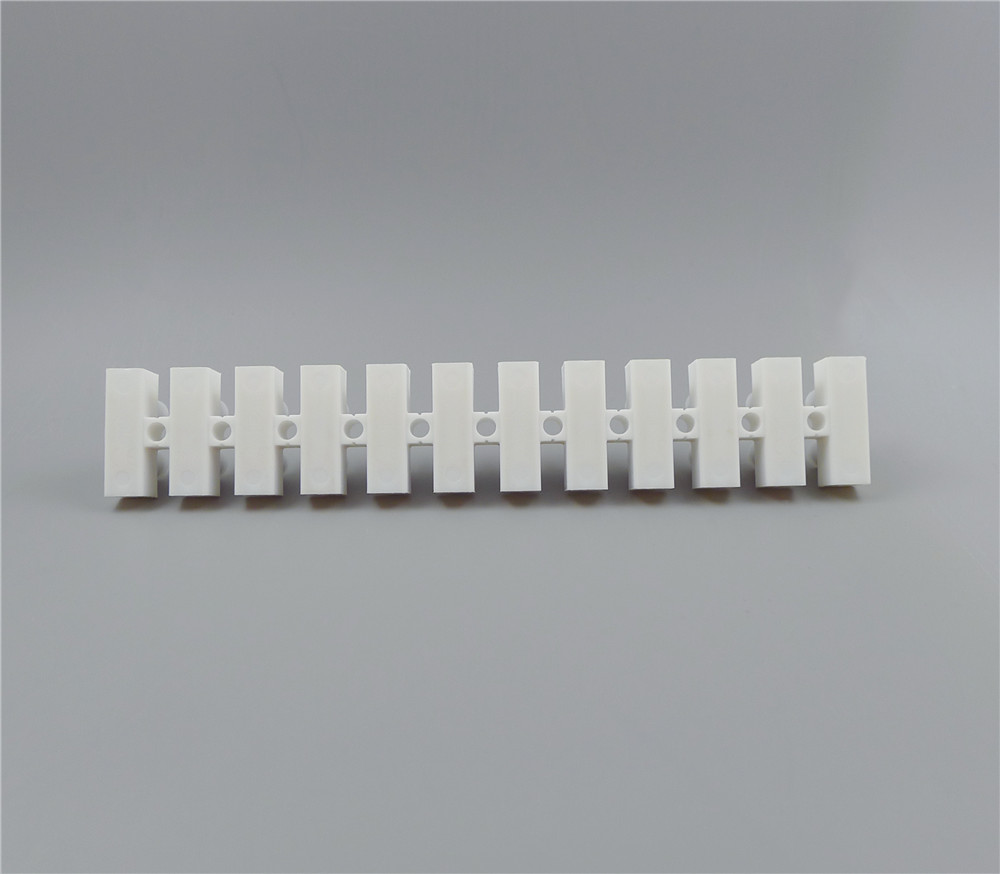

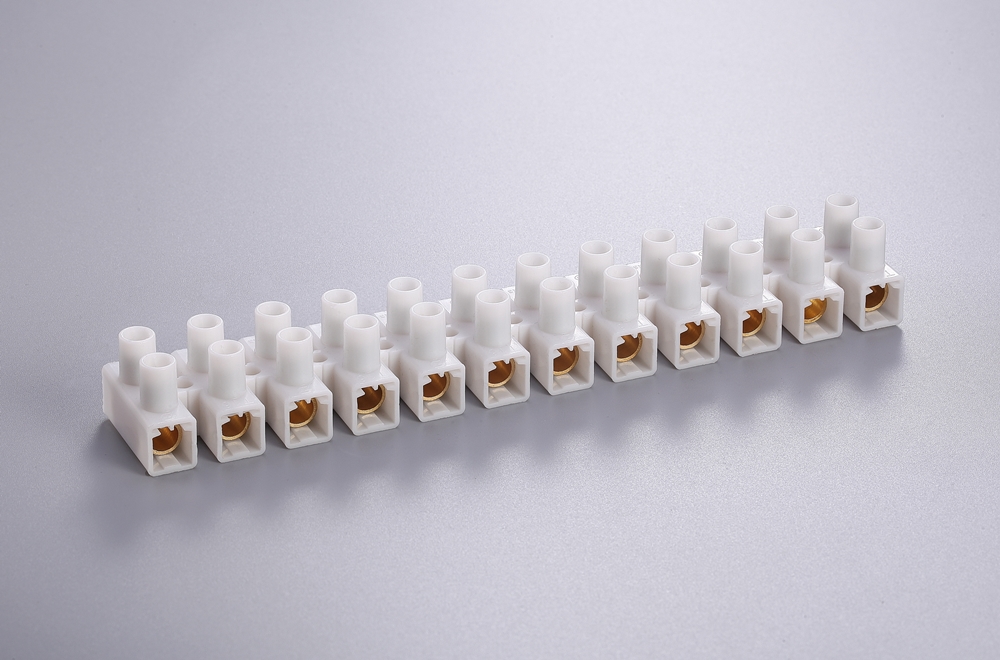

Introducing the T16 Series T16-12N terminal blocks with premium copper clamping units. Designed for high voltage applications up to 750V, these connector strips provide reliable and safe electrical connections. The copper clamping units provide exceptional conductivity and durability to withstand harsh industrial environments. The T16 Series features a compact design that maximizes space efficiency in panels and distribution boxes. Easy to install and maintain, they facilitate fast wiring operations, reducing downtime and increasing productivity. Ideal for a wide range of applications from power distribution to automation systems, these high-quality barrier terminal connector are a trusted choice for professionals seeking reliable, high performance electrical connections.

Parameters

Item No.		T16-12N
Electrical Data
		IEC/EN
Rated Voltage (V)		750
Rated Current (A)		76
Ambient Temperature	Polypropylene	T85
	Polyamide 66	T110
Connection Data
		IEC/EN
Cross Section	Solid conductor	6.0-16.0mm²
	Stranded conductor	6.0-10.0mm²
	Flexible conductor	6.0-10.0mm²
Strip length (mm)		8-9
Means of connection		screw fixed
Screw		M4
Rewirable		√
Number of terminals		multiway
Number of connection points		1-12
Means of Fixing
screw fixed
Materials
Insulation Materials	Designation	Polyamide 66	Polypropylene
	Flammability class	UL 94V-2
Clamping Unit		brass
Packing Quantity (pcs/carton)
200

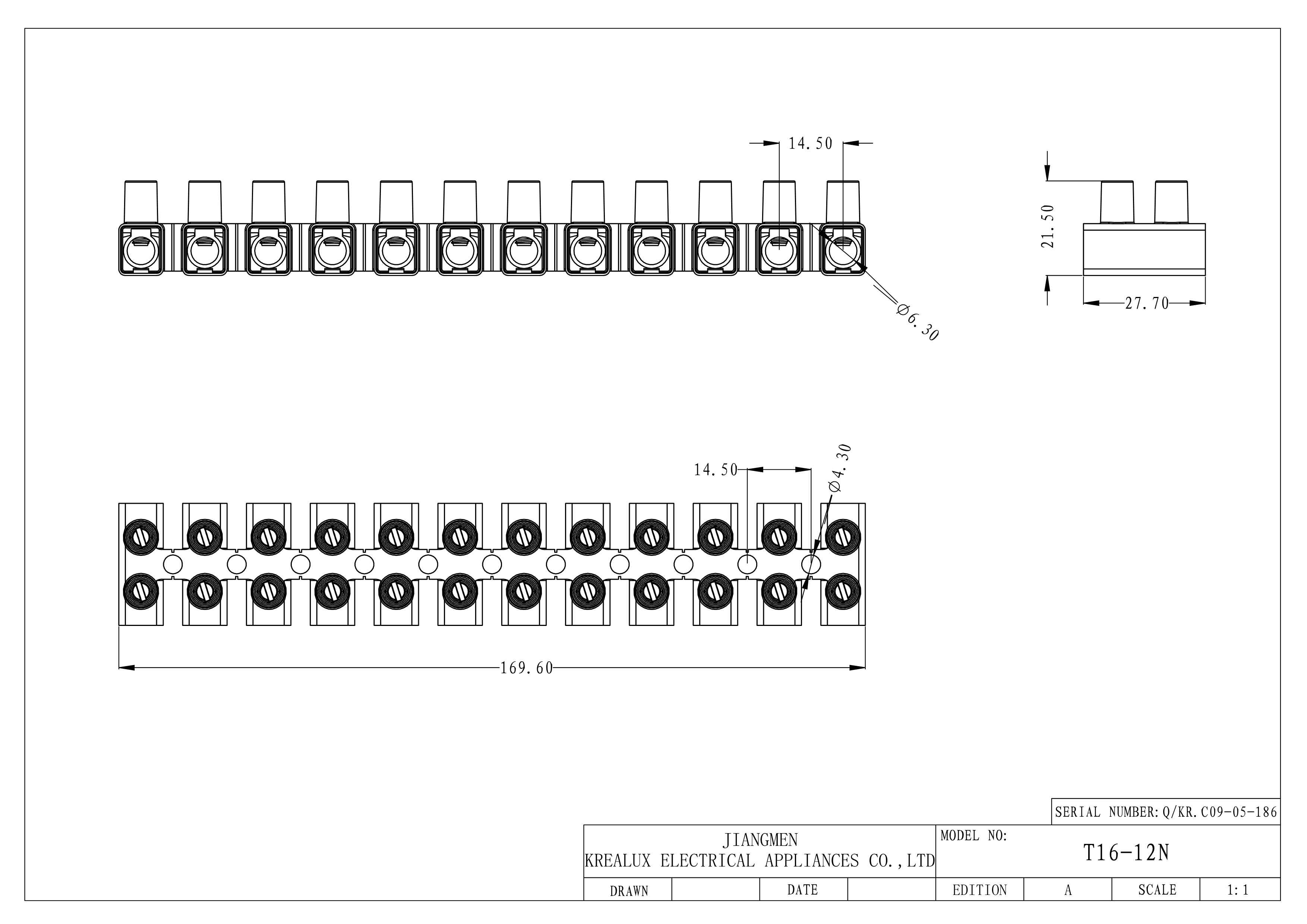

Drawing

Beleks 750V T16 Series Terminal Blocks
