Product details
DGR‑IVB(Q) is a heavy‑duty automatic coil strapping machine designed for steel mills, metal processing, and logistics. It uses electric and pneumatic power to achieve stable, high‑tension steel belt strapping for coils, plates, pipes, bars, and overweight materials. With fast strapping, strong joint strength, and adaptability to extreme environments, it greatly improves packing efficiency and safety for heavy industrial products.
Product Overview

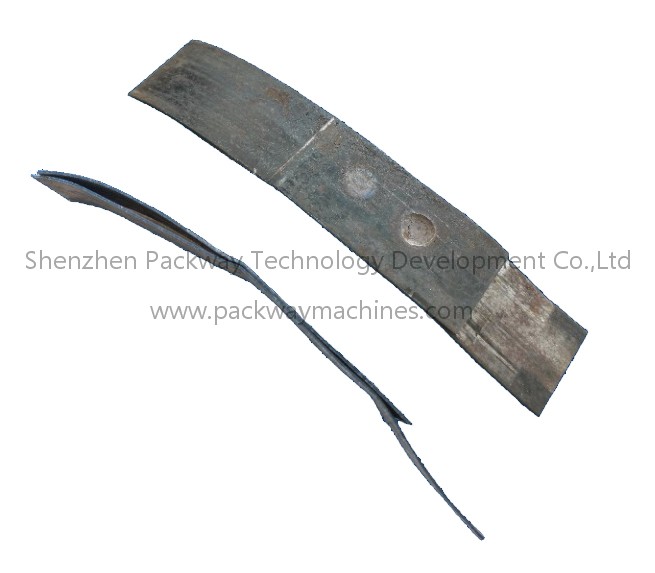

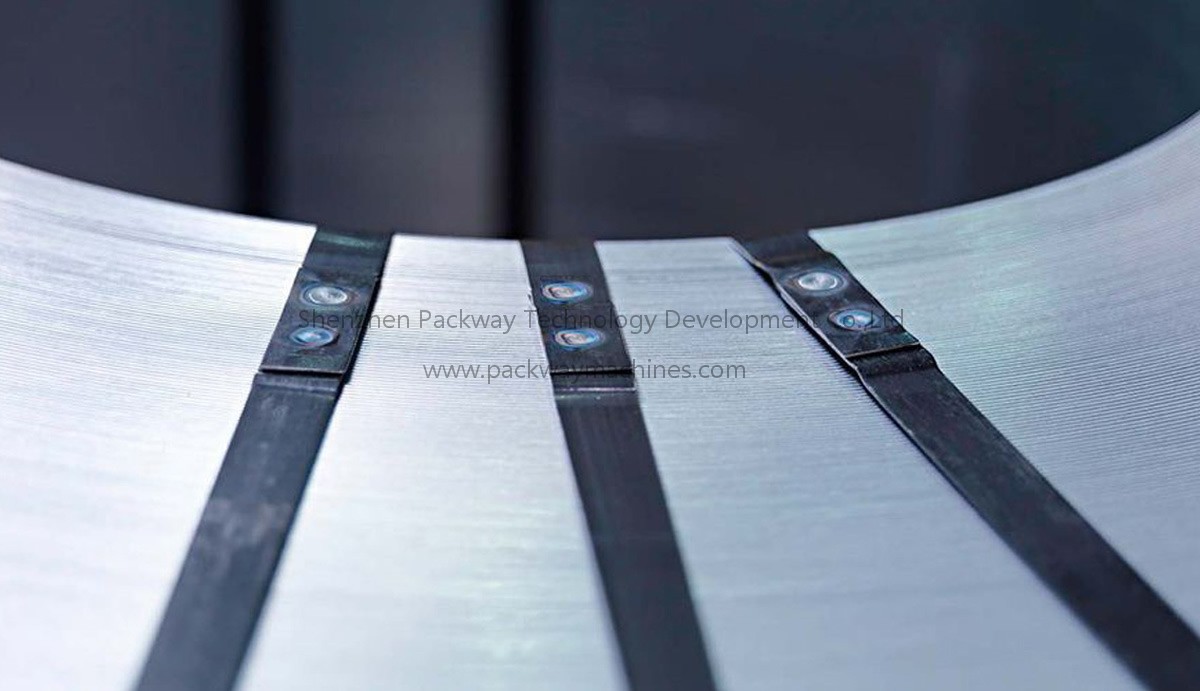

Coil Strapping Machine/Strapping Machine Head For Bar Pile: Fully automatic Steel Belt Strapping Machine head with anti loosening and non buckle: The steel belt connection method relies on stamping buckle connection on the steel belt and folding the edge on both sides of the overlapping steel belt to enhance the connection force. The method has good anti-detachment performance.
Non-locking buckle connection method is suitable for ultra-high temperature environment and various complex environments, such as hot rolled coils, hot rolled plates, galvanized coils, cold rolled coils, sheet piles, aluminum ingot piles, steel ingot piles and so on.
It is widely used in fields such as automation equipment, industrial machinery and equipment. It is an efficient and intelligent equipment that can improve the production efficiency and quality of products, reduce manual operations and labor intensity, and has flexibility, adjustability, and accuracy. The characteristics of control and high efficiency are an important part of modern industrial automation and have broad application prospects in the production industry.
Technical Specifications
1.Power supply: 380V electric
2.Belt feeding motor: 2.2kW
3.Logic motor: 1.1kW, reduction ratio 1:120
4.Pneumatic components: tensioning, holding, pressing, buckle pressing, buckle feeding cylinders
5.Air pressure: 4–6 bar, max instantaneous air consumption: 0.9L/s
6.Strapping speed: 9.8 seconds per belt
7.Belt connection: buckle connection
8.Buckle capacity: 160 pieces
9.Max tension force: 40000N (adjustable)
10.Applicable steel belt: 50mm width, 1.2mm thickness
11.Joint strength: about 75% of the steel belt itself
Product Features & Advantages
1.Strong Tension Performance
Max 40000N adjustable tension ensures tight and safe strapping for overweight and heavy‑duty materials.
2.Efficient Strapping Speed
Only 9.8 seconds per strap, greatly improving the efficiency of automatic coil strapping lines.
3.High Joint Strength
Joint strength reaches about 75% of the steel belt, ensuring firm and durable bundling.
4.Stable Pneumatic & Electric System
Multi‑cylinder coordinated action ensures smooth and reliable operation of the auto strapping machine.
5.Strong Environmental Adaptability
Works stably in high‑temperature, low‑temperature, and complex industrial environments.
6.Large Buckle Storage
Supports 160 buckles per load, reducing frequent replenishment and improving continuity.
How It Works
1.The automatic coil strapper feeds the steel belt to the workpiece.
2.Pneumatic cylinders complete belt holding, pressing, and high‑tension tensioning.
3.The buckle unit connects and fastens the steel belt.
4.The cutting mechanism finishes the strapping cycle.
Why Choose Us
Team Experience
Our team leaders have studied under a doctoral advisor certified by State Department who has excelled in the field of industrial packaging.
Manufacturing
The factory implements advanced mechanical standards, with highly educated employees and experienced workers.
Quality Assurance
Equipment is manufactured in strict accordance with metallurgical industry standards, and can generally operate at ultra-high temperatures of up to 800 degrees Celsius.
Full range of services
We have diversified services, from single item baler to whole unit packaging, high quality, short delivery time. Superworker is your wise choice.
Product design
Our products are of strongly resistance to blows, long lasting and durable, and suitable for various quality steel belts, which greatly reducing the cost of customers.
Application Scenarios
This automatic coil strapping machine is widely used for:
1.Hot rolled coils, cold rolled coils
2.Hot rolled plates, high‑strength steel

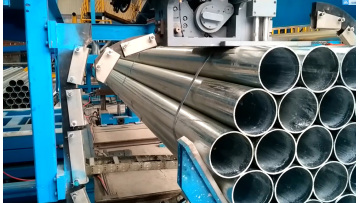

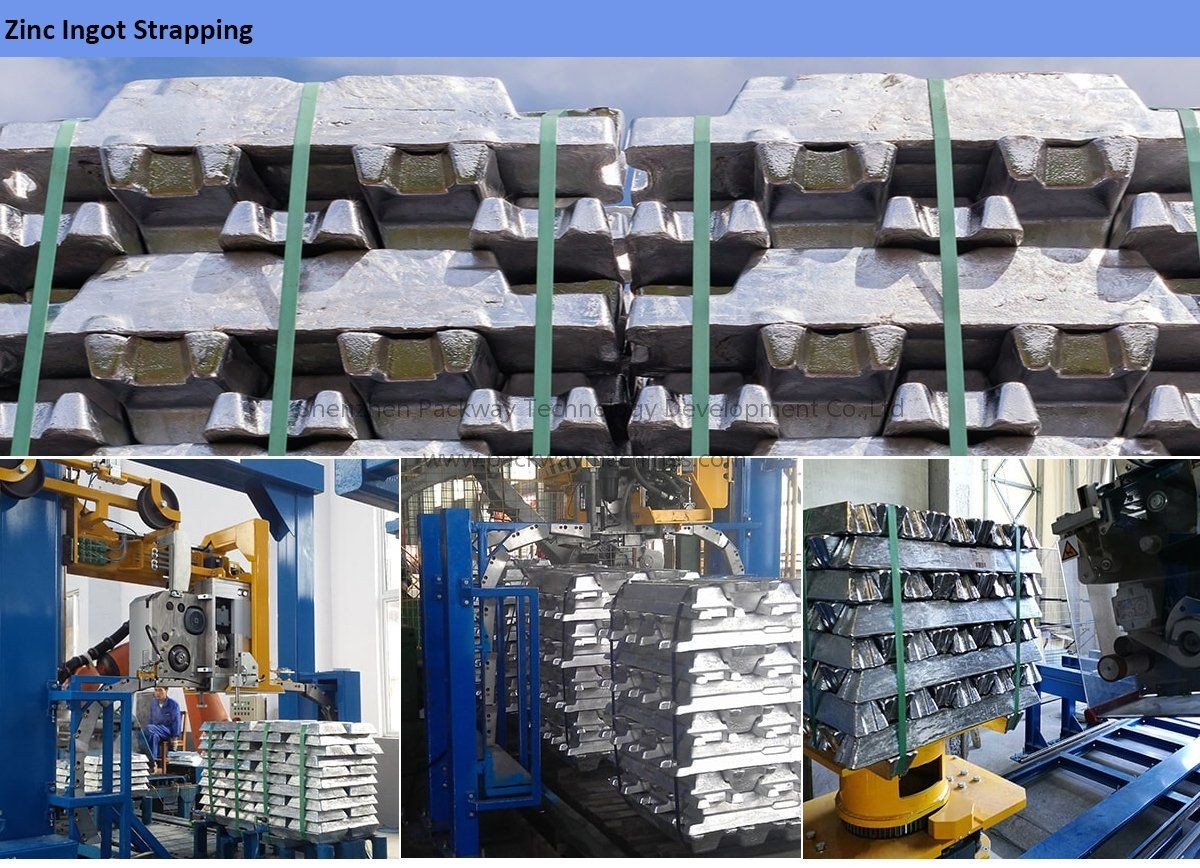

3.Ingot piles, overweight pipe piles, bar piles
4.Various heavy steel and metal materials
It is widely applied in steel enterprises, metal processing plants, logistics and warehousing, and heavy industry production lines.
Maintenance Guide
1.Daily maintenance: follow standard industrial equipment procedures
2.Minor maintenance: every 6 months
3.Major maintenance: once a year
4.Consumables: feeding‑belt wheel, belt cutter, biting unit
Certifications & Compliance
Our automatic coil strapping machine is manufactured under strict quality management. The factory is ISO9001 certified, ensuring stable performance and reliable quality for global customers.
Customization Options
We provide OEM service for the automatic coil strapper. Parameters, structure, and matching can be customized according to customer working conditions and production line requirements.
FAQ
Q: What steel belt size does this machine use?
A: It supports 50mm width and 1.2mm thickness steel belt.
Q: How strong is the strapped joint?
A: Joint strength is about 75% of the steel belt itself.
Q: What environment can it work in?
A: It adapts to hyperthermal, normal temperature, low temperature and complex industrial environments.
Q: How often should I maintain the machine?
A: Minor maintenance every 6 months and major maintenance yearly.
Q: Can it bundle overweight steel materials?
A: Yes, it is designed for coils, pipe piles, bar piles and other heavy steel products.
