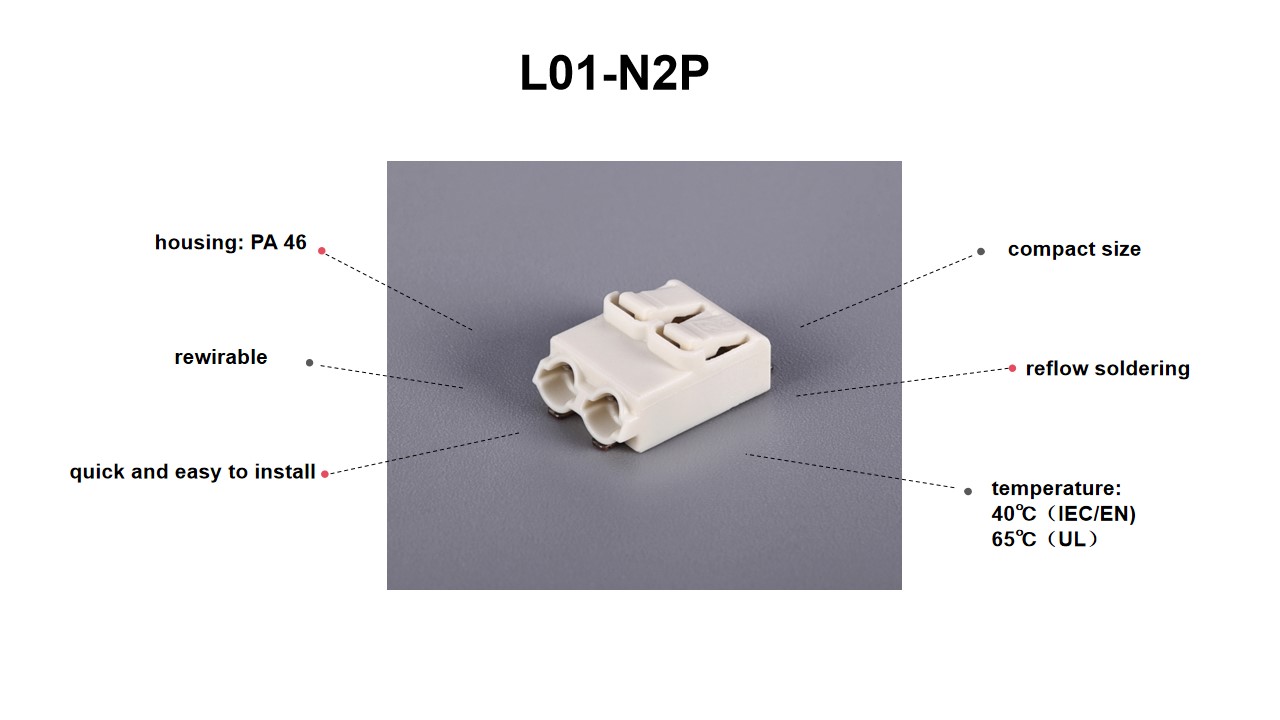

Introducing the BELEKS 2-pole PA46 housing PCB screwless push wire connectors, the innovative solution for hassle-free electronic connectivity. These push-in connectors feature a durable PA46 housing that is designed to withstand harsh environments and ensure long-lasting performance. The screwless design eliminates the need for tools during installation, making it quick and easy to connect wires to your printed circuit board. The BELEKS 2-pole fast connectors are the perfect choice for anyone looking for a reliable, efficient, and user-friendly way to connect wires to their PCB projects.
Connector specification:
size of connector: 13.10mm×8.00mm×5.00mm
Annual Production:
40, 000, 000PCS/Year
Materials:
Housing: polyamide46(v2)
clamping unit: bronze & stainless steel
Packing info: 9000 pcs per carton
carton size: 34.5X34.5X27 cm
net weight: 6kg
gross weight: 10kg
Specifications:
| Item No. | L01-N2P | ||
| Electrical Data | |||
| IEC/EN | UL | ||
| Rated Voltage (V) | 160 | 300 | |
| Rated Current (A) | 9 | 9 | |
| Connection Data | |||
| IEC/EN | UL | ||
| Cross Section | Solid conductor | 0.2-0.75mm² | AWG 18-24 |
| Stranded conductor | 0.2-0.75mm² | AWG 18-24 | |
| Flexible conductor | 0.2-0.75mm² | - | |
| Strip length (mm) | 8-9 | ||
| Means of connection | push in | ||
| Rewirable | √ | ||
| Number of terminals | multiway | ||
| Number of connection points | 2 | ||
| Means of Fixing | |||
| SMT | |||
| Materials | |||
| Insulation Materials | Designation | Polyamide 46 | |
| Flammability class | UL 94V-2 | ||
| Packing Quantity (pcs/carton) | |||
| 9000 | |||

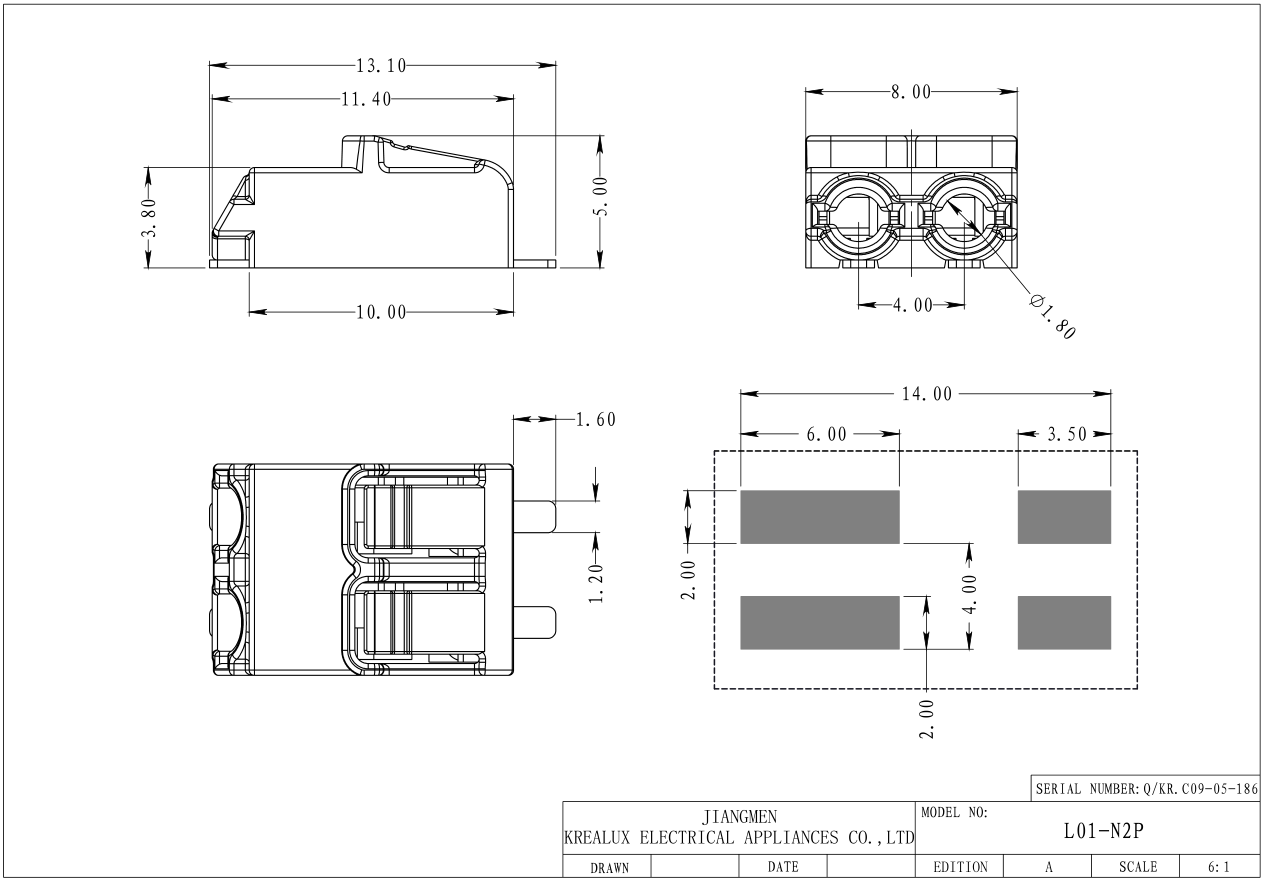

Drawing:
