75-250 pvc pipe.mp4
4 year ago
63-200mm PVC pipe making machine
It is mainly used to produce all kinds of UPVC pipes for agricultural water supply and drainage, building water supply and drainage and cable laying, etc.

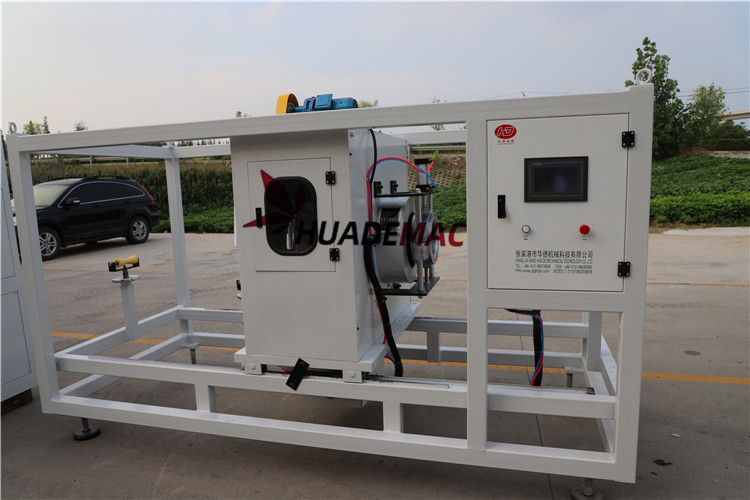

Saw cutter and planetary cutter for choice
Changing some parts can also produce M-PVC pipe, C-PVC pipe, inner spiral wall pipe, inner hollow wall pipe, formed core pipe.
Conical twin screw extruder and parallel twin screw extruder for choice
Double-strand and four-strand for choice for small pipes.
Processing flow of plastic pvc pipe making machine extrusion line:
PVC powder + additive → mixing → spring feeding → twin screw extruder → mould and calibrator
→ vacuum forming machine → haul off machine → cutting machine → discharging rack
Application

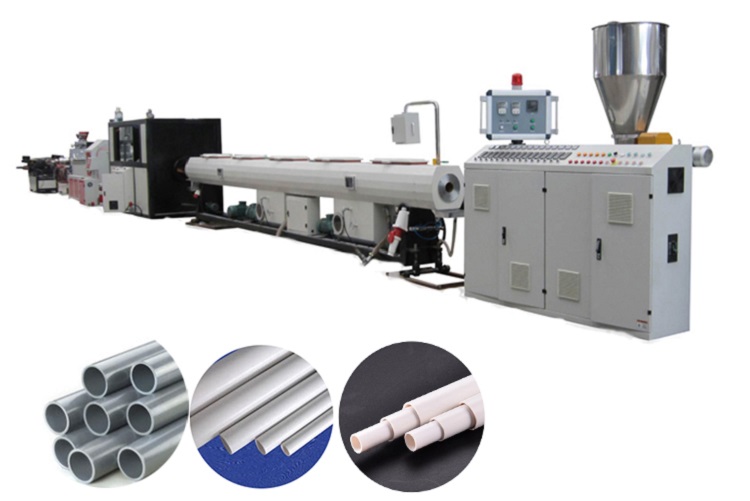

PVC pipe extrusion line photos
Extruder
According to the direction of material flow and the angle of screw center line, the extruder head can be divided into right angle head and oblique angle head.
Screw extruder relies on the pressure and shear force produced by screw rotation, which can make the material fully plasticized and evenly mixed, and then molded by die.
Die-head
Vacuum Sizing Box
Tank materials: 304 S. S.Materials
Water temperature and level controlling technology;
Haul-off Unit
The maximum traction speed: 0.5-20m/min
The maximum traction force: 3000n
Clamping mode: Pneumatic
Stacker
Stainless steel 304 as touching material
Discharge driving by air cylinder
Final Products
Exhibition
Similar Video Recommendation
You May Also Like
If you are interested in the product, contact Bossgoovideo.com for more information
- *To:
- Zhangjiagang Huade Machinery Technology Co.,Ltd
- *Message:
-
Submit
Main Product: PVC pipe manufacture machine , PE pipe making machine , PPR pipe extrusion line , wall panel production, ceiling manufacture, 3 layer PVC tube machinery
