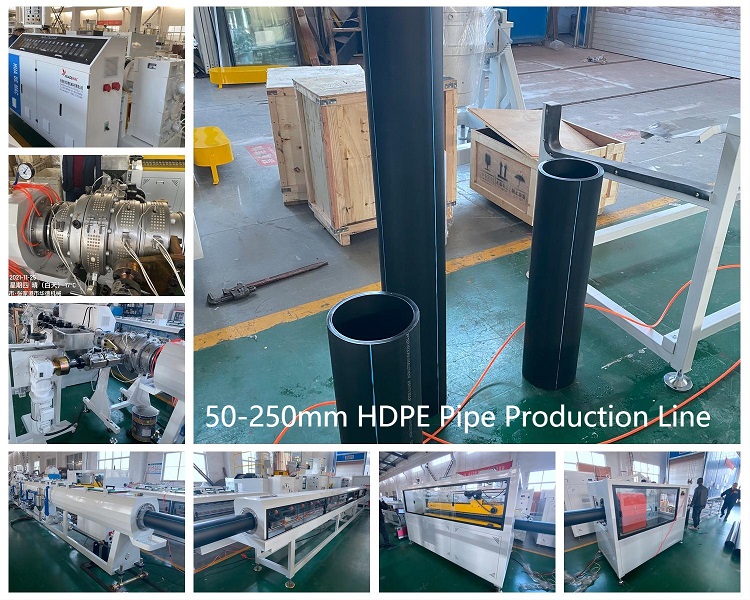

PE 200 pipe manufacture plant
2 year ago
Product details
The complete PE pipe production line is comprised of a number of machines as following:
Single screw extruder : The starting point and heart of every pipe production line, the extruder machine heats and melts virgin or recycled plastic materials,delivering it to the pipe extrusion die head.
Pipe extrusion die head: Forms the extruded plastic into the desired pipe profile.
Vacuum & Cooling Tank: Cooling of the produced pipe, at a precise temperature range in order to cool and stabilize the pipe in the desired shape.
Haul off/puller: Pulling of the pipe after cooling, ensuring consistent pipe thickness and dimensional stability.
Pipe cutter :Positioned after the haul off machine, for cutting of the extruded pipe in the desired length during production.
Pipe coiler/winder: Installed at the end, it receives the produced pipe and coils it to the desired roll.
Stacking Unit:put after cutter for straight pipe laying for late transportation and use.
Diameter Range (mm): 50 63 75 90 110 125 140 160 180 200 250mm
Main Extruder Motor Power: 110kw
Line Space Occupation: 35mx5mx3m
Capacity: 300-350kg/h wall thickness:by request
