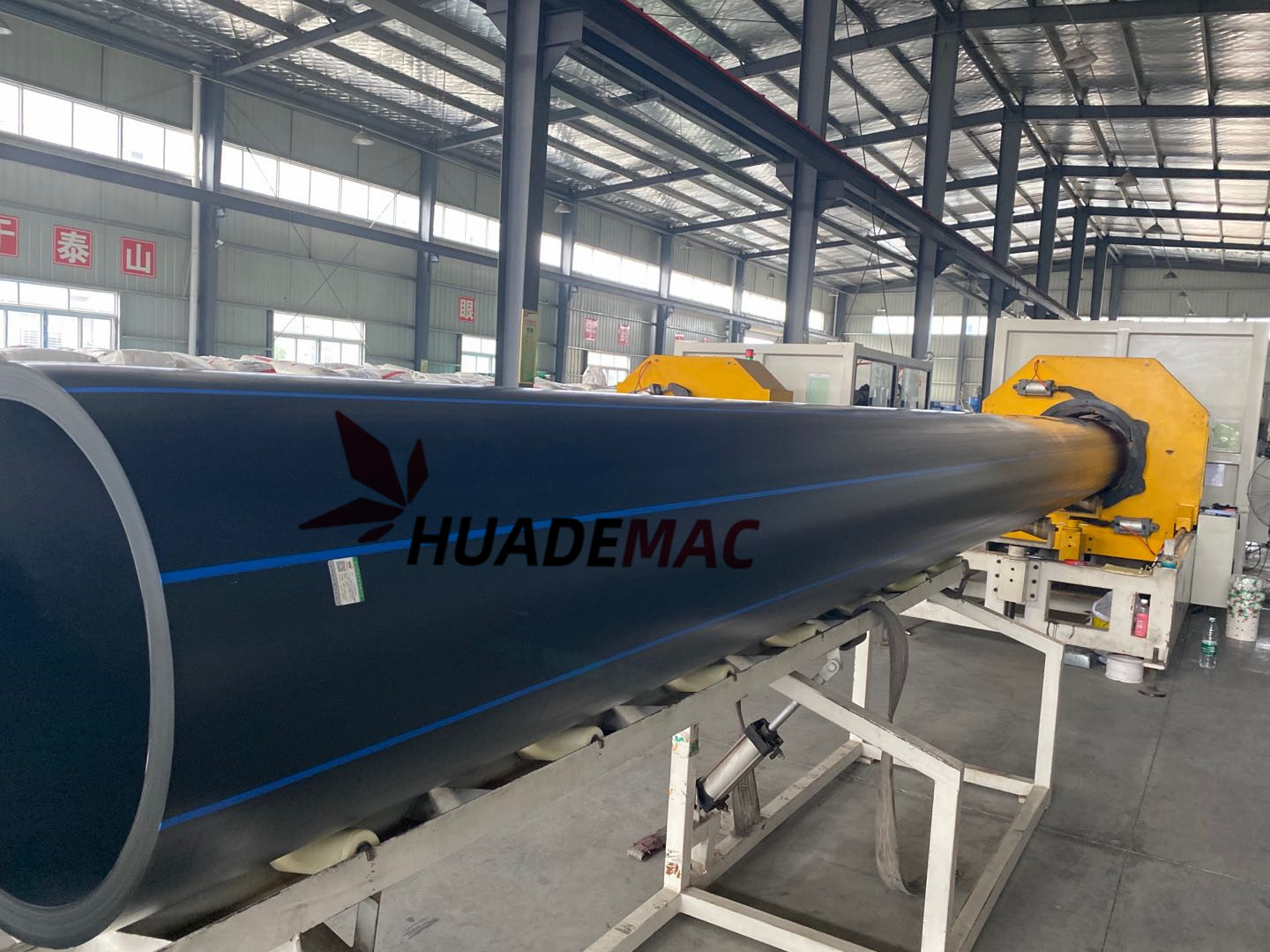

1200mm HDPE pipe production line
3 year ago

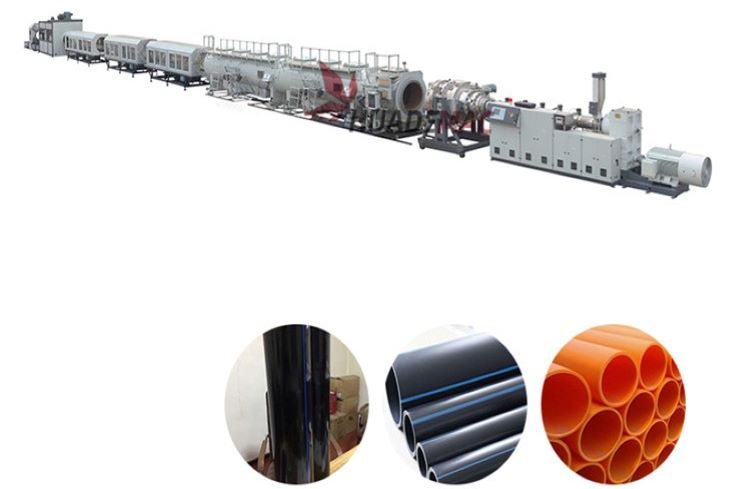

630-1200mm HDPE tube production line / making machine
The unit consists of single screw extruder , die head, vacuum cooling tank, haul-off machine, planetary(swarf less/ chip free cutter / no dust cutter) cutting machine, winder stacker and so on.
Turn-key solution can be provided, like laser printer ,crusher, shredder, water chiller, air compressor etc. to achieve high-grade and automatic tube production.
Characteristics
- This machine is mainly used for pipe production with PE resin as raw material.
- The design of slotted feeder barrel and barrier screw can improve the plasticizing effect.
- High extrusion rate, low melt temperature and uniform temperature.
- Barrier type two pole mixing, i.e. special screw for day, slotting barrel.
- Equipped with a new type of secondary split die, with the characteristics of low temperature and low pressure extrusion: water film sizing sleeve, to ensure the high-speed production of pipes.
- The marking line can be selected to extrude to produce the pipe with color mark.
Diameter Range (mm): 630 710 800 900 1000 1200
Main Extruder Motor Power: 355kw
Line Space Occupation: 65mx5mx3m
Capacity: 1200-1500kg/h
wall thickness:by request
More images for PE 630-1200mm pipe production line
Single screw extruder↓

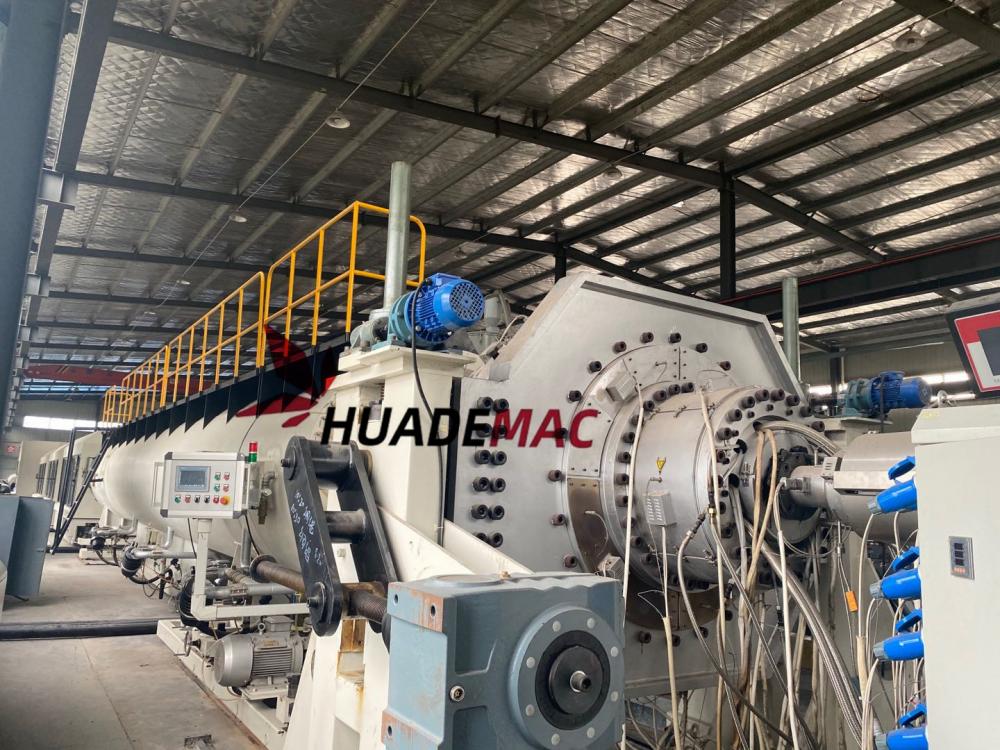

Die head and mould（including the bush,pin and
calibrator）↓

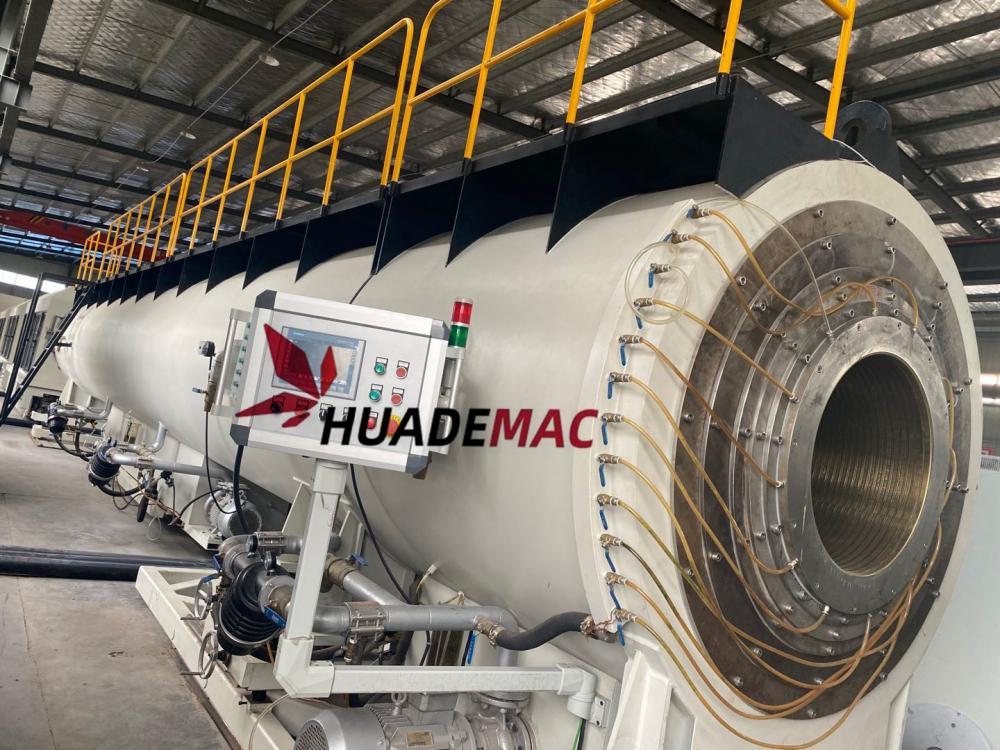

Vacuum Calibration Tank↓

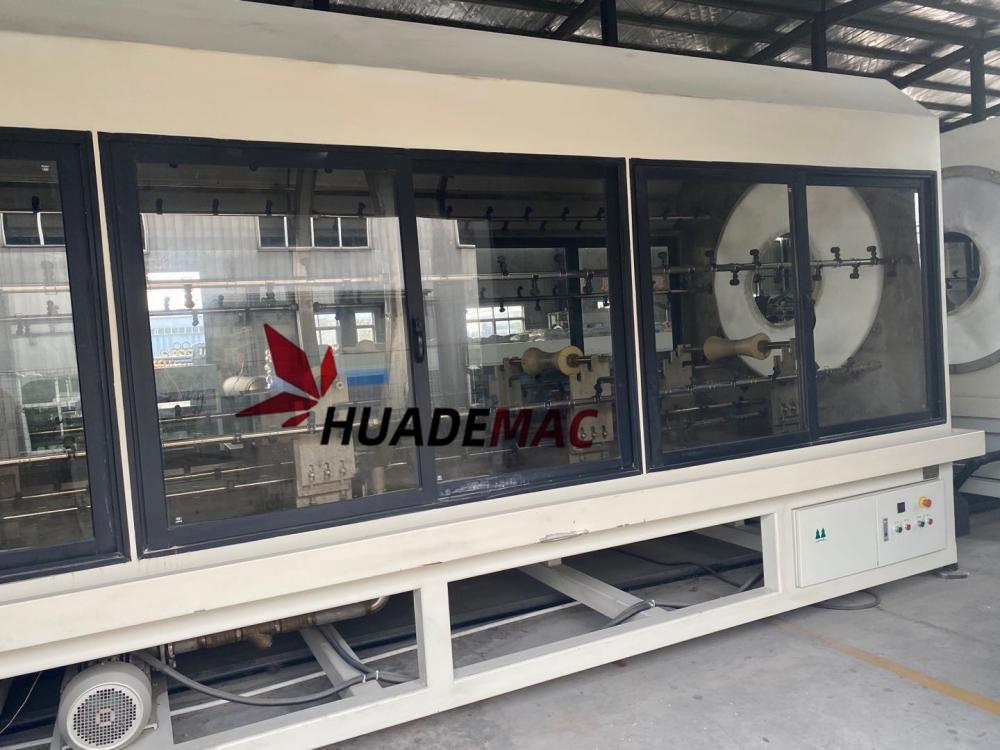

12 caterpillar Haul-Off machine↓

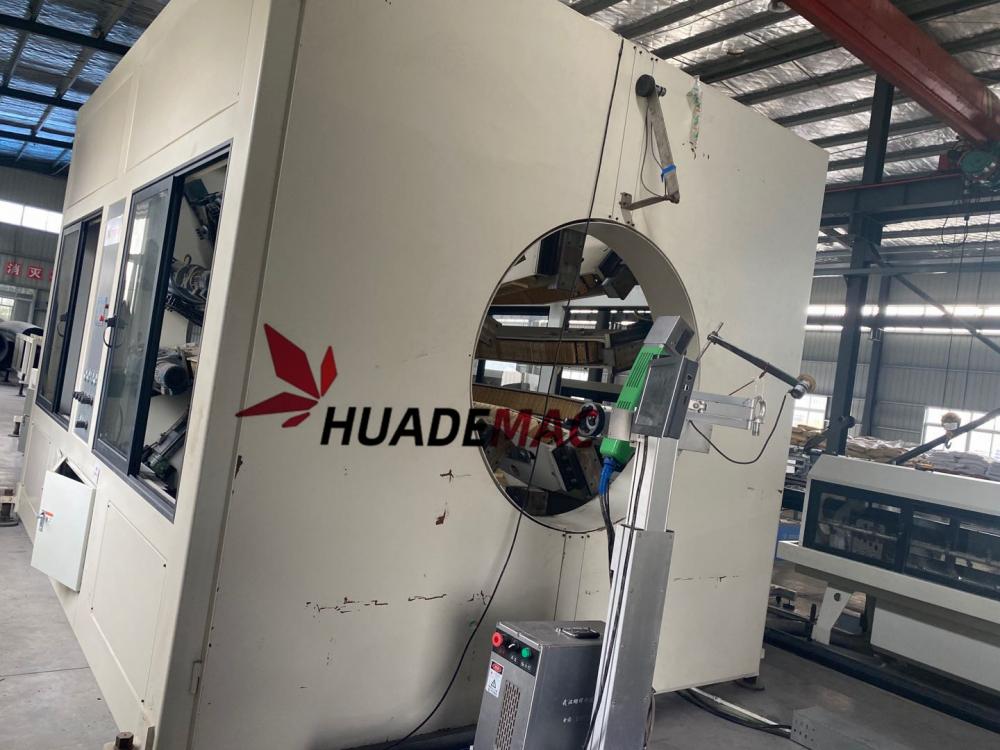

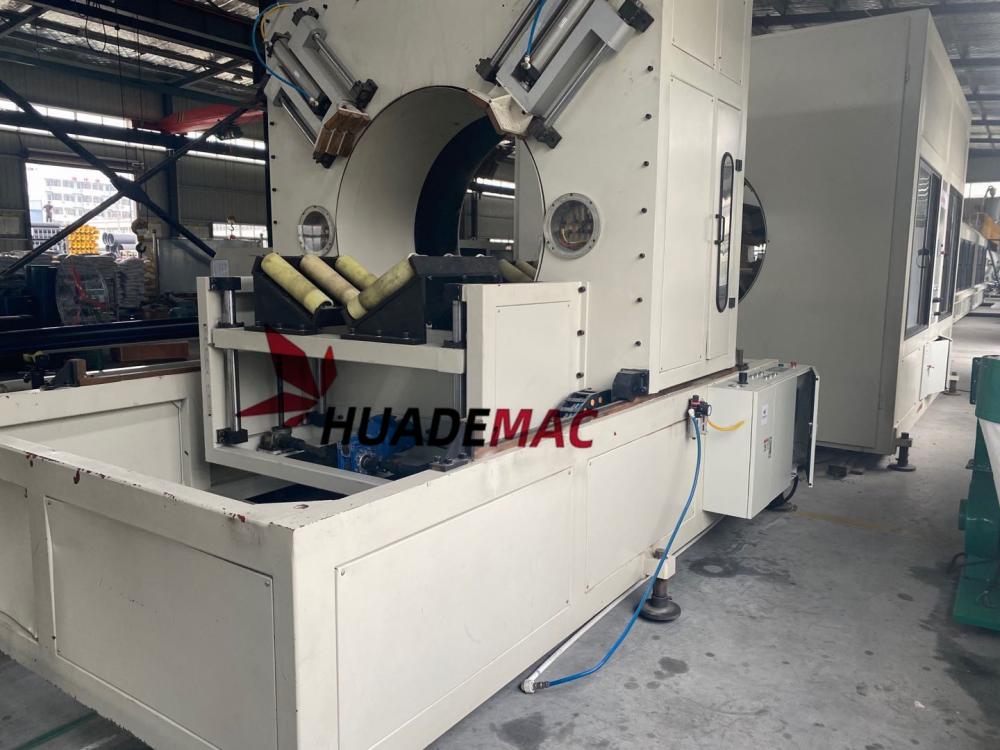

Cutting machine↓
Stacker↓
Packaging&Exhibition
