16-32mm PVC conduit Pipe 4 cavity making machine

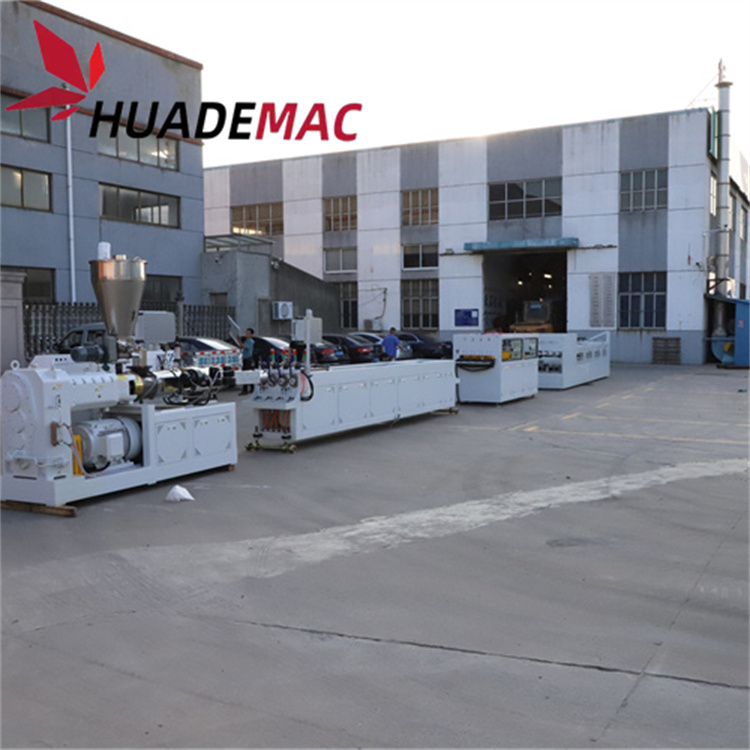

PVC Four-Strands conduit Pipe Machine

PVC Multi Strands Pipe Extrusion Line with advanced technology which is mainly used in making PVC water pipe and PVC cables, it has dual strands type and four strands type, which allows to produce two pipes or four pipes together at the same time, greatly improved the output, welcomed by customers all over the world.

PVC pipe manufacture machine

Product Description

Application of PVC,UPVC Wall Pipe extrusion production line / UPVC pipe making machine:

Applied for manufacture of caliber PVC,UPVC water supply and drain pipes,electric conduit pipe, etc

Working flow of PVC,UPVC Wall Pipe extrusion production line / UPVC pipe making machine

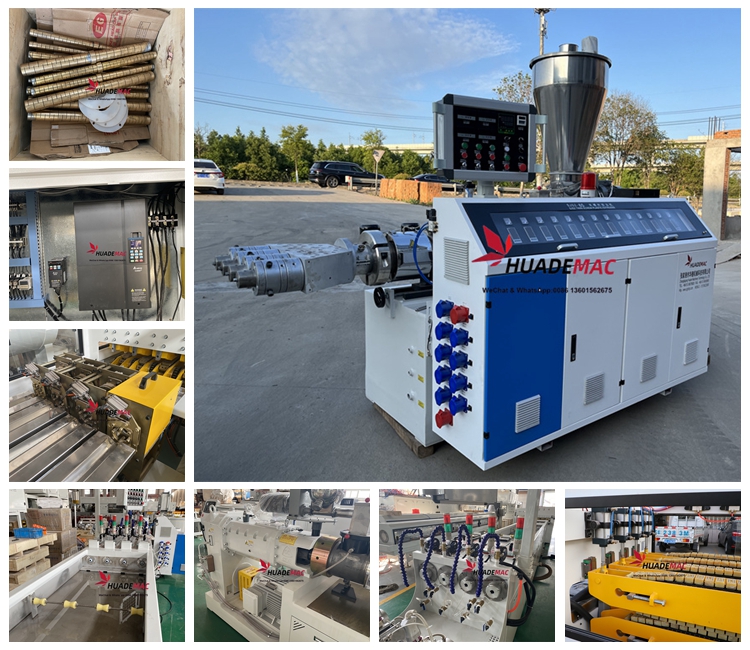

Details Images of PVC 4 strand conduit pipe machine

Vacuum calibration tank is used to shape and cool pipe, so as to reach standard pipe size.

Length: 6000mm

Material: 1.5mm stainless steel SUS304,

Vacuum pump 1X4kw

Horizontally adjusting distance is 800mm, and the motor is 0.75kw cycloid pin reducer

Up and down, left and right movement adjusted by guide screw

4 Caterpillar Haul off  and dust free cutter unit provides sufficient traction force to pull pipe stably.

Useful Haul-off length:800mm

Haul-off motor power:850wX8pcs servo motor

Haul-off speed:1-15m/min

Equipped with coder to give fixed length signal

Cutting motor: AC 0.55kwX4pcs

Stacking unit

Stainless steel 304 as touching material

Discharge driving by air cylinder
