Auto parts hot foil stamping machine

Pneumatic hot stamping machine for ultra high products//

Usage and characters

    The principle of hot foil stamping machine is contact transfer, that is, only the area where pressure is generated can transfer the hot stamping foil, and the area without pressure cannot transfer the hot stamping foil.

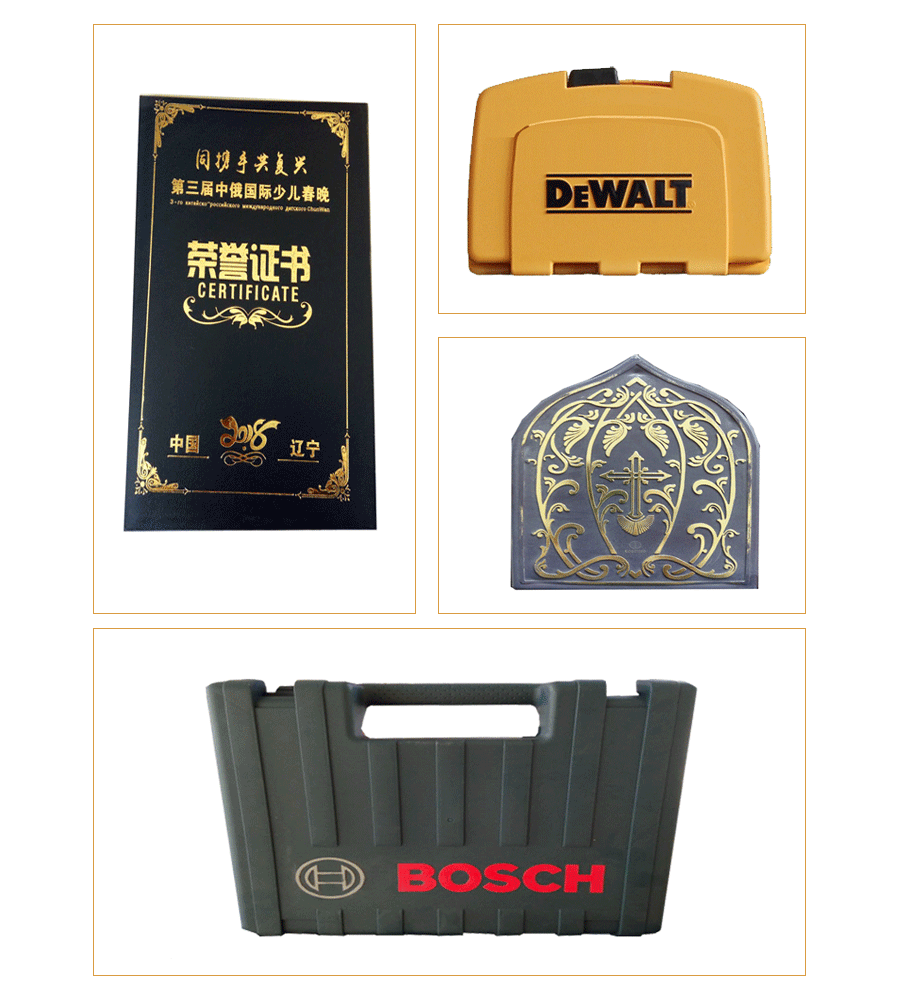

• Text hot stamping die + flat product

This is the most common hot stamping process. For example, paper, film, leather, flat plastic products, to hot stamp these products, you need to make a silicone die or hot stamping die with text. When the hot stamping die is pressed down to contact the product, the text part will transfer the hot stamping foil to the surface of the product;

• Flat silicone plate + raised text

If the product itself has a raised part and needs to be hot stamped on the raised part, then just paste a flat silicone plate on the hot stamping head, so that the raised area will transfer the hot stamping foil.

• Cold hot foil stamping process

Flat hot stamping machine is not suitable for large-area cold hot foil stamping process, but it can still be used in some special occasions, such as glass products. You can first screen print glass varnish on the glass, and then use the flat hot stamping machine for hot foil stamping after curing. A thicker silicone plate should be pasted on the flat hot stamping machine to avoid crushing the glass.

• Curved silicone die + curved products

Many plastic products are not flat, but have smooth curved surfaces. To hot stamp on them, you need to make a silicone rubber plate that matches the product shape. Since each area of ​​the curved product is not flat, the phenomenon of wrinkling the hot stamping foil will often occur, which is a difficult area for flat hot foil stamping.

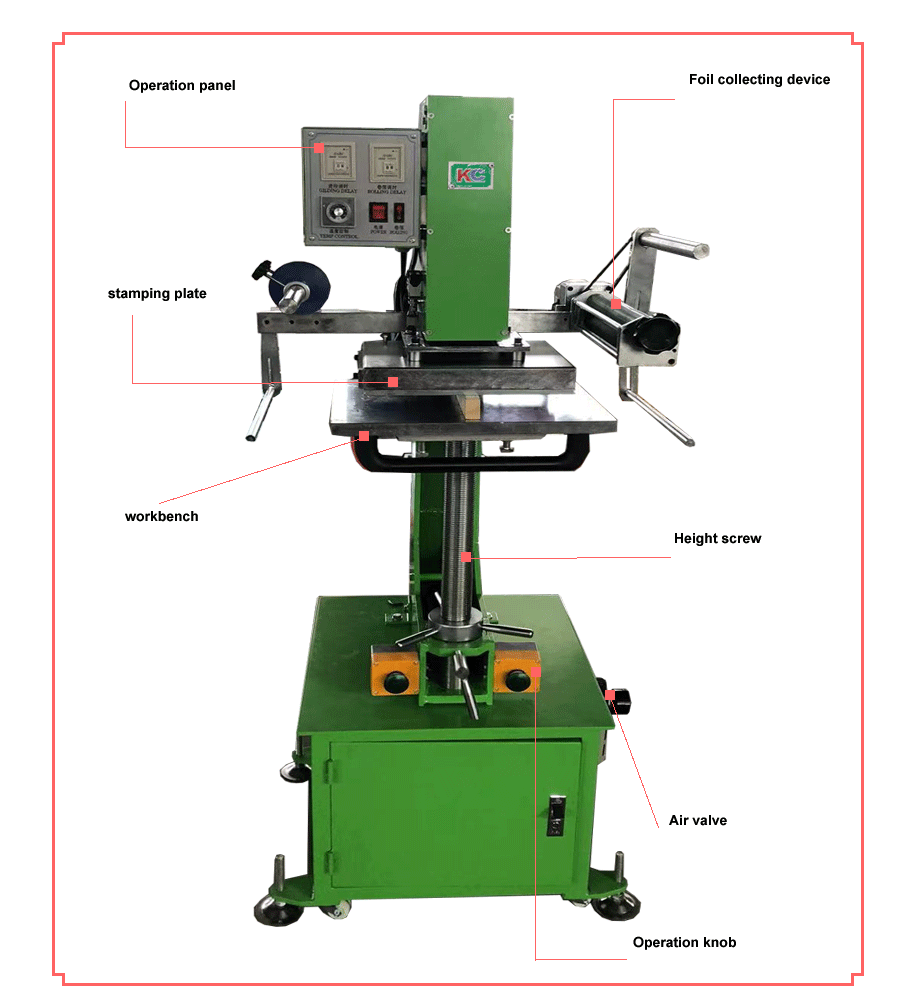

Machine structure-advantage

• Table can be pulled into and pulled out the pick and place of convenience products;
• Table can be up and down, around, before and after the precision adjustment, to facilitate the adjustment of the precise location of the gilt;
• Table lifting screw adjustment, simple and convenient;
• Relays for process control, stable operation, easy maintenance;
• The use of advanced temperature control system, the temperature can be set freely, high precision temperature control, with automatic temperature control;
• leveraged cylinder pressure, the pressure is uniform and strong;
• The basic parameters of the hot stamping process; temperature, pressure, hot pressure, the rolls of time in accordance with the process requirements of the flexible adjustment;
• Motor to control the delivery of the gold foil paper, resin length can be flexibly adjusted according to the size of the stamping area;
• Using high strength steel, gilt plate and table, has a very high flatness;
• Heating tube for heating, heat supply is stable, easy to replace
