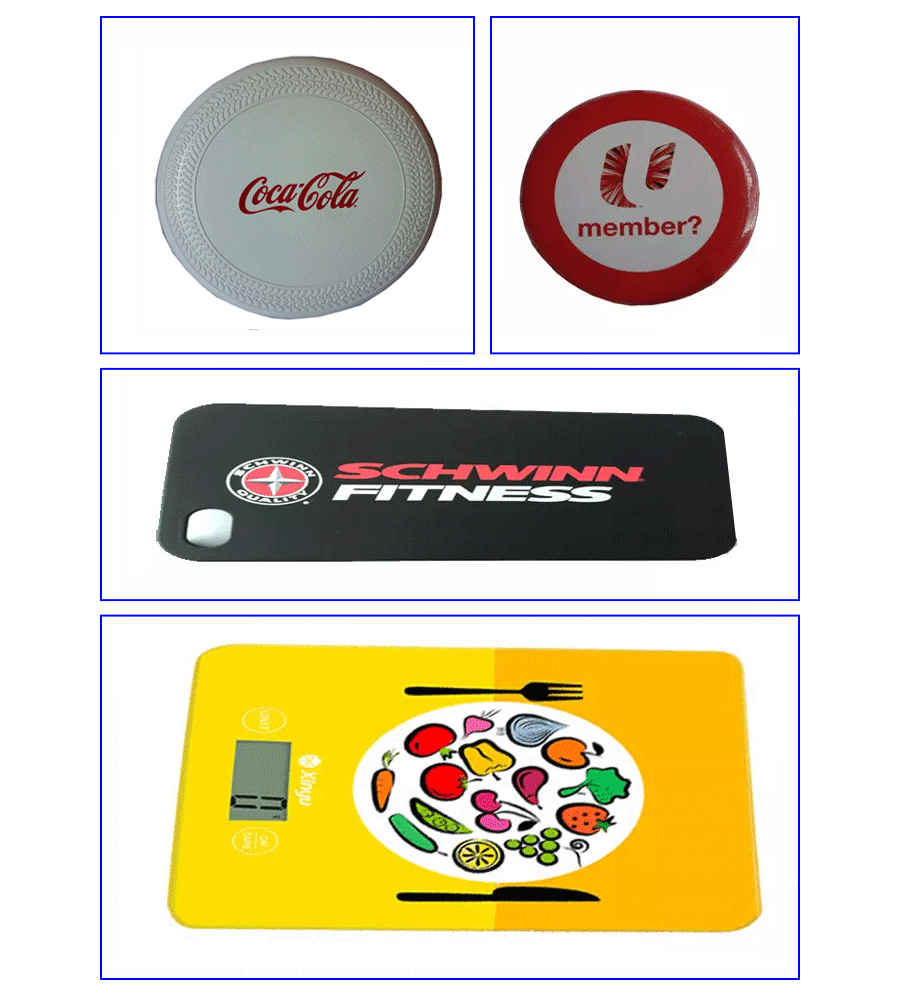

Samples
Vacuum workbench human-machine interface electric flat screen printer:
Vacuum workbench
Use a vacuum pump to extract the air inside the workbench to form a negative pressure environment, and adsorb the object to be processed or handled tightly on the surface of the workbench through the adsorption holes to ensure that it remains in a fixed position during processing or operation. It consists of a workbench, adsorption holes, vacuum pipes, vacuum pumps, and vacuum control systems. The workbench is generally made of flat and smooth materials, and the adsorption holes are evenly distributed on the workbench. The vacuum pipe connects the workbench and the vacuum pump, and the vacuum control system is used to adjust and control the vacuum degree.
Human-machine interface
Also known as human-machine interface, human-machine interface, is a medium for transmitting and exchanging information between people and machines, including two interfaces: display and controller. Users transmit instructions, data and other information to the machine through the controller, and the display returns the information processed by the machine to the user.
Electric flat screen printer
The scraper or scraper is driven by a motor to reciprocate on the screen, thereby realizing the printing of patterns, text, etc. The action of the electric screen printer is mainly controlled by a motor instead of a cylinder drive, which is faster and more accurate.

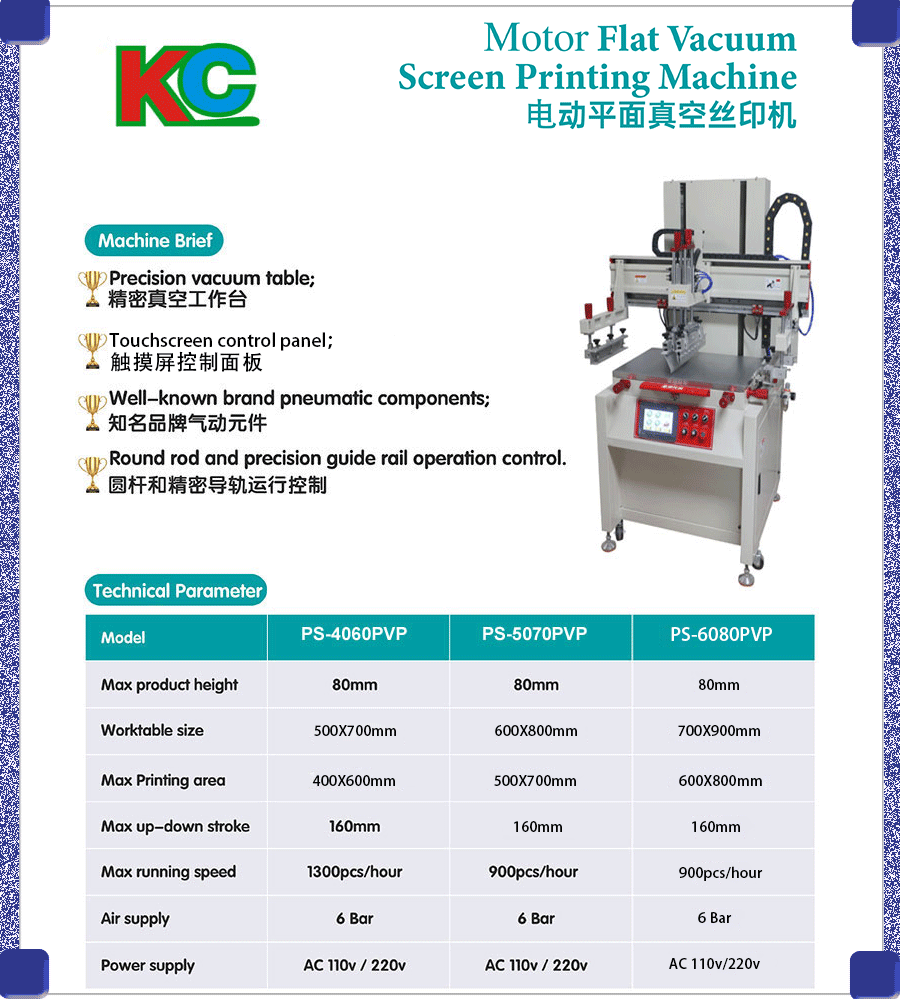

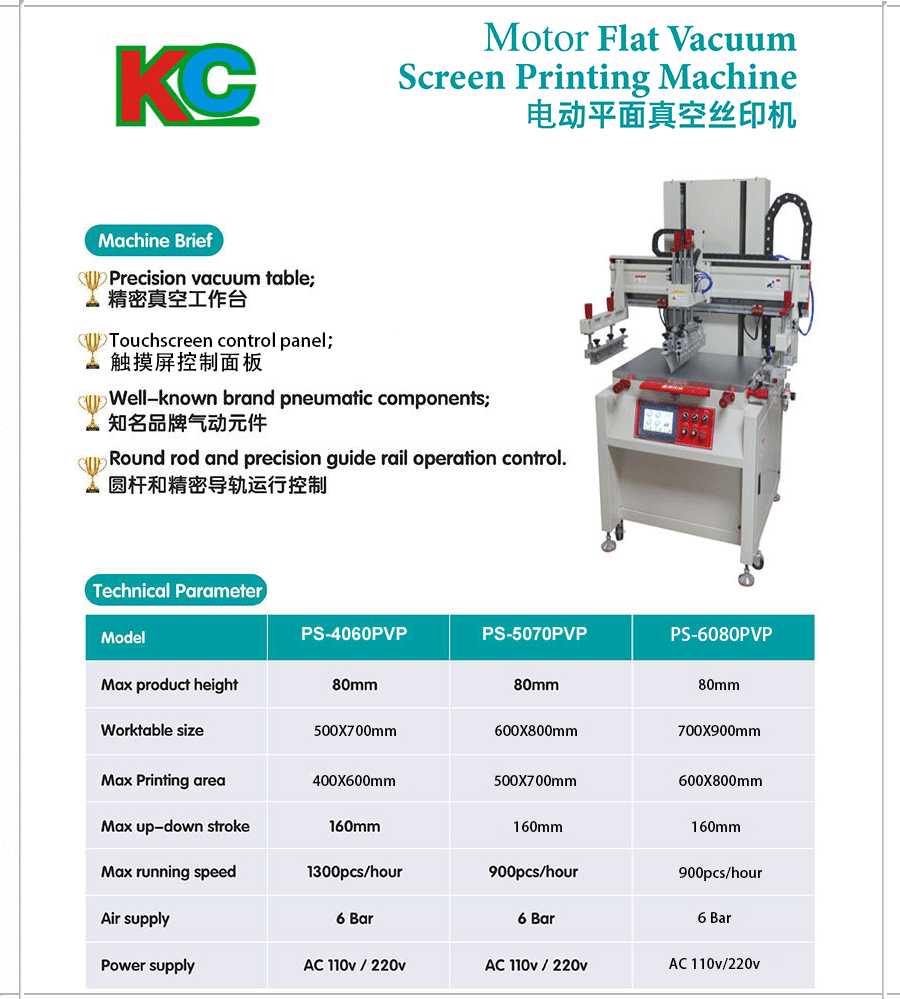

Flat screen printing Machine with vacuum table//Parameters
|
|

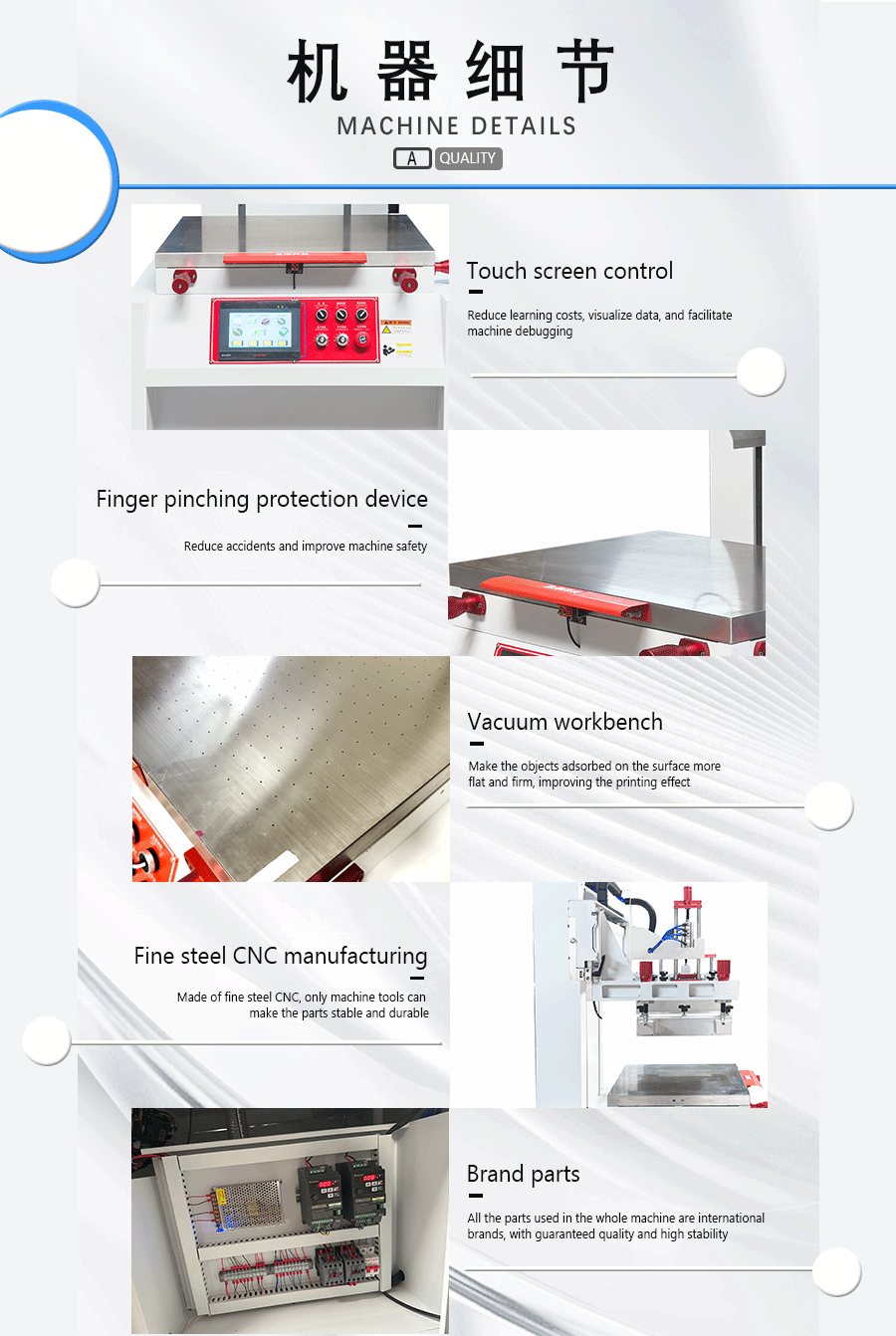

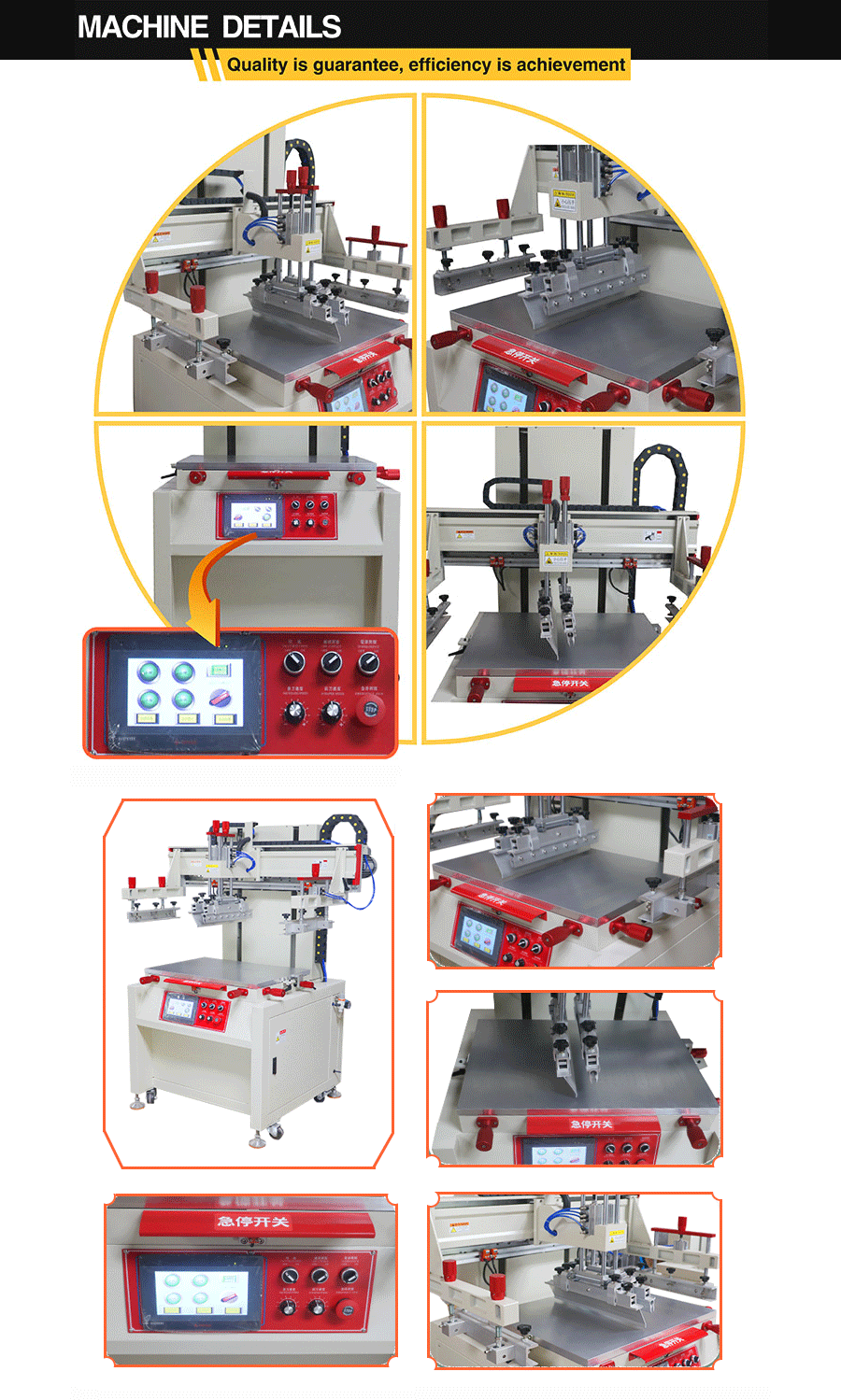

Machine details-Advantage
- Vacuum table to facilitate the production of Soft and thin , suitable for Printing Paper, film and UV Coating Process;
- Screen Forme up and down movement of contact with the table, suitable for hand-placed and remove the product;
- Distance of the screen and table to the flexibility to adjust for different heights of the product silk screen;
- Screen forme Clamping device free to adjust to fit different sizes of screen;
- Screen Plate clamping device can be adjusted Front and back, left and right, up and down, the angle of the fine-tuning in order to fine-tune the exact location of the pattern in the product above;
- Stroke of the scraper can be flexibly adjusted the pattern to suit different size;
- Squeegee pressure can be individually adjusted to fit any high-precision screen printing;
- Microcomputer program control operations;
- 4-Digit auto counter; to facilitate the measurement of production efficiency.
Catalogue
Issues to consider when using a flat screen printer:
- Choose a suitable screen printer
The first choice of a screen printer is based on the characteristics of the workbench. For example, for paper and film, a screen printer with a vacuum table should be used; for three-dimensional products such as injection molding, a screen printer with a T-slot workbench should be used; for glass products, a screen printer with a roller-rotating workbench should be used; for printed circuit boards, a screen printer with ejector positioning can be used; for safety requirements, a screen printer with a movable workbench can be used; if the output requirements are high, a fully automatic screen printer can be used.
- Does the screen printer use electricity or compressed air?
Pneumatic screen printers, electric screen printers, and fully automatic screen printers all require electricity and gas. It is basic to equip your workshop with a suitable power supply and gas source.
- Product size
Products have length, width and height. When choosing a screen printer, you must ensure that the workbench can accommodate the product after making the fixture; the printing size is generally smaller than the workbench, so you should ensure that the printing size meets the requirements;
- Preparation of printing elements
The screen printer must be combined with printing elements such as screen, ink, fixture, scraper, etc. The tension and mesh of the screen affect the thickness of the ink layer; what material is used to make the fixture to ensure that the product is easy to place and remove; for products with uneven printing surfaces, such as concave and convex surfaces, the scraper must be ground into a shape that matches the product to achieve perfect screen printing.
- Choose the right printing process
The right ink should be selected according to the material of the product, and the ink should form wettability with the product. Solvent-based inks and UV inks should be used with different post-processing procedures, such as whether to use an infrared tunnel drying furnace or a UV drying furnace.
