H-TC100K hot stmaping machine for glass bottle

8 month ago

17 0 

KC Printing Machine (Group) Limited

9 year

Product details

H-TC1224K Pneumatic cylinder hot stamping machine //

Usage and characters

For soft-tube

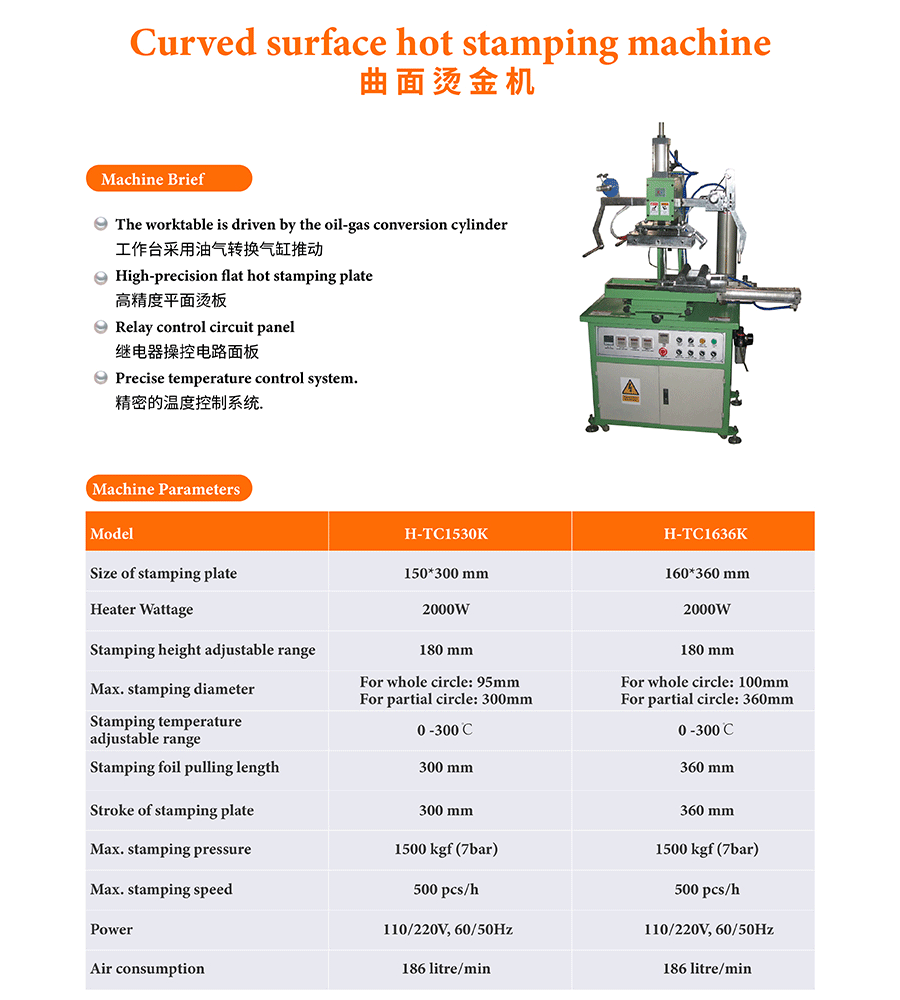

Hot stamping on cylindrical products such as bottle caps, cups, hoses, bottles and other products requires a curved surface stamping machine. The workbench of the curved surface stamping machine adopts the shuttle movement way to drive the product to rotate at a constant speed. The ironing plate of the curved surface stamping machine adopts a flat ironing plate, which can be installed with copper plates, zinc plates, and silica gel plates. When the ironing plate is pressed down, the stamping paper will be tightened. Pressed tightly on the surface of the product, the rolling process of the product will form a bronzing pattern in the circumferential direction.
There are many types of curved surface hot stamping machines according to the diameter of the hot stamping product. The larger the size of the hot plate, the larger the diameter of the hot stamping product. Most of the curved surface stamping machines are driven by cylinders to move the shuttle table, and hot stamping machines with higher requirements use oil-gas conversion cylinders to drive the movement of the shuttle table. The speed of curved surface stamping machines is generally slow, and the market oil for automated curved surface stamping machines has increased significantly in recent years.

285

Table can be up and down, around, before and after the precision adjustment, to facilitate the adjustment of the precise location of the gilt;
Relays for process control, stable operation, easy maintenance;
The use of advanced temperature control system, the temperature can be set freely, high precision temperature control, with automatic temperature control;
leveraged cylinder pressure, the pressure is uniform and strong;
The basic parameters of the hot stamping process; temperature, pressure, hot pressure, the rolls of time in accordance with the process requirements of the flexible adjustment;
Motor to control the delivery of the gold foil , resin length can be flexibly adjusted according to the size of the stamping area;
Using high strength steel, gilt plate and table, has a very high flatness;
Heating tube for heating, heat supply is stable, easy to replace;
Safe protection device installed;
The stamping head height adjustable;
Shuttle stable shift ensure stamping cylindrical workpiece;
Stamping flat workpiece while uninstall the shuttle.

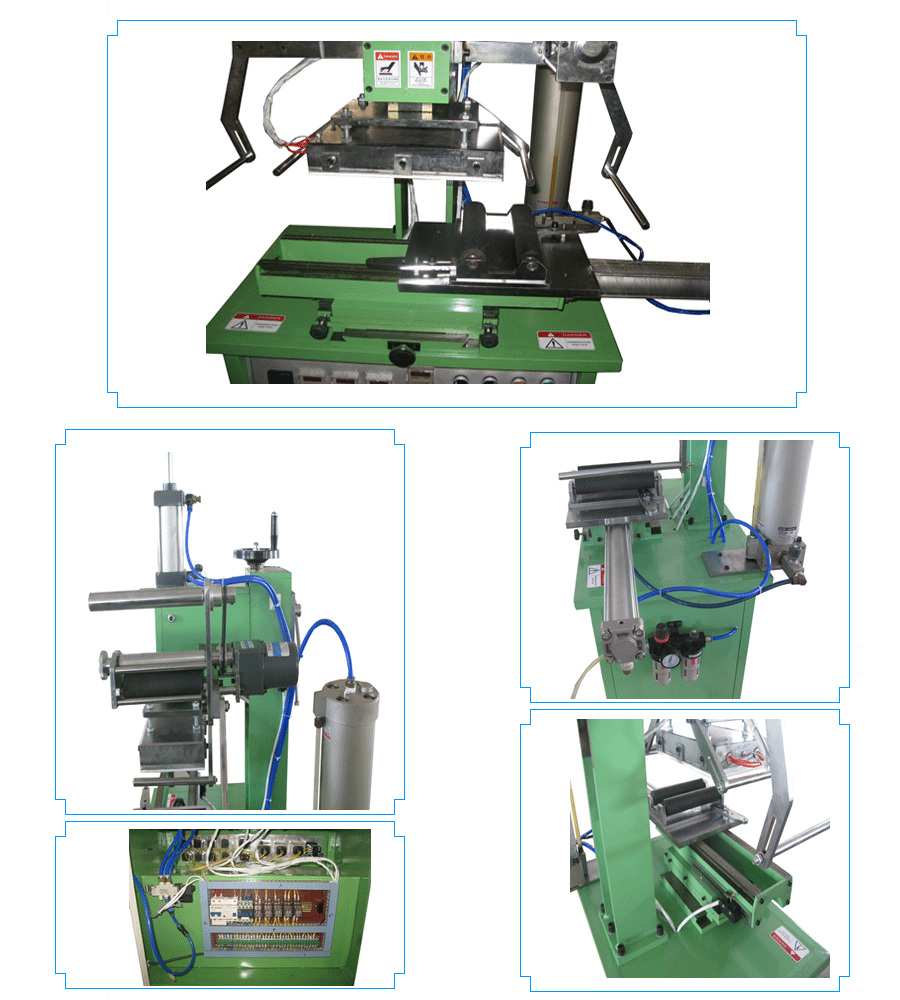

For glass bottles

284

Samples-Jewelry cover

283

H-TC1224K Pneumatic cylinder hot stamping Machine //Parameter

- Size of stamping plate: 120×240 mm;
- Heater Wattage: 1000 W;
- Stamping height adjustable range =180 mm;
- Max. stamping diameter: For whole circle: 70mm For partial circle: 240mm;
- Stamping temperature adjustable range: 0 - 400oC;
- Stamping foil pulling length: =240 mm;
- Stroke of stamping plate: 70 mm;
- Max. stamping pressure: 200 kgf (7bar);
- Max. stamping speed: 800 pcs/h;
- Power: 110/220V, 60/50Hz;

Air consumption: 100 litre/min;
Dimensions: 640 x 580 x 1060 mm;
Weight: 153 Kg;
Table stroke: 120*240mm
Works supply: 110V-220V Power supply;5-7 Bar compress air
Package 0.820*0.740*1.560 m;
Gross weight: 165 kg;
CBM : 0.946608
H.S.Code : 8443198000
Certificate : CE

What is a hose?

In the cosmetics and daily necessities industry, semi-fluid products such as creams usually need to be packaged with a hose. A hose is a flexible tubular product, usually made of plastic, rubber, metal and other materials. The decoration on the hose involves silk screen printing, hot stamping, thermal transfer, digital printing, labeling, etc. Hot stamping is a common process

How to hot stamp a hose?

The hose can be hot stamped with a semi-automatic hot stamping machine or a fully automatic hot stamping machine; the hose is not sealed before hot stamping, and a fixture needs to be made to insert the hose. The semi-automatic hot stamping machine makes a set of fixtures, while the fully automatic turntable hot stamping machine needs to make fixtures according to the number of workstations. Electroplated aluminum should be suitable for polyolefin materials, and the hot stamping version recommends a silicone template.

It is very important for the semi-automatic hot stamping machine to push the hose fixture to contact the hot plate at a uniform speed. It is ideal to use an oil-gas integrated cylinder to push it. For a fully automatic hot stamping machine, the hot stamping head is driven by a servo motor.

How to hot stamp a glass bottle?

Glass itself is a non-absorbent material. There are no direct hot stamping cases reported publicly. It is necessary to first screen print glass paint on the glass bottle and then transfer hot stamping. Therefore, the hot stamping process of glass bottles is a combination of screen printing and hot stamping.

The screen printing process is the screen printing process of cylindrical products. The bottle rotates, the screen moves left and right, and the ink is transferred to the surface of the glass bottle. There are two processes that can do this, solvent-based ink plus natural drying and UV ink plus UV drying.

The fixture of the glass bottle usually adopts a double-roller structure, that is, two parallel rubber rollers. The glass bottle is placed on it. During the hot stamping process, the glass bottle and the two rubber rollers are in line contact and rotate.

Now the hot stamping of glass bottles can be completed at one time on a fully automatic glass bottle hot stamping machine. The most advanced multi-color printing machine production line is a flat turntable multi-station automatic production line. Different stations can now be freely combined, with screen printing, hot stamping, thermal transfer, UVLED, pad printing, digital printing, etc. distributed in different stations to realize a combined production line.

The automatic hot stamping production line for glass bottles can combine pre-press processing, silk screen printing, UV curing, hot stamping and thermal transfer to realize the complete hot stamping process for glass bottles.
