Pad printer introduction

High-end Closed Cup Pad Printer for USB Devices and Instrument Marking.The High-End Closed Cup Pad Printer is an advanced solution designed for precise and efficient marking of USB devices, instruments, and other small components. This one-color pad printer combines durability, ease of use, and high-quality output to meet the demands of modern manufacturing and customization processes. Whether you are a manufacturer looking to brand your products or a small business owner seeking to personalize items, this machine offers a reliable and cost-effective option.,One of the standout features of this pad printing machine is its closed cup design, which ensures optimal ink control and prevents contamination. The closed system maintains a clean working environment, reducing the risk of smudging and improving overall print quality. This makes it ideal for applications where precision and consistency are crucial. Additionally, the machine is specifically tailored for USB devices and instrument marking, ensuring compatibility with a wide range of materials and surfaces. The key characteristics of this pad printing machine include a user-friendly interface, adjustable pressure settings, and a sturdy build that guarantees long-term performance. It supports single-color printing, making it perfect for simple yet impactful designs. The machine's compact size allows for easy integration into existing production lines or workspaces without requiring extensive setup. Its robust construction ensures it can withstand frequent use in industrial or commercial environments.

The Servo pad printer and pneumatic pad printers

High-precision printing

Advanced transmission system: adopts high-precision screw and guide transmission, and the positioning accuracy can reach ±0.01mm or even higher, ensuring accurate printing position.

Precise rubber head control: equipped with high-precision rubber head pressure adjustment device and motion control system, which can accurately control the contact pressure and stroke of the rubber head with the printing plate and substrate.

High speed and high efficiency

Fast printing cycle: The printing speed can reach more than 60 times per minute. By optimizing the mechanical structure and control system, the idle travel time and waiting time in the printing process can be reduced, and the overall production efficiency can be improved.

High stability and reliability

High-quality materials and manufacturing process: The body is made of high-strength cast iron or high-quality steel, and is precision machined and heat-treated to ensure that the body structure is stable and does not deform after long-term use. Key components are selected from internationally renowned brands and undergo strict quality inspections to ensure the reliability and durability of the equipment.

• Intelligent fault diagnosis system: equipped with advanced sensors and monitoring systems to monitor the operating status of the equipment in real time. Once a fault occurs, it can quickly and accurately locate the fault point, and promptly notify the operator through the display screen or mobile phone APP to reduce downtime.

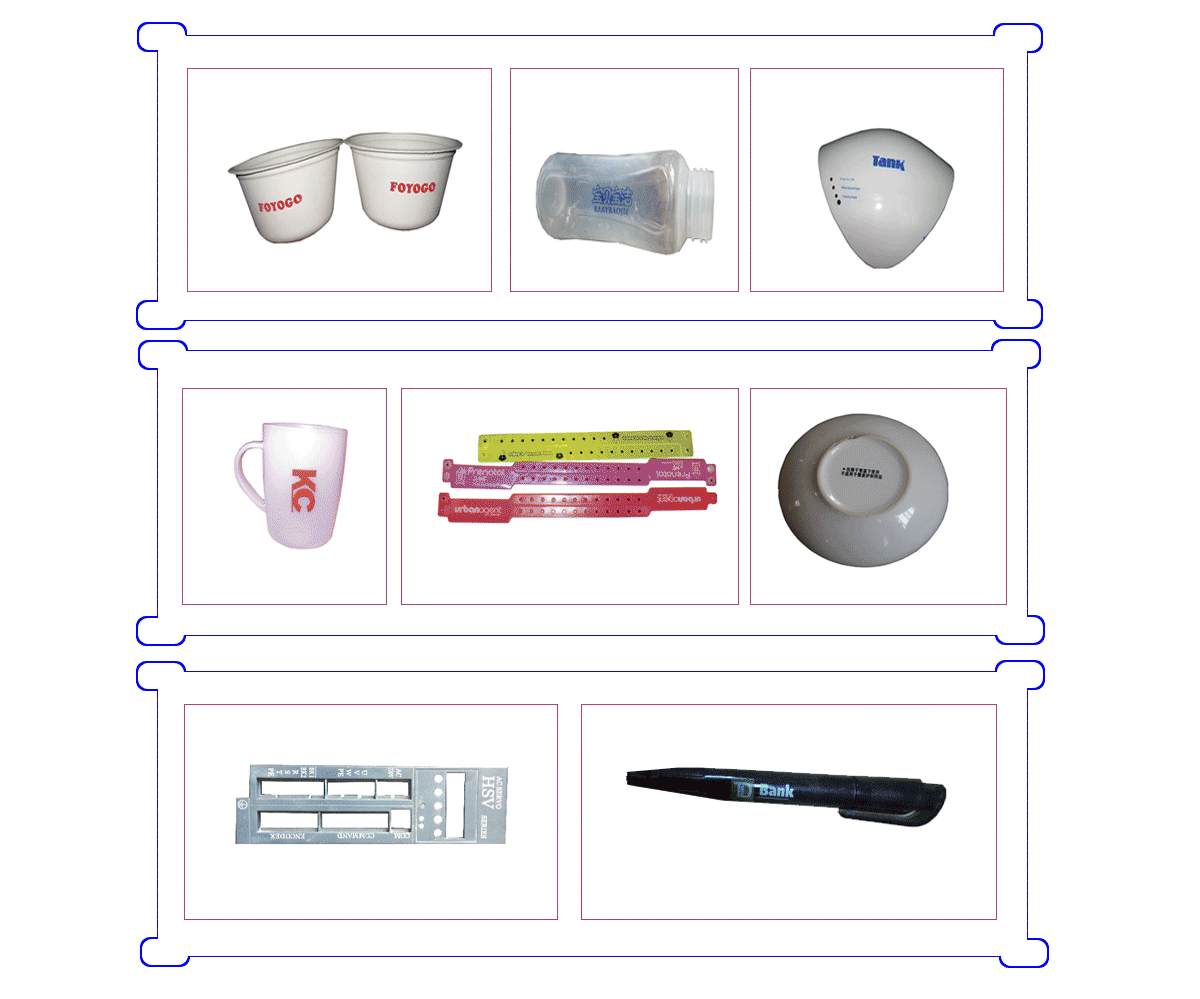

Samples printed of pad printer

Printing elements of Pad printing machine

1. Sealed oil cup: It has the function of sealing and storing ink and scraping off excess ink, which can reduce ink volatilization and keep the ink concentration stable, thereby ensuring a stable and ideal printing effect.

2. Printing rubber head: As a medium for transferring ink from the printing plate to the surface of the product, its shape, hardness and size need to be selected according to the printing pattern and the surface of the substrate. For example, a harder rubber head is selected for fine patterns, and a soft rubber head is suitable for uneven printed parts.

3. Printing plate: That is, a printing plate etched with a printed pattern, usually made of steel or fiber. The size of the steel plate must match the size of the oil pan, knife clamp, and oil roller. The accuracy, depth and degree of wear of the pattern will directly affect the printing quality.

4. Ink: It needs to be selected according to the printing color requirements and the material of the substrate. Different materials, such as plastic, glass or metal, must use different inks, which must have good fluidity, suitable viscosity, quick drying and other characteristics.

5. Pad printer: As a device for performing transfer printing, its mechanical properties and control system stability will affect the accuracy and efficiency of printing. For example, the movement accuracy, speed control, and pressure regulation of each component have an important impact on the printing quality.

In addition, the substrate and printing environment will also affect the printing effect. The surface characteristics of the former, such as flatness, roughness, and material, determine the adhesion effect of the ink and the printing quality; the temperature, humidity, and cleanliness of the latter will affect the drying speed, viscosity, and performance of the ink head. Generally speaking, the production environment should be clean and free of excessive dust.

Usage

Widely used in Electrons, hardware, autos, toys, gifts, Plastics, household appliances, artwork, stationery, adornment, cosmetic, commodity, sport goods, decorative lightnings, woodwork, office supplies, Photo Materials, Kitchen utensils, Hotel supplies, Computer, Mobile, etc., industrial field.

Technical Parameter of pad printer

Item	P1-408CPK	P1-410CPK	P1-412CPK
Plate Area(mm)	100×200	100×250	100×300
Table Area(mm)	200×125	200×125	200×125
Max. Printing Speed(PCS/H)	1500	1300	1200
Color Number	1	1	1
Max. Printing area(mm)	85×90	85×130	85×170
Work Supply	110 V /220 V, 5-7 Bar Compress air	110 V / 220 V, 5-7 Bar Compress air	110 V / 220 V, 5-7 Bar Compress air
Out Dimension(mm)	740×360×1380	790×360×1380	840×360×1380
Package Size(mm)	870×590×1480	920×590×1480	970×590×1480
N.W.(KG)	108	128	148
G.W.(KG)	138	163	188

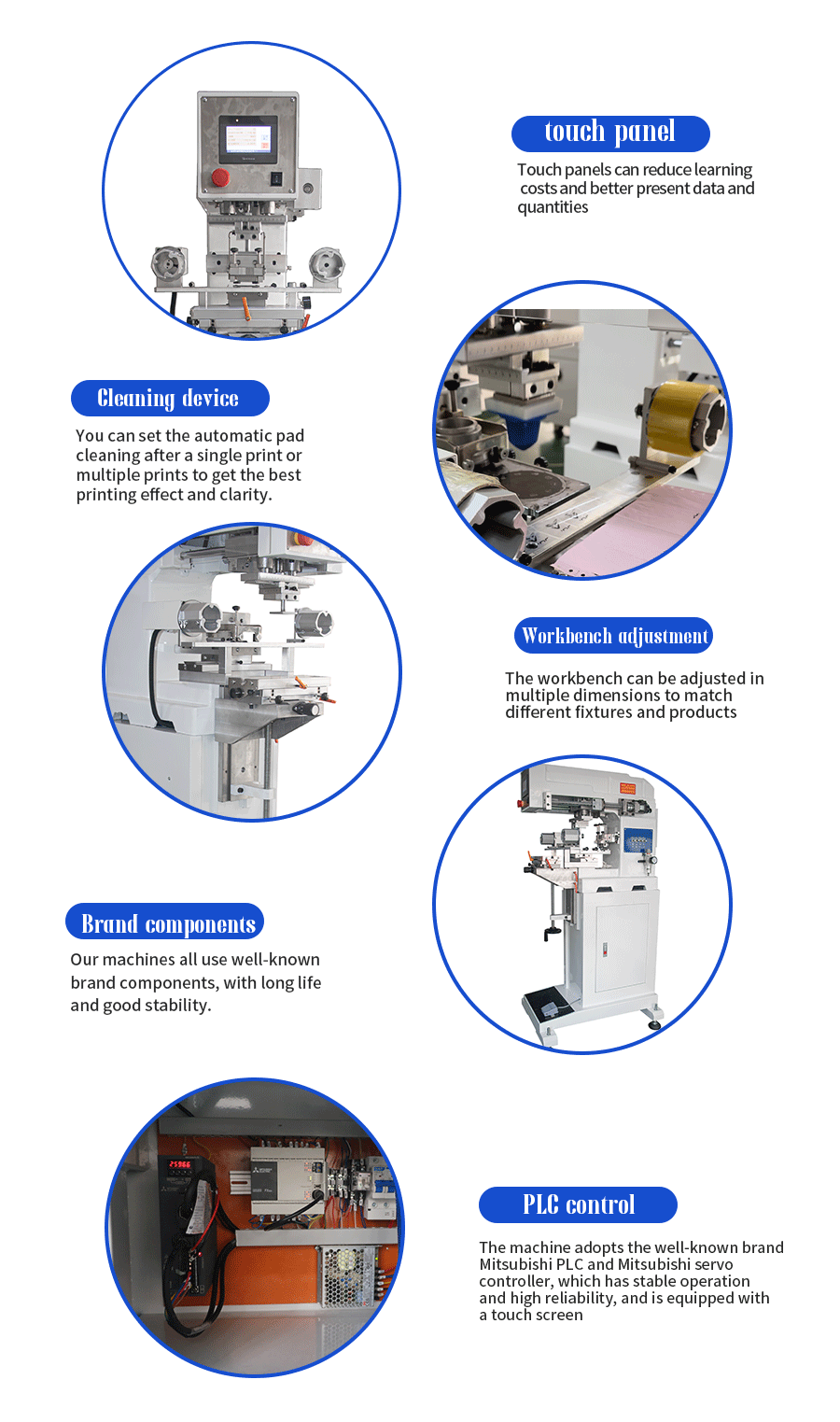

Product Details of pad printer

The monochome ink cup pad printer is mainly composed of the following parts:

Workbench system- connected with the dovetail groove on the wall panel by sliding fit. Through gear transmission, it can adjust the up and down, left and right, front and back positions for printing position positioning.

Scraper and oil cup device

Oil cup device: usually composed of an oil cup body and a scraper ring. There is an ink cavity in the oil cup body. The scraper ring is installed at the outlet of the ink cavity. The ink is controlled by a separate horizontal cylinder to move on the surface of the pad printing plate.

Printing plate device

The pad printer mainly uses a thick steel concave plate with a thickness of about 10mm and a thin steel concave plate with a thickness of 0.25-0.5mm. The thin steel concave plate can also be replaced by a nylon concave plate of the same thickness.

Printing device

That is, the rubber head and its fixing device, which realizes the action of moving from the top of the printing plate to the top of the substrate and then returning to the top of the printing plate through the cylinder fixed on the wall panel of the casing. The rubber head is connected by the piston shaft of the vertical cylinder to execute the downward pressure and reset commands.

Automatic cleaning device for rubber head

The rubber head continuously simulates the printing action on the tape during the printing process to remove the ink on the surface of the rubber head.

Control system

• Microcomputer controller: It can realize precise control of each action of the machine, such as the up and down stroke of the rubber head, speed adjustment, movement of the oil cup, scraping action, etc., and can also set parameters and switch operation modes.

• Operation panel: Generally, it is equipped with manual operation buttons, automatic operation buttons, emergency stop buttons, etc., and can also display the operation status and parameter information of the machine, which is convenient for operators to operate and monitor.

What types of monochrome pad printers are there?

1) Desktop pad printers and vertical pad printers

The desktop pad printer can be placed on a workbench for operation, while the vertical pad printer is placed on the ground for operation;

2) Pneumatic pad printers and servo pad printers

The pad printer controlled by compressed air to drive the cylinder is called a pneumatic pad printer, and the pad printer driven by a servo motor and a screw is called a servo pad printer

3) Open pad printers and closed pad printers

The pad printer with an open oil pan in the ink supply mode is called an open pad printer, and the ink supply mode is called a closed pad printer. The pad printer for closed oil cup is called closed pad printer

4) Microcomputer pad printer and touch screen pad printer

The pad printer with single chip microcomputer as the operation panel is called microcomputer pad printer, and the pad printer with touch screen as the operation panel is called touch screen pad printer

5) Horizontal scraping pad printer and vertical scraping pad printer

The pad printer with the direction of movement of the oil cup is left and right relative to the operator is called horizontal scraping pad printer, and the pad printer with the direction of movement of the oil cup is front and back relative to the operator is called vertical scraping pad printer.
