KC-SF250C bucket flame treatment machine

Machine introduction

      This flame treatment machine adopts a flat turntable structure and has 10 stations. The stations are fixed on the conveyor belt composed of galvanized sheets. The motor drives the chain to rotate on the plane. The stations are made of aluminum fixtures that can rotate 360 ​​degrees, which can hold polyolefin plastic barrels of different diameters.

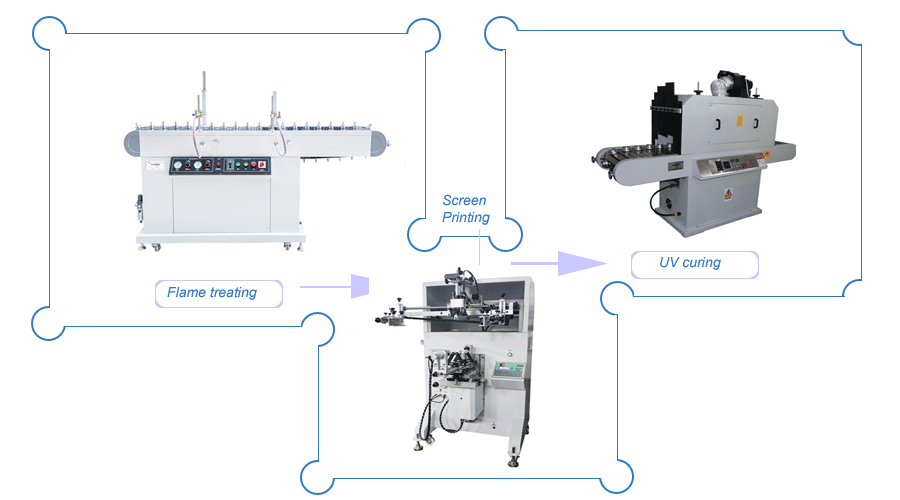

    During the operation of the flame treatment machine conveyor belt, the plastic barrel will be carried into the flame treatment device. The flame treatment device contains two flame guns that can spray flames. The flame guns are connected to compressed air and gas and are controlled by the ignition switch. When the plastic barrel moves to the vicinity of the flame gun, the plastic barrel begins to rotate, and the flame sprayed by the flame gun will perform high-temperature oxidation treatment on the circumferential direction of the plastic barrel to increase the surface tension. The flame-treated plastic barrel can be transferred to the screen printer for printing.

Solution

    The printing of polyclinic materials often encounters the problem of ink shedding. The main reason is that it is composed of non-polar molecules. The printer will first choose a special polyclinic ink. If the adhesion of the ink does not meet the requirements, then Consider pre-treating the product surface, and flame treatment is a common and effective method.
     The most suitable products for flame treatment are some cylindrical plastic bottles, and the effect is satisfactory no matter whether solvent-based ink or UV ink is used. The flame treatment machine for plastic bottles is composed of a flame generating device and a conveyor belt. The conveyor belt is often equipped with a rotatable support cone. The bottle can be inserted into the cone and enter the flame treatment head with the conveyor belt. The inside of the flame treatment head is filled with compressed air and Combustible gas, after ignition, sprays out a flame with pressure, which can oxidize the surface of the bottle. For automatic screen printing machines, flame treatment devices have almost become a standard configuration.

    Flame treatment machines generally have two structures, one is vertical rotation type, and the other is plane rotation type. The vertical rotation type takes up less space, but the operator must remove the processed products in time, especially fragile products. For the plane rotation type, the products can be processed repeatedly. The flame treatment of the plane turntable can continuously place 10 or more products for processing. At the flame treatment position, the processing area can be shielded with a partition to improve safety.   The flame treatment machine uses a mixture of compressed air and gas. Compressed air is used to increase the impact of the flame, while the gas is the source of the flame. When operating the flame treatment machine, prevent gas leakage.

Data

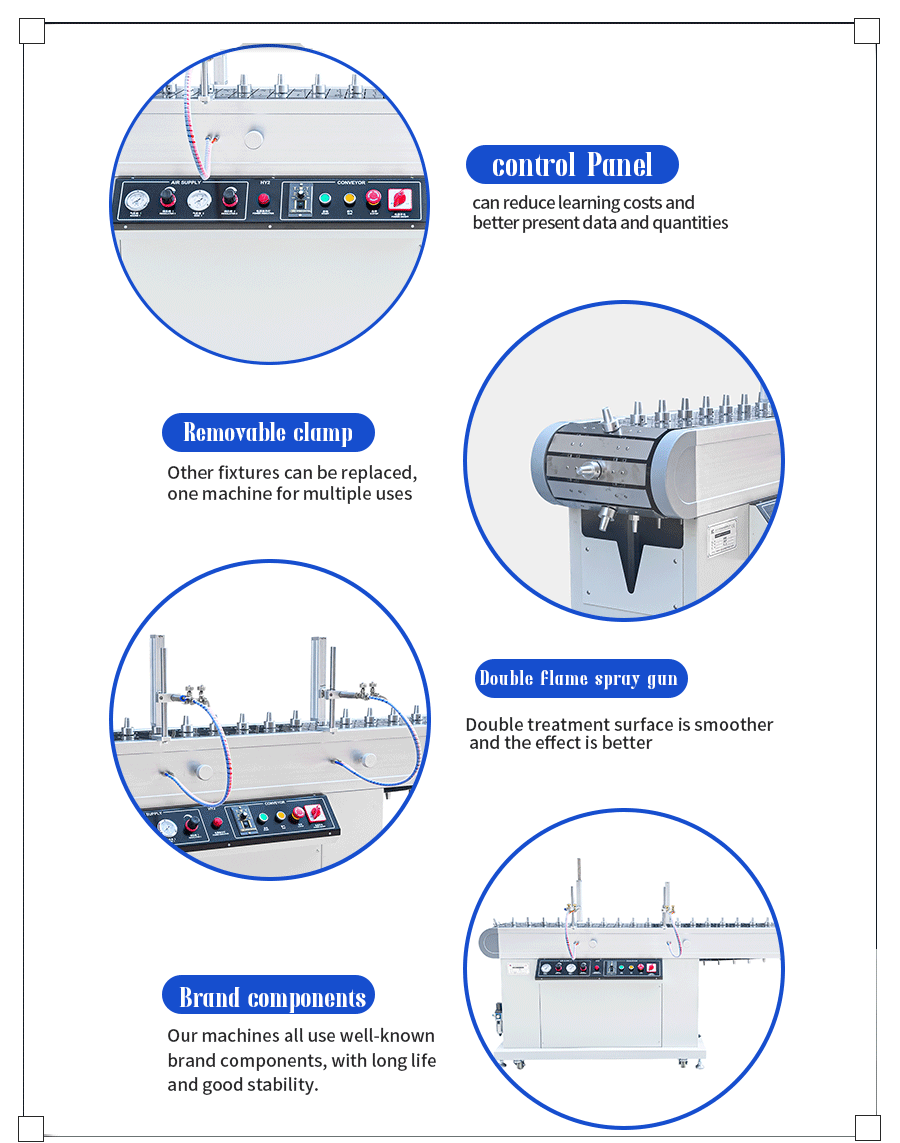

 Structure-Advantage

• Mainly used for the surface pretreatment of PE and PP plastic products;
• Micro motor imported from Japan, stepless speed timing mode is adequate for different workpiece requirement;
• The machine is two sides equipped with baffle-boards to improve the heat efficiency;
• Advanced gushing nozzle is design generates a good combustion result, it is a product that saves energy;
• According to the size of your product that is to be printed, replace the taper support to meet the different requirement of workpiece
