Flying disc hot foil stamping machine

Hot stamping machine usage-printed Samples

        There will be huge pressure when the hot plate and the worktable are in contact, which is a potential safety hazard for all hot stamping machines. In order to improve the safety of the hot stamping machine, you can install a safety door, install a safety grating, and use a two-button operation mode. Another important practice is to set the workbench to enter and exit automatically. The workbench enters and exits automatically, which can facilitate the pick-and-place of the product and avoid the safety failure of the operator.       The automatic entry and exit of the workbench is also convenient for the operator to observe the product placement, which is more conducive to product positioning. The complete solution to the safety problem of the semi-automatic plane hot stamping machine is to use a fully automatic hot stamping machine, that is, automatic feeding, automatic hot stamping, and automatic unloading, which completely eliminates the possibility of the operator touching the hot plate and the workbench. However, during the debugging process of the machine, this kind of contact is still unavoidable, and it is necessary to carry out the necessary safety training for the operator.

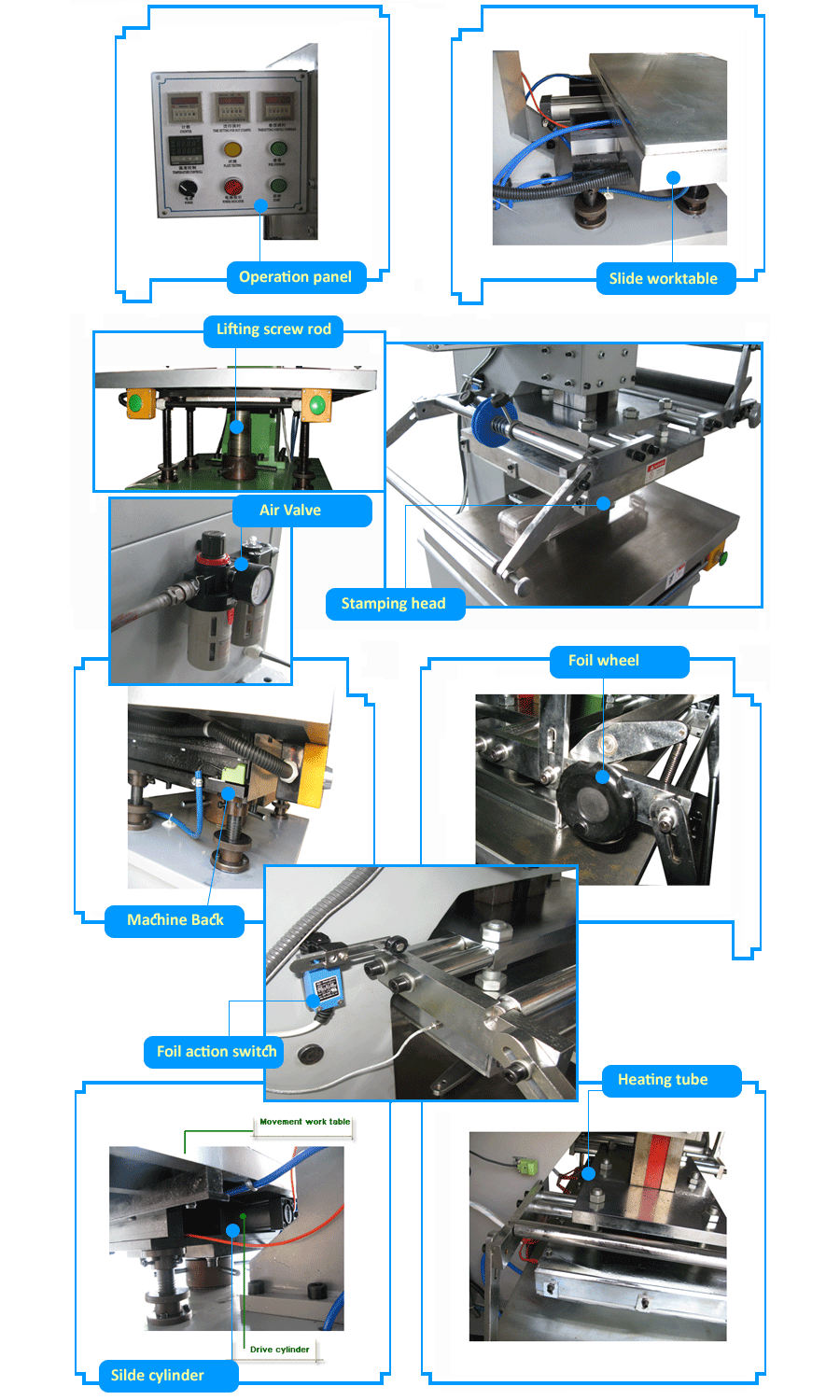

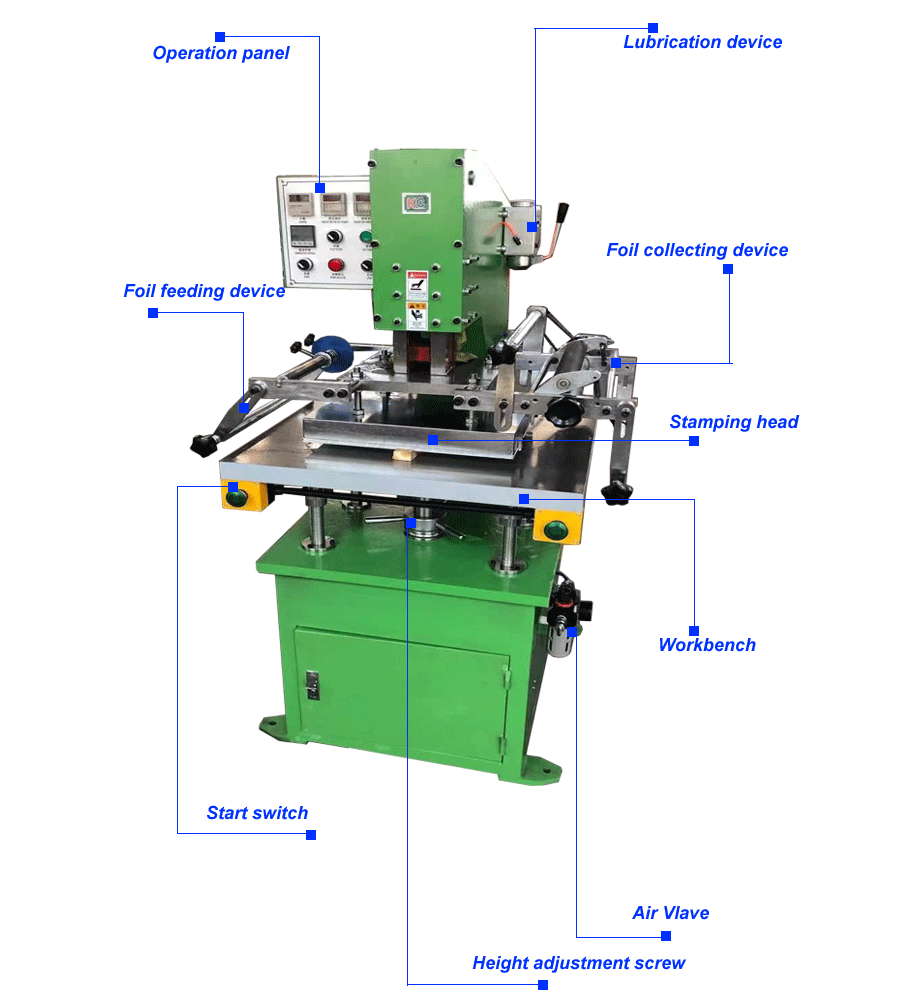

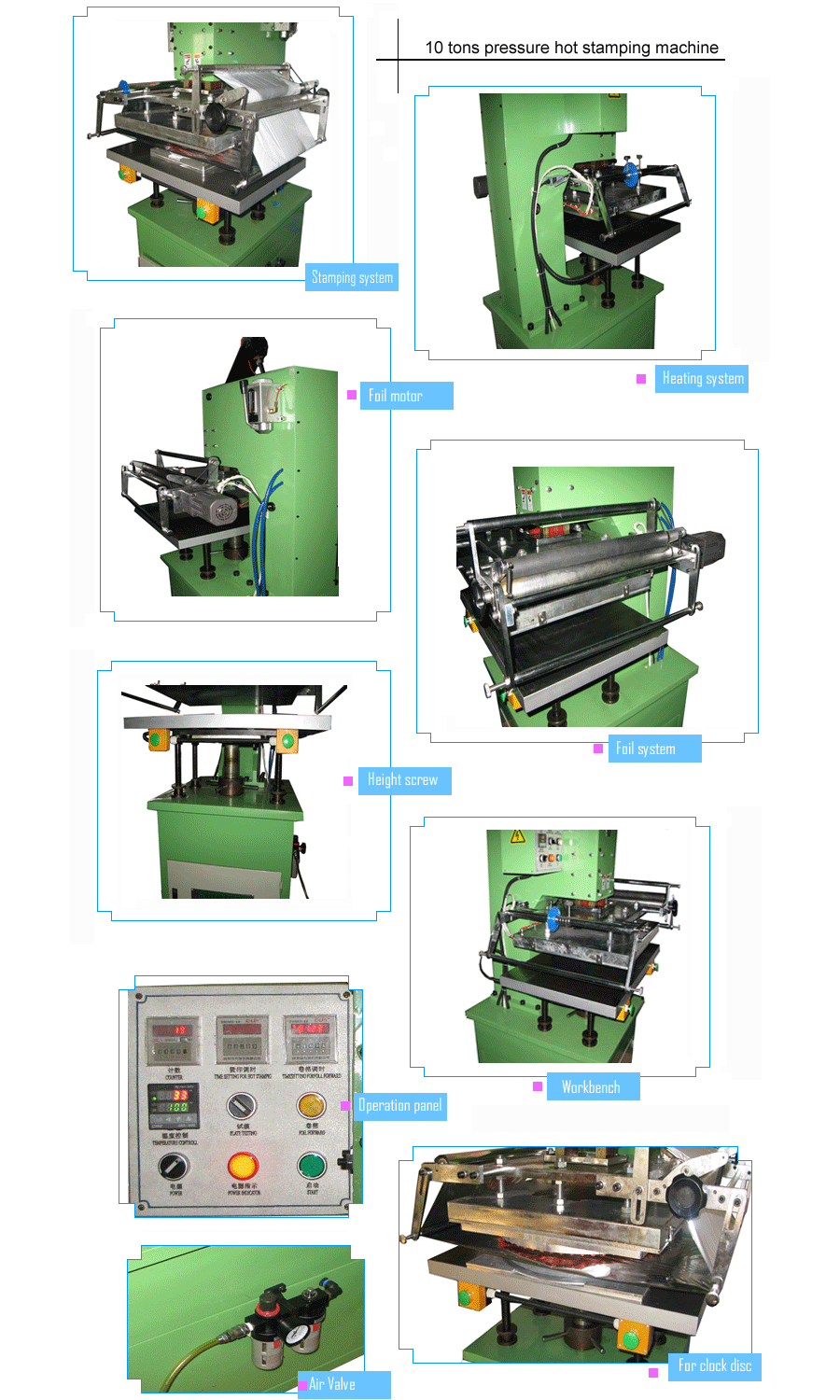

 Details structure photo

• Operation panel - control center of hot stamping machine
• Slide worktable - place products to be hot stamped
• Lifting screw rod - adjust the height of the hot stamping machine workbench
• stamping head - install hot stamping plate, source of heat and pressure
• Air valve - connect to air compressor to provide compressed air for hot stamping machine
• Machine back - support plate of workbench, base for workbench sliding;
• Foil wheel - adjust the delivery position of hot stamping foil;
• Foil action switch - control the time when hot stamping foil delivery motor starts to rotate;
• slide Cylinder - control the forward and backward movement of workbench;
• Heating tube - heats hot plate and hot stamping template.

Catalog

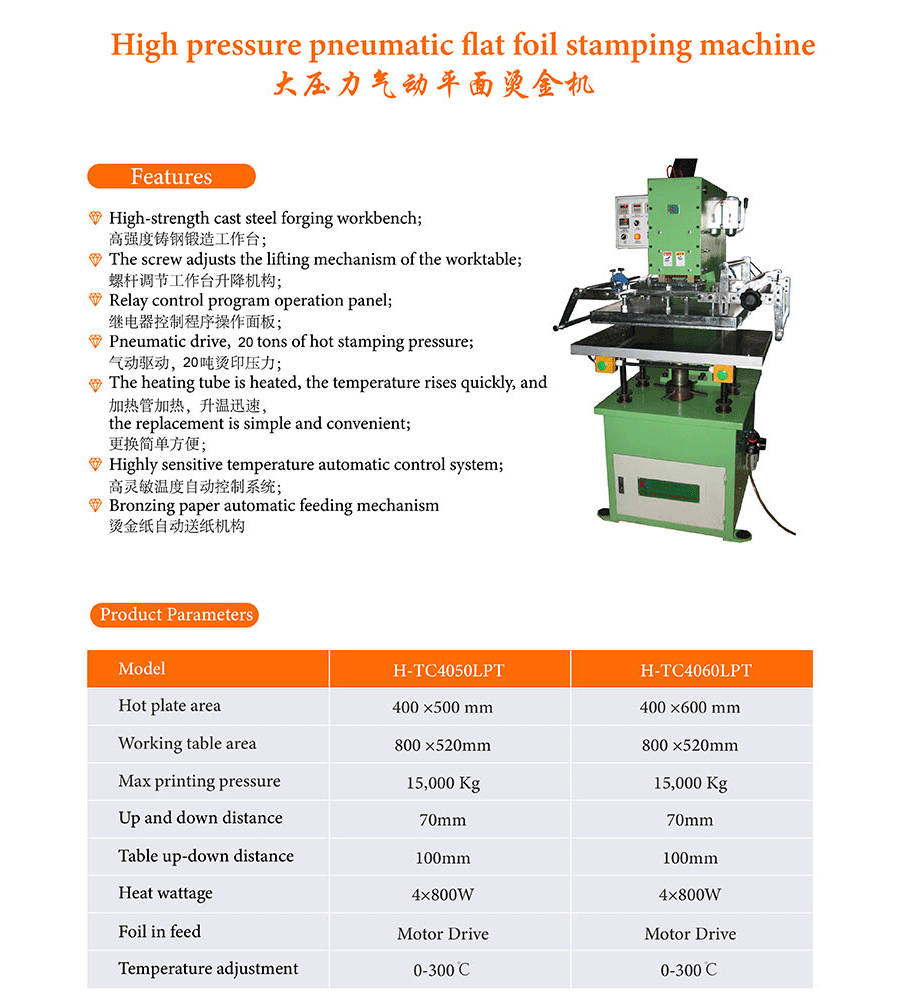

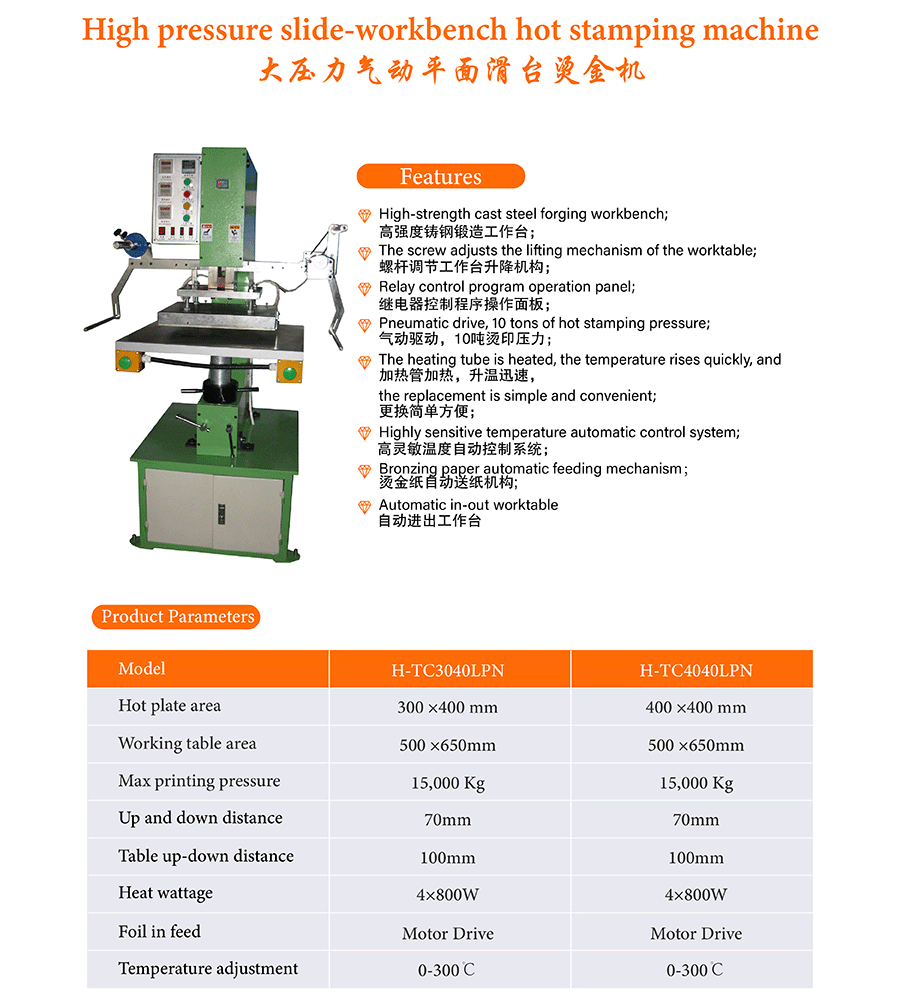

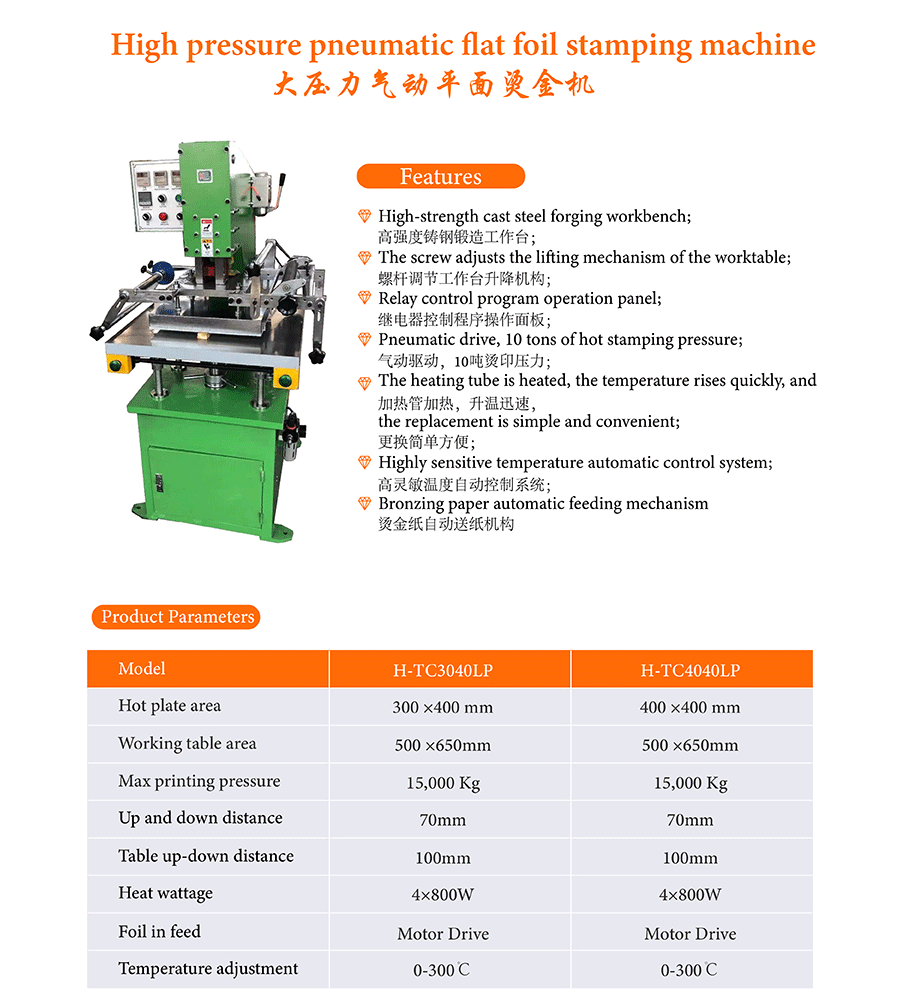

 Structure-Advantage

• Bench made of high strength cast steel forging, has a very high flatness and stability;
• Thread rising institutions to adjust the table lift to facilitate the opening and closing of space according to the height adjustment of the product tipping machine;
• Relay control program is running, easy operation, easy maintenance;
• Pairs of buttons control the stamping head up and down, security is greatly enhanced;
• Pneumatic drive instead of the pneumatic drive, stamping pressure significantly improve the stability is greatly enhanced;
• Heating pipe heating, rapid heating, replacement is simple and convenient;
• Heating plate can be removed to facilitate installation and replacement gilt template;
• Ironing board and table parallelism can be adjusted to facilitate the flexible adjustment depending on the size of the different regions of the pressure;
• Automatic temperature control system can be set depending on the product temperature, automatic temperature control; temperature control accuracy of about 5 degrees;
• Hot foil stamping degree of time and rolls of time can be set freely according to different technical requirements;
• Foil paper automatic document feeder, conveyor length can be set according to the size of the stamping area of freedom.
