Shoe pad automatic hot stamping machine

Samples

        Pneumatic flat hot stamping machines are mainly based on the principles of heat transfer and pneumatic transmission to achieve hot stamping operations. Before hot stamping, the text, pattern, etc. to be hot stamped are first made into relief plates, generally using copper plates or zinc plates. The electrochemical aluminum foil is installed on the unwinding device of the machine, and the machine is turned on. The hot stamping plate is heated to a suitable temperature by the electric heating plate. When the substrate is transported to the hot stamping position, the hot stamping plate presses the electrochemical aluminum foil on the surface of the substrate with heat and pressure under the action of air pressure. Under the combined action of temperature and pressure, the hot-melt silicone resin peeling layer and adhesive on the electrochemical aluminum foil are melted by heat. After the silicone resin melts, the bonding force decreases, and the aluminum layer is peeled off from the base film. The heat-sensitive adhesive bonds the aluminum layer to the substrate, thereby transferring the metal pattern or text on the electrochemical aluminum foil to the surface of the substrate. The machine is equipped with a pneumatic system, which is mainly composed of an air source, a cylinder, a pneumatic control valve, etc. The air source provides compressed air for the system. When hot stamping is required, the operator presses the start button or triggers the automatic control signal. The pneumatic control valve opens according to the signal command, and the compressed air enters the cylinder to push the piston of the cylinder. The movement of the piston transmits the force to the hot stamping head or hot stamping plate through mechanical transmission parts such as connecting rods and levers, so that the hot stamping plate is pressed against the substrate quickly and accurately to complete the hot stamping action. After the hot stamping is completed, the pneumatic control valve switches the state to discharge the compressed air in the cylinder, and the piston returns to the initial position under the action of the reset spring or other reset device, waiting for the next hot stamping instruction.

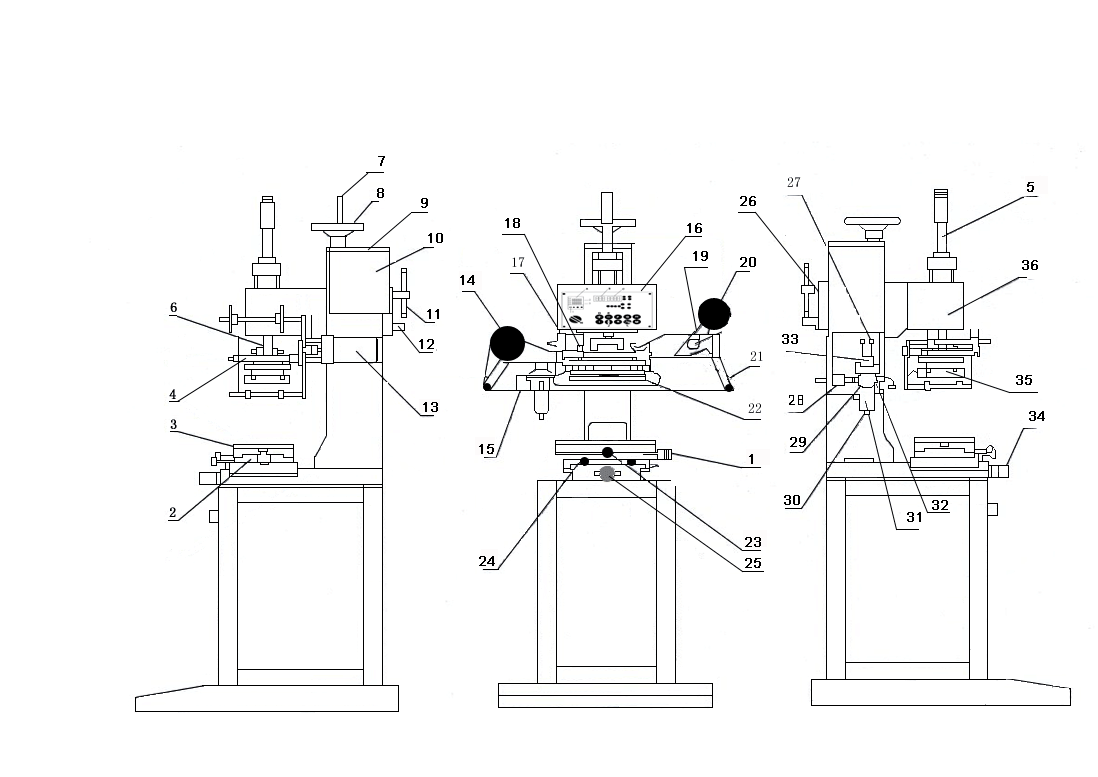

Pneumatic hot stamping machine //Usage and characters

Pneumatic hot stamping Machine //Parameter

Pneumatic hot stamping machine //Advantage

• Table can be pulled into and pulled out the pick and place of convenience products;
• Table can be up and down, around, before and after the precision adjustment, to facilitate the adjustment of the precise location of the gilt;
• Table lifting screw adjustment, simple and convenient;
• Relays for process control, stable operation, easy maintenance;
• The use of advanced temperature control system, the temperature can be set freely, high precision temperature control, with automatic temperature control;
• leveraged cylinder pressure, the pressure is uniform and strong;
• The basic parameters of the hot stamping process; temperature, pressure, hot pressure, the rolls of time in accordance with the process requirements of the flexible adjustment;
• Motor to control the delivery of the gold foil paper, resin length can be flexibly adjusted according to the size of the stamping area;
• Using high strength steel, gilt plate and table, has a very high flatness;
• Heating tube for heating, heat supply is stable, easy to replace
