Nail art pad printing machine

5 month ago

15 0 

9 year

Product details

Fake nails Single color servo pad printer

Nails are the peripheral of a woman's expression. Several beautiful women in ancient civilizations like to use a variety of pigments to paint nails to distinguish their aristocratic identity. Today, nails have become the fashion trend of ordinary women to show charm. In view of the damage to the nails itself, it is rarely used in modern times. It is replaced by wearing pseudo -nails. Pseudoma can be decorated with pigments or decorative by transplanting. Fake nails are made of plastic products with similar nail shapes in injection molding. They can be adhered to the nails to beautify and not harm the nails itself. In stage performances, the wearing of fake nails will also play a role in simulating animal image and shaping the image of special characters.
Although the fake nails are small, the shape is complicated. In the visible report, the pad printing machine is the only mechanical that can be directly printed. It uses a soft and deformable printing pad to achieve anastomical printing on the surface of the false nail. The pad printer is controlled by a servo motor. The pressure and strokes of pad printing can be accurately set and controlled. The pad printer uses PLC and touch screen operations, which is easy to achieve data -based parameter management.

P1-420CPSC One color pad printer with lateral movement cup //Structure
Ink supply system	Closed -type system
Plate type and size	0.3mm Thin steel plate. Size ：100*500mm.
P1-420CPSC One color pad printer//Usage and characters
Application fields	Electrons, hardware, autos, toys, gifts, Plastics, household appliances, artwork, stationery, adornment, cosmetic, commodity, sport goods, decorative lightings, woodwork, office supplies, Photo Materials, Kitchen utensils, Hotel supplies, Computer, Mobile, etc., industrial field.
P1-420CPSC One color pad printer //Parameter
Technical parameters	Max. steel plate: 100 ×500mm； Ink cup size: Ф90mm； Max. printing area :50×380 mm ； Printable color quantity:1； Max. printing speed: 1000 pcs/h; Table size: 165*500mm
Works supply	110V-220VPower supply； 5-7Bar Compress air；
Package list	Package size:1.270×0.570×1.470m; Gross weight: 176Kg; CBM: 1.064133
H.S.Code	8443198000
Certicate	CE

Machine structure-Advantage

Sealed cup move from right to left and fit for printing long objects;
Using the dimensional modulating table, can be up and down, front, left, and rotation of the adjustment, which will help precise printing;
T-slot structure, easy installation of fixtures and products;
Hand pick and place workpiece, operating more handy;
Microcomputer program control, the movement is more accurate and reliable;
Test machine can be a single action adjustment, adjustment is completed, you can use the automatic mode of operation;
Equipped with four counters, can effectively measure the number of products;
Structure using die-casting aluminum, lightweight and solid.
Independent Rubber pad up and down stroke and speed adjustment function;
Sealed cup ink system, ink savings, and also to prevent the ink in the VOC emission into the air pollution of the environment, health protection of operating personnel;
Sealed cup glide independent driving cylinder Blade pressure and Ink Removing Completely;
Either use the tungsten steel ring, you can use a ceramic ring, and easy to replace;
Temporary shutdown can prevent the ink to dry within the Sealed cup with INK function;
World famous pneumatic components to ensure the long service life of machine;
Rubber sliding shaft with hardened guide shaft grinding of high hardness, good abrasion resistance.

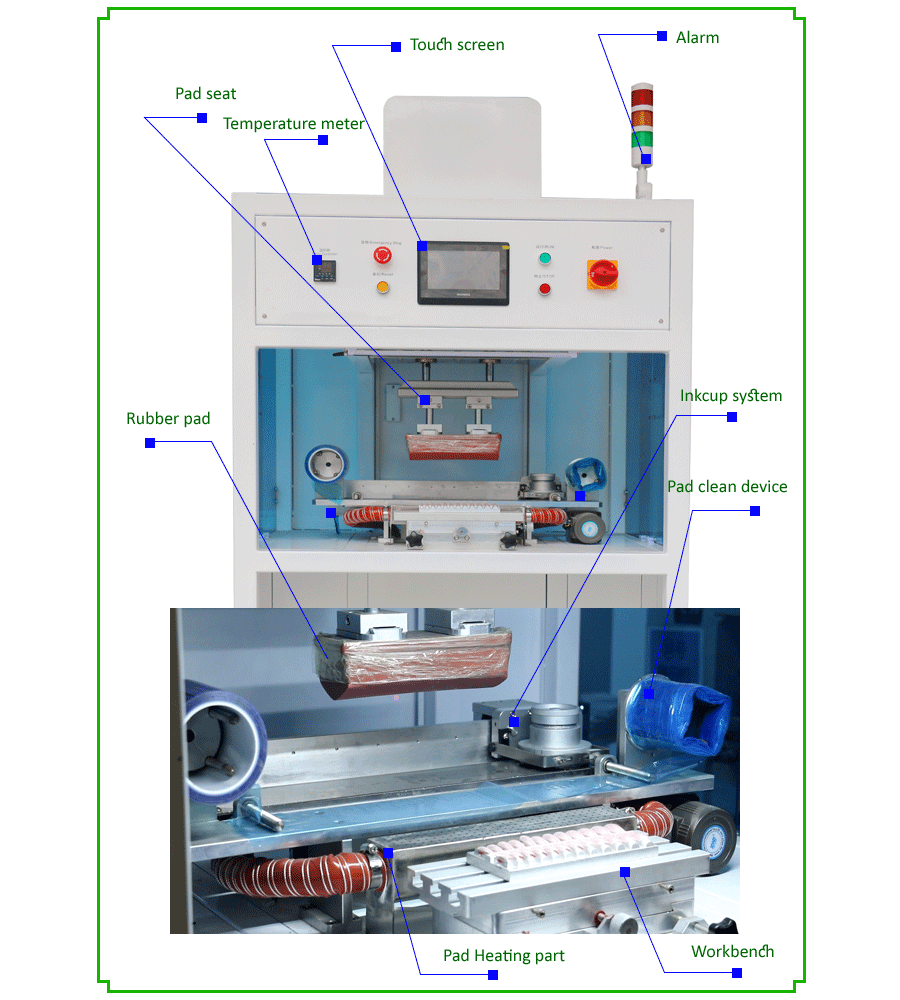

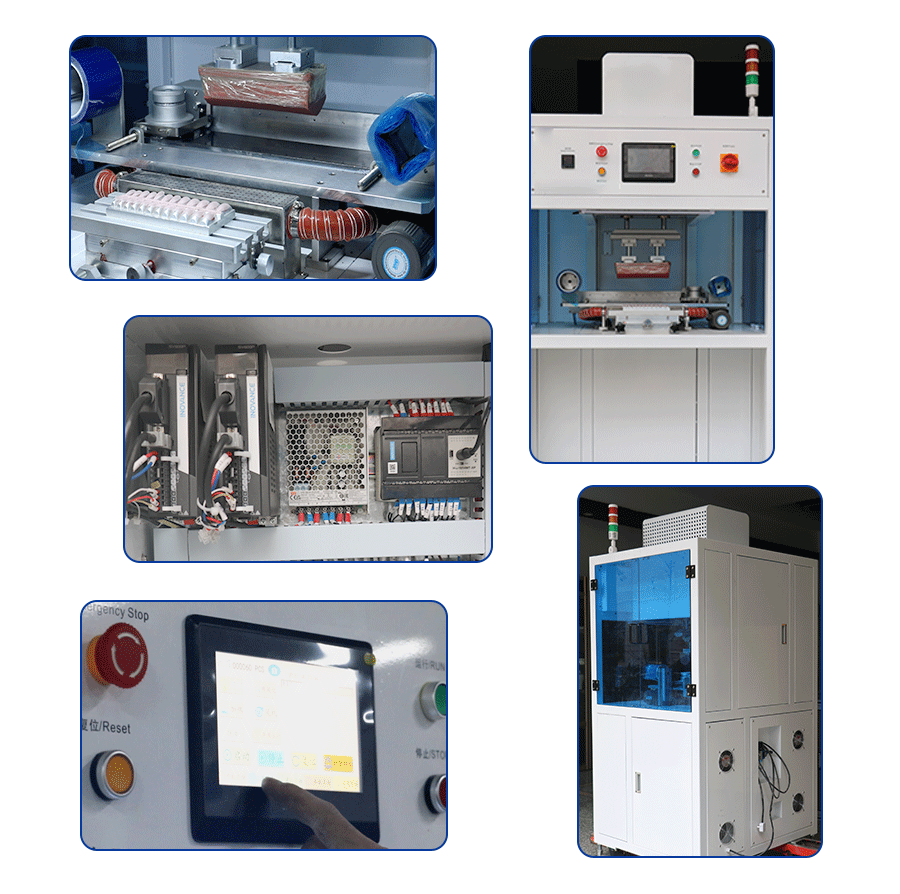

Machine details

Why should we choose pad printing machine for beauty false nails?

False nails imitate the shape of human nails and present a smooth arc. Only by using the deformability of the silicone rubber head of the pad printing machine can the purpose of decoration be achieved. Therefore, the most commonly used technology for false nails is voice technology. Pad printing machine printing false nails also have the following characteristics:

High pattern accuracy: Pad printing machine can clearly reproduce small and complex patterns, which is very suitable for the fine patterns, letters, numbers or special designs commonly seen on beauty false nails.

Convenient color printing: Pad printing machine can perform color printing, so that beauty false nails can present a rich variety of color combinations and gradient effects, and achieve more colorful designs.

Strong adaptability to ink: False nails are generally made of ABS, PMMA, TPR, etc. Pad printing has a wide adaptability to inks. You can choose inks with different characteristics according to your needs, such as inks with good gloss, strong durability, and environmental protection, to meet the beauty and quality requirements of false nails.

Good printing effect: The pattern printed by the pad printer has clear edges and no smudging, and the printing effect is beautiful, which can improve the texture of the product. Pad printing will not produce excessive ink accumulation, maintaining the natural lightness of the false nails, and is also conducive to subsequent wearing and use.

Issues that should be noted when using a pad printer

A pad printer is a printing device with a simple structure. It completes printing through a pad printing rubber head. The following issues should be noted during the use of the pad printer:

1) Ink issues

In most cases, the pad printer uses solvent-based inks, which are volatile drying methods. The pad printer itself can be equipped with a hot air duct, or a separate tunnel furnace can be used to speed up the drying process. In recent years, UVLED inks can also be used for some plastic products. Although the covering power is not ideal, it is also an option for products that are not particularly demanding. UVLED inks require a special drying method, and a UVLED drying device can be installed on the machine.

2) Closed cup issues

The oil cup pad printer is more environmentally friendly and is more popular with European and American customers. The part where the oil cup contacts the printing plate is the oil cup ring. The oil cup ring can be made of tungsten steel or ceramic material. If a resin plate is used, a ceramic ring is recommended. If a steel plate is used, a tungsten steel ring is recommended. Be extra careful when installing both tungsten steel rings and ceramic rings, as they are very easy to damage!

It is troublesome to clean the ink cup when changing the ink of the pad printer. If it is not cleaned thoroughly and mixed with the next color, it will cause color difference. You can buy extra ink cups specifically for holding specific color inks.

3) Printing plate problem

Pad printers currently use thick steel plates, thin steel sheets and resin plates. Thick steel plates and thin steel sheets are steel materials that are more wear-resistant. However, the production process is slightly polluted; resin plates are polymer materials with poor printing durability, but the production process is more environmentally friendly.

The friction between the printing plate and the oil cup will cause wear of the printing plate and the oil cup. In order to avoid increased wear, the oil cup should not slide on the printing plate before loading the ink. In addition, the pressure of the oil cup should be gradually increased.
