Product details

Application field

Film output during plate-making process of: pad printing film processing machine , screen printing film processing machine , Letterpress film processing machine , Adhesive sticker printing film processing machine , Bronzing, Middle-precision Grave printing film processing machine , Middle-precision Offset Printing film processing machine .Garment screen printing field.

The automatic film developing and fixing machine is a professional equipment for processing film. First, the exposed film is placed in the film processing machine. Driven by the transmission system, the film goes through the development, fixing, washing, drying and other links in sequence. During development, the developer reacts chemically with the exposed silver halide on the film, reducing it to black silver particles to form a visible image. Fixing is to use the fixing solution to remove the unexposed silver halide and fix the image. Washing is to remove the residual chemical substances such as the developer and fixing solution on the film. Finally, the drying system dries the film quickly by heating and blowing.

Development principle:

After exposure, the film enters the developer of the film processor, and the chemical components in the developer react chemically with the exposed photosensitive material on the film. The photosensitive material in this area is converted into a visible black or other color image material, and the image gradually appears. In the unexposed area, the photosensitive material reacts very slowly or almost not at all with the developer. The photosensitive material in these areas remains basically the same and will be removed or retained as a blank part in the subsequent processing process, thus forming a developed image corresponding to the exposure pattern. After development, the film enters the fixer, and the unreacted photosensitive material on the film fixes the image that has been formed. The chemical components in the fixer can react with the unreacted photosensitive material, dissolve it and wash it off the film, leaving only the stable image that has been developed. After the fixation process, the image on the film will no longer be affected by subsequent chemical treatments or external factors. After the fixation is completed, the film needs to be dried to remove the residual developer and fixer on the film. Water such as dry film is dried for subsequent use and storage.

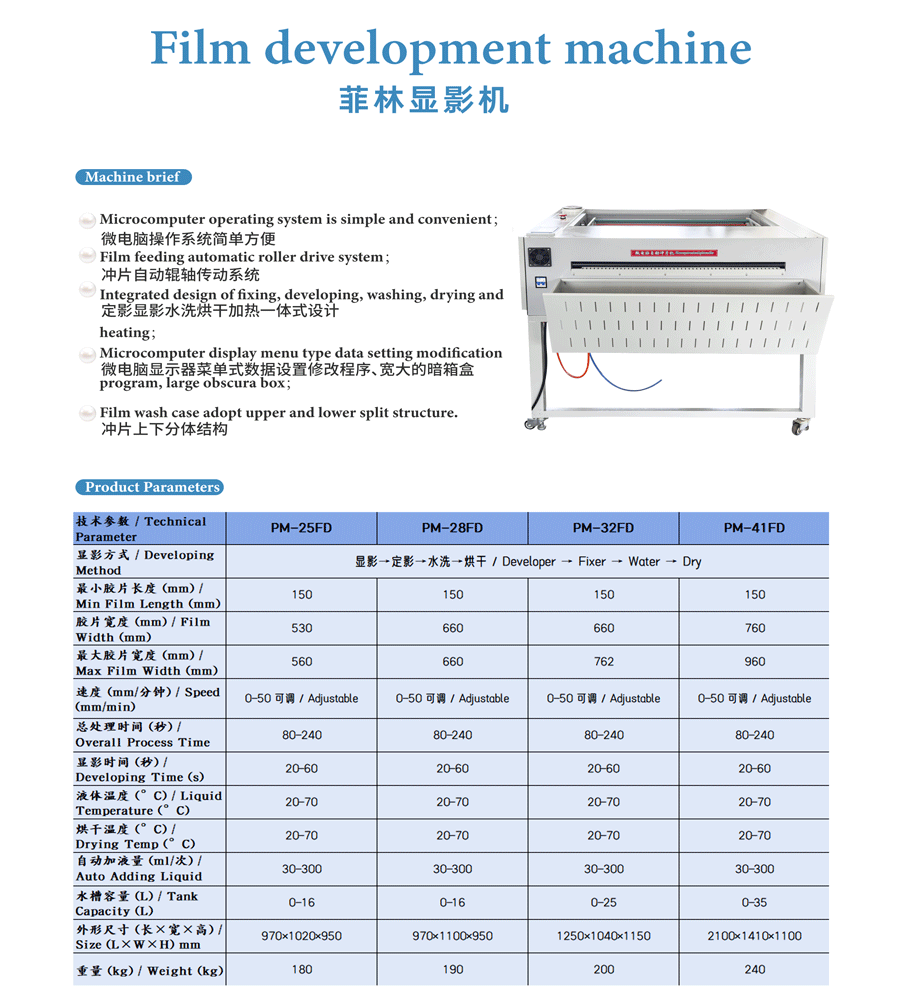

Description

PM-28FD		PM-32FD	PM-41FD
Film thickness： 0.08-0.25mm Film length： 0.2-60M Replenish volumn： 25L; recycle bin volumn：25L Max washing width : 660mm; Washing speed: 0-50mm; Trough volumn： 20L Total process time： 80S-240S Developping time： 20-60S Processing temperature： 20-45 Drying temperature ： 20-70 Replenish volumn： 30-300ML Liquid trough volumn：20L Net weight： 190kg Outer size： 9701100950mm Power： AC220V 50-60HZ Work mode: dark room or light room; Work environment: Tem10-30 , Humidty :20-80%		Film thickness： 0.08-0.25mm Film length： 0.2-60M Replenish volumn： 25L; recycle bin volumn：25L Max washing width : 760mm; Washing speed: 0-50mm; Trough volumn： 22L Total process time： 80S-240S Developping time： 20-60S Processing temperature： 20-45 Drying temperature ： 20-70 Replenish volumn： 30-300ML Liquid trough volumn：22L Net weight： 200kg Outer size： 125010401150mm Power： AC220V 50-60HZ Work mode: dark room or light room; Work environment: Tem10-30 , Humidty :20-80%	Film thickness： 0.08-0.25mm Film length： 0.2-60M Replenish volumn： 25L; recycle bin volumn：25L Max washing width : 960mm; Washing speed: 0-50mm; Trough volumn： 35L Total process time： 80S-240S Developping time： 20-60S Processing temperature： 20-45 Drying temperature ： 20-70 Replenish volumn： 30-300ML Liquid trough volumn：35L Net weight： 240kg Outer size： 210014101100mm Power： AC220V 50-60HZ Work mode: dark room or light room; Work environment: Tem10-30 , Humidty :20-80%

Works supply	110V-220VPower supply； 5-10M2 dark room;
Package list	Package Dimension: 1250×1040×1160mm; Gross weight: 210Kg ;CBM: 1.3071

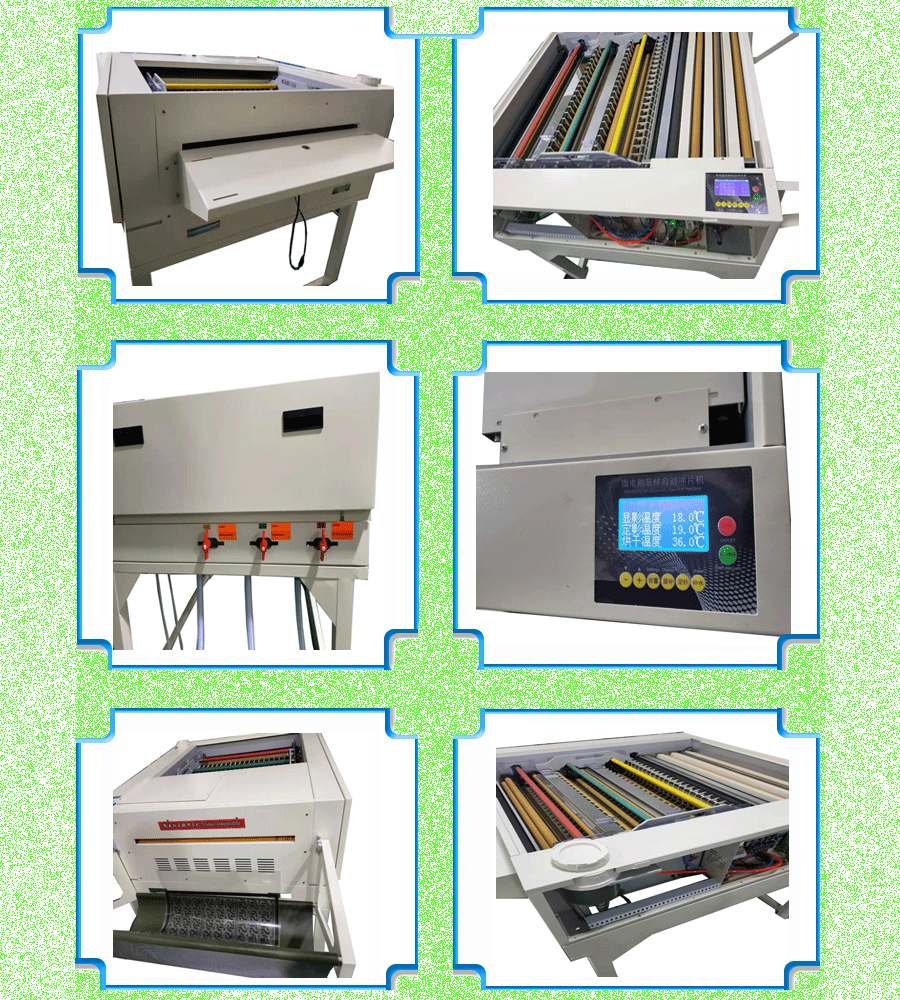

Basic structure

• Chemical tank part: It includes multiple chemical tanks, which respectively hold developer, fixer, washing water, etc. The chemical tank is usually equipped with a circulation system to ensure uniform concentration and temperature of the chemical solution.

• Conveying system: It is composed of motors, rollers, gears, etc., which can accurately control the conveying speed and position of the film in the medicine tank and drying area, ensure that the film stays in each processing area for a sufficient time, and ensure the washing and drying effect.

• Drying part: There are two common methods: hot air drying and heated drum drying. Hot air drying blows the heated air to the surface of the film through a fan; heated drum drying allows the film to pass through the heated drum surface and achieves drying through heat conduction.

• Control system: It can realize precise control of parameters such as washing temperature, time, conveying speed and drying temperature. Parameters can be entered manually, or multiple washing modes can be preset to meet the washing needs of different types of films.

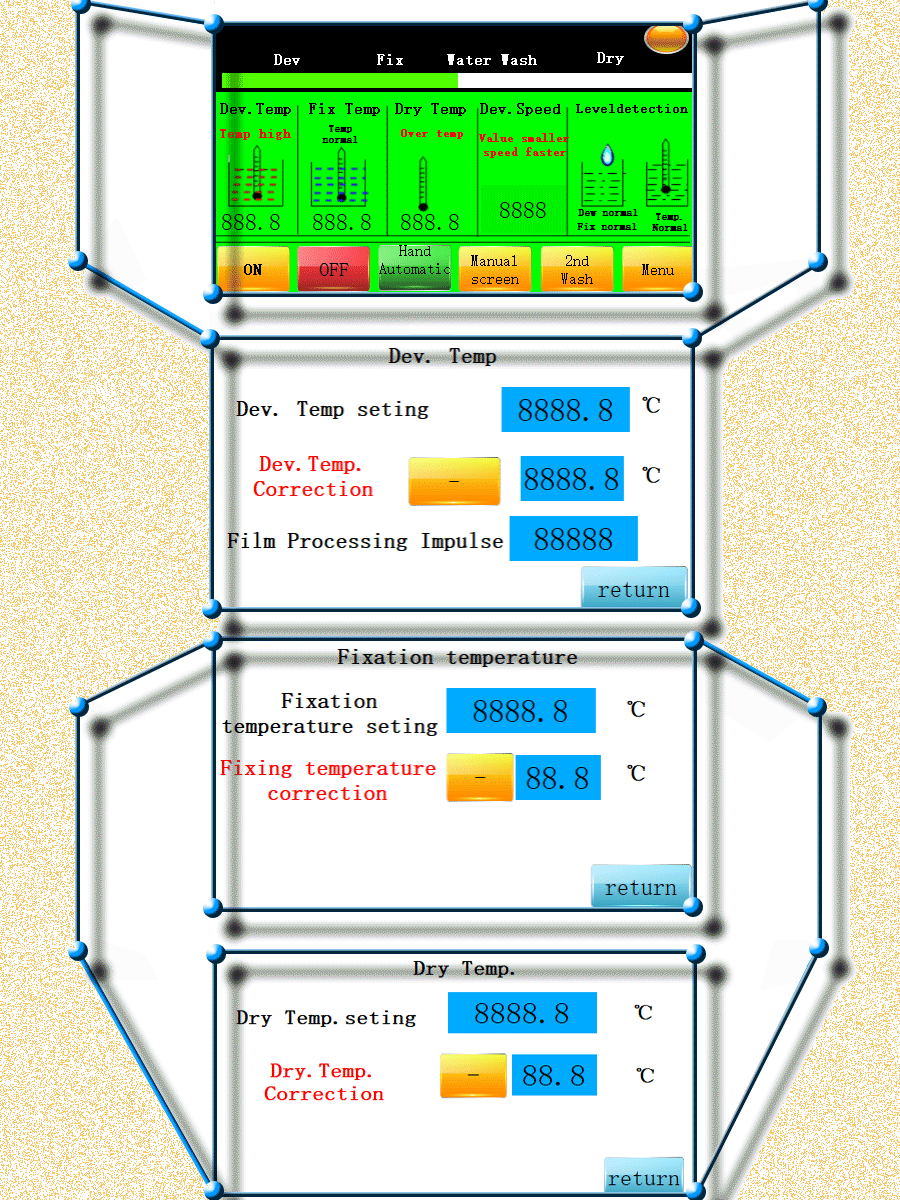

Operation screen

Machine advantage

The microcomputer operating system is simple and convenient, with high stability, and realizes automatic control. Turn on the power switch to automatically enter work.
For the program.When the temperature of the medicine reaches the set value, put the film in for washing, and automatically turn on the roller drive system.
Fixing and developing, water washing valve, drying and heating systems are all done in one go. When there is no film, it will automatically enter the energy saving state
Microcomputer display, menu-type data setting modification program, upper and lower split design, wide dark.
A series of innovative designs such as boxes, large-capacity collection boxes, anti-oxidation devices for liquid medicines, etc.
The body adopts galvanized sheet structure to ensure no Will rust, the sink is made of imported stainless steel, which is sturdy and durable, and the traction roller is wear-resistant, corrosion-resistant and resistant Aging and high temperature resistance.
Worm gear guides are processed by high-quality imported plastic molds, which are durable.
The side plate of the fixed roller adopts imported stainless steel, which is stronger and more durable than the plastic side plate
The film processing machine adopts the upper and lower split structure, which is easy to clean and maintain, and the roller frame is easy to extract. Without the use of tools, the parts can be disassembled and maintained

Equipment and materials required for a small film output center:

Most pad printing, silk screen printing and hot stamping processing companies can outsource film output business to professional film output centers, saving unnecessary funds and technical reserves. When your company has a certain scale and must establish its own film output center, you can refer to the following suggestions:

Image input equipment

Scanner: used to scan high-resolution images, manuscripts, etc.

Digital camera: take high-quality digital photos to provide clear image materials for film output.

Computer and related software

High-performance computer: equipped with multi-core processor, large memory and professional graphics card to smoothly run image processing software and perform complex image operations. Image processing software: such as Adobe Photoshop, Coreldraw, AI, etc., used for image editing, adjustment, color separation and other processing to prepare for film output.

Film output equipment

Laser imagesetter: Outputs image information from the computer to film, and is the core equipment of the film output center

Film processor: Develops and fixes the exposed film to make the image on the film clear, such as Kodak's small film processor, which can ensure the quality and efficiency of the processing. The consumables of the film output equipment should also be considered, such as film, developer, fixer, and water for washing.

The film output center has specific requirements for the environment, such as temperature, humidity, dust prevention, and lighting conditions, and should be set up according to the technical conditions proposed by the service provider.
