PM-410FL Image setter

Laser film Image Setter //Parameter

Technical parameters

PM-410FL

• Max exports width: 410mm;
• Output speed: 85mm/min;
• Resolution ratio: 3000DPI;
• Record source : Semiconductor Laser
• Scan style: step;
• Repetition accuracy: 0.01mm;
• Film: Red laser phototypography film;
• Joint : Parallel USB2.0;
• Works style: semi-auto operation in darkness room;
• Operation environment : temperature10-30,humidity:20-80%

PM-510FL

• Max exports width: 510mm;
• Output speed: 85mm/min;
• Resolution ratio: 3000DPI;
• Record source : Semiconductor Laser
• Scan style: step;
• Repetition accuracy: 0.01mm;
• Film: Red laser phototypography film;
• Joint : Parallel USB2.0;
• Works style: semi-auto operation in darkness room;
• Operation environment : temperature10-30,humidity:20-80%

PM-610FL

• Max exports width: 610mm;
• Output speed: 85mm/min;
• Resolution ratio: 1800DPI;
• Record source : Semiconductor Laser
• Scan style: step;
• Repetition accuracy: 0.01mm;
• Film: Red laser phototypography film;
• Joint : Parallel USB2.0;
• Works style: semi-auto operation in darkness room;
• Operation environment : temperature10-30,humidity:20-80%

Works supply

• 110V-220VPower supply;
• 5-10M2 dark room;
• Computer: ( P e n t i u m 4 2 G Hz Processor / 5 1 2 M R AM / 1 0 GB/,Mainboard US B 2 . 0/ 17" Monitor/ 3 2 MB VGA / X V GA/ CD R OM
• Developing tray, Fixation tray.

Package list

• Package Dimension: 750×650×630mm;
• Gross weight: 40Kg
• CBM: 0.3071

H.S.Code

8443198000

Certicate

CE

Laser imagine setter //Advantage

Function

• Semiconductor luminescence lamp-house;
• Flat operation mode;
• Expert image controlling technology;
• Film store box aggregated storing, measuring, cutting, feeding function installed
• RIP 3.0 sent with machine, used both PC AND MAC system;
• Design for pad film output.
• The roll film feeding , suitable for the negative of the output of any length and Positive Film.

Brefie

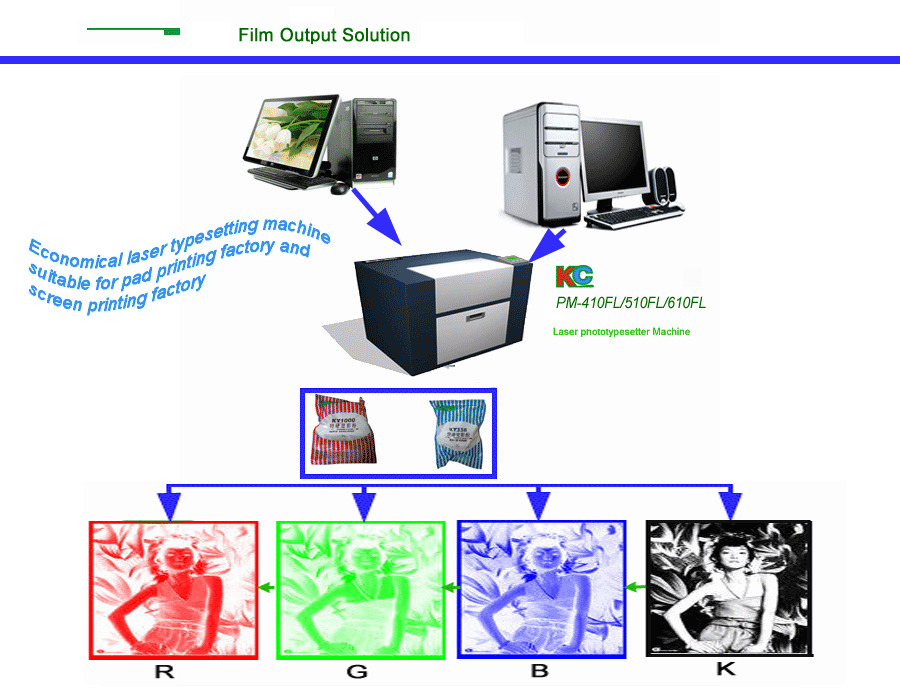

• Most of pad printing and screen printing use Film to make plate;
• When this film enter into laser output machine, Laser will exposure to words and drawing. the sensitive layer will be solid and other area keep its un-exposured state;
• Exposured layer will be not remove and un-exposured layer will be remove with developing liquid;
• Cover the film onto pad plate or screen plate. There are two areas to be made, one is open area, the other is closed.

Usage

• Used by PM-410FLL and PM-510FL Laser output film machine. Operating in dark room. It is formed that coating Photosensitive coating layer;
• Widely used to output films of pad printing process and screen printing process.

Package

• Package size: 160*160*380mm;
• Weight: 3.5kg;
• CBM: 0.009

Store

• Sahde, cooling and wentilate place;
• Expiration date: 2 Years

Parameter

• Max Density : 4.5;
• Width: 305mm; Length: 60m;
• Thickness of PET base: 0.1mm;
• Sensitization wavelength: 630-670NM

Advantage

• Roller shape, easily to cut to correct size;
• Operating in dark room;
• Nice planeness to set up even Drawing layer;
• Very finess of Sensitive layer to set up halftone design;
• High photosensibility and high Exposure latitude;
• Rapid developing , well edge quality of words;
• High contrast and red light, suitable for the image record of He Ne laser source
• Base expansion and high stability.

Usage

• Putting it on the enter of output machine;
• Start the computer to let it enter.
• Cutting it to fit size;

Reminding

• Please process it in dark room with safe light, only have red and yellow safe light.Storage︰ Store in the shady ,Obturation and ventilation place
