Automatic Ribbon screen printing machine

    The screen printing machine for printing continuous strips and roll materials belongs to the category of roll-to-roll screen printing machines. There are two main types. One is the screen printing machine for printing paper, film and other materials with good dimensional stability. It has the following characteristics:
   1) The workbench adopts an aluminum alloy suction screen printing table. When the roll material is transported to the printing position according to a certain distance, the material stops moving, the suction action opens, and the printing is completed. Then, the roll material continues to be pulled forward.
    2) The drying of the machine can use a winding drying furnace, which saves the space occupied by the machine under the condition of ensuring the drying of the material. Now there are also some product packages that use UV drying or UVLED drying. A curing unit can be installed in the post-printing process, and the UV ink is dried instantly, so the footprint of the machine is greatly reduced.
   3) The photoelectric tracking switch is installed at the front of the machine table, and the single-color screen printing machine can perform overprinting of the second color. The machine can connect multiple monochrome machines to complete multi-color overprinting.
  This roll-to-roll screen printing machine is suitable for printing paper packaging, membrane switches, thermal transfer films and other products. With the development of the market, the functions of roll-to-roll machines have been greatly improved. For example, adding a thermal transfer unit can realize cold stamping. When printing thermal transfer film, the machine can be equipped with an automatic powder shaker unit, and some factories will Add die-cutting or cutting function.
  There is also a kind of screen printing machine with stretchability and elasticity such as printing ribbons. Its characteristics are as follows:
   1) The workbench adopts a synchronous belt driven by a motor, and the product will move forward with the synchronous belt for a certain distance for printing, which avoids the graphic deformation caused by the expansion and contraction deformation of the product during printing.
  2) Ribbon and other products are basically printed with thermosetting ink and glue, and the ink drying adopts IR drying process, and the length of the drying oven varies from 2 meters to 4 meters. Currently, webbing products rarely use UV curing process.

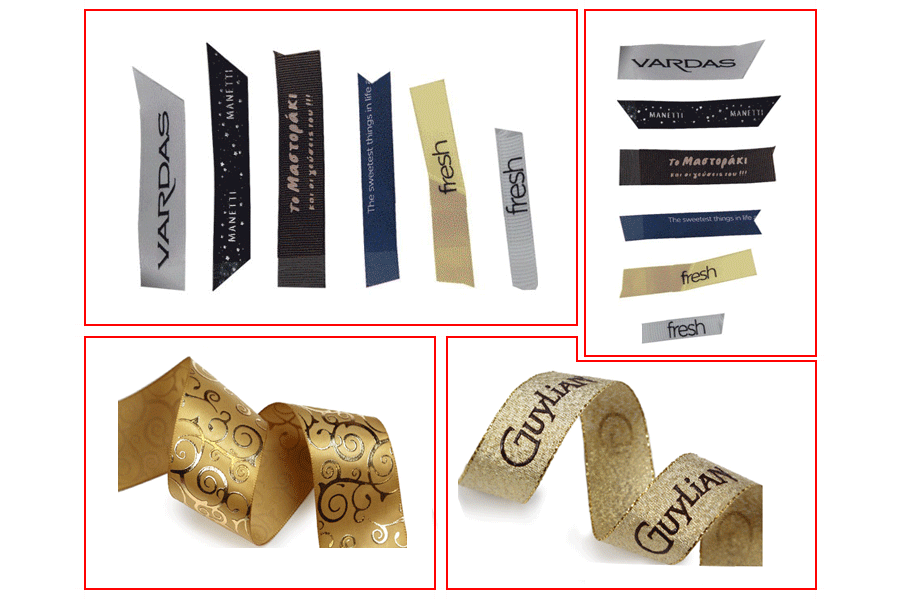

Samples

Ribbon is a narrow or tubular fabric made of various yarns, usually in the form of a roll of unlimited length.

      Yarn can be natural fibers such as cotton and linen, or chemical fibers such as polyester, nylon, polypropylene, and spandex. Some shoulder straps of underwear and decorative belts of home clothes use cotton webbing, and some handles of linen handbags are natural fibers. Chemical fibers include: high-strength and durable luggage straps, straps for outdoor equipment, etc.; shoelaces, climbing safety belts, team logo belts, billboard belts; swimsuit straps, medical straps, trouser belts, hat decorative belts and yoga clothing decorative belts.  Ribbon involves clothing, footwear, luggage, security, household goods, sporting goods, electronic equipment, outdoor decoration and other fields. Ribbon can be decorated by screen printing machine, hot stamping machine, embossing machine, and chemical transfer machine.

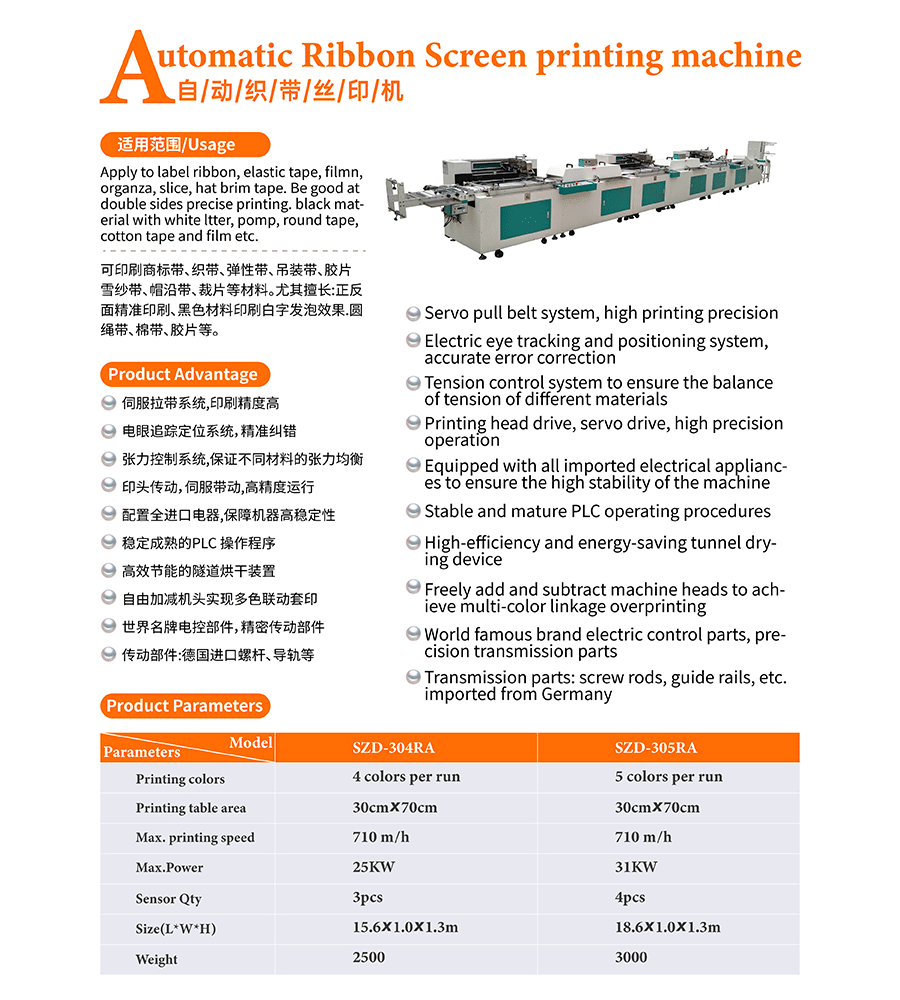

Technical data

Advantage

Details

Catalogue

Knowledge About automatic ribbon screen printing machine

•  Workbench - Ribbon is a narrow strip product woven with fabric, the surface is not smooth, and some of them have a certain elasticity; To ensure that the ribbon screen printing process does not slide or wrinkle, a synchronous belt workbench must be used. The so-called synchronous belt workbench means that the ribbon will be attached to the synchronous belt after entering the printing process and move with the synchronous belt. The synchronous belt is coated with a platen glue to avoid sliding and deformation of the ribbon; In order to improve the accuracy of screen printing, the synchronous belt drive is generally controlled by a servo motor;
• Drying device - Ribbon screen printing mostly uses glue or ink suitable for fabrics. This type of ink needs to be dried for drying, so the ribbon screen printing machine will be equipped with a tunnel furnace of about 1-2 meters after the screen printing unit. As far as the current technology is concerned, the ribbon screen printing machine is not equipped with UV ink. This is mainly because UV ink cannot achieve satisfactory results in ribbon printing;
• Operation panel - The ribbon automatic screen printing machine is a type of automatic roll-to-roll screen printing machine, and its movements are still relatively complicated. Since different printing processes are involved, there are many parameters that need to be adjusted. Therefore, the operation panel of the screen printer can effectively control the operation program of the screen printer;
• Correction device - For roll-to-roll automatic screen printers, we require the pattern to be printed evenly and vertically in the middle of the ribbon according to a certain pitch. Correction of the ribbon is necessary, but the ribbon is a rough product. The ribbon screen printer is usually not equipped with an automatic correction device. Instead, a certain number of positioning rings are set on the feed shaft to position the front and back directions of the ribbon to prevent the ribbon from deviating during the conveying process;
• Hot stamping device - Some users want to hot stamp the ribbon, and a hot stamping machine can be configured at the end of the ribbon screen printer. The ribbon is a fluffy fabric structure, and the indirect hot stamping process is more mature, that is, the hot stamping paste is printed on the ribbon, and then hot stamping is performed.
• Multi-color overprinting - Ribbon screen printers will also encounter multi-color overprinting problems. The number of colors that can be printed depends on the number of printing heads. The overprinting of the second and third colors is done by using the photoelectric switch to identify the first color and the servo motor to pull the ribbon to the specified position. Generally, the overprinting accuracy of a ribbon with better rigidity will be higher, while the overprinting accuracy of a softer, more easily stretched, and more easily deformed ribbon will be lower.
