Introduction

Most printing processes require printing plates, especially in the field of special printing, such as pad printing, screen printing, hot stamping, flexo printing, offset printing, and gravure printing. Some printing processes with higher technical barriers are developing towards computer direct platemaking technology (CTP), that is, using computer control to directly output the design draft stored in the computer to the printing plate to form a printing plate. Offset printing, flexo printing, and screen printing are relatively mature. Some printing processes with lower technical barriers still follow the traditional platemaking process. First, the image and text are output to the platemaking film, and then the platemaking film is used to cover the printing plate to make the printing plate. Pad printing, screen printing, and hot stamping still retain this process. The platemaking film becomes a film, which is formed by coating a photosensitive layer on a PET film. The transparent area of the platemaking film will transmit ultraviolet light, and the non-transparent area will block light. The photosensitive layer will solidify in the area that transmits ultraviolet light, and the photosensitive layer will not solidify in the area that does not transmit ultraviolet light, and will be washed away during development and washing.

Most pad printers, screen printers, and hot stamping machine operators are small-scale investors with meager profits, and may not be willing to buy expensive laser phototypesetters. However, the KC series laser phototypesetters are inexpensive, have moderate accuracy, and are easy to operate. They usually recover their costs in about three months. If you are engaged in pad printers, screen printers, and hot stamping machine processing business, or provide film output and plate making business for other printing factories, you can consider the KC brand laser phototypesetter.

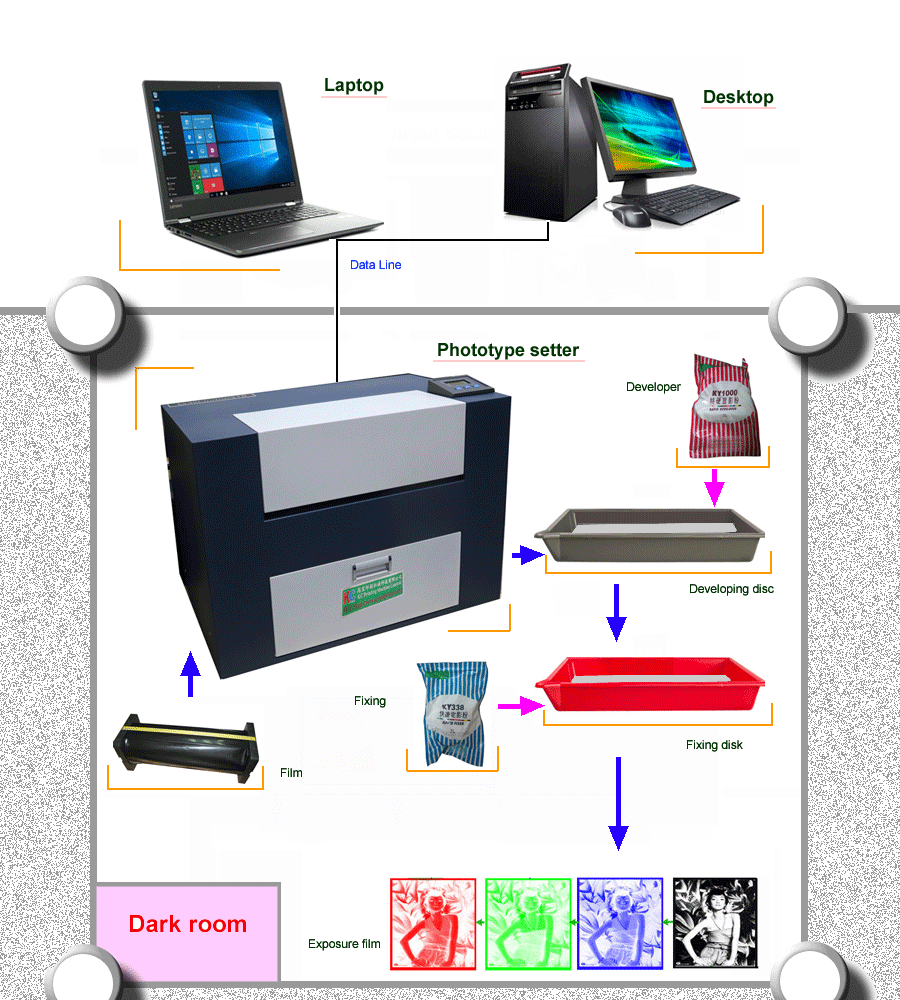

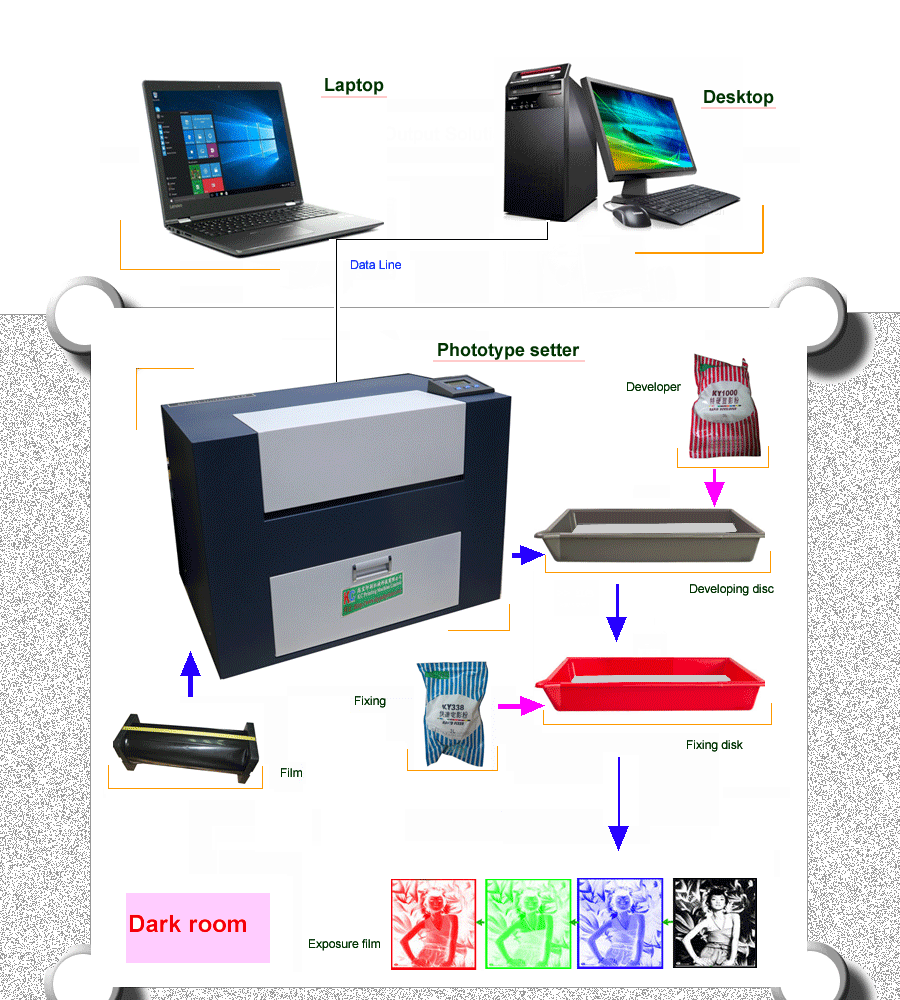

How to use imagesetter?

Technical sheets

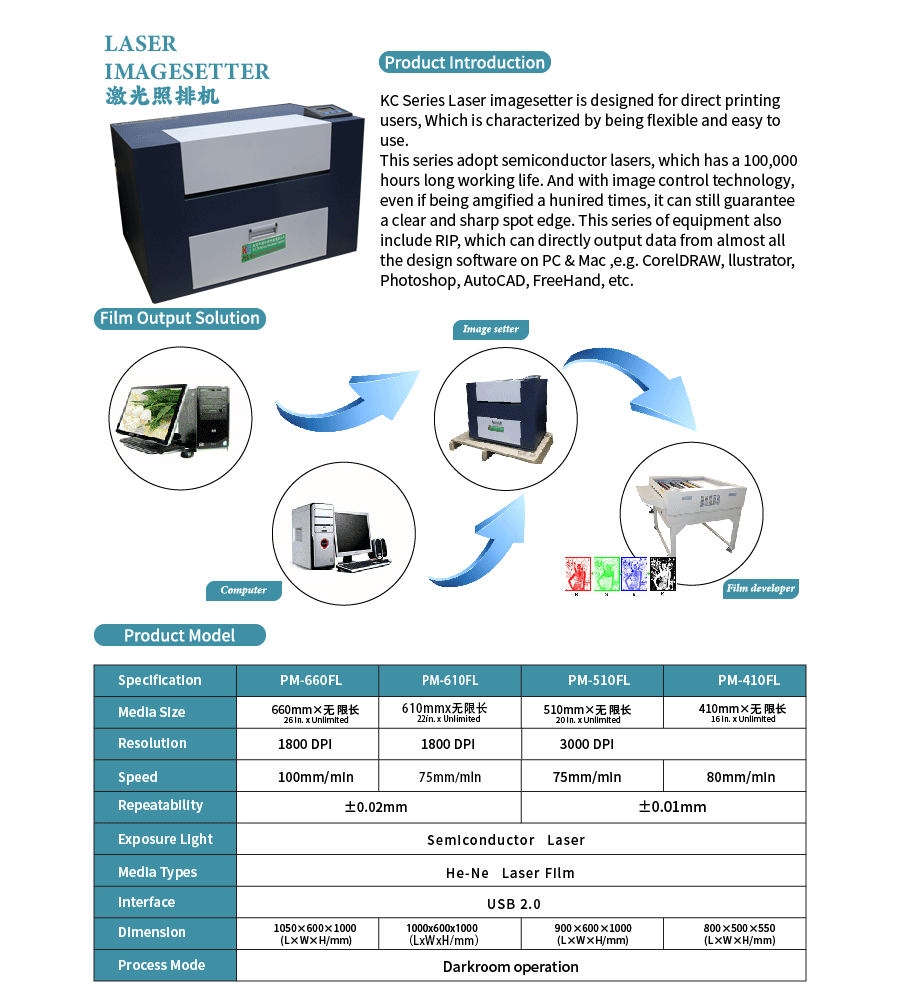

Laser film imagine setter //Parameter
PM-510FL	PM-610FL	PM-660FL
Max exports width: 510mm; Output speed: 85mm/min; Resolution ratio: 3000DPI; Record source : Semiconductor Laser Scan style: step; Repetition accuracy: 0.01mm; Film: Red laser phototypography film; Joint : Parallel USB2.0; Works style: semi-auto operation in darkness room; Operation environment : temperature10-30,humidity:20-80%	Max exports width: 610mm; Output speed: 85mm/min; Resolution ratio: 1800DPI; Record source : Semiconductor Laser Scan style: step; Repetition accuracy: 0.01mm; Film: Red laser phototypography film; Joint : Parallel USB2.0; Works style: semi-auto operation in darkness room; Operation environment : temperature10-30,humidity:20-80%	Max exports width: 660mm; Output speed: 85mm/min; Resolution ratio: 1800DPI; Record source : Semiconductor Laser Scan style: step; Repetition accuracy: 0.05mm; Film: Red laser phototypography film; Joint : Parallel USB2.0; Works style: semi-auto operation in darkness room; Operation environment : temperature10-30,humidity:20-80%
Works supply
110V-220VPower supply; 5-10M2 dark room; Computer: ( P e n t i u m 4 2 G Hz Processor / 5 1 2 M R AM / 1 0 GB/,Mainboard US B 2 . 0/ 17" Monitor/ 3 2 MB VGA / X V GA/ CD R OM Developing tray, Fixation tray.
Package list	Package Dimension: 1140×690×1220mm; Gross weight: 180Kg CBM: 1.43
H.S.Code	8443198000	CE Approval

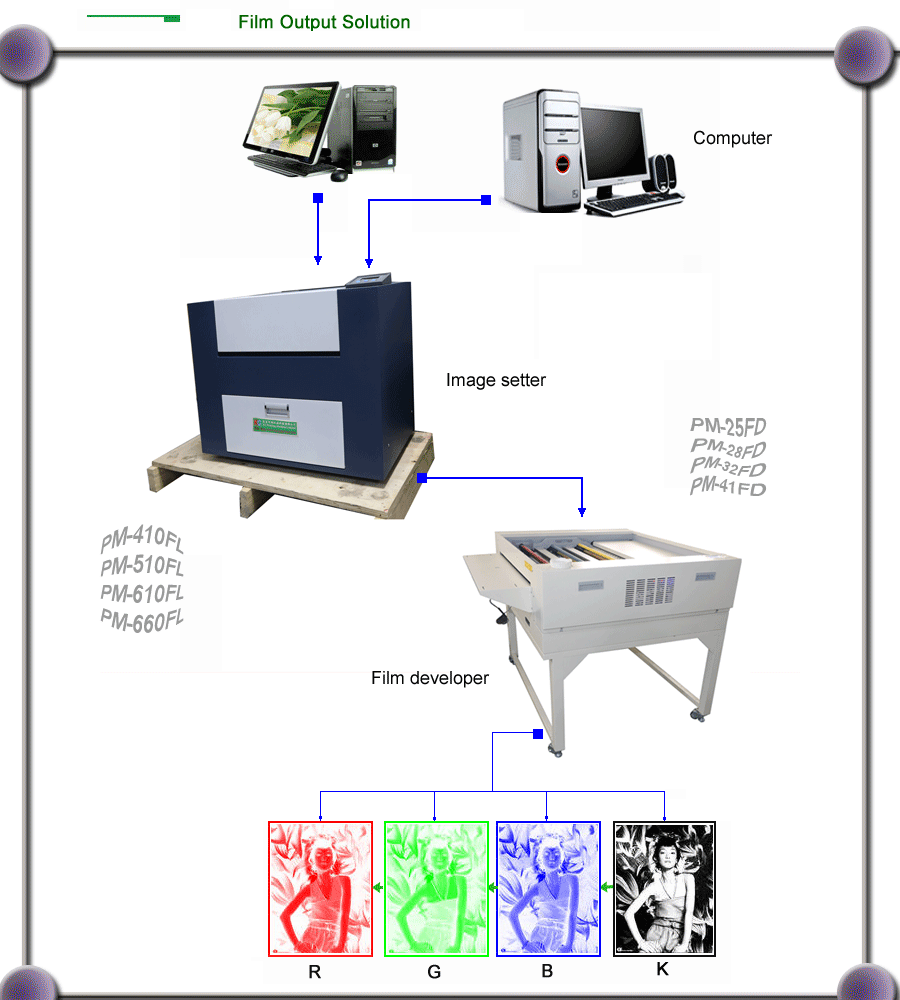

Solution

Characteristic

- Semiconductor luminescence lamp-house;
- Flat operation mode;
- Expert image controlling technology;
- Film store box aggregated storing, measuring, cutting, feeding function installed
- RIP 3.0 sent with machine, used both PC AND MAC system;
- Design for pad film output.
- The roll film feeding , suitable for the negative of the output of any length and Positive Film.

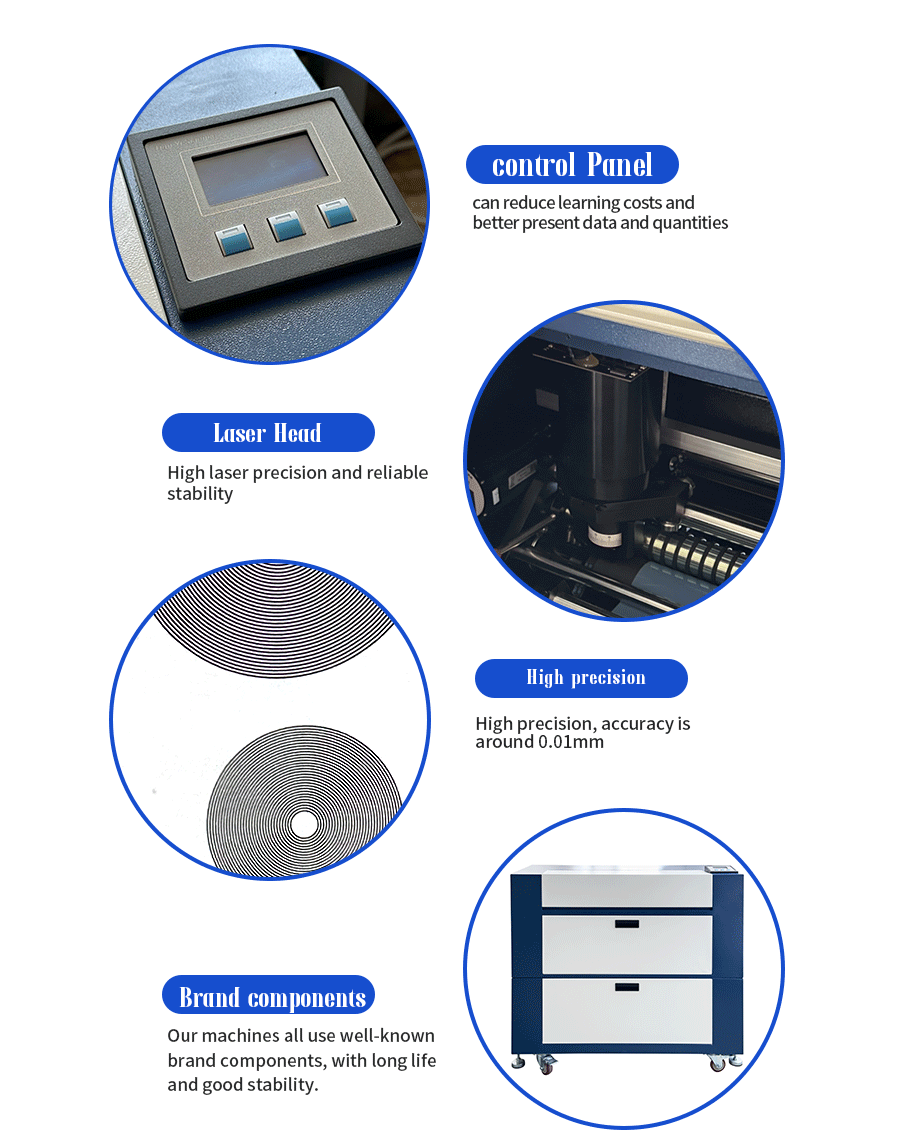

- Details
