UVLED screen printing machine for washing machine panel

Samples

      This is a fully automatic shuttle UVLED screen printer designed specifically for washing machines and other home appliance panels. The workbench uses a servo-driven shuttle workbench with precise positioning. The screen lifting is driven by a servo motor and a ball screw. When facing products of different heights, it can be easily achieved by simply setting parameters; the UVLED curing system is adopted, and each color of ink can be quickly dried after printing. The whole machine adopts a mobile touch screen panel operation, which is simple and convenient.

     In order to achieve visualization and high contrast of the operation process, the washing machine panel usually requires black or silver ink with strong covering power. However, such UV ink is generally difficult to dry, and the necessary balance must be made in terms of transparency, covering power, and the intensity of the UV lamp. After many implementations, UVLED ink was finally used to replace the traditional solvent-based ink, realizing the automation of panel printing, which greatly improved production efficiency.

Machine description

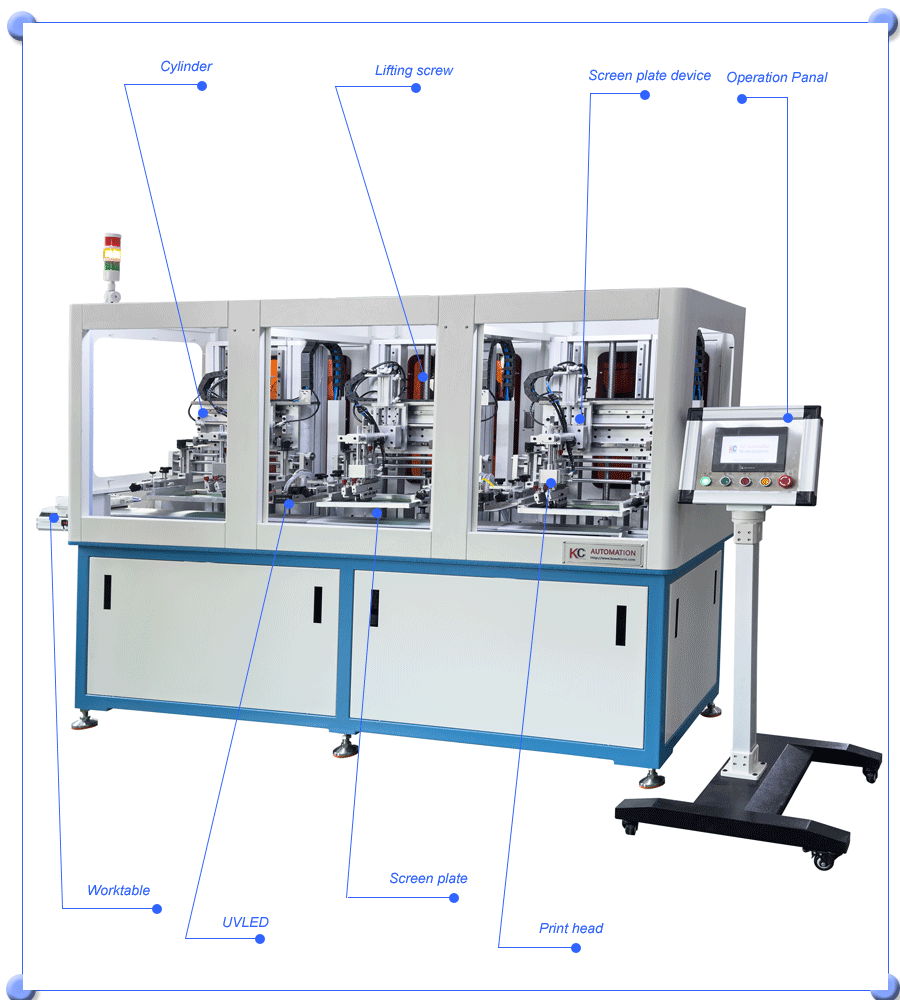

Machine structure

Machine structure

• Servo shuttle workbench, precise positioning;
• Human-machine interface operation panel, programmable controller parameter setting;
• Screen lifting servo drive, suitable for products of different heights;
• Three-color screen printing, overprinting accuracy up to 0.03mm;
• Linear guide rails for precise guidance, high repeatability;
• Ink scraping and ink return actions are controlled by rodless cylinders;
• The air tank provides compressed air, which makes the operation more stable;
• UVLED curing system, rapid ink curing, more environmentally friendly;
• For high-covering inks, different printing times can be set to improve coverage;
• Famous brand electrical components and pneumatic components ensure long-lasting machine life;
• CNC accessories processing, good interchangeability and standardization.
