Automatic thermal transfer machine for bottles caps
2 year ago
The Automatic Hot Foil Stamping Machine for Disposable Syringe Barrels is a precision packaging and medical product decoration solution specifically developed for high-efficiency hot foil stamping on disposable syringe barrels and other cylindrical medical components. Compared with general-purpose hot stamping equipment, its product handling and positioning system can be optimized for the slender cylindrical structure of syringe barrels, ensuring stable feeding, accurate positioning, and consistent contact between the stamping die and product surface. The machine can be equipped with automatic feeding systems such as vibration bowl feeders and conveyor mechanisms, enabling continuous loading with minimal manual intervention. A high-precision indexing and positioning system maintains the correct orientation of each syringe barrel during the stamping process, while adjustable stamping temperature, pressure, dwell time, and head position help achieve clear and uniform transfer of scales, graduations, text, logos, and other markings. The automatic syringe barrel hot foil stamping process provides excellent production consistency and repeatability, helping manufacturers maintain accurate visual identification across large production batches. Hot foil stamping also creates clear, durable decorative and identification marks with strong adhesion, making it suitable for disposable plastic syringes where stable printing quality and efficient mass production are important. The integrated PLC control system and touchscreen HMI simplify parameter setting and production management, while automatic feeding, positioning, stamping, and unloading reduce labor requirements and improve production efficiency. Modular machine configuration allows fixtures, feeding systems, and stamping units to be adapted to different syringe barrel specifications, supporting flexible production and easier changeover. With its combination of precision positioning, automated handling, stable foil transfer, and continuous production capability, this automatic hot foil stamping machine for syringes provides an efficient and repeatable solution for disposable syringe manufacturers and medical product packaging applications.
- Feeding System: Common feeding methods include vibratory bowl feeding and conveyor belt feeding, which automatically and orderly transport hoses to the hot stamping station for continuous production.
- Hot Foil Stamping System: Consists of a hot stamping head, heating element, pressure adjustment mechanism, and temperature control system. The system transfers the metallic coating of electrochemical foil onto the hose surface under precisely controlled temperature and pressure, creating clear and durable hot foil stamped graphics.
- Positioning System: Incorporates positioning rods, positioning cylinders, and other precision positioning components to accurately locate and secure each hose. This prevents product movement during the stamping process and ensures consistent stamping position and quality.
- Discharging System: Automatically removes the finished hot foil stamped hoses from the production station and transfers them to the next processing or packaging stage, supporting continuous and efficient automated production.

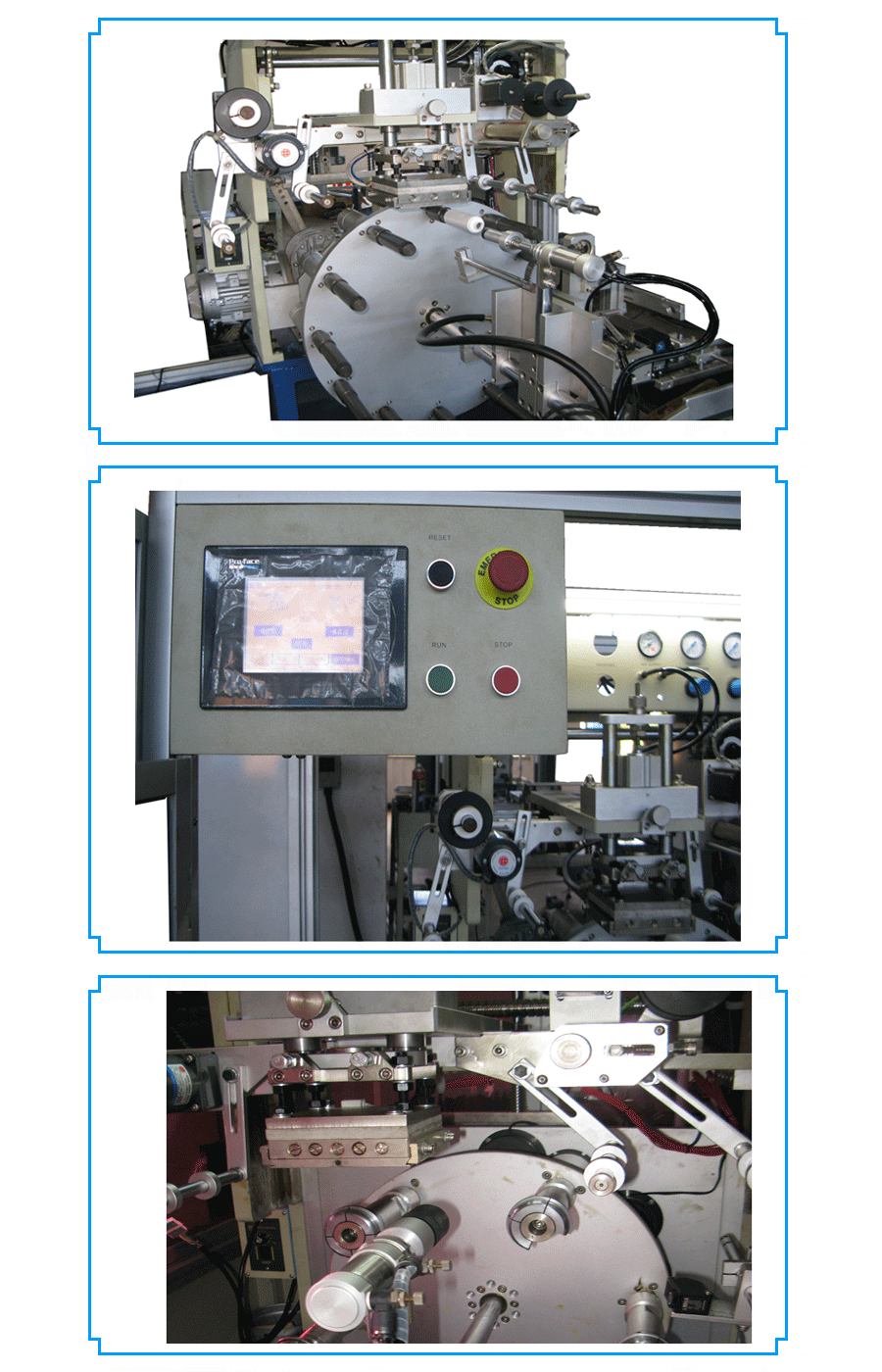

Lipstic automatic turntable hot foil stamping Machine /Configuration
| No | Items | Number |
| 1 | 100mm stainless steel conveyor ( Customized on customer products) | 1 |
| 2 | Feeding robot | 1 |
| 3 | 8 stations rotating workbench | 1 |
| 4 | IR Heating system | 1 |
| 5 | Independent Stamping Plate adjustment device | 1 |
| 6 | Fixture for samples | 8 |
| 7 | Automatic foil feeding and collecting device | 1 |
| 8 | High accurate Splitter | 1 |
| 9 | World brand electronic control components | 1 |
| 10 | PLC Operation system | 1 |
| 11 | Automatic positioning system | 1 |
| 12 | Safety cover | 1 |
Size
-
-
-
- Hot stamping speed: 30-45PCS/min
- Hot stamping size: (Ø8mm~Ø22mm)xH(10mm~100mm)
- Compressed air: 0.5~0.7Mpa
- Power supply: 380V/50Hz
- Total power: 6KW
-
-
-
-
-
- Inovance servo motor + Taiwan TBI screw drive ironing head;
- Non-hot feeding and anti-fooling sensor device for positioning;
- Japanese OMRON touch screen and Japanese Panasonic PLC control system;
- (brands can also be made according to customer requirements)
- Main motor and gearbox are made in Italy TRANSTECNO;
- The turntable and fixture are all high-precision grinding;
- Adopt Japan SMC and Taiwan AirTAC solenoid valve and cylinder;
- Imported Texaco precision splitter;
- Prevent the phenomenon of abrasion during the working process of the product;
- The machine is equipped with a set of jigs.
-
-
