Pad printer with slide cup

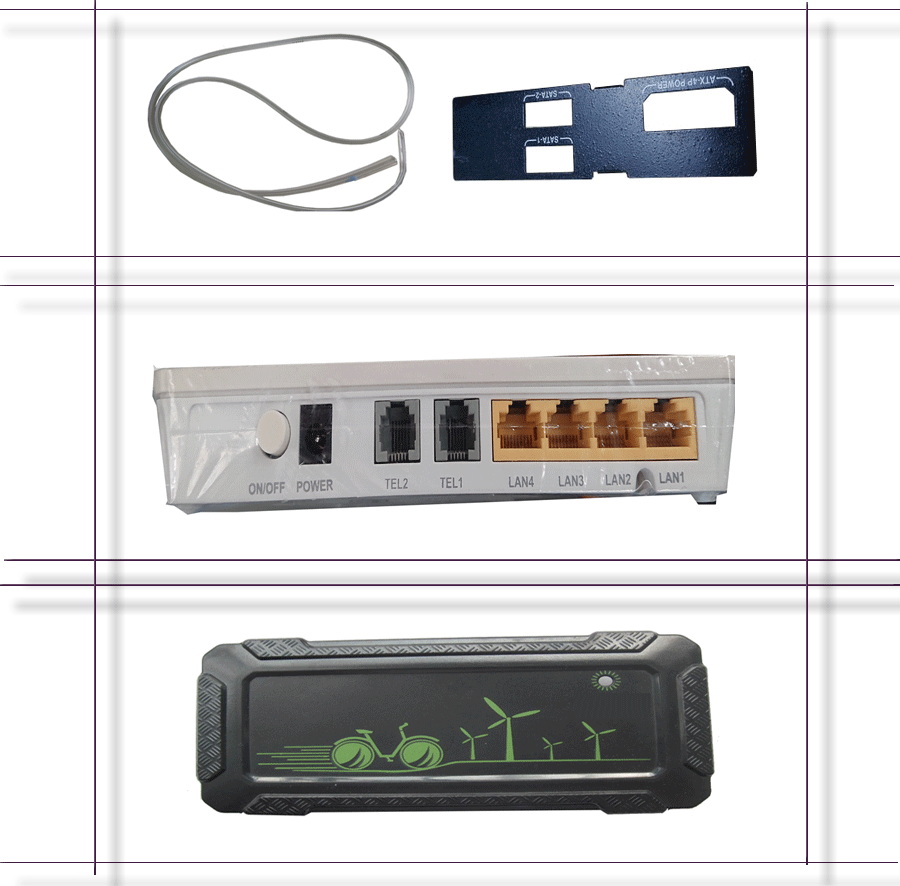

Samples

      Pad printers are more suitable for small-sized products. Usually, we call products with an outer size of less than 150mm*150mm small products. If the size exceeds this, the printing difficulty of the pad printer will increase and the cost will increase significantly. This is relative to the screen printer. At present, the pad printer with the largest printing area is the pad printer for printing ceramic tableware. There is also a type of product that is long and narrow, that is, one side is relatively small, less than 150mm, and the other side is relatively long, more than 500mm. If you choose a pad printer, you can consider a pad printer with an oil cup moving left and right. For operators, we prefer to stand in front of the pad printer to adjust the pad printer.

The pad printer with an oil cup moving left and right can obviously reach a longer distance, which is why it is more suitable for long strip products. There is no technical problem in manufacturing 90mm oil cups and 150mm oil cups. If it exceeds this size, the difficulty of manufacturing the pad printer will increase.

You will find the characteristics of such a pad printer:

1) The oil cup is driven by an independent cylinder, so the ink is scraped relatively cleanly:

2) Since the size is expanded in one direction, if it is used to print small-sized products, many can be printed at a time, and the production efficiency will be doubled;

3) In order to complete the printing of multiple products at a time, a combined rubber head can be used, that is, many small-sized rubber heads are combined to print different products;

4) The oil cup sliding pad printer has been used to print many products such as nail art, keyboards, rulers, and golf clubs.

Technical data
