6-colors rotary pads automatic full servo pad printer

4 month ago

2 0 

9 year

Product details

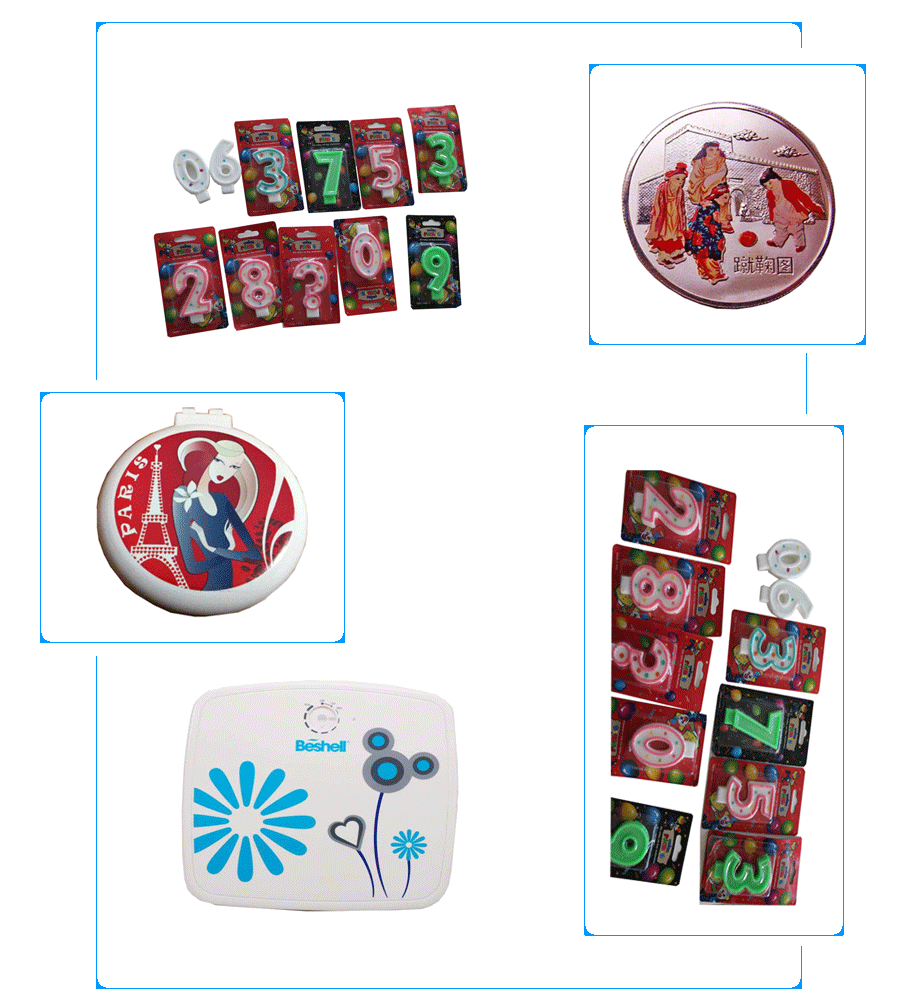

Samples

This is a highly automated 6-color full-servo pad printer that uses a number of advanced technologies, making it very suitable for pad printing at multiple angles, multiple directions, multiple sides, and multiple colors on the outside of a complex product.

1) The printing pad is installed on a highly flexible slider that is controlled by a servo motor and can move precisely in the left, right, front, and back directions. It can complete a series of complex actions such as rotation, selecting the pad, dipping ink from the oil pan, and printing.

2) After completing the pad printing of the first area of the product, the printing pad can automatically return to the pad library, put the pad back, and move to the second color pad, automatically install it, and then move to the second color steel plate for ink dipping. After dipping, move to the top of the product for second color printing;

3) The pad printer can achieve six-color pad printing of a product, all set by the program。

4) The machine has an automatic pad cleaning function;

Machine description

SP6-406PCNCSPRS Six colors pad printing machinery with CNC pad rotary system//Parameter
Technical parameters	Max. plate size: 100×150mm; Max. worktable area: 125x200mm; Max. printing speed: 300pcs/h Printable colours:6 Max print area: 80mm×80mm; Pad numbers : 6pcs Max Products Dimension: 120×450mm.
Works supply	110V-220VPower supply; 5-7Bar Compress air;
Package list	Package dimension: 1700×1280×1530mm Gross weight: 265kg CBM: 3.32928
H.S.Code	8443198000
Certicate	CE
SP6-406PCNCSPRS Six colors pad printing machinery with CNC pad rotary system //Advantage
Function	1) Adjustable lifting three-dimensional workbench; 2) Human-machine interface visual operation screen; 3) Open 6-color ink device; 4) 6 sets of rubber head storage system; 5) CNC rubber head free movement device; 6) 6-color rubber head rotation system; 7) Full servo control system; 8) World famous brand pneumatic components.

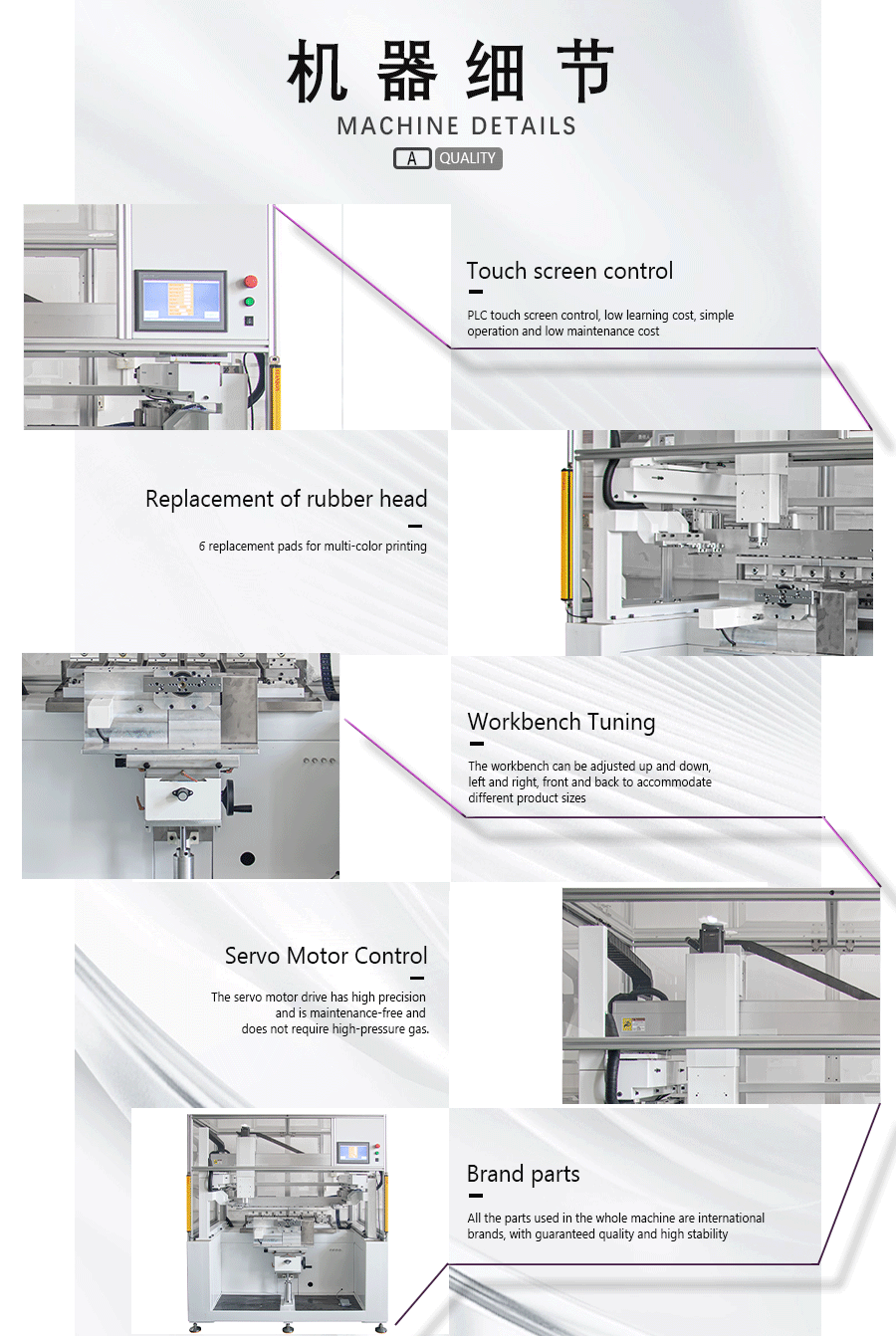

Pad Printing machinery details

The pad assembly and its action mode are important components of the pad printer, which we call the printing system. The difference in printing systems has a great impact on the structure and function of the pad printer:

Pad printer with translation printing system

The translation printing system is the most traditional printing system used by pad printers. The pads of all colors of the pad printer are installed on a fixed beam, corresponding to the oil pan or oil cup of different colors. Their actions are relatively simple, mainly ink dipping action, translation action, and printing action. They are widely used in pneumatic shuttle pad printers and turntable pad printers.

Pad shuttle type and pad rotation type

Multi-color pad printers for products such as cloth, paper, and leather may require the pad to shuttle to achieve overprinting; some large-sized products such as bathroom products, household appliance housings, or the sides of furniture products require the pad to rotate at a specific angle.

Pad rotation type combined with CNC action

The workbench and pad assembly of some multi-color flat turntable pad printers are distributed around the central axis. Some pad printers also have a pad assembly that installs multi-color pads on a freely rotatable shaft. The pads can automatically rotate to find the oil pan or oil cup of the corresponding color to dip in ink, and then find the printing position of the substrate for printing.

The same pad assembly combined with CNC action pad printer stores different pads in a fixed position of the pad printer, and then drives the pad seat to find the corresponding pad for installation according to the set program, and then dips in ink and prints. Every time a color is printed, the pad will automatically find the pad of the next color, replace it, and then dip in ink to print another color.

The complicated action of the pad seat makes it easy to perform multi-color pad printing at multiple angles, multiple directions, and multiple regions for a complex-shaped product, making the pad printer more powerful, but also making the program, adjustment, and after-sales service of the pad printer difficult.
