Servo pad printer with 6-colors pad rotary system

4 week ago

0 0 

KC Printing Machine (Group) Limited

9 year

Product details

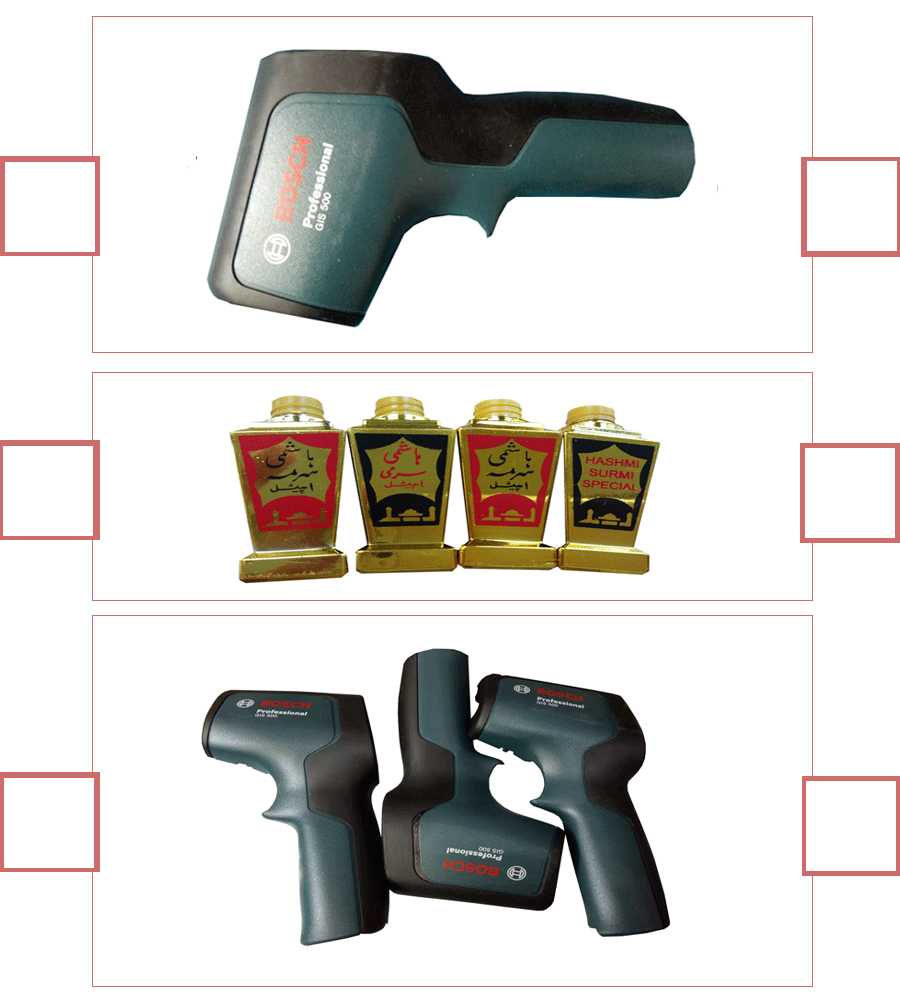

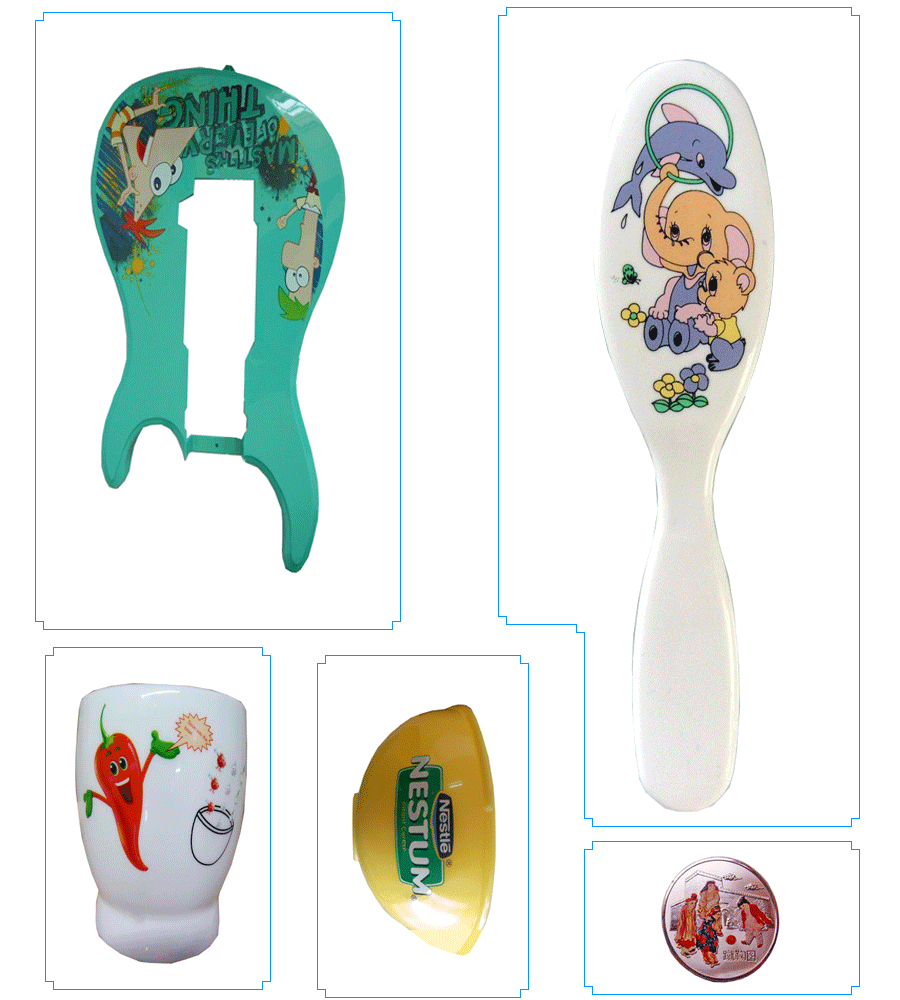

Samples

Description

This is a highly automated 6-color full-servo pad printer that uses a number of advanced technologies, making it very suitable for pad printing at multiple angles, multiple directions, multiple sides, and multiple colors on the outside of a complex product.

1) The printing pad is installed on a highly flexible slider that is controlled by a servo motor and can move precisely in the left, right, front, and back directions. It can complete a series of complex actions such as rotation, selecting the pad, dipping ink from the oil pan, and printing.

2) After completing the pad printing of the first area of the product, the printing pad can automatically return to the pad library, put the pad back, and move to the second color pad, automatically install it, and then move to the second color steel plate for ink dipping. After dipping, move to the top of the product for second color printing;

3) The pad printer can achieve six-color pad printing of a product, all set by the program。

4) The machine has an automatic pad cleaning function;

Machine description

SP6-406PCNCRSPRS Six colors pad printer with CNC pad rotary system//Parameter
Technical parameters	Max. plate size: 100×150mm; Max. worktable area: 125x200mm; Max. printing speed: 300pcs/h Printable colours:6 Max print area: 80mm×80mm; Pad numbers : 6pcs Max Products Dimension: 120×450mm.
Works supply	110V-220VPower supply; 5-7Bar Compress air;
Package list	Package dimension: 1700×1280×1530mm Gross weight: 265kg CBM: 3.32928
H.S.Code	8443198000
Certicate	CE
SP6-406PCNCRSPRS Six colors pad printer with CNC pad rotary system //Advantage
Function	1) Adjustable lifting three-dimensional workbench; 2) Human-machine interface visual operation screen; 3) Open 6-color ink device; 4) 6 sets of rubber head storage system; 5) CNC rubber head free movement device; 6) 6-color rubber head rotation system; 7) Full servo control system; 8) World famous brand pneumatic components.

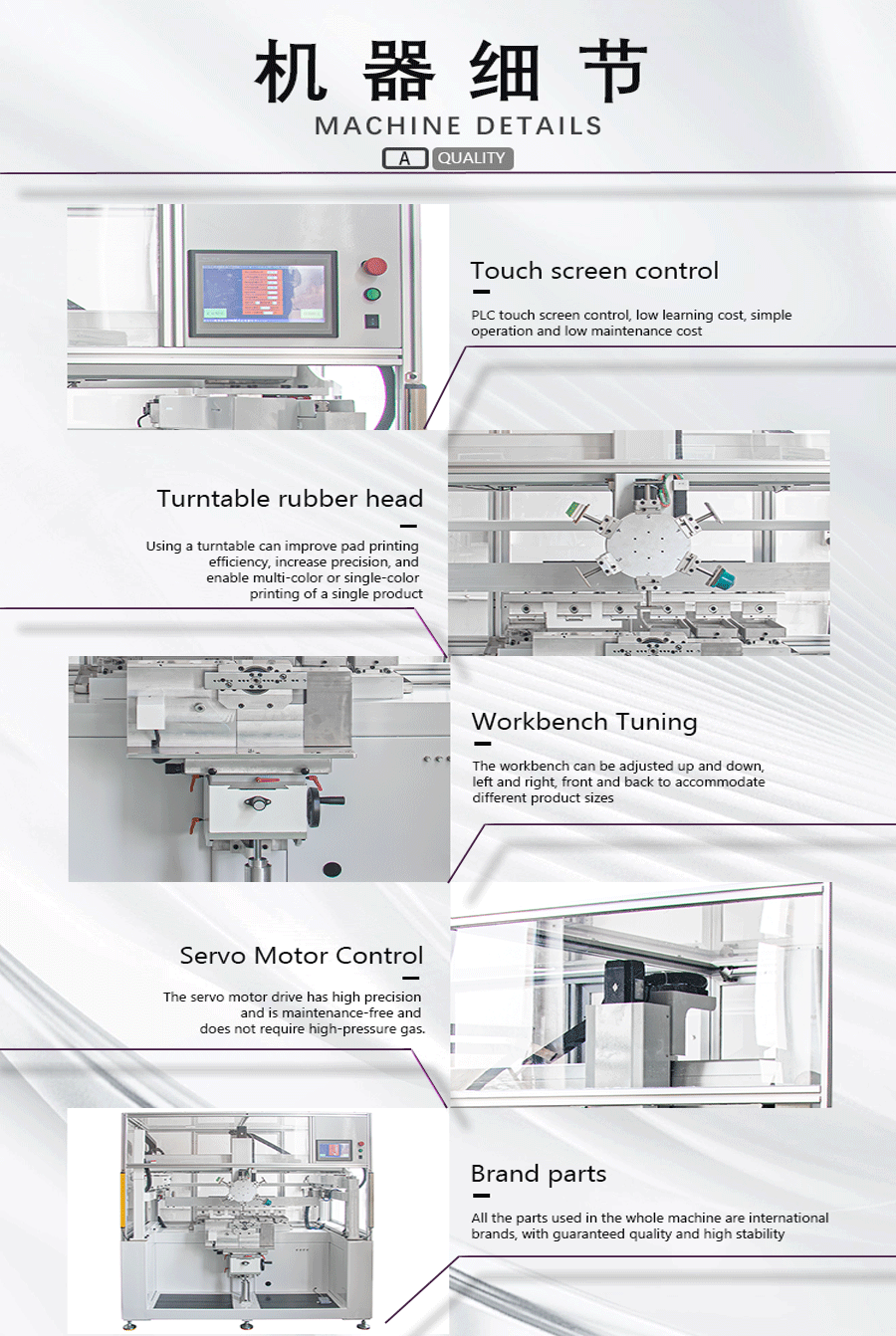

Printing machine details
