SA3-2030UVLED automatic turntable screen printing machine

 Samples of rotary UVLED automatic screen printing machine

           The multi-color rotary screen printing machine is one of the most widely used and popular solutions in the industrial printing market, especially for customers requiring high production efficiency and stable multi-color printing performance. Compared with shuttle-type multi-color screen printing machines, which have relatively lower printing speeds and limited output capacity, the automatic rotary screen printing machine provides higher productivity and is better suited for large-volume manufacturing applications.  This automatic flat screen printing machine adopts a central rotary table design, where the screen printing units and UV LED curing systems are arranged around the main axis and remain fixed during operation. Products are positioned on precision jigs mounted on the rotary worktable, which rotates accurately through a high-precision indexing system. When the rotary table reaches the designated station, the screen printing head automatically descends to complete the printing process, followed by transfer to the next station for UV LED curing, ensuring efficient and continuous production.  With advanced mechanical design and precise positioning control, the rotary screen printing machine can achieve high-accuracy multi-color registration while significantly improving production speed. Compared with conventional shuttle screen printers, this type of multi-color automatic screen printing machine can increase printing efficiency by up to two times, making it an ideal choice for high-speed industrial decoration applications.  The spacious rotary table structure provides greater convenience for machine adjustment, fixture installation, and maintenance. Multiple workstations can be configured with additional functions such as surface treatment systems, automatic feeding manipulators, unloading robots, and other automation modules, further enhancing production intelligence and reducing manual operation requirements.  The UV LED automatic flat screen printing machine is widely used for high-precision printing on plastic products, electronic components, cosmetic packaging, household appliances, promotional products, and other flat or shaped substrates. Available in three-color automatic screen printing machine, four-color, and multi-color configurations, it provides a complete solution for manufacturers seeking higher printing quality, faster production speed, and reliable automation performance.

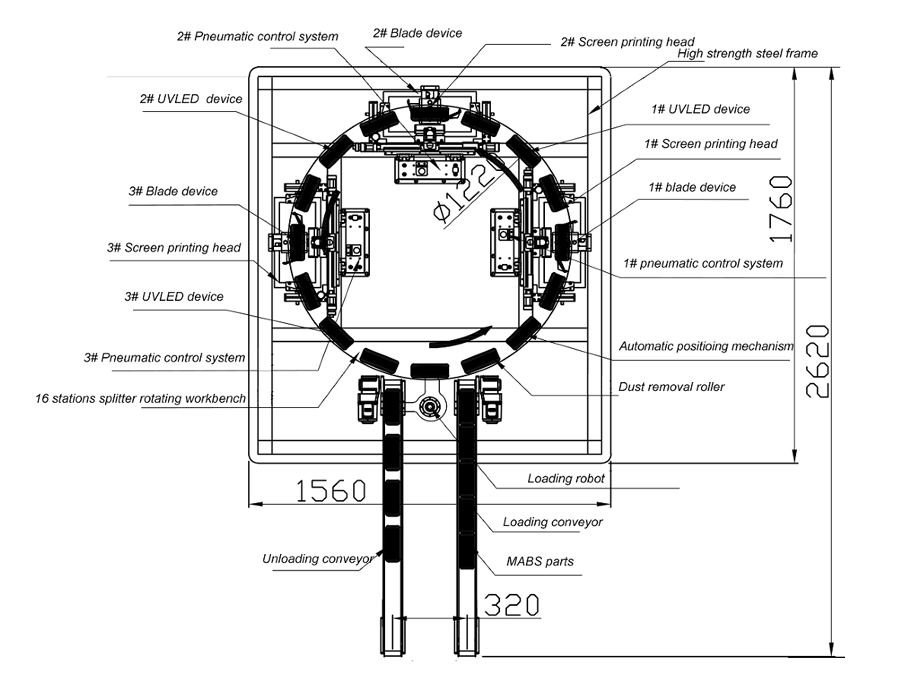

Data of automatic plain rotary 3 colors screen printing equipment with UVLED system

  Machine advantage

• Rotary worktable design improves production efficiency and provides smooth product positioning during the screen printing process.
• Vertical screen frame movement system enables precise contact between the screen and worktable, making it suitable for manual loading and unloading of products.
• Adjustable screen-to-table distance allows flexible setup for printing products with different heights and thicknesses.
• Universal screen frame clamping system supports quick adjustment to accommodate various screen sizes and specifications.
• Multi-directional screen positioning adjustment allows precise tuning in front/back, left/right, up/down, and angle directions, ensuring accurate pattern alignment on the product surface.
• Adjustable squeegee stroke length adapts to different printing areas and product sizes, improving printing flexibility.
• Independent squeegee pressure adjustment system provides precise pressure control for high-quality and high-precision screen printing applications.
• Microcomputer program control system ensures stable operation, accurate motion control, and convenient machine management.
• Built-in 4-digit automatic counter enables real-time production quantity tracking and improves production efficiency management.
