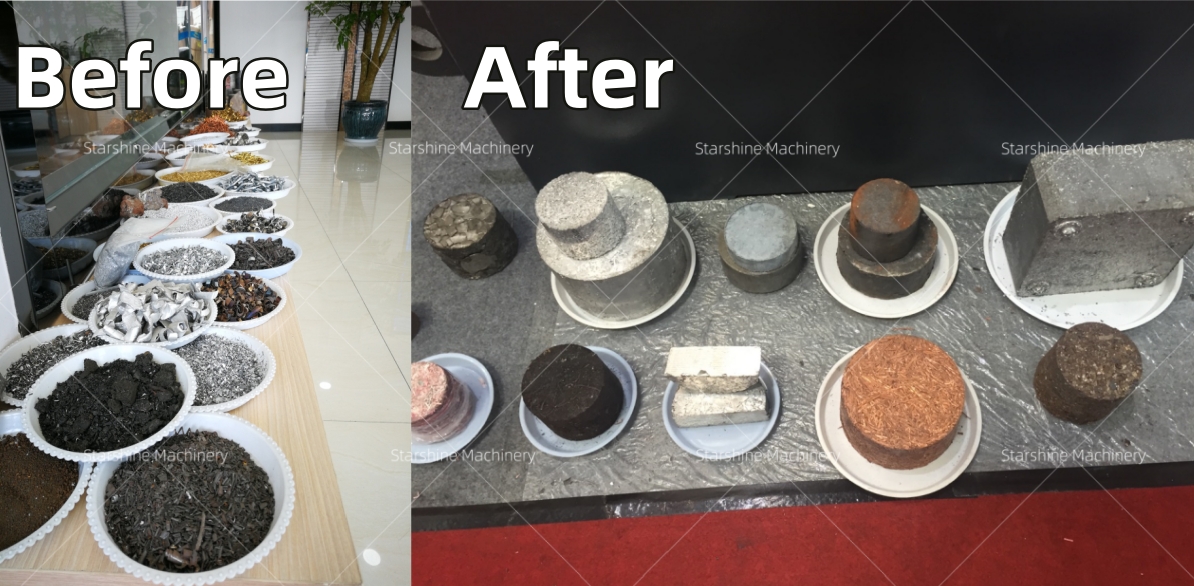

Tire Wire briquetting test

How hydraulic press works:

    Metal Briquetting Press adopts high pressure hydraulic cold forming technology, through the main cylinder to produce huge pressure, the metal chips are compressed into compact briquette

s in the mold.

The complete workflow includes:

1. Automatic/manual feeding: metal chips enter the pressure chamber through the feeding device.

2. Pre-compression (optional): Pre-compress the bulky and fluffy metal chips to improve the forming efficiency.

3. main pressure for: that main oil cylinder pushes the pressure head to press the metal scrap into briquette blocks with fixed shapes in a die.

4. Deoiling/dehydration: automatically discharge the cutting fluid or water from the metal chips during extrusion.

5. discharge: that briquette is automatically pushed out and fall into the material receiving device.

Applicated fields of Metal Chips Briguetting Machine:

1. Machinery processing plant: processing of iron, aluminum and copper scraps produced by lathes, milling machines and CNC machining centers.

2. Foundry: Recycle casting waste materials, risers, etc., press them into briquettes/blocks and recycle them.

3. Non-ferrous metal processing plant: processing of aluminum profiles, copper processing debris..

4. Metal recycling enterprises: press the recycled loose metal chips into high-density briquettes to reduce transportation costs.

Core strengths of steel press:

1. No need to add adhesives, pure physical compression molding.

2. In the process of extrusion, the oil removal rate can reach more than 80%, and the cutting fluid recovery can be realized.

3. The briquettes/blocks can be directly put into the furnace to reduce 30-50% of the oxidation burning loss in the smelting process.

4. Save more than 70% of storage space and reduce transportation costs by 40-60%.

Performance advantagesof Metal Briguette Machine:

1. High-density forming: The cold pressing technology greatly improves the density of metal chips, and the density of iron chips can reach 5.5-6 t/m ³, which is close to the density of cast iron.

2. Multifunctional processing: It can process different types and sizes of metal scraps, including filamentous, flaky and powdery scraps.

3. High degree of automation: The fully automatic machine realizes the automation of the whole process of feeding, pre-pressing, main pressing and discharging, and reduces manual intervention.

4. Energy-saving and environmental protection: no heating, low energy consumption, while recycling cutting fluid, in line with environmental requirements.

5. that maintenance is simple and convenient: the structure is relatively simple, and the wear parts (mould and seal rings) are convenient to replace.

6. Safe and reliable: equipped with protective doors and safety interlocking devices to prevent operation accidents.
