Metal Chips Briquetting Machine Hydraulic Briquetting Press
Hydraulic Briquetting Machine, also known as metal chip briquetting machine, is mainly used to cold press metal raw materials such as cast iron chips, steel chips, copper chips, aluminium chips and other metal raw materials directly into certain weight and shape of the cake through high pressure, so as to facilitate the storage and transportation and to reduce the loss of transportation and smelting in the process of recycling and reuse.
Classification of models of Metal Briquetting Press:
1. Vertical model: relatively small footprint, more compact structure, usually applicable to enterprises whose output requirements are not particularly huge but have restrictions on site space. In the pressing process, the vertical up and down movement of the material is more stable, which is conducive to ensuring the moulding quality of the cake.

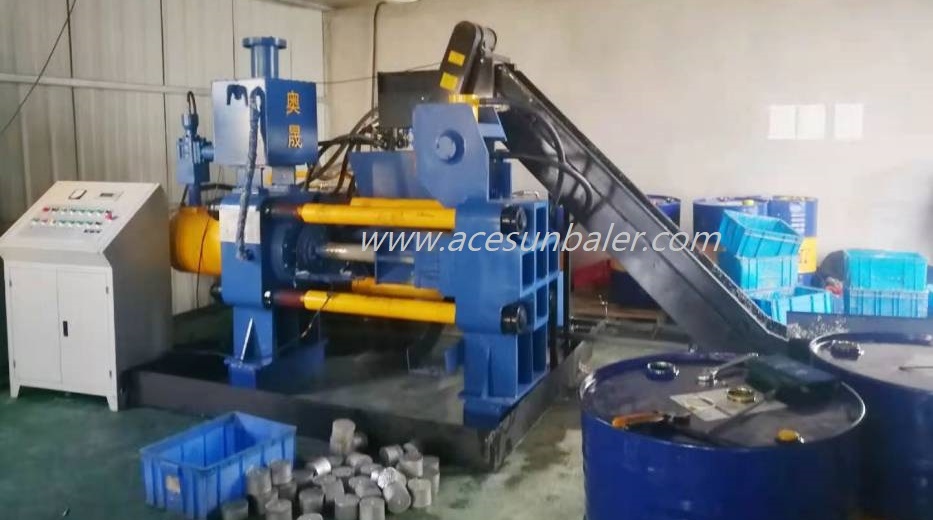

2. Horizontal model: generally has a large production capacity, and can continuously press a large number of metal chips for cake processing. Its material conveying and pressing process is relatively more fluent, suitable for large-scale production enterprises.
Component Composition of Metal Briguette Machine:
1. Main machine: It consists of frame, main hydraulic cylinder, pushing material hydraulic cylinder, bottom hydraulic cylinder, supporting mould frame and mould, press head and so on. The frame consists of upper and lower beams and columns, all the upper and lower beams are made of whole cast steel parts, and the upper and lower beams are connected with four columns by inner and outer nuts to withstand the tension when working.
The main hydraulic cylinder eliminates the cast steel parts, eliminating the safety hazard and ensuring the service life and safety of the equipment. Matching mould frames, moulds, presses, etc. are professionally designed to match with the superior processing capability, which is the guarantee for the excellent taste of the equipment.
2. Hydraulic station: It consists of motor, hydraulic pump, pump protection device, professional control valve block and pipeline system for connecting the briquetting machine. Reasonable design, stable quality, equipped with a cooling system, to avoid equipment due to overheating oil temperature and can not work continuously.
3. Console: It is composed of electrical system and plc control system. Equipped with adjustable text display, the sequence of action and the time of each action are completely controlled by PLC system and can be adjusted by the operator at any time, which is convenient and easy to understand.
Working Principle of Hydraulic Briquetting Machine:
Waste Metal Chip Cake Machine generally adopts the principle of hydraulic transmission, through the motor drive hydraulic pump, the hydraulic oil will be transported to each hydraulic cylinder, produce strong pressure, so that the metal chips in the mould is compressed into cake pieces. In this process, the PLC control system will precisely control the sequence and time of each action to achieve automatic feeding, compression, cake and other processes.
Product features of Metal Chips Briguetting Machine:
1. High-efficiency compression: it can compress the loose metal chips to 1/3-1/5 of the original volume, which greatly reduces the storage space requirement and logistics cost.
2. Strong pressure: adopting high-quality hydraulic system, the pressure can reach 100-200 tonnes, ensuring that the metal chips are compacted tightly and the shaped cakes are not easy to be loosened.
3. High degree of automation: Equipped with PLC control system, it realises the whole process of automatic feeding, compression and cake discharging, which significantly improves the working efficiency and reduces the labour cost.
4. Strong durability: the key components are made of high-strength alloy materials, with special heat treatment process to ensure that the equipment still maintains stable performance under long-term high-pressure working environment.
5. Safe and reliable: Multiple safety protection devices are set up, such as protective door, emergency stop button, overload protection, etc., to ensure the safety of operators. Easy maintenance: modular design makes daily maintenance more convenient and easy to replace damaged parts.
