The structure of the screen printing machine for fabric pieces is very different from that of the screen printing machines for other products. Clothing pieces generally need to be overprinted in multiple colors, and some need to be printed multiple times to achieve the required thickness. In multi-color screen printing machines with more than 4 colors, the turntable structure occupies less space than the linear structure, and the structure of the machine is also more compact.

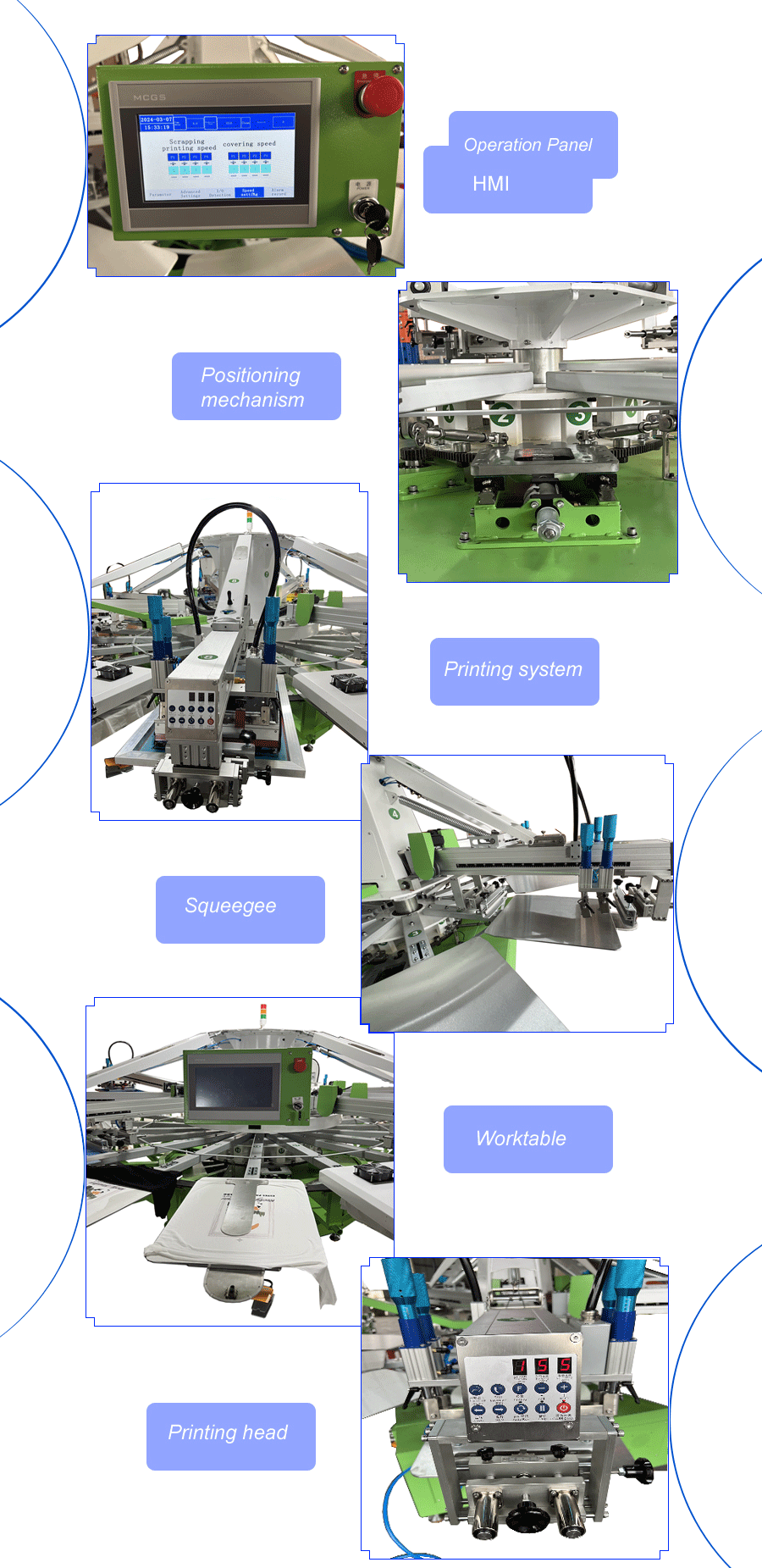

The turntable screen printing machine for fabric pieces consists of a worktable turntable system, a screen printing system, an operating system, a drying system and a vertical axis. First, place the pieces to be screen printed on the worktable, operate the machine, and the worktable will drive the product to rotate around the vertical axis and rotate to the bottom of the screen printing device. The screen is pressed down and positioned, and the screen is printed. Then the worktable continues to rotate to the next station for heating and drying; then it rotates to the next screen printing station for the second color screen printing, until all colors are printed. The turntable system of the worktable is controlled by a divider, while the descent of the screen and the movement of the scraper are controlled by pneumatics. When placing the fabric, it is generally done manually, and when unloading, it can be done manually, or a robot can be installed to transfer the fabric to the IR tunnel drying furnace.
This is a rotary clothes 6-color manual screen printing machine, suitable for printing 450mm * 650mm about the format of the fabric, paper, clothes; T-shirts and other products.
Running smoothly, cost-effective. Widely used in multicolor printed clothing and textile sectors.
Workbench coated with solvent glue is recommended for accurate print positioning;
Have place since the lock mechanism, accurate positioning, set-bit precision can reach 0.025mm;
Center vertical shaft structure design, smooth rotation, lightweight and comfortable, greatly reduce the labor intensity of the operator;
More suitable for heat set printing ink, printing ink thickness, ink, bright;
Configuration of infrared drying device, which will help the plastisol ink is fast drying;
automatically Screen rotation arrangement, the operator independent of each other and co-ordination, printing and high efficiency.
PLC Operation technical;
-
- Max printing thickness:0-20 MM;
- Net weight: 965KG;
- Max printing area:400X600mm
- Size of working table: 450×650mm;
- Max printing speed:2500cs/H.
- Printing number: 6;
- Drying mode: IR;
- Max height of screen frame: 40mm;
- Max size of screen frame: 550*680mm;
- Wattage of heater: 30KW.
- 3 Phase 380V Power supply;
- 5-7 Bar compress air
- Gross weight: 1010kg
- Wooden case dimension:2430×2430×1850mm;
- 10.9241CBM
Automatic octopus screen printing machine/Advantage
-
- Total-steel rotating-axis system ensure whirling free and Adaptability.
- High-strength support pole make the machine structure rigidity.
- Six-color screen printing one time, overprint is precision .
- Screen frame can be adjustable according to different objects to be printed.
- Screen frame can be rise up after printing so that printing quality.
- High-stabilization working table ensure non-shaking when printing;
- IR Dryer with machine make the clothes drying fast
- PLC controlling ensure operation more easier
- Full automatically operation process .
