Introduction
UV & IR Pen Screen Printing Machine: Advanced Solution for High-Speed, High-Quality Pen Decoration
The UV & IR pen screen printing machine is an innovative and efficient solution designed specifically for the decoration of pen barrels and other small-diameter cylindrical objects. This fully automatic device combines the advantages of both UV and IR curing systems, making it a versatile and powerful tool for manufacturers in the stationery industry. Whether you are printing on ballpoint pens, markers, gel pens, or even medical syringes and bamboo chopsticks, this machine offers high-speed, accurate, and consistent results.
One of the key features of this machine is its dual printing lines, allowing users to print the same or different designs on two separate products simultaneously. This makes it ideal for production environments where efficiency and flexibility are crucial. The machine is equipped with a storage tank, operation panel, chain transmission mechanism, screen printing system, and integrated UV & IR curing units. It can be further customized with optional accessories such as automatic rotation devices, pre-press processing units, and inspection tables, enhancing its functionality and adaptability to various production needs.
Designed with advanced technology, the UV & IR pen screen printing machine ensures smooth operation and minimal noise. Its double blade design allows for high-quality ink coating, while the vacuum function ensures precise positioning of the objects during the printing process. The machine also includes a surface cleaning device that maintains optimal printing conditions. The adjustable printing stroke and speed allow for customization based on the specific requirements of each product.
This machine is particularly suitable for printing on plastic and metal pen barrels, which are commonly used in the stationery manufacturing sector. With its ability to handle monochrome printing on small-diameter items, it provides an efficient and cost-effective alternative to traditional methods like pad printing or hot stamping. The inclusion of both UV and IR curing options means that the machine can accommodate a wide range of inks, eliminating the need for additional curing equipment.
The UV & IR pen screen printing machine is ideal for businesses looking to streamline their production processes and improve output quality. Its high printing speed, reaching up to 7200 pieces per hour, ensures that even large-scale operations can maintain productivity without compromising on detail or precision. The machine's compact design and sturdy construction make it easy to integrate into existing production lines, while its energy-efficient motors and low noise levels contribute to a more comfortable working environment.
Manufacturers who prioritize accuracy, speed, and versatility will find this machine to be an essential addition to their workshop. Whether you are producing pens, pencils, lipsticks, or other small cylindrical objects, the UV & IR pen screen printing machine offers a reliable and durable solution for your decorative printing needs. Its advanced features and user-friendly interface make it accessible to operators of all skill levels, ensuring smooth and efficient operation from start to finish.
The UV & IR pen screen printing machine is not only a technological advancement but also a practical investment for any business involved in the production of writing instruments or similar small items. By combining multiple functions into one unit, it reduces the need for additional equipment and simplifies the overall workflow. This makes it a valuable asset for companies seeking to enhance their production capabilities and meet the growing demand for high-quality, custom-printed products.
With its robust build, advanced automation, and flexible printing options, the UV & IR pen screen printing machine stands out as a top choice for manufacturers looking to achieve superior results in their decoration processes. Its ability to handle both UV and IR inks, along with its dual printing lines and customizable features, ensures that it can meet the diverse needs of modern production environments. Whether you are a small-scale producer or a large industrial facility, this machine offers the performance, reliability, and efficiency needed to stay competitive in today’s market.
UV & IR pen screen printing machine
Pens are important writing tools, mainly made of plastic and metal, and plastic accounts for the largest proportion. There are many ways to print on plastic pen barrels: pad printing, screen printing, hot stamping, and thermal transfer are all mature technologies, and screen printing is the most common.
The fully automatic pen barrel screen printer is specially designed for pen barrels. It consists of a storage tank, an operation panel, a chain transmission mechanism, a screen printing system, and a UV IR system. The pen barrels in the storage tank will be arranged in sequence by the chain transmission mechanism and transported to the screen printing device for screen printing. If solvent-based ink is used, the IR curing device can be started, and if UV ink is used, the UV curing device can be started.
The fully automatic pen barrel screen printer can be equipped with an automatic rotation device, a pre-press processing device and an inspection table according to customer needs, which makes the function of the screen printer more complete.
TLAS-80UV is a new design base on the pen screen printing machine TLAS-80, there is IR curing machine, and this one add the UV curing system that means this pen screen printing machine could use UV ink and there is no need to get anothere UV curing machine. This screen printing machine is one machine, and is has two printing line at left and right side, you could printing the same products ordifferent products, same image or different. One machine make you like have two screen printing machine.
UV & IR pen screen printing machine//character

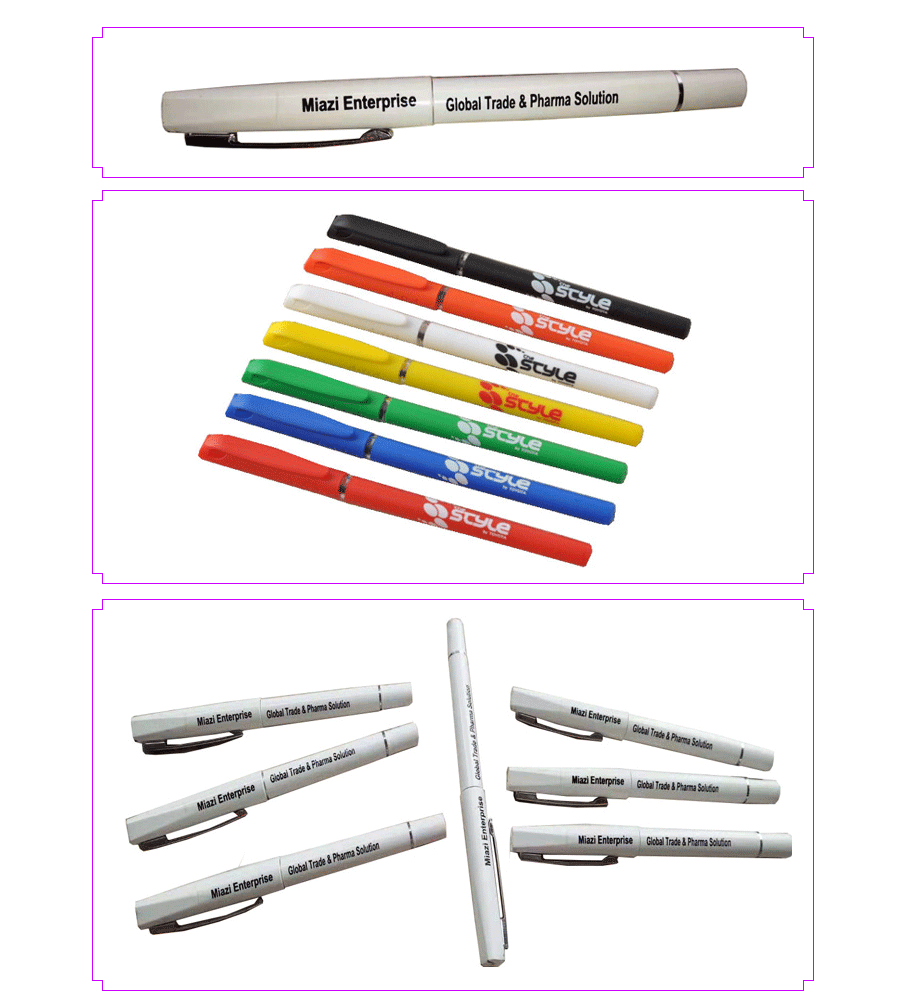

- Pens in the stationery manufacturing industry who occupy the most important position, and if the circumferential direction of the pen color to achieve the following decorations, silk printer is the most mature and most simple process;
- In diameter, 20 mm large and monochrome printing pen products,
- Such as a ballpoint pen, pencil, marker, whiteboard pen, gel pen, pen, pencil, lipstick, medical syringes, bamboo chopsticks and other small-diameterthe fully automatic monochrome high-speed printing and design of the object surface screen printing machine.
- The high printing speed, print quality and stability.
- Automatic loading and unloading, saving labor intensity, and rocker transport mechanism running smoothly
- Double-set combine design, equivalently two sets screen printing Machine
|
UV & IR pen automatic screen printing machine//parameter
- Objects diameter:φ6~φ20 mm /Objects length:55~160 mm/ Printing stroke: 20~80 mm
- Max printing speed: 7200 pcs/h
- Motor wattage: 4.5kw
- Feeding Motor: 25W;
- Mainly Motor: 375W;
- IR Motor: 60W
- Cool Motor: 5W.
- Net weight: ≈450kg
- Max Frame dimension: 300×200mm.
- IR wattage: 1KW(up)+1KW(Down)
- IR Length: 800mm
- Power: 1 phase 220V/5-7Bar Compress air /Liquefied petroleum Gas, Natural gas
- Package dimension: 3110*1270*1550mm/Gross weight: 750kg/6.12204
|

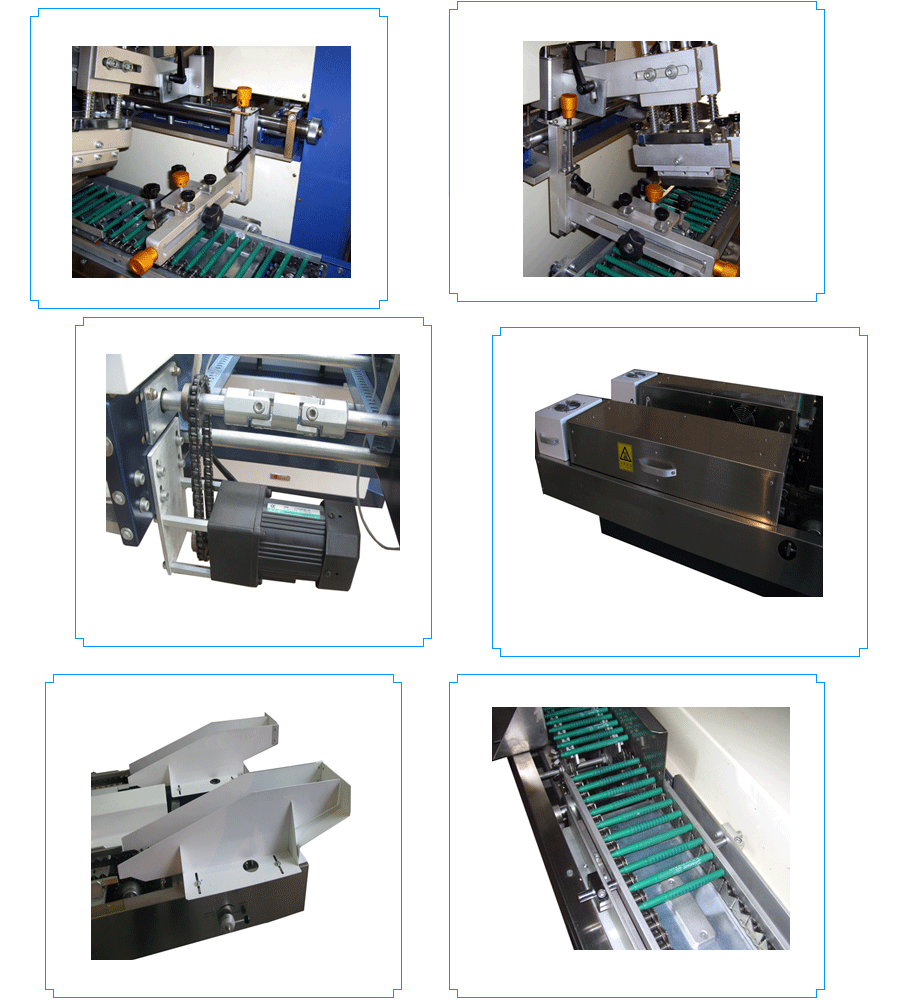

Machine details-advantage
- Cleaning screen , adding ink when stopping will not singe objects in drying closet;
- With vacuum function seated (selection ) for precision orientation.
- High speed screen printing;
- Printing two kinds of different objects meantime is able.
- Installed surface cleaning device;
- Double blade design for high quality coating ink;
- Eletcron controlling ensure lower noise;
- Automatic feeding and printing;
- Printing stroke and printing speed is adjustable;
- Taiwan frequency conversion production installed;
- IR drying system online
