Thermal Transfer Machine callendar machine for Fabric

275

Thermal Transfer Machine BA61170 is designed in 2009, 7 years' marketing testing tell us this is a good machine. 610 mm diameter can meet the requirement of middle output. And its transfer width is 1700 mm, most kinds of fabric is less than 1.7 meters' width. How do you think about it ? A very good machine for someone who want print polyester fabric.

Callendar machine Technical Parameters

Drum Thermal Transfer Machine for Fabric BA61170
Model	BA61170	BA61190
Roller size	Diameter 610*1860 mm	Diameter 610*2050 mm
Roller surface	coated with Polytetrafluoroethylene	coated with Polytetrafluoroethylene
Transfer width	1700 mm	1900 mm
Transfer speed	150 m/h	150 m/h
The main machine dimension	252011501500	282011501500
The work table dimension	350018801200	350020501200
installed dimension	255046501500	283013101610
power supply	3-phase 380V	3-phase 380V
Heating temperature	260℃	260℃
Conveyor belt material	PVC	PVC

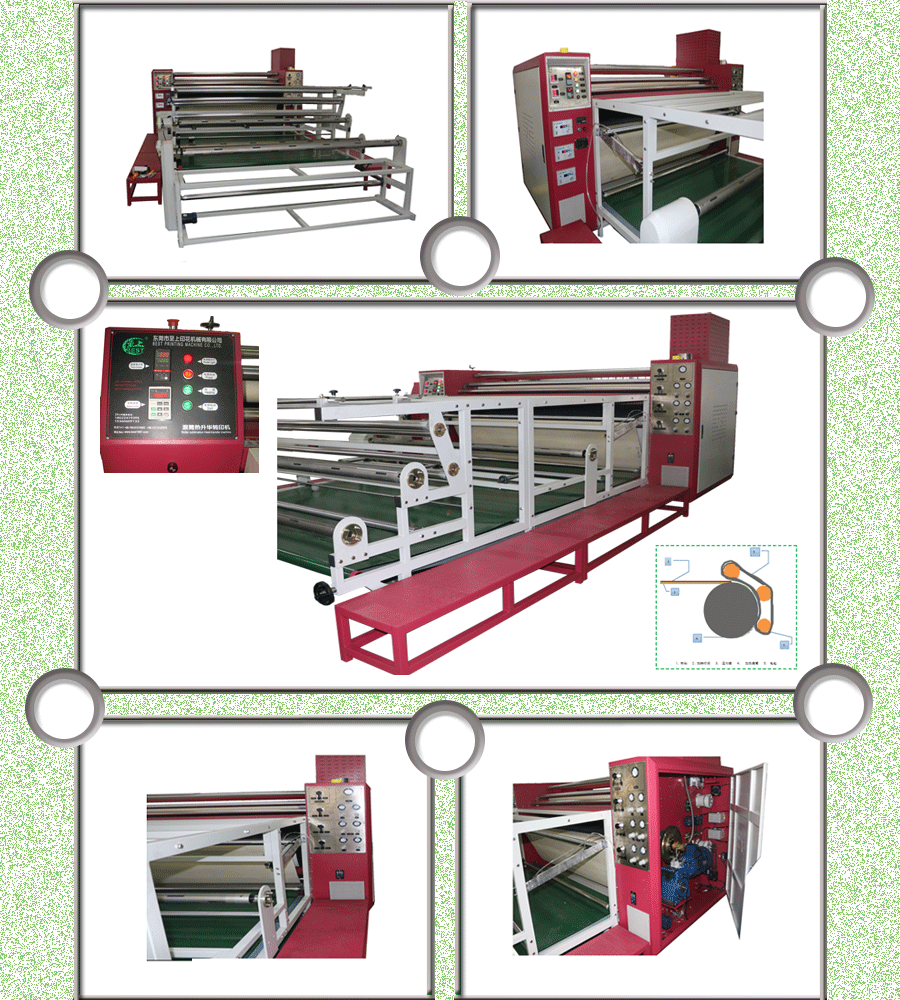

Detailed Images

1. Name: Drum

Roller is made by seamless steel pipe, coating with a certain degree of flexibility, easy to compensate for the pressure roller between the line speed difference, to avoid graphic distortion.Life time is 5-8 years.

2.Name: Speed Control

Use frequency conversion governor which can adjust the transfer seed freely. And the transfer printing speed is more stable.

3. Name: Blanket

Dupont materials is used to make this blanket,longer lifetime

4.Name: PVC Conveyor

PVC conveyor belt with flat, smooth, not easy to heat, but easy to maintain the original state of textile after the transfer; conveyor belt with a network structure, easy to heat, but short life, light textiles easily lead to wrinkles. PVC conveyor belt mainly for the user to provide a variety of textile transfer convenience. Users can choose according to their own needs.

Catalogue

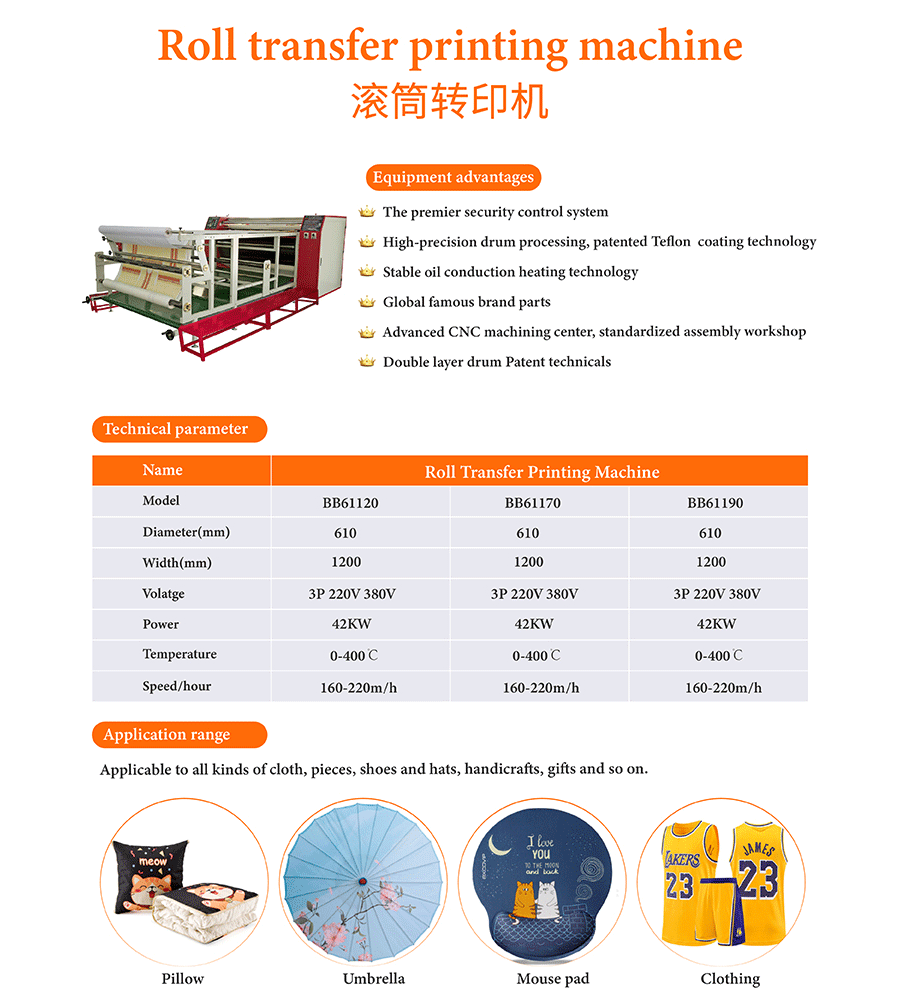

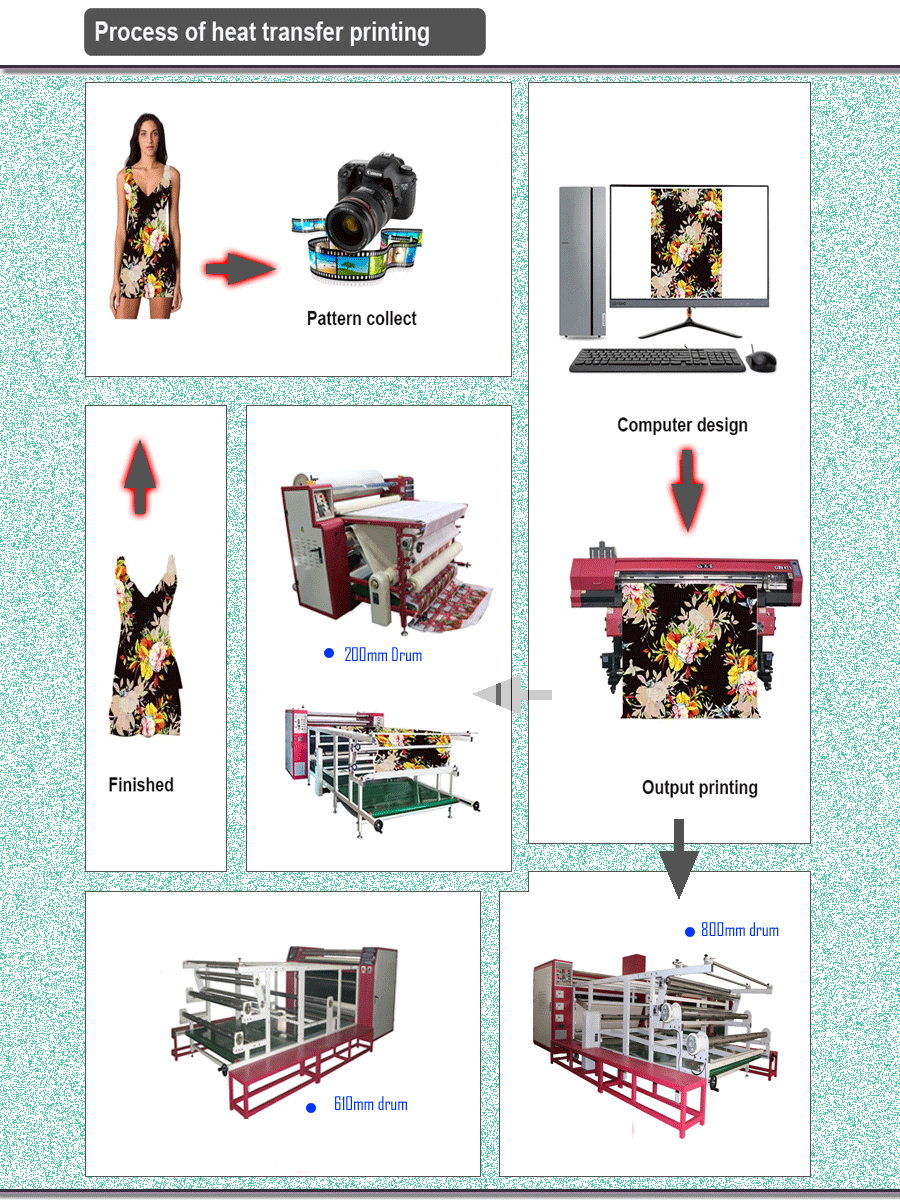

Heat Sublimation Process

Digital camera- Computer- inkjet printer- Roller transfer machine- laser cutting machine

Roller structure of roller transfer machine:

The most important part of the roller transfer machine is the roller, which is the source of heat and pressure and has a decisive influence on the quality of textile printing. The roller is turned and ground with seamless steel pipes of different diameters, and tolerances are tested. The surface is chrome-plated or Polytetrafluoroethylene. The heating tube is installed in the circumferential direction inside, and a certain volume of heat transfer oil is added to the roller cavity.

1. Main body

The cylindrical seamless steel tube metal roller body has a precision-processed surface to ensure smoothness and roundness, and ensure uniform force during transfer. The surface treatment generally uses chrome plating or spraying Polytetrafluoroethylene to enhance wear resistance and corrosion resistance, while reducing the adhesion of the transfer material.

2. Temperature control

The heating electric heating tube is built-in in the circumferential direction, equipped with a temperature sensor and a temperature control module to ensure uniform temperature on the roller surface and avoid color difference or blurring of the transfer pattern.

3. Pressure regulation

The pattern on the sublimation paper is transferred to the fabric surface by temperature and pressure. In order to increase the pressure, a booster device can be provided at both ends of the roller, that is, an independent cylinder is provided to press the blanket against the roller surface.

4. Transmission

The roller transfer machine drives the gear or belt transmission at the end of the roller shaft through the main motor and the reduction box to ensure the stability of the roller speed and synchronize with the feeding mechanism (such as the conveyor belt) to avoid pattern stretching or dislocation. Rollers of different diameters have different transmission methods. Some use rollers to drive blankets, and some use blankets to drive rollers.

As the market has higher and higher requirements for transfer speed, the diameter of the roller is getting larger and larger, and some diameters can reach 1200mm. For the same angular velocity, the larger the diameter, the greater the linear velocity at its generatrix position. However, the larger the roller diameter, the greater the difficulty of manufacturing the roller, and the heating power should be increased accordingly.
