     Multi-color printing on the roll cloth, the most common is the roller transfer technology, first print the pattern to be transferred on the coated sublimation transfer paper with an inkjet printer, and then cover the sublimation transfer paper on the roll The top of the cloth is put together on the working table of the roller transfer printing machine. The main structure of the roller printing machine is composed of a rotatable roller filled with heat transfer oil and a blanket pressed tightly on the surface of the roller.

      The dye-sublimation paper and roll cloth enter between the roller and the felt, and under the action of heat and pressure, the pattern on the dye-sublimation paper will be transferred to the surface of the roll cloth. This is the popular dye-sublimation transfer technology in the market. It has the advantages of rich color transfer, high printing efficiency, environmental protection, and low skin damage. It is widely used in clothing, shoes and hats, bedding, household items, curtains and other household products industries.

    The main parameters of the roller printing machine are the diameter and width of the roller, which determine the efficiency and width of the product that can be transferred. For the diameter of the roller, the larger the diameter, the higher the efficiency. Currently, 1500mm machines have appeared on the market. The larger the width, the larger the width of the transferred cloth, and now there are machines with a width of 3500mm on the market.

Technical Parameters

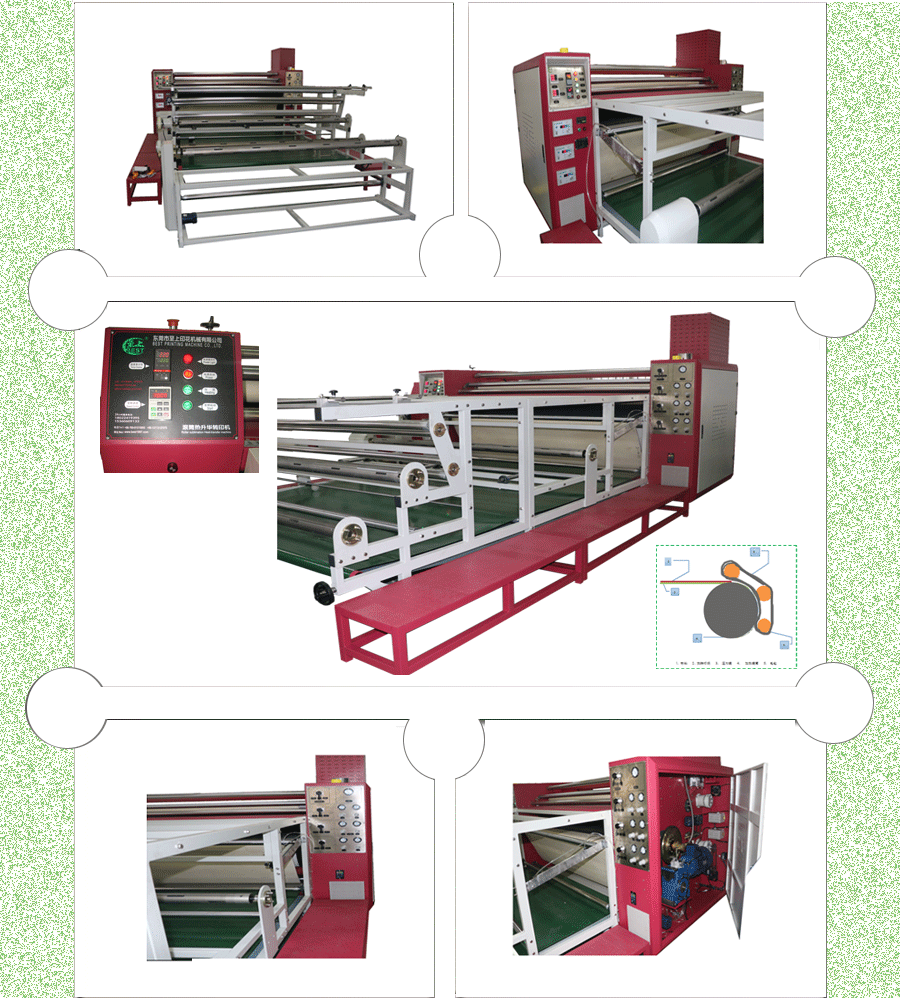

Detailed Images

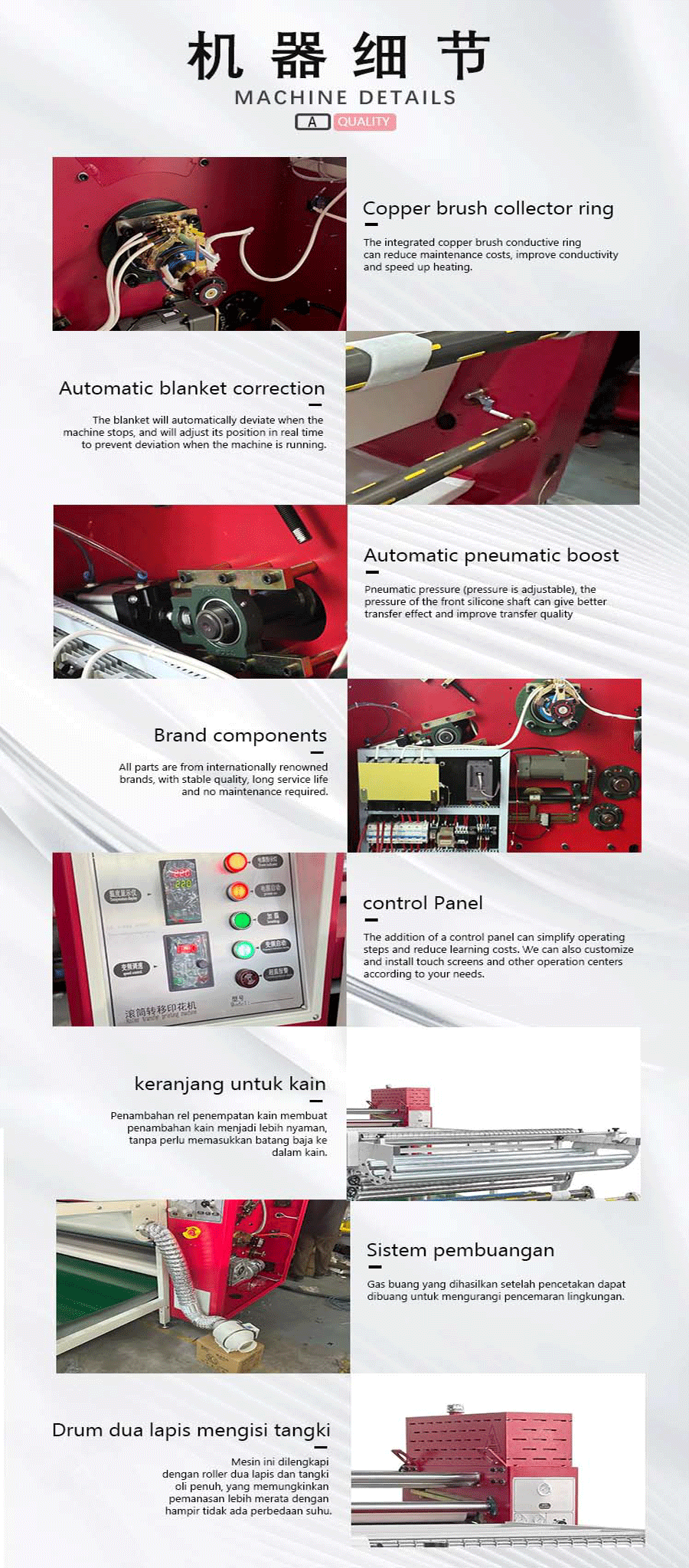

Details

Catalogue

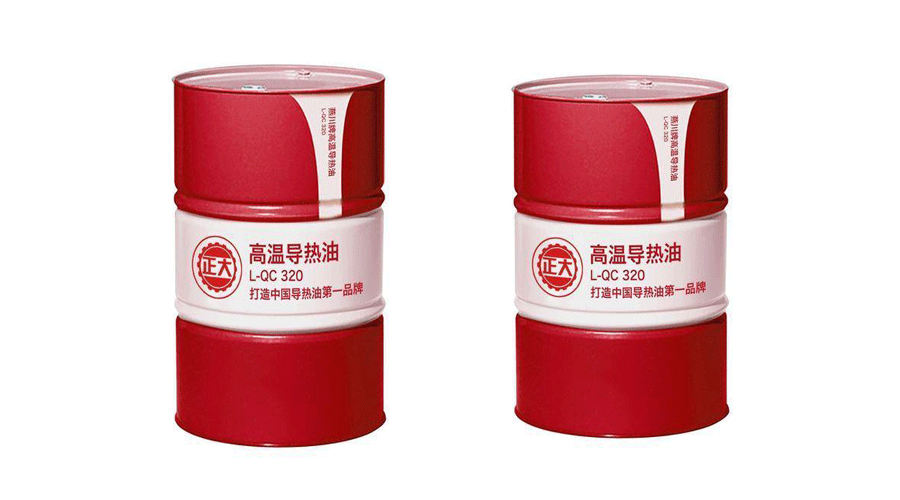

What are the requirements of roller printing machine for heat transfer oil?

It is a very common process for roller printing machine to use heat transfer oil as a medium for heat transfer. First, the heat transfer oil is heated after the heating tube is heated up, and the heat transfer oil enclosed in the roller slowly transfers the heat to the roller surface. The heat transfer oil plays a key role in the stability of the temperature control of the roller printing machine.

1. Temperature matching

The working temperature of the roller printing machine is usually 100-250℃, and the working temperature of the heat transfer oil should be 30-50℃ higher than the roller temperature to avoid oil decomposition and coking due to local overheating.

2. Good thermal stability

Synthetic heat transfer oil such as alkylbenzene and benzyltoluene heat transfer oil are preferred. The thermal stability is better than mineral oil, the oxidation resistance is strong, the service life is long (usually 3-5 years), and it is suitable for medium and high temperature (200-300℃) printing process. It is the mainstream choice of roller printing machine.

3. Consider safety and environmental protection

Choose heat transfer oil with high flash point (≥180℃) and high autoignition point, and give priority to heat transfer oil with non-toxic, low volatility and environmental protection standards to reduce the impact on operators and the environment.

Heat transfer oil will evaporate and decompose during use, and heat transfer oil of the same brand as the original one in the roller should be added in time.
