Insole label heat transfer machine

3 month ago

3 0 

9 year

Product details

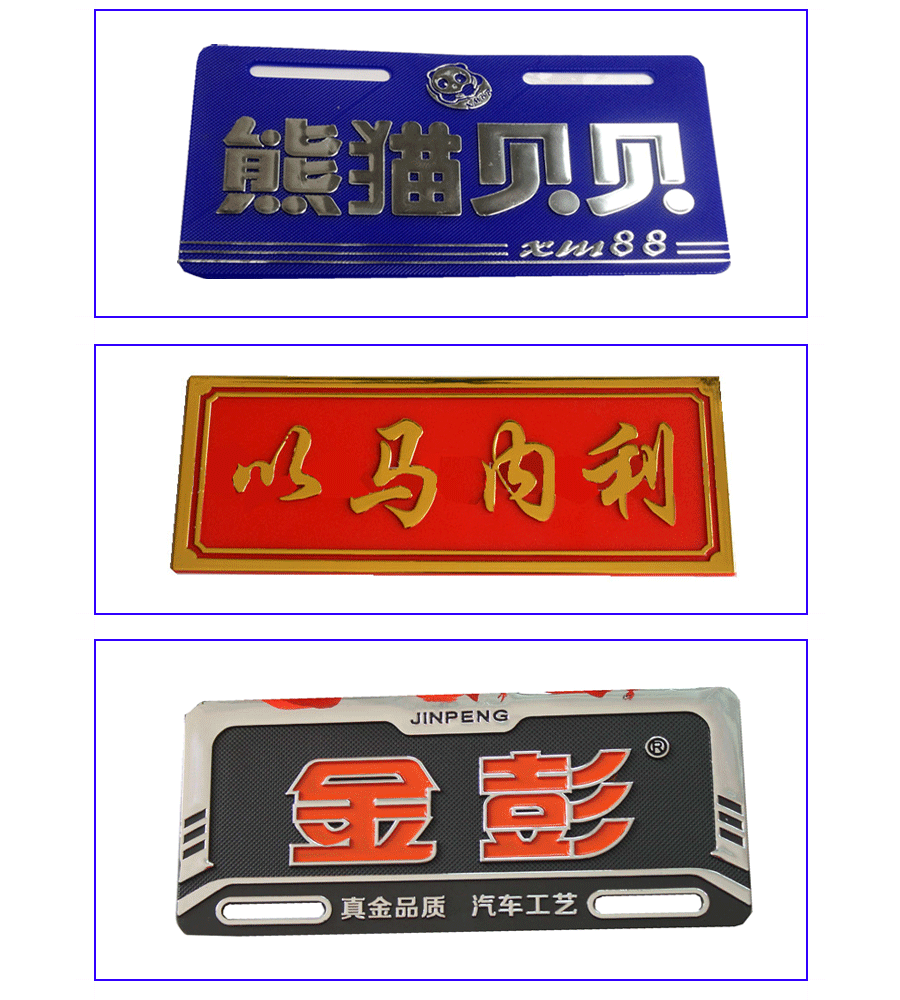

Samples show

The main action of the Pneumatic hot stamping machine is that the heating plate moves up and down. When the heating plate touches the product or the workbench, a strong pressure is formed. For the operator, the potential risk may cause personal injury. The safety requirements of penumatic hot stamping machine are higher than those of pad printer and screen printer. A widely used design is to install a workbench that can automatic enter and exit the workbench. The peumatic hot stamping machine with automatic worktable entry and exit can only be regarded as a balance between safety and cost, so it is very popular among users. When users have further requirements for safety, measures such as installing safety gratings and safety covers will also be considered.

370

Pneumatic hot stamping machine with slide-table//Details

The workbench automatically slides out;
Precision temperature control system;
High-strength ironing board and work surface;
Stable keypad operation;
Freely adjustable temperature, time, and pressure parameters;
Workbench screw support for lifting and lowering;
Lever-type booster mechanism.

Pneumatic hot stamping Machine with slide table //Parameter

H-TC91N	H-TC92N
Ironing plate size :150× 200 mm Working table size:320 ×400mm Max stamping pressure:2,000-3000 Kg Up and down distance:45mm Heat wattage:1200W Foil in feed: Motor Drive Temperature adjustment:0-300oC .	Ironing plate size:190 × 270 mm Working table size:320 ×400mm Max stamping pressure:2,000-3000 Kg Up and down distance:45mm Heat wattage:1200W Foil in feed: Motor Drive Temperature adjustment:0-300oC .
H-TC93N	H-TC94N
Ironing plate size:210×290 mm Working table size:320 ×400mm Max printing pressure:2,000-3000 Kg Up and down distance:45mm Heat wattage:1000W Foil in feed: Motor Drive Temperature adjustment:0-300oC .	Ironing plate size:300 × 250 mm Working table size:320 ×400mm Max printing pressure:2,000-3000 Kg Up and down distance:45mm Heat wattage:1000W Foil in feed: Motor Drive Temperature adjustment:0-300oC

About the pressure of Foil stamping machine

The pressure of the Foil stamping machine is an important factor affecting the quality of hot stamping. It has a decisive influence on the adhesion between the electroplated aluminum and the product material. The maximum pressure that the hot stamping machine can generate also poses a challenge to the structural strength of the hot stamping machine.

Insufficient pressure

If the pressure of the hot stamping machine is insufficient, the contact between the electroplated aluminum and the paper/substrate is insufficient, the pattern is easy to fall off, and the partial whitening is more obvious, especially when the hot stamping is performed on a large area. The metal layer cannot fit the surface tightly, the glossiness is poor, and the reflective effect is weak. Due to insufficient pressure, the edges of small text or lines are rough and broken after hot stamping.

Excessive pressure

Paper damage: High pressure may cause thin paper or special paper to be pressed through and wrinkled, and even the mold indentation is too deep to affect the appearance; the metal layer of the electroplated aluminum is "squeezed" out of the edge of the pattern, forming overflow gold and paste, destroying the design outline, and long-term overpressure operation will accelerate the wear of the mold and sliding components and reduce the life of the machine.

Pressure uniformity

In the hot stamping process, the contact uniformity and pressure consistency between the hot stamping plate and the substrate are very important. Insufficient flatness of the hot stamping plate or deformation of the equipment platen will cause some areas of the same pattern to be hot stamped too dark and some too light, resulting in color difference or white exposure.

Pressure adjustment

For pneumatic hot press stamping machines and hydraulic press hot stamping machines, the smaller the distance between the hot stamping plate and the workbench, the greater the pressure, which can be adjusted mechanically or by a pressure regulating valve.

However, the pressure adjustment cannot compensate for the defects of hot stamping with excessive pressure. If the pressure is adjusted to the limit and still cannot improve the adhesion, compensation should be found from other factors, such as by appropriately increasing the temperature and appropriately slowing down the hot stamping speed.

The pressure adjustment of pneumatic press hot stamping machines and hydraulic press hot stamping machines is not precise. Only servo-driven hot stamping machines can adjust the pressure through tiny data differences. Fully automatic flat hot stamping machines can achieve their goals by adjusting the distance between the hot stamping plate and the workbench.
