Product details

Product Overviews

High speed automatic textile laser cutting machine, using high-definition digital SLR to one time realization the high precision imaging, which is including the large-format and multi-pattern, and avoid the error of splicing the image and the decline in image quality.

The characteristics of more design are flexible point positioning, mutual recognition of disposable cutting multiple pattern, automatic find the border to correct the flexible and variability image, perfect solve the problem caused by material deformation and stretching.

This machine adopting high speed, high precision stepper motor, automatic feed, automatically capture the border and cutting speed is 2.5 times than of the traditional, which is the best choice of modern high-speed fully automatic large enterprise.

Technical Parameters of CNC laser cutting machine

Model	B1012	B1610	B1810	B1812	B1820
Laser types	Glass tube closed CO2 laser
Laser wattage	80W	100W	130W	180W	200W
Process size	100*120CM	160*100CM	180*100CM	180*120CM	180*200CM
Cutting speed	0-6400MM/MIN
Repeat accurate	+-0.05mm	+-0.05mm	+-0.05mm	+-0.05mm	+-0.05mm
Table	Metal belt 360 Rotating flatform
Action system	CNC	CNC	CNC	CNC	CNC
Cooling system	water	Water	water	water	water
Blowing system	Bump	bump	bump	bump	bump
Exhaust system	550w Fan	550W fan	750WFan	750W Fan	750W Fan
Power	AC-220+-10%, 50/60HZ. 10Amax
Total wattage	2350w	2350w	2350w	2350w	2350w
document format	DWD, DXF, JPEG,AI,TIFF, PLT, CDR, BMP, GIF
Net weight	450kg	525kg	600kg	750kg	1000kg

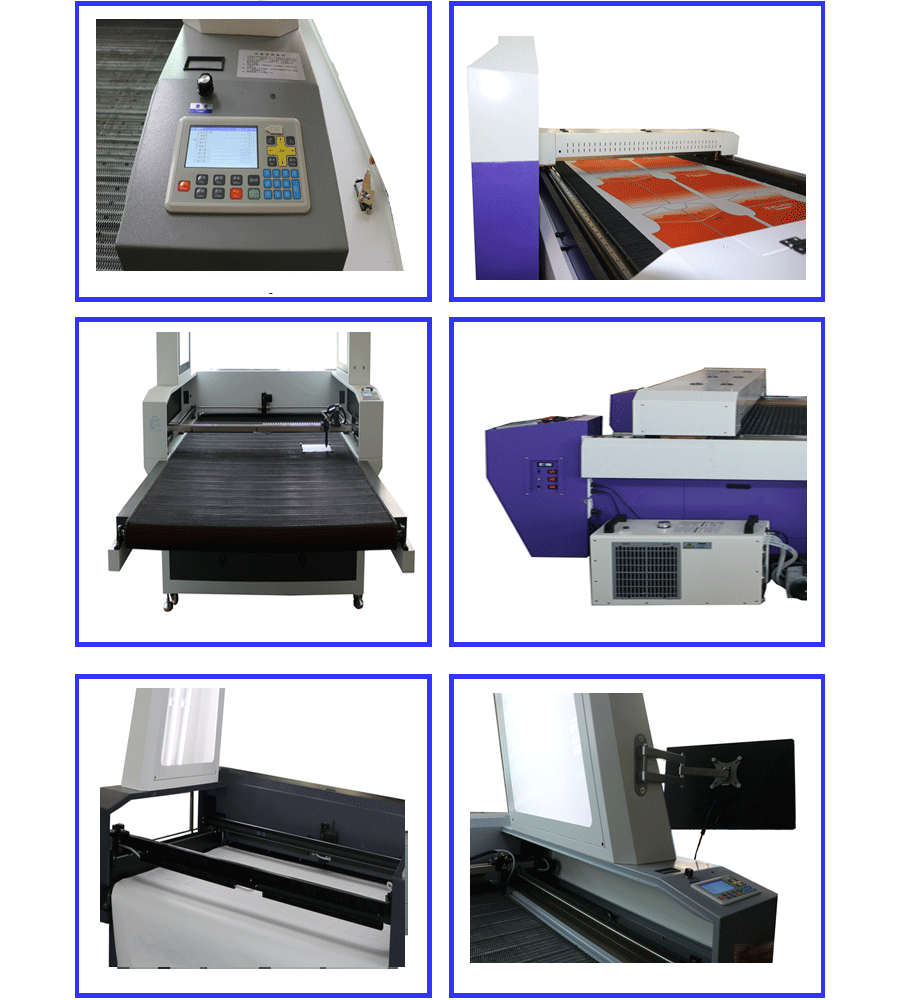

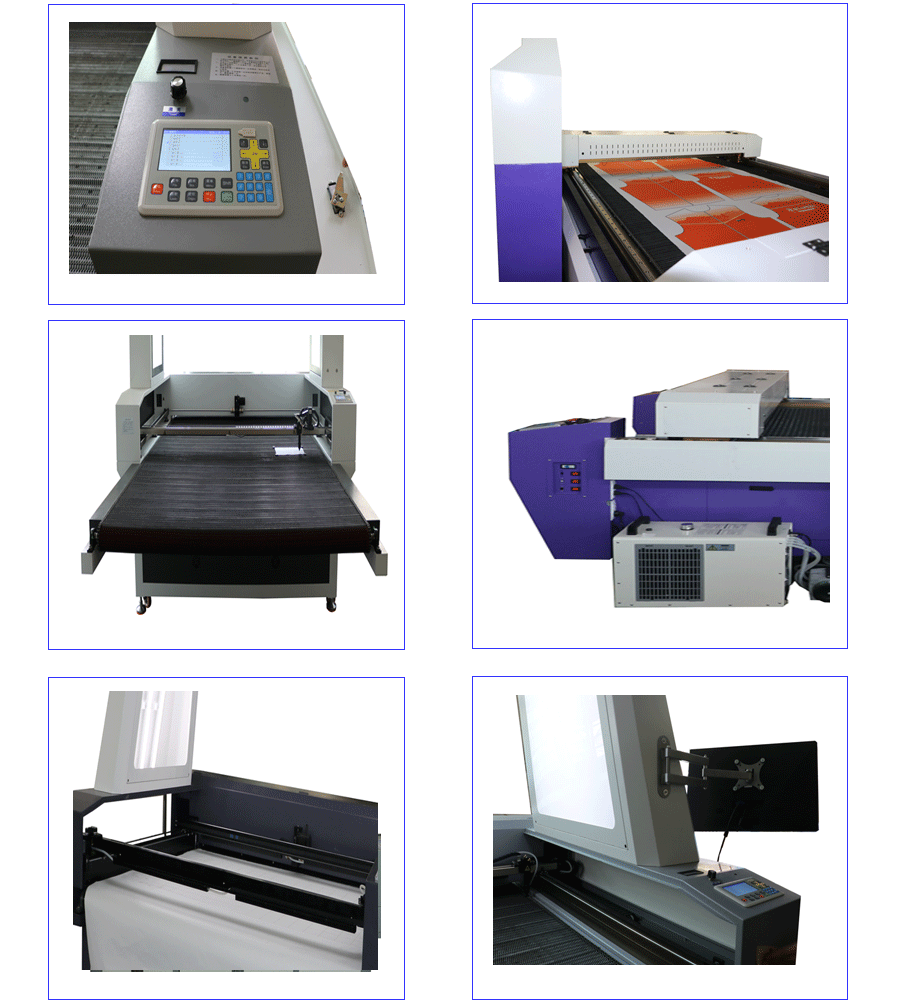

Machine details of laser cutting equipment for garment making factory

1 Applying Canon HD SLR camera, can use for dealing with 1.8 m big pattern, and cut along the fabric or leather edge, which can solve the problem cause by fabric and leather deformation and stretching, thus ensuring the precision of machine cutting

2 Imported Precision slider, High-speed and stable operation

3 Imported belts, there are 15 strips steel wires inside, have good flexibility and hard to be out of shape.

4 Lightweight laser head, move flexibly and fast

5 The device of automatic feeding and rolling materials, significantly increase productivity

6 Applying imported high-performance AC servo motor. The machine runs stably, precisely and fast.

7 Lightweight system, saves space and easy to operate. Dedicated high-performance laser tube with the perfect optical system and stable laser power.

8 After machine painted, two gantry milling machine milling flat work surface to make precision reach±0.01mm, ensure that within 10 years of machine tool will not appear laser path deviation and make the machine more durable.

9 The camera on the top of machine will captures all patterns on the worktable one time, then with the help of applicable software, the patterns photo will be input into the computer, after DSP processing it, the machine will locate the pattern edge, thus the laser head will cut materials alone the edge of patterns.

Laser cutting machines cut rolls of cloth into garment pieces according to the designer's requirements and then sew them into ready-made clothes, which is the most important technological innovation in the clothing industry.

• It can accurately cut various fabrics according to the design pattern, whether it is silk, cotton, denim or leather. For example, when making high-end custom clothing, expensive silk fabrics need to be accurately cut. Laser cutting machines can ensure neat cutting edges and avoid wear and drawing on the edges of the fabric.

• For clothing parts with complex patterns and shapes, such as curved skirts and irregular collars, laser cutting machines can quickly and accurately complete cutting tasks, greatly improving cutting efficiency.

• It can cut exquisite lace, lace and other decorative elements. Through laser cutting, fine patterns can be produced, and the edges are smooth without burrs, adding a sense of refinement to clothing.

• It is used to cut decorative parts such as applique embroidery and badges on clothing. It can accurately cut the designed pattern from the cloth or other materials, and then attach it to the clothing through heat transfer or sewing, etc., to enhance the beauty and personalization of the clothing.

• In the clothing proofing stage, the laser cutting machine can quickly make samples according to the design drawings. Due to its flexible operation and ability to quickly adjust the cutting parameters, it is convenient for designers to see the design effect in time and make modifications, shortening the development cycle of clothing. It can complete high-quality cutting tasks without relying on a large number of molds, reducing the cost of small-batch production.

184

The important role of laser cutting machines in clothing printing factories:

According to the design pattern or version requirements, it can accurately cut out fabrics of various shapes, such as complex petals, geometric figures, etc., to ensure the shape accuracy of clothing parts and enhance the overall modeling effect of clothing. It can carve hollow effects of different patterns on the fabric, such as lace-style pattern hollowing, individual irregular hollowing, etc., to add a unique sense of perspective and three-dimensionality to the clothing, making the clothing more fashionable and artistic. Cut positioning marks on the fabric to provide accurate positioning for subsequent printing processes, ensure that the printed pattern accurately matches the cut part of the fabric, avoid printing deviation, and improve the printing quality and the overall aesthetics of the clothing. Realize data interaction and collaborative work with printing equipment, accurately cut and position the fabric according to the layout and size of the printed pattern, realize automated production processes, and improve production efficiency and accuracy. It can quickly transform the designer's creativity into actual samples, shorten the sample production cycle, facilitate designers to adjust and optimize the design plan in time, and speed up the research and development and listing of new clothing products. For personalized orders or high-end customized clothing, quickly cut and shape fabrics according to customers' special requirements to meet customers' personalized needs and improve customer satisfaction.

Types of fabric laser cutting machines:

Laser medium

CO₂ laser cutting machine: CO₂ gas is used as the laser medium, and the laser wavelength generated is about 10.6μm, which is suitable for cutting various fabrics, especially chemical fiber, cotton and linen.
Fiber laser cutting machine: Fiber is used as the laser transmission medium, and its laser wavelength is generally 1.06μm, which is used to cut some fabrics with high cutting accuracy and speed requirements, such as leather, silk, etc.

Cutting head

Gantry laser cutting machine: The cutting head moves on the gantry, which can realize the cutting of large-format fabrics.
Cantilever laser cutting machine: The cutting head is installed on the cantilever, which is suitable for small fabric processing workshops or studios.

Workbench

Flatbed laser cutting machine: The workbench is a flat plate structure, and the fabric is laid flat on the workbench for cutting.

Drum laser cutting machine: The workbench is a drum structure, and the fabric is wound on the drum, and the cutting is carried out by the rotation of the drum and the movement of the cutting head.

Current development trend of fabric laser cutting machine

Fabric can only be sewn into clothes after being cut into pieces of different shapes. Laser cutting machine has now become the main equipment for fabric cutting. The development trend of fabric laser cutting machine:

• Intelligent integration: Laser cutting machines equipped with AI visual recognition system and IoT remote monitoring function are gradually entering the market;

• Improved cutting accuracy: The cutting accuracy of laser cutting equipment can reach 0.1mm, which can maximize the designer's intention and meet the market's refined requirements.

• High speed:

In order to achieve high speed, fabric laser cutting machines are now equipped with more laser heads, which doubles the efficiency. The improved efficiency also means a reduction in the processing cost of a single piece of clothing.

Energy saving and environmental protection: The impact of laser cutting machines on the environment is almost negligible. In order to protect the operator, laser cutting machines have begun to increase the protection of laser heads to prevent the operator from being burned by lasers.
