Product details

Multi-function Mini Thermal transfer machine

    The proofing roller heat transfer machine is a roller sublimation transfer machine with a smaller roller diameter, lower heating power, and smaller workbench size. It has low energy consumption: it adopts energy-saving design and components, such as some machines use low-power but efficient heating tubes to reduce energy consumption. Small footprint: the machine body has a compact structure and is usually smaller than large production equipment. The width may be 1.2-1.7 meters, and the roller diameter is 200mm, which can be flexibly placed in a limited space. Easy to operate: it is equipped with a simple and intuitive operation panel, and the temperature, speed and other parameters are digitally displayed. The operator can master the operation method after simple training. Moderate production capacity: mainly to meet the proofing needs, the hourly production capacity is generally 40-80 meters.

Clothing companies: clothing manufacturers can use it for printing proofing of clothing pieces and cloth in the new product development stage, quickly present the design effect, and determine the printing plan.

Printing processing plant: provide customers with proofing services, show the printing effect and process level, and strive for orders; it can also be used for the production of small batches and personalized orders.

Textile research institutions: used for printing experiments and research on new textile materials and new processes, and for combination tests of different fabrics, inks, and process parameters.

Technical Parameters

Mini Roll Heat transfer Machine for Textile

Model BA20120 BA20170
Roller size Diameter 200*1360 mm Diameter 200*1860 mm
Roller surface coated  coated
Transfer width 1200 mm 1700 mm
Transfer speed 150 m/h 150 m/h
The main machine dimension(mm) 1880*580*1350 2500*580*1350
The work table dimension(mm) 900*1520*1000 900*1880*1000
installed dimension(mm) 1480*1880*1350 1480*2500*1350
Blanket separation method Manual Manual
power supply 1-phase 220V 1-phase 220V
Heating temperature 260℃ 260℃
Conveyor belt material PVC PVC

Main Features

1.The most advanced technology and imported units are adopted by machine controlling system with automatic positioning, accuracy together with security, electronic constant temperature controlling with high accuracy, long service life and other features.

2.Heating wheel is controlled by sealed and heat-oil heating to efficiently ensure the even and stable temperature.

3.Printing speed is equipped with continuous speed adjustment system, feeding equipment is convenient for operation with swiftness and high reliability.

4.Equipped with continuous speed adjustment system, you can adjust printing speed as you need.

5.The roller was heating up with oil and temperature heating system.

6.We can provide total service for heat sublimation print technology,

7.Get CE certificate,1 year warranty

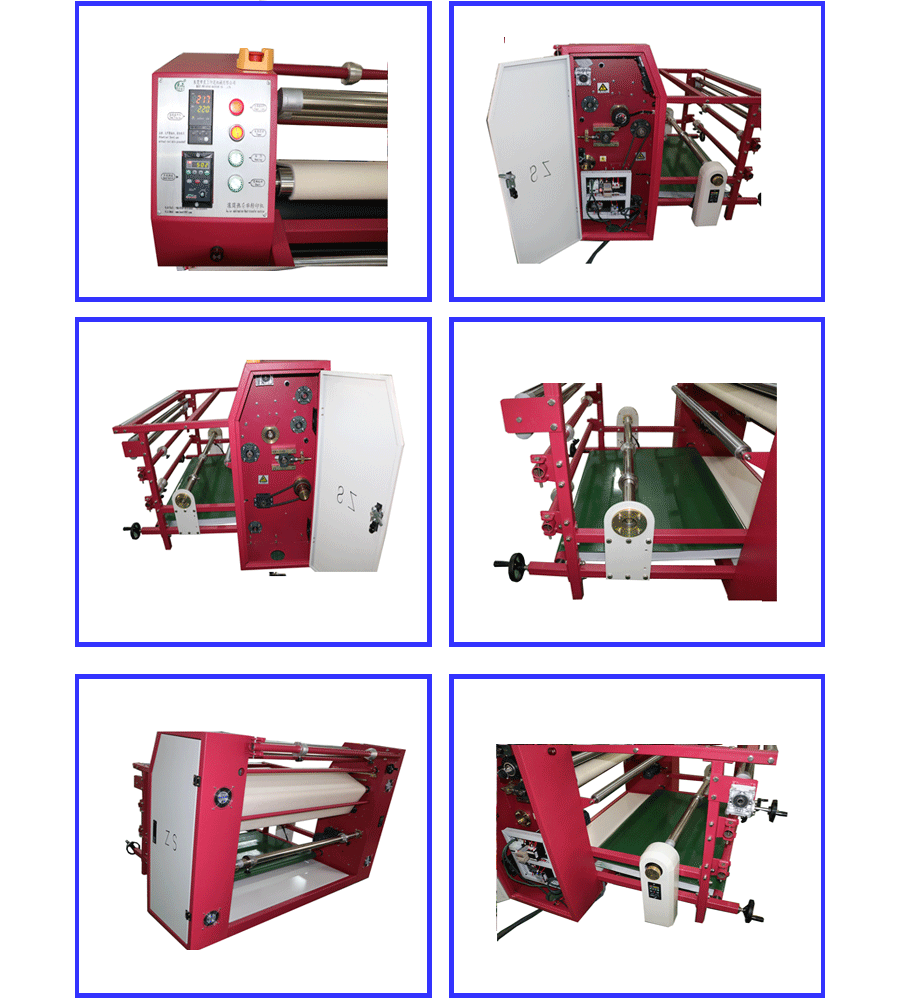

Detailed Images

1.Drum

Roller is made by seamless steel pipe, coating with a certain degree of flexibility, easy to compensate for the pressure roller between the line speed difference, to avoid graphic distortion.Life time is 5-8 years.

2.Integrated Slip Ring

Integrated slip ring, with a safety protection device, can solute all kinds of problem in the course of using carbon brush slip ring.Transmission date mote stable .Maintenance -free.

3. Blanket

Dupont materials is used to make this blanket,longer lifetime.

4.PVC Conveyor

PVC conveyor belt with flat, smooth, not easy to heat, but easy to maintain the original state of textile after the transfer; conveyor belt with a network structure, easy to heat, but short life, light textiles easily lead to wrinkles. BEST printing machinery PVC conveyor belt mainly for the user to provide a variety of textile transfer convenience. Users can choose according to their own needs.

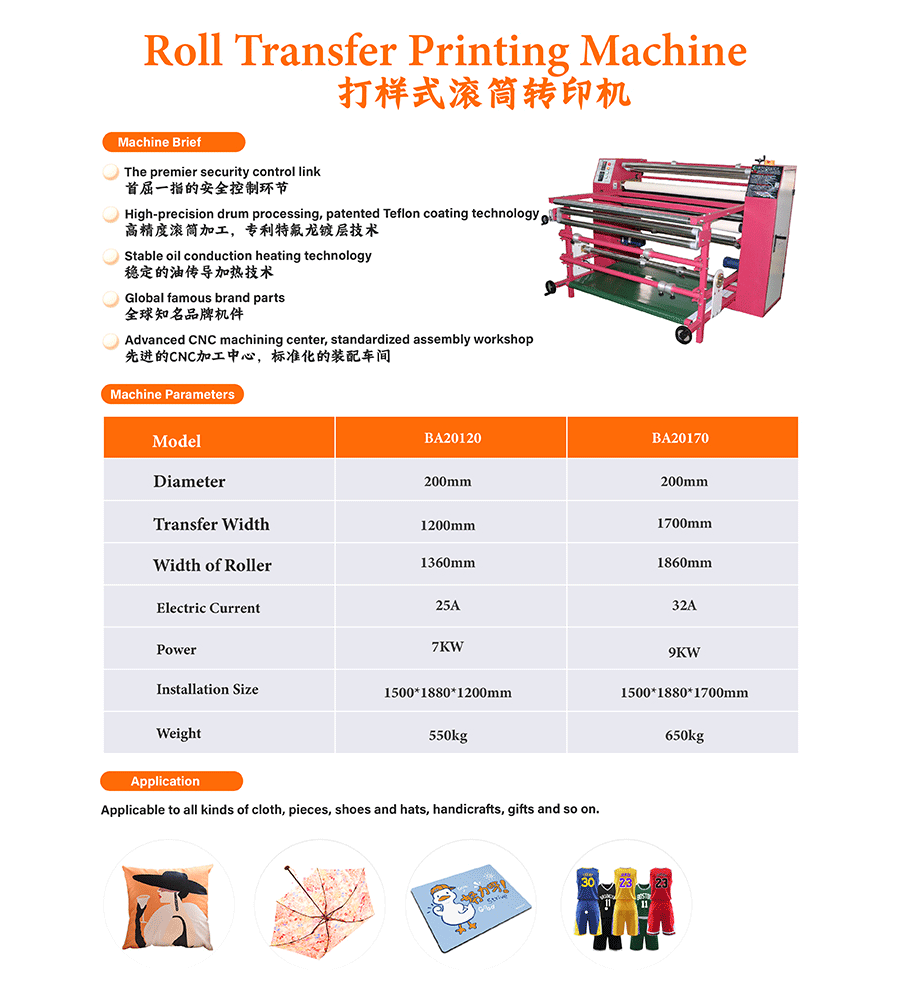

Catalogue

233

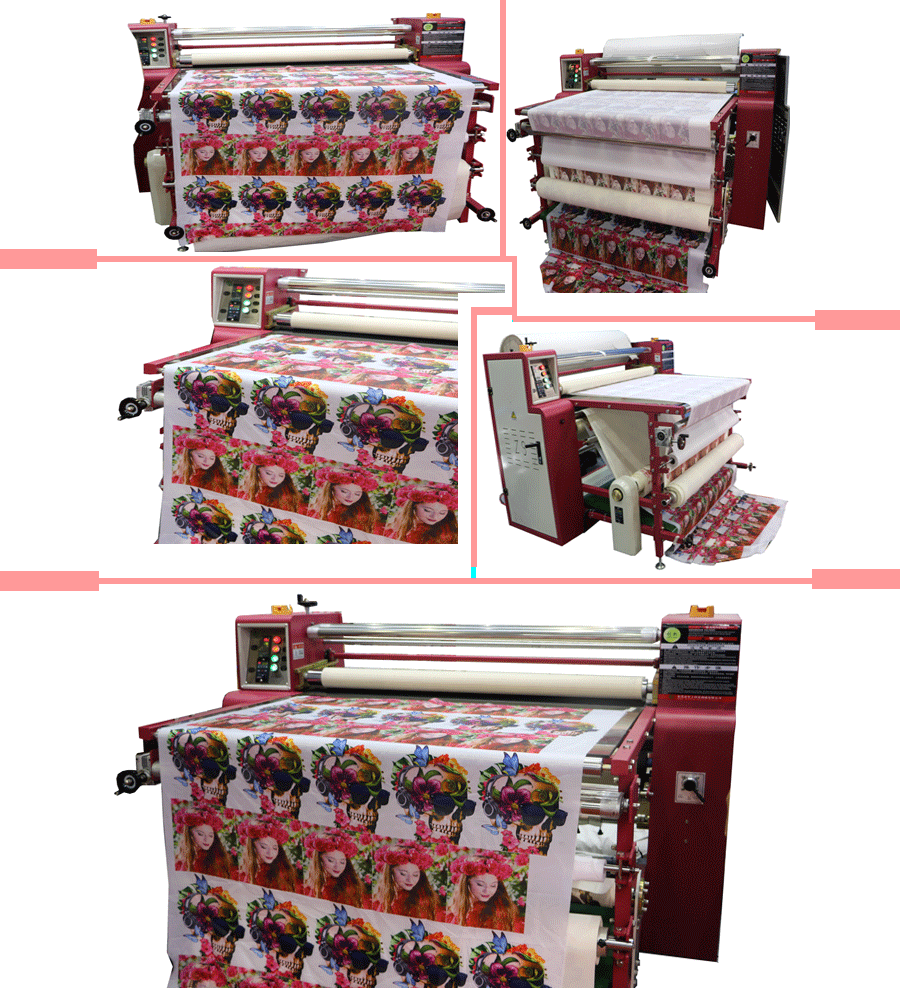

Details photo

235234

Samples

232
