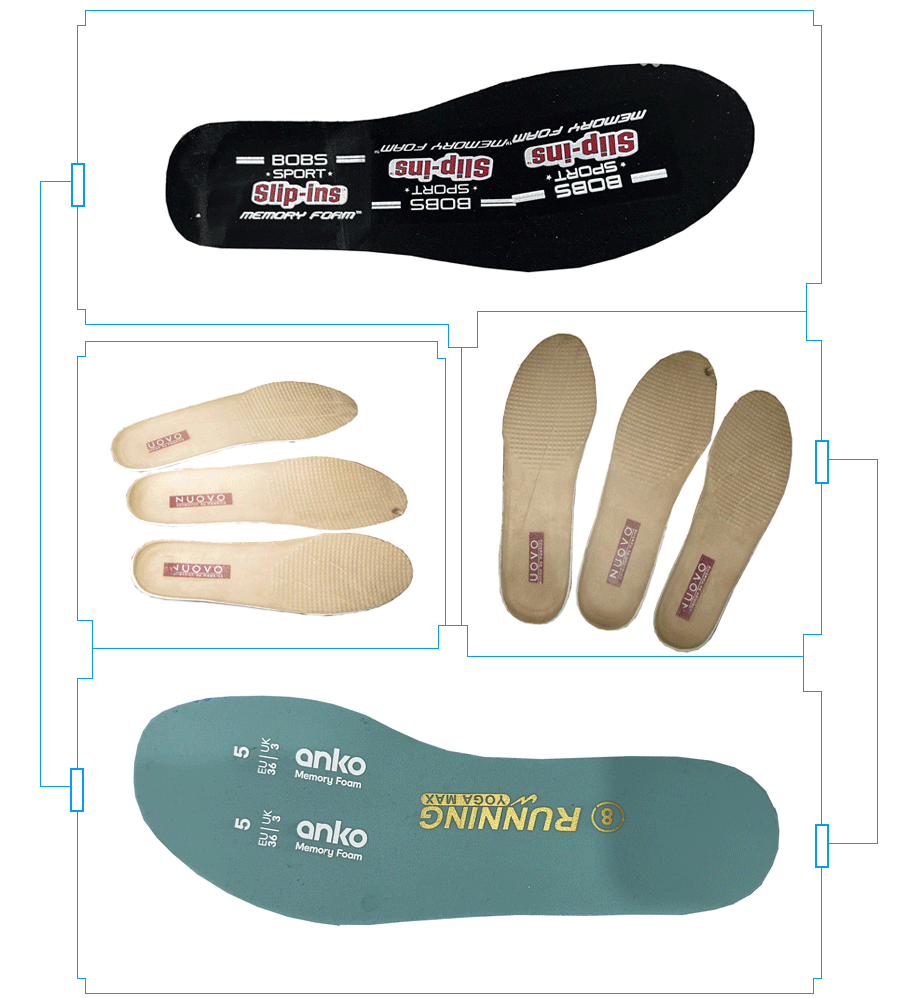

Insoles are shoe inserts, often sold with shoes. They are one of the most commonly used items in daily life. Brand logos are often printed on the heel contact area for promotional purposes. Decorative techniques include pad printing machine , stencil screen printing machine, hot stamping machines , and heat transfer printing machines .

foil Hot stamping machine and heat transfer printing machines use heat and pressure to transfer patterns, increasing the added value of insoles. Although their market share is lower than that of pad printing and silk screen printing, they are popular among high-end brand shoe manufacturers. Insoles are made of a variety of materials and have complex surface properties. Rough, textured, elastic, highly deformable, porous, and fleece-like surfaces can hinder pad and silk-screen printing. However, these materials present opportunities for foil hot stamping machines and heat transfer machines:

The pressure generated by hot stamping and heat transfer can flatten the insoles for decoration;
Hot stamping and heat transfer can conceal the porous structure of the insoles;
Hot stamping and heat transfer can accommodate insoles made of a variety of materials, including fabric, leather, and plastic;
Flatbed heat transfer machines can precisely position the heat transfer film, allowing for multi-color transfers at specific locations on the insoles, combining the multi-color capabilities of pad printing with the aesthetic appeal of hot stamping.

Catalogue

Data

Pneumatic insole hot stamping Machine and label transfer machine //Parameter
Technical parameters	H-TC810SP
	Size of stamping plate:80×100mm; Stamping height adjustable range:100mm; Size of working table: 300×800mm; Stamping temperature adjustable range:0-280; Max. stamping pressure:2000kg; Max. stamping speed:1200pcs/hr; Air consumption:80 liter/min; Heat Wattage:1000W; Max open distance: 150mm.
	Works supply	110V-220VPower supply; 5-7Bar compress air
	Package list	Wooden Case: Package size: 9808801600mm; Gross weight: 280kg.
H.S.Code	8443198000
Certificate	CE

Details-Advantage

Booster cylinder design ensures uniform and stable pressure;
PLC and touch screen control system;
Integrated precision PID temperature control module;
Function to stop the hot plate from pressing down when there is no material or an abnormal condition;
Intelligent thermal transfer film feeding mechanism with reverse motor tension adjustment;
Adjustable operating frequency for a low-noise working environment;
Switchable hot labeling and hot stamping functions.

Test factors

Types of Insole Hot Labeling transfer Machines and insole foil hot stamping machine:

Although insoles are a small product, the market is vast. Hot labeling transfer on insoles is a market segment that is being competed for by both foil hot stamping machines and label heat transfer machines. Based on customer needs and the balance between efficiency and cost, various types of insole hot labeling machines have emerged:

Semi-automatic hot labeling transfer machines and insole foil hot stamping machine: These machines require manual placement and removal of insoles, but can automatically perform some of the hot labeling steps, such as heating and pressurization. These machines utilize high-precision fiber optic positioning, achieving an accuracy of ±0.02 mm and an average production rate of over 1,000 pairs per hour. Semi-automatic hot labeling transfer machines can be configured with either one or two stations. Dual-station hot labeling transfer machines support two people operating simultaneously, doubling efficiency.

Fully automatic hot labeling transfer machines and automatic insole foil hot stamping machine : These machines feature automatic feeding, automatic cursor positioning, and automatic hot pressing, eliminating the need for excessive manual intervention and significantly improving production efficiency and hot labeling accuracy. Fully automatic hot labeling transfer machines can also print two insoles at a time, utilizing an automatic elevator for feeding, a robotic arm for transfer, and full servo control.
