Clock cisc pneumatic hot stamping machine

Application-Samples

      Many high-end brands use hot stamping machines to stamp their brand logos on color boxes, such as the color boxes of cosmetics brands Lancome . The golden logo can enhance the brand's high-end sense and recognition. On holiday gift boxes, hot stamping machines are used to stamp patterns such as the Chinese New Year blessing, snowflakes, and Valentine's Day love hearts to add to the festive atmosphere and the exquisiteness of the gift. Hot foil stamping technology is also often used for product names, specifications, advertising slogans, etc. For example, on the color boxes of Moutai, the product name and related instructions are more eye-catching and solemn after hot stamping.

Advantages

Large-area hot foil  stamping machines need to generate strong pressure, which puts forward higher requirements on the overall rigidity of the hot stamping machine. The workbench and hot plate must maintain sufficient strength and cannot deform under continuous pressure. Especially in the hot stamping process of embossing, the hot plate and the workbench should be able to maintain contact for a long time. A small displacement may lead to defective products. Therefore, large-size flat hot stamping machines have the following characteristics:

1) The workbench and hot plate are forged with high-strength alloy tool steel or carbon tool steel;

2) The booster cylinder and solenoid valve are used for precision control;

3) The support and basic connectors of the machine are all made of steel to avoid aluminum;

4) The workbench and hot plate have a high degree of flatness, and any slight bending will cause uneven pressure.

Large-area hot stamping machines have huge pressure, which can be used for hot stamping of large-area products, as well as for leather indentation, wood pyrography, and paper product die-cutting. Due to the huge pressure, careless operation may cause harm to the human body, so a safety grating should be installed on the workbench.

Data

Catalogue

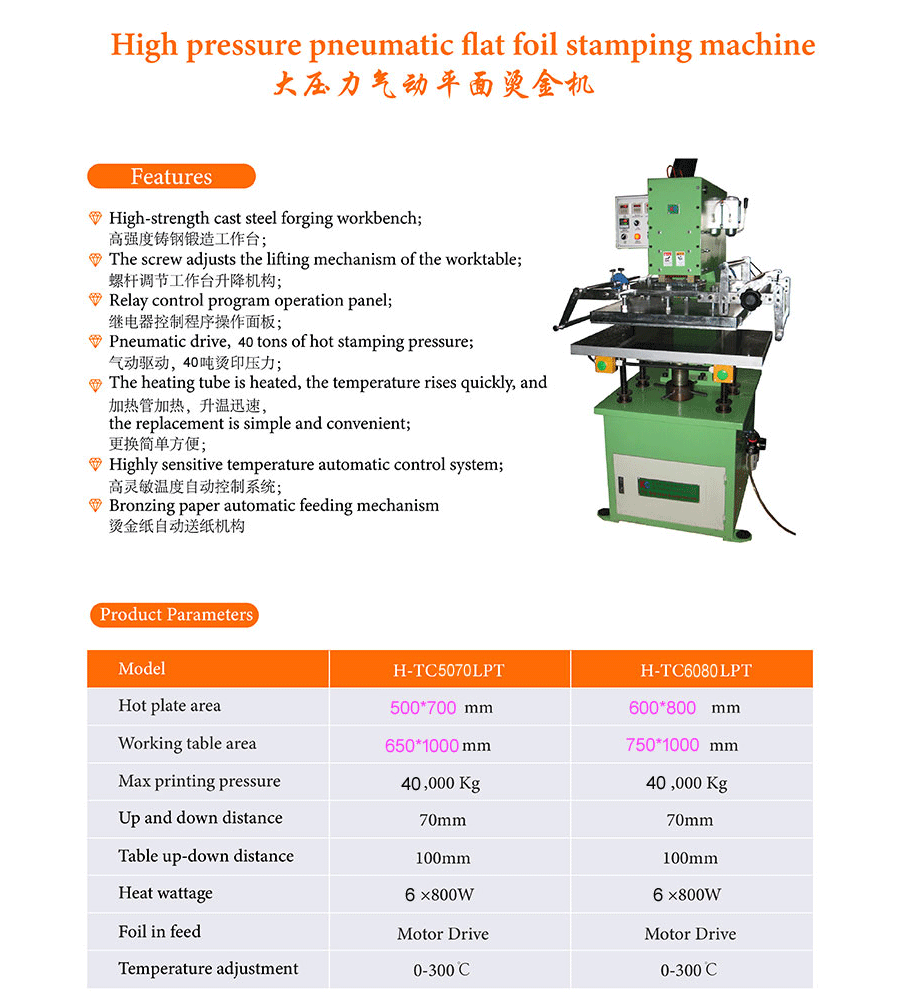

Advantage- 15 tons pressure gilding machine

• Bench made of high strength cast steel forging, has a very high flatness and stability;
• Thread rising institutions to adjust the table lift to facilitate the opening and closing of space according to the height adjustment of the product tipping machine;
• Relay control program is running, easy operation, easy maintenance;
• Pairs of buttons control the stamping head up and down, security is greatly enhanced;
• Pneumatic drive instead of the pneumatic drive, stamping pressure significantly improve the stability is greatly enhanced;
• Heating pipe heating, rapid heating, replacement is simple and convenient;
• Heating plate can be removed to facilitate installation and replacement gilt template;
• Ironing board and table parallelism can be adjusted to facilitate the flexible adjustment depending on the size of the different regions of the pressure;
• Automatic temperature control system can be set depending on the product temperature, automatic temperature control; temperature control accuracy of about 5 degrees;
• Hot foil stamping degree of time and rolls of time can be set freely according to different technical requirements;
• Foil paper automatic document feeder, conveyor length can be set according to the size of the stamping area of freedom.
