automatic Bottle cap hot stamping machine

Preview:

          The Vertical Rotary Automatic Hot Stamping Machine is specially designed for high-speed circumferential hot foil stamping of cylindrical plastic products with diameters below 50mm, including bottle caps, cosmetic caps, pharmaceutical caps, and other plastic packaging components. As a high-performance Automatic Bottle Cap Hot Stamping Machine, it integrates advanced automation technologies such as a vertical rotary table system, full servo drive control, automatic feeding, precision positioning, foil rewinding, and intelligent unloading to provide efficient and stable hot stamping solutions for mass production.  The machine consists of an automatic loading system, vertical rotary turntable, loading robot, high-speed servo hot stamping unit, automatic foil rewinding system, touchscreen control panel, and unloading robot. Bottle caps are loaded into the feeding tray, where the sorting mechanism automatically arranges products in the correct direction and transfers them to the feeding conveyor. The loading robot accurately places each cap onto the dedicated fixture of the vertical rotary table. The rotary table then moves the products continuously through the dust removal, positioning, hot foil stamping, and unloading stations, ensuring precise and consistent printing results.  Equipped with a full servo hot stamping control system and intelligent PLC touchscreen operation, this High Speed Fully Servo Automatic Cap Hot Stamping Machine delivers smooth movement, high positioning accuracy, and reliable performance. With a production capacity of up to 2,500 caps per hour, it is an ideal solution for customers requiring a Best Selling Automatic Cap Hot Stamping Machine for cosmetic packaging, beverage caps, daily chemical products, and other high-end plastic container decoration applications.





Machine advantage

• Vertical cylinder pressure mechanism design provides strong and stable stamping force, ensuring clear and high-quality hot foil stamping results.
• Multi-directional stamping head adjustment (front-back, left-right, and up-down) allows quick and convenient positioning, improving operation safety and efficiency.
• 8-position rotary feeding mechanism design significantly reduces loading preparation time and improves overall stamping speed and production efficiency.
• Adjustable stamping parameters, including pressure, temperature, and stamping time, allow flexible settings for different cap materials and printing requirements.
• Automatic foil feeding and foil collecting system with adjustable control ensures smooth foil transportation and reduces material waste.
• Adjustable stamping head lifting height accommodates different cap sizes and product specifications.
• Automatic hopper storage and crawler feeding system enables continuous and stable cap supply for fully automatic production.
• Automatic cap orientation detection system accurately identifies the top and bottom position of caps, ensuring correct positioning before hot foil stamping.
• Fully automatic hot stamping process integrates feeding, positioning, stamping, and collection for efficient production.

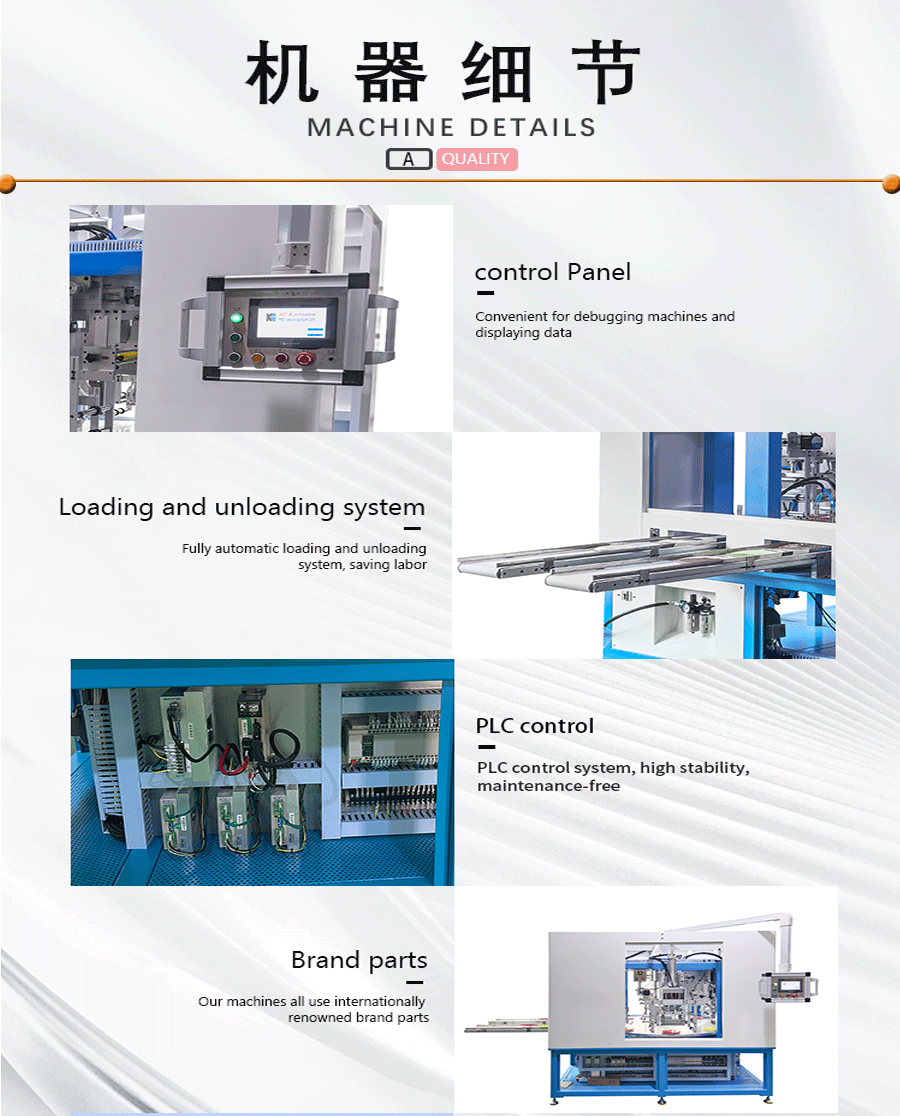

• Advanced modular PLC control system with touchscreen HMI interface, combined with reliable SMC pneumatic control components, provides intelligent operation, precise control, and stable machine performance.
• Square column structural design ensures high rigidity, durability, and long-term operating stability.
• High-precision imported sensor control system accurately manages stamping pitch and positioning, improving hot stamping consistency and visual quality.
• Precision linear bearing system provides smooth movement, high durability, and lightweight operation, extending machine service life and ensuring reliable performance.
• Rotary table design with automatic inflatable positioning device enables stable side stamping of caps and ensures accurate printing results for various cap shapes and sizes.

The Difference Between Hot foil Stamping machine and Thermal Transfer machine

        In the plastic packaging decoration industry, hot stamping and thermal transfer play important roles. While they are closely related, they also have subtle differences. Hot stamping relies on metal foil to achieve a single or holographic metallic effect, while thermal transfer uses transfer film to reproduce full-color patterns.

Specific differences are as follows:

• Transfer Media--Hot stamping uses various colored metal foils, typically consisting of a polyester film base with a metal coating. Thermal transfer uses thermal transfer film (including a release layer, color layer, and adhesive layer), which can be pre-printed with full-color patterns.
• Effects--Hot stamping can only achieve single metallic colors such as gold and silver, or special textures such as matte and laser, but cannot produce multi-color or gradient effects. Thermal transfer supports full color, gradients, and photo-quality patterns, with high color reproduction and the ability to reproduce complex graphics.
• Process Focus--Hot stamping: Using high temperature and high pressure, the metal layer of the foil is peeled off and transferred to the substrate, creating a metallic texture. Thermal transfer: Using high temperature, the color and adhesive layers of the transfer film are melted, resulting in a complete transfer to the substrate, with the emphasis on image transfer.
• Positioning--Hot stamping foil has no pattern restrictions, requiring only a rough length limit for transport and no positioning requirements. Thermal transfer film, on the other hand, has an independent pattern integrity and requires positioning during transport. This requires a relative position relative to the product, thus requiring sensor control.
